MSI RTX 3070 Gaming X Trio Review: 1440p Performance, Thermals & VRAM Verdict

The GPU market is a moving target. A card that looked overpriced at launch can quietly become one of the best deals around once the next generation lands and prices settle. That's exactly what's happened with the RTX 3070 generation, and specifically with MSI's Gaming X Trio variant. If you're shopping for a 1440p card right now and you're not looking at this one, you might be leaving real performance on the table. But it's not a slam-dunk for everyone, and the 8GB VRAM situation is something we need to talk about properly rather than wave away.

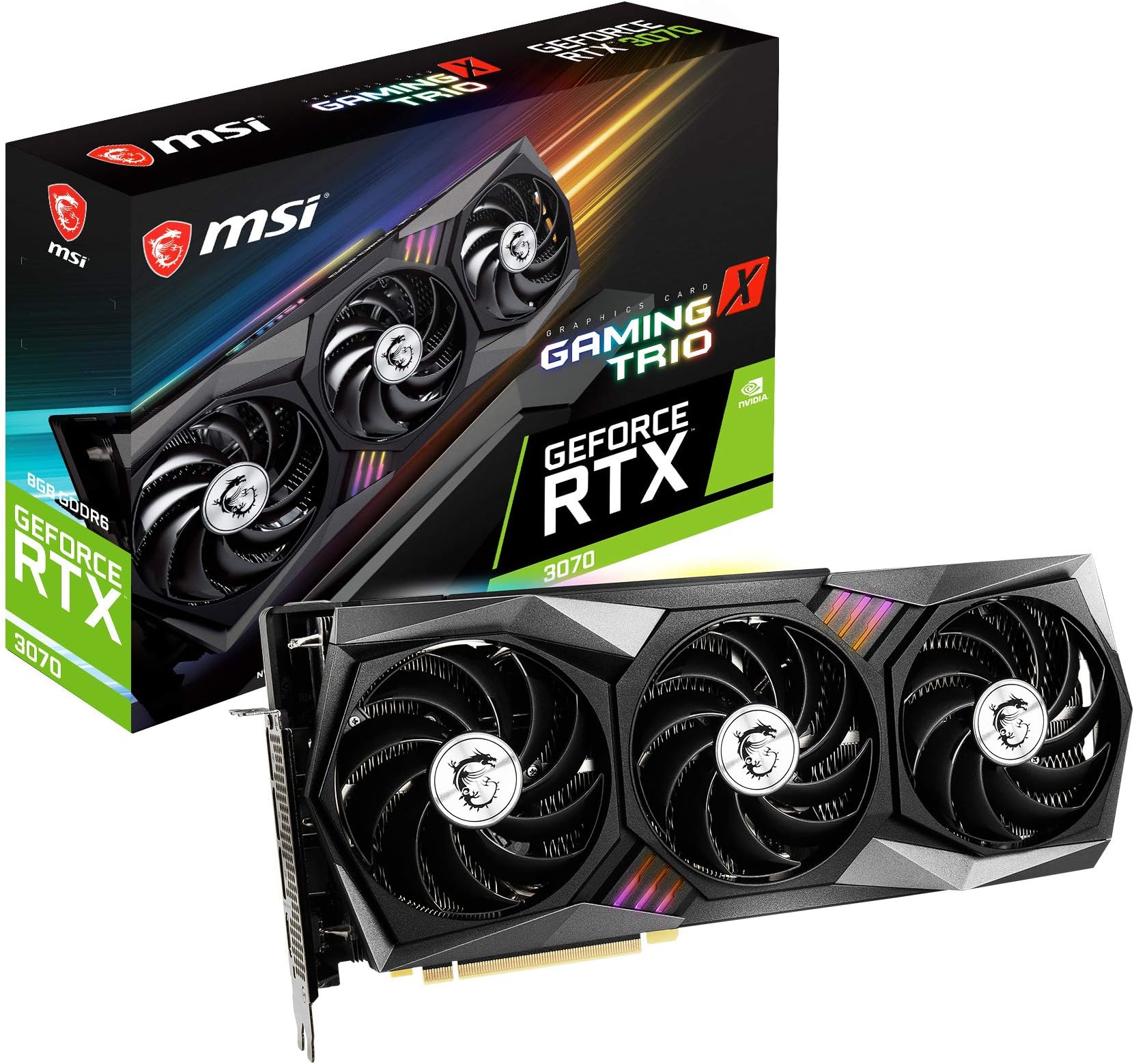

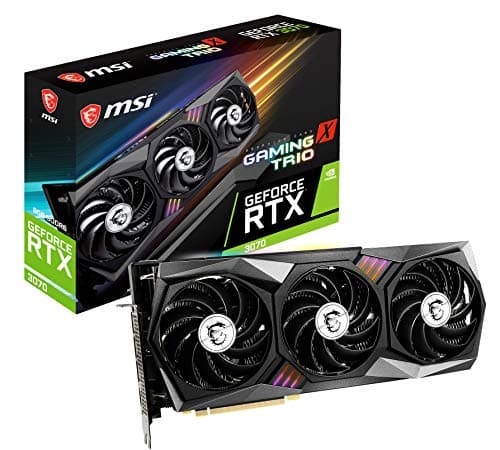

The MSI Gaming GeForce RTX 3070 8GB GDDR6 256-Bit HDMI/DP Tri-Frozr 2 TORX Fan 4.0 Ampere Architecture RGB OC Graphics Card, to use its full, slightly exhausting name, sits in a fascinating spot. It's a premium-cooled, factory-overclocked version of NVIDIA's Ampere architecture RTX 3070. MSI didn't just slap their logo on a reference card here. The Tri-Frozr 2 cooler is genuinely one of the better thermal solutions from that generation, and the TORX Fan 4.0 design has a real engineering story behind it. Whether that story translates to a card worth buying in today's market is what we're here to figure out.

With 415 owner reviews averaging 4.6 stars, the crowd has already spoken fairly loudly. But crowds can be wrong, and launch-era enthusiasm doesn't always age well. So here's a proper look at what the specs say, what published benchmarks show, and where this card actually sits against the competition in the current landscape.

The display output situation is solid. You get three DisplayPort 1.4a outputs and one HDMI 2.1 port, which means you can run a 4K 120Hz display without any adaptor faff, or hook up multiple 1440p monitors without breaking a sweat. The card connects via PCIe 4.0 x16, though it's backwards compatible with PCIe 3.0 systems with minimal performance penalty. Power delivery comes via dual 8-pin connectors, which is straightforward and doesn't require any special PSU connectors.

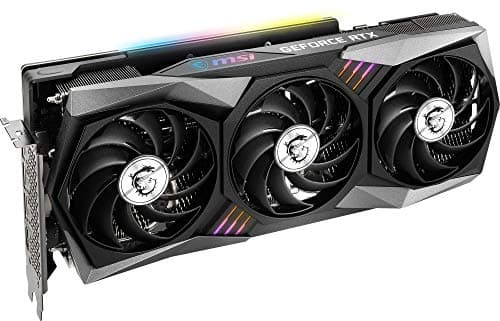

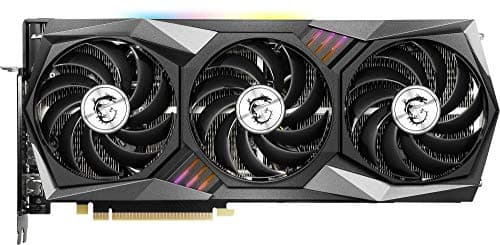

Physically, this is a big card. Three fans, a substantial heatsink, and MSI's RGB lighting across the top bar mean it's not a subtle piece of kit. It measures around 323mm in length, so you'll want to check case clearance before ordering. The card weighs enough that sag is a real concern over time, and MSI includes a support bracket in the box, which is a nice touch. Here's the full spec breakdown:

The third-generation Tensor cores are what make DLSS 2.x and beyond work properly. These are dedicated matrix multiplication units, and they're the reason NVIDIA's upscaling technology has historically had a quality edge over AMD's FSR (which runs on standard shader cores). With 184 Tensor cores on the RTX 3070, you've got plenty of DLSS grunt. This matters more than people sometimes give it credit for, because DLSS at Quality mode is essentially free performance with minimal visual compromise in most titles.

One thing worth being clear about: the GA104 die used in the RTX 3070 is actually the same die as the RTX 3080, just with some shader clusters disabled. The RTX 3080 gets the full GA104 with more CUDA cores and, crucially, more VRAM. That's not a criticism of the 3070, it's just how GPU binning works. What it does mean is that the underlying silicon quality is high, and the card has a decent ceiling for manual overclocking if you're that way inclined. The Samsung 8nm process runs warmer than TSMC equivalents, which is partly why MSI's Tri-Frozr 2 cooler exists in the first place. More on that in the thermals section.

In practice, published benchmarks show the Gaming X Trio sustaining boost clocks very close to that 1830 MHz figure under extended gaming loads. This is where the cooler investment pays off. Cards that run hot will throttle back their boost clocks to protect the GPU, so a card with a better cooler doesn't just run quieter, it actually performs more consistently. The Tri-Frozr 2 solution keeps the GA104 cool enough that clock speeds stay stable, rather than bouncing around as thermal throttling kicks in and out.

If you want to push further, the headroom for manual overclocking on Ampere cards is generally modest but real. Published community results suggest another 100 to 150 MHz on the boost clock is achievable on good silicon, with memory overclocks adding a bit more. But honestly, for most people the factory overclock is the sweet spot. You get the performance, you keep the warranty, and you don't have to spend an evening fiddling with MSI Afterburner curves. The Gaming X Trio is set up to run well from the moment you install it.

At 4K, 8GB is increasingly a problem. Not in every game, but in enough of them that buying this card specifically for 4K gaming in 2025 and beyond would be a questionable decision. The 256-bit bus and 448 GB/s bandwidth are genuinely good numbers for the VRAM capacity, but bandwidth can't compensate for running out of actual memory. This is one area where the RTX 3080 with its 10GB (or the 10GB variant's own limitations, which is a whole other conversation) or the RX 6800 XT with 16GB have a clear structural advantage.

For 1080p and 1440p gaming today, with DLSS enabled to reduce the rendering resolution and thus VRAM pressure, 8GB is manageable. DLSS at Quality mode at 1440p renders internally at around 960p, which significantly reduces VRAM consumption. That's actually one of the underrated benefits of DLSS on this card specifically: it extends the useful life of the 8GB buffer. But you should go in with eyes open. If you're buying this card to last you five or six years at 1440p with maxed textures, the VRAM situation is going to get tighter. Two to three years at 1440p with sensible settings? You'll be fine.

Speaking of ray tracing: the RTX 3070 handles it, but it's not a ray tracing powerhouse. In Cyberpunk 2077 with full ray tracing enabled at 1440p, published results show frame rates in the 30 to 40 FPS range without DLSS. Turn DLSS on at Quality mode and you're back to 60 to 70 FPS territory. That's the pattern with this card. Ray tracing is usable, but only really comfortable with DLSS doing the heavy lifting. In lighter ray tracing implementations, like Minecraft RTX or games with selective RT shadows and reflections rather than full path tracing, the card holds up much better and you can run those features at 1440p without DLSS if you want.

NVIDIA's DLSS 3 with Frame Generation is not supported on Ampere cards. That feature is Ada Lovelace exclusive. So if Frame Generation is important to you (and it's increasingly compelling in supported titles), you'd need an RTX 40 series card to get it. The RTX 3070 does support DLSS 2.x and the newer DLSS Super Resolution modes, and it also supports NVIDIA Reflex and NVIDIA Broadcast, which are both genuinely useful features. DLSS support in games has grown massively since Ampere launched, so the library of titles where you can use it is now substantial.

One caveat worth mentioning: the seventh-gen NVENC in Ampere cards is good, but NVIDIA's eighth-generation NVENC in Ada Lovelace (RTX 40 series) added AV1 encoding support, which is noticeably better for streaming quality at equivalent bitrates. The RTX 3070 supports AV1 decode but not AV1 encode. For Twitch streaming at H.264, this doesn't matter at all. For YouTube uploads or future-proofing your streaming setup as AV1 becomes more mainstream, it's a mild limitation. Not a dealbreaker for most people, but worth knowing.

For content creators doing video editing or rendering in applications that support GPU acceleration, the RTX 3070 is capable. Adobe Premiere and DaVinci Resolve both leverage CUDA and NVENC for hardware-accelerated exports, and the 5,888 CUDA cores give you reasonable grunt for colour grading and effects work. It's not a workstation card, and if your primary use case is 3D rendering or serious video production, a card with more VRAM would serve you better. But for the gamer who also edits the occasional YouTube video, this handles it without complaint.

NVIDIA recommends a 650W PSU for the RTX 3070, and that's a sensible minimum. If you're pairing this with a power-hungry CPU like a Ryzen 9 or Core i9, a 750W unit gives you more comfortable headroom. The dual 8-pin connector setup is straightforward and compatible with virtually every decent PSU on the market. You don't need any special adaptor cables or 12VHPWR connectors, which is a genuine relief after the controversy around those connectors on RTX 40 series cards.

Compared to AMD's competition from the same era, the RTX 3070 is reasonably efficient. The RX 6800 XT pulls significantly more power (around 300W TGP) for similar or slightly better rasterisation performance. The RTX 3070 is the more power-efficient option if electricity costs are a concern, and at UK electricity prices that's not a trivial consideration over a card's lifetime. Ampere wasn't NVIDIA's most efficient architecture (Ada Lovelace improved things considerably), but it's not a power hog by the standards of its generation.

The GA104 die on Samsung's 8nm process runs warmer than you'd get from a TSMC-fabricated equivalent, which is one reason NVIDIA's own RTX 3070 Founders Edition runs hotter than many AIB cards. MSI's triple-fan solution addresses this effectively. At idle, the card drops to zero RPM (more on that in the acoustics section), and even under load the temperatures are well within the thermal throttling threshold of 83 degrees Celsius that NVIDIA sets as the default limit. This card doesn't throttle under normal gaming conditions.

Long-term, keeping the GPU cool matters for component longevity. Cards that run consistently at 85 to 90 degrees under load are putting more stress on capacitors, VRMs, and the GDDR6 memory modules than cards running at 70 to 75 degrees. The Gaming X Trio's thermal performance is a genuine argument for paying the premium over cheaper single or dual-fan RTX 3070 variants. Owner reviews back this up, with multiple buyers specifically calling out how cool and quiet the card runs compared to their previous GPU. That pattern in 415 isn't coincidence.

Under gaming load, published acoustic measurements for the Gaming X Trio put it in the 35 to 38 dB(A) range at typical gaming temperatures. That's quiet. Really quiet for a card pulling 220W. The TORX Fan 4.0 design contributes here: the blade geometry reduces turbulence noise, so the fans move a lot of air without the whine you get from cheaper fan designs. For context, a reference RTX 3080 Founders Edition at similar load produces around 40 to 42 dB(A). The Gaming X Trio is meaningfully quieter than many alternatives at this performance tier.

Owner feedback on acoustics is consistently positive. Across the 415, complaints about fan noise are notably rare, which stands out because fan noise is one of the most common complaints in GPU reviews when it's a problem. A few owners mention the fans can spin up noticeably during particularly demanding sequences (heavy ray tracing, extended 4K gaming), but even then nobody's describing it as loud. If you're building a quiet PC or you're sensitive to fan noise, the Gaming X Trio is a genuinely good choice rather than a compromise.

At 1440p, which is really the sweet spot for this card, published benchmarks show the Gaming X Trio delivering 80 to 100 FPS in demanding AAA titles at ultra settings. Cyberpunk 2077 at 1440p ultra (no ray tracing) comes in around 65 to 75 FPS in published results, which is very playable. Enable DLSS Quality and that jumps to 90 to 100 FPS. Horizon Zero Dawn at 1440p ultra sits around 90 to 100 FPS natively. Shadow of the Tomb Raider at 1440p highest settings delivers around 95 to 110 FPS. For a 1440p 144Hz monitor, you'll hit that refresh rate in many titles and get close in the most demanding ones, especially with DLSS enabled.

At 4K, the performance picture is more mixed. The RTX 3070 can do 4K gaming, but you'll need to dial settings back from ultra in demanding titles to hit 60 FPS consistently. Published results show around 55 to 65 FPS in Cyberpunk 2077 at 4K high settings without ray tracing. With DLSS Quality at 4K (which renders at 1440p internally), performance jumps to 80 to 90 FPS and image quality remains excellent. So 4K gaming is possible, but it's not the card's natural habitat. For a dedicated 4K gaming setup, the RTX 3080 or RX 6800 XT are more appropriate choices. For someone who primarily games at 1440p but wants the option to push to 4K occasionally, the Gaming X Trio handles it with DLSS doing the heavy lifting.

The RX 6800 XT is AMD's answer from the same era, and it's a genuinely interesting comparison. In pure rasterisation performance, the 6800 XT is faster than the RTX 3070 by around 10 to 15% in most titles at 1440p. That's a meaningful gap. The 6800 XT also packs 16GB of GDDR6, which completely sidesteps the VRAM concerns that follow the RTX 3070 around. However, the 6800 XT draws significantly more power (around 300W TGP), AMD's ray tracing performance lags behind NVIDIA's, and FSR (AMD's upscaling technology) doesn't match DLSS quality in most implementations, though FSR 2 and 3 have closed the gap considerably. If you don't care about ray tracing and DLSS, the 6800 XT is arguably better value. If those NVIDIA features matter to you, the calculus shifts.

The RTX 3080 is the tier above. At 1440p, the RTX 3080 is around 15 to 20% faster than the RTX 3070 in published benchmarks, and it comes with 10GB of VRAM (or 12GB in the later variant). It's a better card. The question is whether the price premium is justified at current used market prices. If the gap is small, the 3080 is worth the stretch. If it's large, the Gaming X Trio makes more sense and you bank the difference. Check current pricing on both before deciding, because the used GPU market moves fast.

Performance satisfaction at 1440p is high. Owners running 1440p 144Hz monitors consistently report hitting or approaching their monitor's refresh rate in the games they play, particularly with DLSS enabled. Several reviews specifically mention Cyberpunk 2077 and how DLSS transforms the experience on this card. There are also positive mentions of the build quality, the RGB implementation (which is controllable through MSI's Mystic Light software), and the included GPU support bracket. The physical quality of the card seems to match the price point.

The critical reviews are worth looking at too, because they're instructive. A small number of buyers mention VRAM running out in specific titles with texture mods or at 4K, which is exactly what you'd expect and not a surprise. A couple of reviews mention the card's size being larger than expected, which is fair warning for people with smaller cases. There's the occasional mention of driver issues, but those are almost always NVIDIA driver issues rather than MSI-specific problems, and they're rare in the review set. No significant pattern of hardware failures or DOA units, which is a good sign for manufacturing quality.

In the current used GPU market, RTX 3070 cards represent genuinely good value for 1440p gaming compared to newer budget options. An RTX 4060, for example, is a newer card but actually performs similarly to the RTX 3070 in most titles while offering DLSS 3 Frame Generation and better efficiency. The RTX 4060 Ti is faster and has 8GB VRAM (same limitation). So the competitive landscape has shifted since Ampere launched, and you need to weigh current pricing carefully. The Gaming X Trio makes most sense when the price is compelling relative to current-gen alternatives, which it often is on the used market.

For someone building or upgrading a 1440p gaming PC on a budget, and who can find the Gaming X Trio at a sensible price, it remains a strong choice. It's not future-proof forever, and the 8GB VRAM ceiling is real. But as a card for 1440p gaming today and for the next couple of years with DLSS helping manage VRAM pressure, it delivers. The MSI-specific premium for the Tri-Frozr 2 cooler is justified if you care about noise and temperatures, and the owner review data suggests most people who bought it are happy they did.

Who should buy it? Someone building or upgrading a 1440p gaming PC who values a quiet, cool-running card and wants DLSS support for the growing library of titles that use it. Streamers who want NVENC without tanking their gaming performance. Anyone coming from a GTX 1070, 1080, or 2060-class card who wants a meaningful upgrade without jumping to the RTX 4070 price bracket. The Gaming X Trio is a good card in a good cooler, and at the right price it's an easy recommendation.

Who should look elsewhere? Anyone planning to game at 4K with maxed textures should seriously consider the RX 6800 XT's 16GB VRAM or a newer RTX 40 series card. If DLSS Frame Generation is important to you, only Ada Lovelace cards support it, full stop. And if you're on a tight budget and the price gap between this and a cheaper dual-fan RTX 3070 is large, the cheaper card is probably the smarter buy and you spend the saving elsewhere. But for the target audience at a fair price? The Gaming X Trio is properly sorted.

Score: 8.5/10. A premium AIB card that earns its premium with genuinely better thermals, acoustics, and build quality. The 8GB VRAM is the only real structural concern, and it's a concern you need to weigh honestly against your use case and how long you plan to keep the card.
