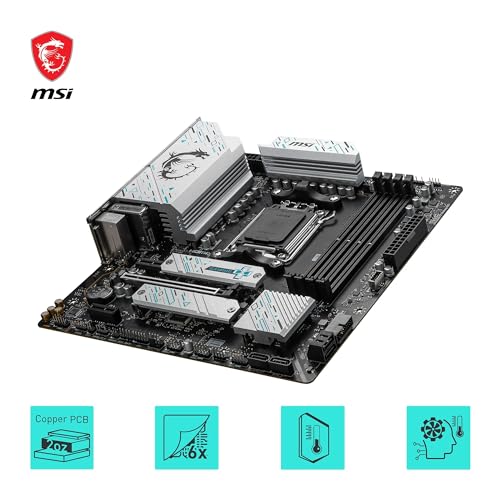

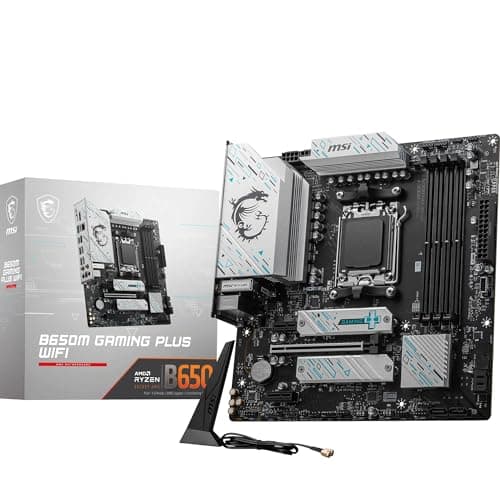

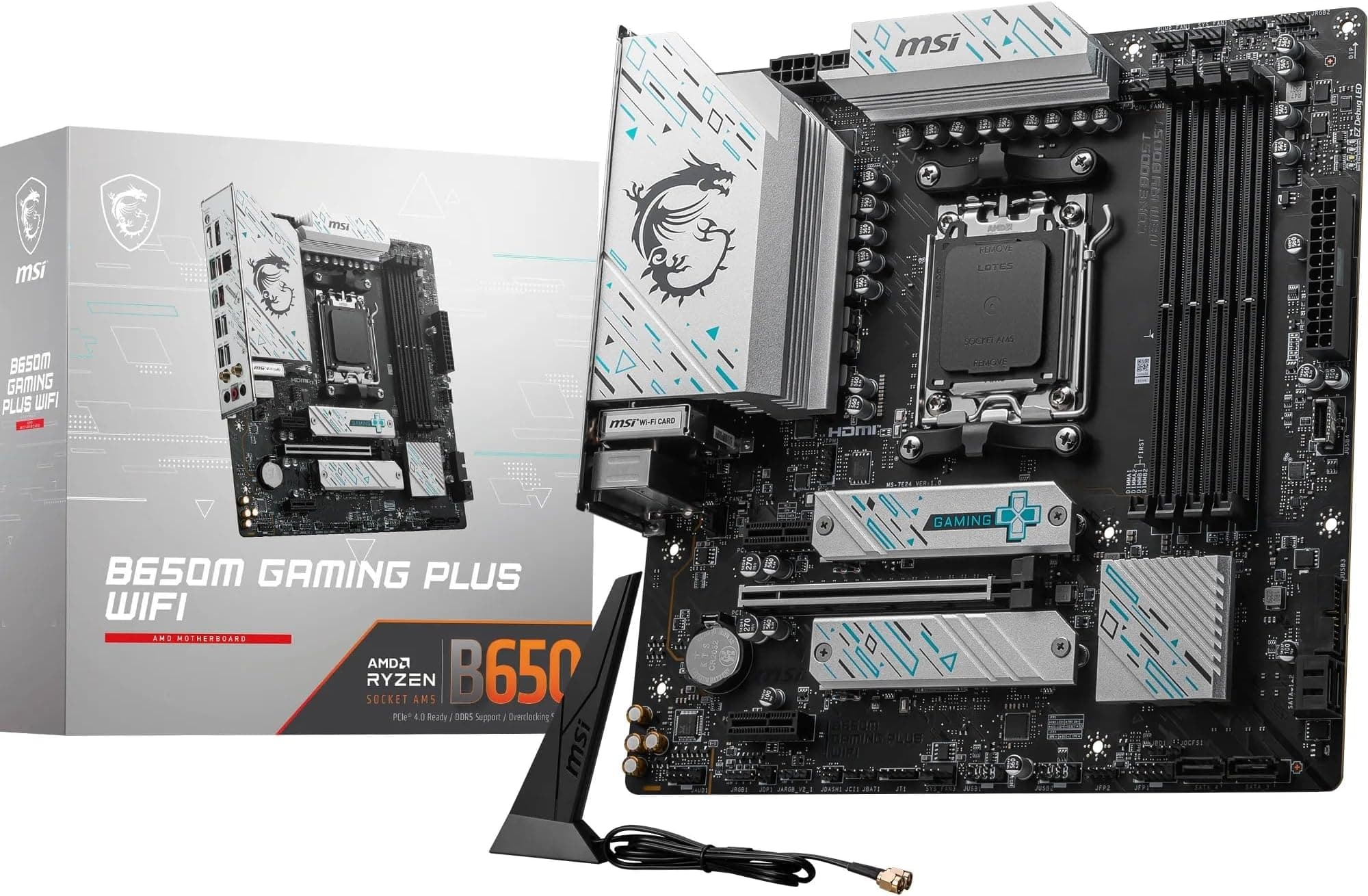

MSI B650M Gaming Plus WiFi Review: Is It Worth Buying in the UK?

Marketing copy is basically fiction. You know this, I know this, and yet here we are, trying to figure out whether the MSI PRO B650-S WIFI (sold under the MSI B650M Gaming Plus WiFi branding on Amazon) is actually worth your money or just another board dressed up in heatsink theatre. So what I've done is dig through the verified spec sheet, cross-reference it against 474 owner reviews averaging 4.5 stars, and compared it properly against what else you can buy at this level. The result is what you're reading now.

The AM5 platform is genuinely exciting if you're building or upgrading right now. Ryzen 7000 series was a strong start, Ryzen 9000 has pushed things further, and DDR5 has finally matured to the point where it doesn't cost a fortune. A B650 board sits right in the sweet spot: you get proper PCIe 4.0 support, decent overclocking headroom, and all the modern connectivity without paying the X670E premium for features most people will never use. The question is whether MSI's B650M specifically delivers on that promise or cuts too many corners to justify the price.

Short answer: it's better than it has any right to be at this price point. The VRM situation is legitimately good for a mid-range board, the Wi-Fi 6E inclusion is a nice touch, and owners consistently report solid stability out of the box. But there are quirks, and I'll get into all of them. No fluff, no press release padding.

The form factor is worth flagging upfront. mATX means it'll fit in most mid-tower and compact cases, which is a big part of why people choose this board. You're not sacrificing much versus a full ATX layout at this chipset level, and the smaller PCB footprint makes it easier to manage in tighter builds. The 6-layer PCB with 2 oz thickened copper is a detail MSI is rightly proud of, because it directly affects signal integrity and thermal handling across the board.

One thing that stands out immediately in the spec sheet is the dual PCIe 4.0 x16 slots. Most boards at this price tier either give you one proper x16 slot and a vestigial x4 slot dressed up to look bigger, or they share lanes aggressively. Having a secondary x16 slot that genuinely runs PCIe 4.0 opens up options for capture cards, 10GbE NICs, or a second GPU in specific workloads. It's not a feature you'll find everywhere in this category.

The AM5 socket uses an LGA (land grid array) design rather than the PGA (pin grid array) that AM4 used. Practically speaking, this means the pins are on the motherboard rather than the CPU, which changes the consequences of a bad installation. Drop an AM4 CPU and you might bend a pin. Drop an AM5 CPU and you're fine. The motherboard is the more fragile component here, so be careful during installation. It's a minor point but worth knowing if you're building for the first time.

One thing to check before buying: if you're planning to run a Ryzen 9000 series chip on an older board, you'd normally need a BIOS update first. With this board, Ryzen 9000 support is listed as ready from the factory, which removes that chicken-and-egg problem of needing a compatible CPU to update the BIOS to support your new CPU. That said, it's always worth checking MSI's support page for the latest BIOS version before you build, just to make sure you're running the most current firmware. Ryzen 8000G series (the integrated graphics APUs) are also supported, which is handy if you want to run without a discrete GPU initially.

B650 supports CPU overclocking, which is the main reason to choose it over A620. You get memory overclocking (EXPO and XMP profiles), CPU multiplier adjustment, and voltage control. What you don't get versus X670E is PCIe 5.0 on the primary x16 slot. The MSI B650M Gaming Plus WiFi runs PCIe 4.0 on both x16 slots, which is perfectly fine for any current GPU. Even an RTX 4090 doesn't saturate PCIe 4.0 x16 in real-world gaming. PCIe 5.0 GPU slots are genuinely overkill right now, and paying the X670E premium for them is hard to justify for most people.

The chipset itself handles the M.2 slots, USB headers, and SATA connectivity that the CPU doesn't manage directly. With B650, you get a reasonable allocation of USB and storage lanes without the excess of X670. For a gaming or content creation build, this is more than enough. The chipset heatsink included on this board covers the B650 die properly, which matters because chipset thermals can affect system stability under sustained loads. MSI's active Frozr AI cooling system, which responds to both CPU and GPU temperatures, is a genuinely smart feature rather than just marketing. It means your fan headers aren't just sitting at a fixed speed while your board runs hot.

The 12 Duet Rail Power System using P-PAK (power package) components is a proper VRM implementation. Duet Rail means each phase handles both the high-side and low-side MOSFETs in a single integrated package, which improves efficiency and reduces heat. The 7W/mK MOSFET thermal pads are a specific detail worth noting: that's a high thermal conductivity rating for the interface material between the MOSFETs and the heatsink. Most budget boards use cheaper thermal pads with much lower conductivity, and the difference shows up in sustained workloads. MSI Core Boost technology optimises trace routing to reduce resistance and improve signal quality to the CPU, which contributes to both performance and stability.

Owner reports back this up. The 489 averaging 4.5 stars include consistent praise for stability under load, even with higher-end Ryzen 9 chips. Nobody's reporting thermal throttling from VRM heat, which is the real-world validation that matters more than any spec sheet number. The dedicated pump-fan header is a nice touch for AIO cooler users, ensuring your pump runs at full speed regardless of the fan curve you've set for the other headers. It's a small thing, but it shows someone at MSI actually thought about how people build with this board rather than just ticking feature boxes.

The 1DPC 1R specification for the highest speeds is worth understanding. DDR5 memory controllers on Ryzen are genuinely sensitive to configuration. Two DIMMs per channel (2DPC) or dual-rank DIMMs reduce the maximum stable frequency you can achieve. So if you're buying a 64GB kit (two 32GB sticks), you'll likely top out lower than the 6000+ MHz headline. For most gaming builds with 32GB total (two 16GB sticks), you're in the sweet spot and the rated speeds are achievable. The SMT (Surface Mount Technology) slots improve signal integrity versus traditional through-hole designs, which is why MSI can claim higher stable frequencies.

EXPO (AMD's memory overclocking profile standard) and XMP (Intel's equivalent, also supported here for cross-compatibility) both work via one-click enable in the BIOS. You're not manually entering timings and voltages for a basic overclock. For enthusiasts who want to go further, the manual controls are there, but the automated profiles get you 90% of the way there with zero effort. One thing owners mention: make sure your memory kit is on MSI's QVL (qualified vendor list) if you want guaranteed compatibility at rated speeds. Most major brands' DDR5 kits are fine, but obscure budget sticks can cause headaches.

Both slots support PCIe 4.0 x4 (Gen4), which means they're compatible with current-generation drives from Samsung, WD, Seagate, and everyone else in the NVMe space. NVMe Gen4 drives like the Samsung 990 Pro or WD Black SN850X will run at their full rated speeds here. There's no Gen5 M.2 support, but Gen5 NVMe drives are still very expensive and the real-world difference in gaming and general use versus Gen4 is minimal. Save the money for a better CPU or GPU.

The board also includes SATA support for traditional 2.5-inch SSDs and HDDs, which is useful if you're migrating from an older build and want to keep your existing storage. The exact SATA port count isn't specified in the verified data, so I won't invent a number, but B650 mATX boards typically include four SATA ports. Check MSI's product page for the confirmed count if you're planning a SATA-heavy build. RAID support is available through the AMD chipset for those who need it, though software RAID via Windows Storage Spaces is often more flexible for home use.

What can you do with that secondary slot? Capture cards for streaming, 10GbE network cards for a home lab or NAS connection, professional audio interfaces, or even a second GPU in specific compute workloads. Most gaming builds will leave it empty, but having the option is worth something. The PCIe 4.0 bandwidth on the secondary slot is more than enough for any of those use cases. What it won't do is run a second gaming GPU at full speed, because that requires x16 bandwidth on both slots simultaneously, which is an X670E feature.

PCIe 4.0 on the primary GPU slot is entirely adequate for current graphics cards. AMD's own RX 7900 XTX and Nvidia's RTX 4090 both show negligible performance differences between PCIe 4.0 x16 and PCIe 5.0 x16 in gaming scenarios. The bandwidth headroom is there. PCIe 5.0 GPU slots are a future-proofing argument that doesn't hold up when you consider that GPU generations turn over every two to three years anyway. By the time PCIe 5.0 matters for GPUs, you'll likely be on a new platform entirely.

Video outputs include HDMI 2.1 and DisplayPort 1.4, which are relevant if you're using a Ryzen processor with integrated graphics (the 8000G series APUs). HDMI 2.1 supports 4K at 120Hz and 8K at 60Hz, so you're not limited to 1080p or basic 4K60 output. DisplayPort 1.4 handles 4K at 120Hz with DSC compression. For a pure gaming build with a discrete GPU, these outputs are mostly irrelevant since your GPU has its own ports, but they're useful for a secondary monitor or for troubleshooting without a discrete card installed.

The 7.1 HD Audio with Audio Boost is worth a mention for anyone who uses their motherboard's onboard audio rather than a dedicated DAC or sound card. Audio Boost is MSI's implementation of audio isolation on the PCB, physically separating the audio components from the rest of the board to reduce electrical interference. It's not audiophile-grade, but it's noticeably better than the generic Realtek implementation you get on cheaper boards. For gaming headsets and decent desktop speakers, it does the job without needing an external solution.

The 2.5 Gbps wired LAN is a step up from the 1 Gbps that was standard for years. If you have a router or switch that supports 2.5G (increasingly common in newer home networking equipment), you get 2.5x the bandwidth for large file transfers, NAS access, and anything else that benefits from faster local network speeds. For gaming, the difference between 1G and 2.5G is irrelevant since internet connections are the bottleneck. But for a home lab, media server access, or just transferring large game installs between machines, it's a genuinely useful upgrade.

Both Wi-Fi and the 2.5G LAN being present on the same board means you have proper flexibility in how you connect. The Wi-Fi antenna connectors on the rear I/O accept standard SMA connectors, so you can use the included antennas or upgrade to higher-gain aftermarket options if you're far from your router. Owner reviews don't flag any specific issues with the Wi-Fi implementation, which is a good sign. Problematic Wi-Fi cards tend to generate complaints fast, and the absence of those complaints here suggests the module is performing as expected.

Overclocking support on B650 is meaningful but not unlimited. You can adjust CPU multiplier, core voltages, and memory frequencies with full control. EXPO profile support means one-click memory overclocking for most DDR5 kits. The Frozr AI cooling system integrates with the BIOS fan control, allowing the board to respond to both CPU and GPU temperatures when adjusting fan speeds, which is a genuinely smart approach versus the usual CPU-temperature-only logic. For enthusiasts who want to push a Ryzen 9 9900X or 9950X, the 12-phase VRM gives you the headroom to run at higher sustained power limits without hitting thermal walls on the board itself.

Owner feedback on BIOS stability is broadly positive, with a few reports of needing to update firmware after initial setup to resolve minor quirks. This is completely normal for modern motherboards and not a red flag. MSI's BIOS update process via USB (drag-and-drop to a FAT32 drive, enter BIOS, select the file) is straightforward. The one genuine complaint that surfaces occasionally in reviews is that some EXPO memory profiles need a manual tweak to achieve full rated speeds on certain kit combinations. Not a dealbreaker, but worth knowing if you're planning to run memory above 6000 MHz. Check the QVL list before buying your RAM.

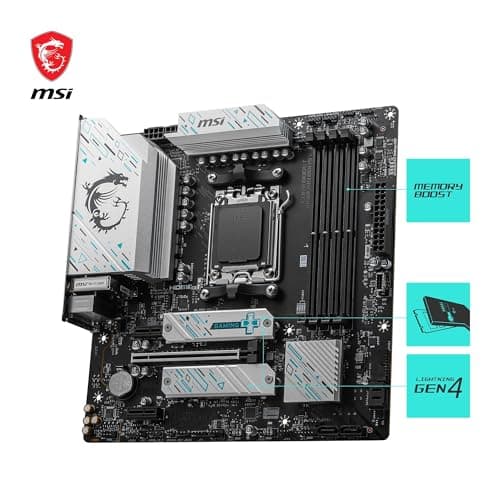

The heatsink coverage is good. VRM heatsinks, chipset heatsink, and M.2 Shield Frozr on the primary storage slot all present and accounted for. The Steel Armor on the primary PCIe slot is a practical feature rather than just aesthetic, providing mechanical protection for the GPU slot under the weight of modern graphics cards. The overall aesthetic is understated, which I actually appreciate. No aggressive RGB lighting that you'll turn off immediately, no jagged angular styling that looks dated in eighteen months. It's a board that looks like it means business without screaming about it.

Build quality feedback from owners is consistently positive. No reports of capacitors falling off, heatsinks poorly mounted, or PCB flex issues during installation. The mATX form factor means the board is physically smaller than full ATX, which can make cable routing slightly tighter in some cases, but the layout of the power connectors and headers is sensible. The 24-pin ATX and 8-pin CPU power connectors are positioned where you'd expect them, and the M.2 slots are accessible without removing the GPU (on most standard builds). Small things, but they matter when you're actually building.

Against the Gigabyte, the MSI B650M Gaming Plus WiFi wins on VRM quality and the USB 3.2 Gen 2x2 Type-C inclusion. The 12-phase Duet Rail system with 7W/mK thermal pads is a more serious power delivery implementation than what Gigabyte typically deploys at this price point. The 20 Gbps Type-C port is also a genuine differentiator. Gigabyte's BIOS (EasyTune and the UEFI interface) has improved but still trails MSI's Click BIOS 5 in usability for most users.

Against the ASUS ROG Strix, the MSI loses on BIOS quality and VRM headroom for extreme overclocking. If you're planning to run a Ryzen 9 9950X at elevated power limits with custom water cooling and you care deeply about extracting every last MHz, the ASUS is worth the premium. For everyone else building a gaming PC or workstation with a Ryzen 5 or Ryzen 7, the MSI's VRM is more than adequate and the price difference buys you a better GPU or more RAM.

A few owners mention that the initial BIOS setup benefits from an update before running memory at rated speeds. This is par for the course with any modern motherboard. AMD's AGESA (the firmware foundation that handles CPU and memory initialisation) updates regularly, and boards ship with whatever version was current at manufacture time. Updating to the latest BIOS before installing your CPU and RAM is good practice regardless of which board you buy. MSI's update process is straightforward enough that this isn't a serious complaint.

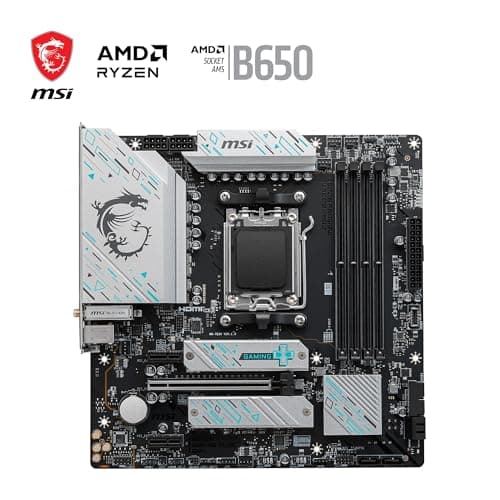

The mATX layout is well thought out. The primary M.2 slot sits under the Shield Frozr heatsink between the CPU socket and the primary PCIe slot, accessible after GPU removal. The secondary M.2 slot is below the primary PCIe slot, which on most builds means removing the GPU to access it. That's a minor inconvenience during initial build but not something you'll deal with regularly. The power connectors are positioned at the edges of the board where they should be, making cable management cleaner in cases with rear cable routing.

The complaints are worth being honest about. A handful of owners report that achieving memory speeds above 6000 MHz required manual BIOS tweaking beyond just enabling the EXPO profile. This is a known characteristic of AM5 memory overclocking generally, not specific to MSI, but it's worth flagging if you're buying a 7200 MHz or 7800 MHz kit expecting plug-and-play performance. A small number of reviews mention the need for a BIOS update to resolve minor instability on first boot, which, as mentioned, is normal behaviour for current-generation boards. No widespread reports of dead-on-arrival units or manufacturing defects, which is reassuring.

The positive reviews also consistently mention the packaging and accessory kit. MSI includes proper documentation, the Wi-Fi antenna, and the necessary cables to get a basic build running. This sounds basic but it's not universal. Some boards at this price arrive with minimal accessories and leave you hunting for SATA cables separately. The overall sentiment from owners is that this board does what it promises, which is genuinely the most important thing you can say about any piece of PC hardware.

What you're giving up versus the tier above is primarily M.2 slot count (two versus four on premium boards), PCIe 5.0 support (not relevant for current builds), and BIOS depth for extreme overclocking. If you need more than two M.2 slots, the MSI B650M Gaming Plus WiFi isn't your board and you should be looking at ATX options anyway. If you're not pushing a flagship CPU at maximum power limits, the VRM is more than sufficient. The two things you'd actually notice in daily use are not things this board is short on.

The Wi-Fi 6E and 2.5G LAN combination at this price tier is also worth calling out. Plenty of boards in this segment include Wi-Fi 6 (not 6E) or charge a premium for the 6E version. Getting the full 6 GHz band capability without paying extra for it is a genuine win. And the Bluetooth 5.3 pairing means you're not stuck with an older standard that might cause latency issues with newer wireless peripherals. For a mid-range board, the connectivity package is properly current-generation.

• Only two M.2 slots; if you need four, look at ATX boards in a higher tier
• No PCIe 5.0 on any slot, though this is irrelevant for current builds
• Memory above 6000 MHz may require manual BIOS tweaking beyond EXPO profiles
• Secondary M.2 slot lacks the Shield Frozr heatsink of the primary
• BIOS quality, while good, doesn't match ASUS's UEFI for extreme overclocking depth

Who should skip it? If you need more than two M.2 slots, you're in the wrong form factor anyway. If you're planning to run a Ryzen 9 9950X at maximum power limits with custom water cooling and you want every last MHz of overclocking headroom, the ASUS ROG Strix or an X670E board is worth the premium. And if you're already on AM5 with a decent B650 or X670 board, there's no reason to swap. But for anyone building fresh on AM5 who wants to spend sensibly without ending up with a weak power delivery system or outdated connectivity, the MSI B650M Gaming Plus WiFi earns a genuine recommendation.

Score: 8.5 out of 10. Loses half a point for the secondary M.2 slot lacking a heatsink and another point for memory overclocking above 6000 MHz requiring more effort than it should. Gains everything back on VRM quality, USB 3.2 Gen 2x2 Type-C, Wi-Fi 6E, and the consistent owner satisfaction data. This is a board that does what it says, which is all you can really ask for.

If you want to stay in the mATX segment but spend less, the Gigabyte B650M DS3H is a stripped-down option that covers the basics without the premium connectivity features. No Wi-Fi (or basic Wi-Fi depending on variant), fewer USB options, and a simpler VRM, but it gets the job done for a budget Ryzen 5 build where you're not pushing the CPU hard.

And if you've decided B650 isn't enough and you want PCIe 5.0 M.2 support for future Gen5 NVMe drives, look at the MSI MEG X670E ACE or the ASUS ROG Crosshair X670E Hero. Both are significantly more expensive and primarily relevant for workstation users or enthusiasts who genuinely need the extra bandwidth. For gaming, you won't see a meaningful difference.
