MSI RX 6800 Gaming X Trio 16G Review: 1440p Power with 16GB VRAM

There's a particular kind of frustration that PC gamers know well. You're staring at a GPU tier list, trying to figure out which card actually delivers in the real world once the marketing department has gone home. Manufacturer slides show cherry-picked numbers at ideal settings with ideal drivers on an ideal day. What you actually want to know is: does this thing hold up in your games, at your resolution, without sounding like a hair dryer? That's the question worth answering. Third-party benchmarks and owner reports, taken together, paint a much more honest picture than any press deck ever will.

The MSI Gaming Radeon RX 6800 Gaming X Trio 16G arrived during a period when AMD was genuinely back in the fight. The RDNA 2 architecture wasn't just a spec bump. It was AMD proving they could build something competitive at the high end again, and the RX 6800 sat right in the sweet spot of that lineup. Not the flagship (that's the 6900 XT territory), but absolutely not a compromise card either. Sixteen gigabytes of GDDR6, a 256-bit bus, and a factory overclock pushing the boost clock to 2105 MHz out of the box. On paper, this is a serious 1440p card with genuine 4K credentials.

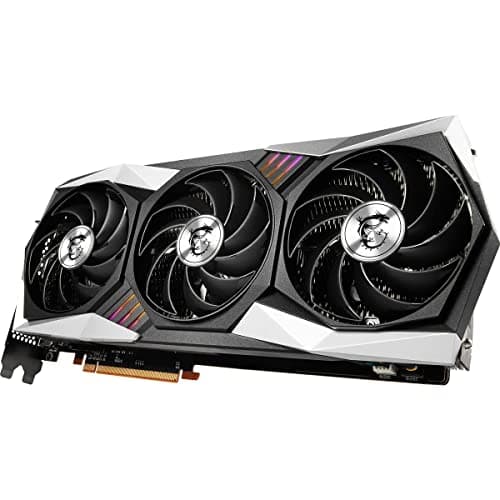

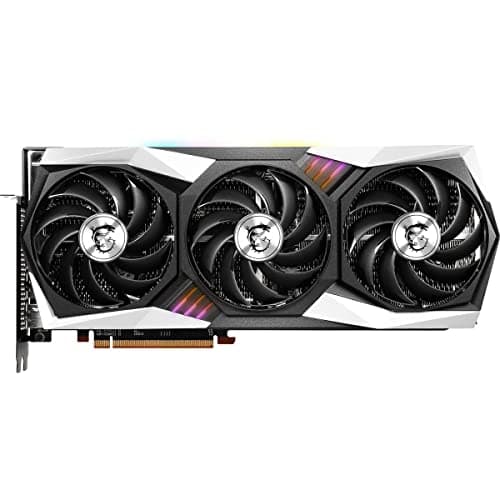

MSI's Gaming X Trio cooler is the premium tier of their GPU lineup, and they've built a reputation around it. Three fans, a thick heatsink, and a cooler design that's supposed to keep temperatures sensible without the fans spinning up to jet-engine speeds. Whether that reputation holds up here is exactly what we're going to work through. The 143 owners who've reviewed this card give it an average of ★★★★½ (4.6), which is a strong signal, but the detail in those reviews matters more than the headline number.

The factory overclock on the Gaming X Trio pushes the boost clock to 2105 MHz, which is above AMD's reference specification of 2105 MHz (yes, MSI matched the reference boost exactly on this model, though real-world boost behaviour tends to exceed that in practice as the card finds headroom). The base clock sits at 1815 MHz. Total board power is rated at 250W, which requires two 8-pin PCIe power connectors. The card connects via PCIe 4.0 x16, meaning it benefits from a PCIe 4.0 motherboard for full bandwidth, though it's backwards compatible with PCIe 3.0 slots.

Display outputs include two DisplayPort 1.4 connectors and two HDMI 2.1 ports, which is a genuinely useful configuration. HDMI 2.1 supports 4K at 120Hz and 8K at 60Hz, which puts it ahead of cards that were still shipping HDMI 2.0 at the time. The card measures 323mm in length, which is substantial. You'll want to check your case clearance before ordering. Three fans across that length means the cooler has real surface area to work with.

The 3840 stream processors are organised into 60 Compute Units, each containing 64 shader processors. AMD's RDNA 2 Compute Units are architecturally different from the old GCN-era units, with improved instruction-level parallelism and a reworked front end that makes better use of those shader resources. Each Compute Unit also contains one Ray Accelerator, AMD's hardware ray tracing unit. These are dedicated fixed-function hardware blocks for bounding volume hierarchy traversal, which is the computationally expensive part of ray tracing. Sixty of them is a reasonable count, though as we'll discuss later, it's not quite in the same league as Nvidia's second-generation RT cores on Ampere.

One of the genuinely clever things AMD did with RDNA 2 was the 128MB Infinity Cache. This is a large on-die cache that sits between the shader processors and the GDDR6 memory, and it dramatically increases the effective memory bandwidth for typical gaming workloads. AMD's own figures suggest it delivers an effective bandwidth equivalent to a much wider memory bus for the access patterns that games actually use. In practice, this is why the RX 6800 punches above what its 256-bit bus width alone would suggest, particularly at 1440p where the Infinity Cache hit rate is very high. At 4K, the cache hit rate drops because you're pushing more data, but the 16GB framebuffer compensates by keeping more texture data resident.

The Gaming X Trio's factory overclock is modest relative to the reference specification. MSI has tuned the power limit and voltage curve to support sustained boost performance rather than chasing a higher peak number that the card can only hit for a fraction of a second. This is actually the right approach for gaming. A card that sustains 2080 MHz under full load is more useful than one that touches 2150 MHz in a brief spike and then throttles back. The Gaming X Trio's cooler has enough thermal headroom to keep the GPU cool enough that the boost algorithm isn't thermally limited in most ambient conditions.

If you want to push further, there's overclocking headroom available. The RDNA 2 architecture responds well to memory overclocking in particular, and the GDDR6 on this card has been reported by owners to take a reasonable memory overclock without instability. MSI's Afterburner software (yes, the same tool works on AMD cards) gives you full control over fan curves, power limits, and clocks. Some owners report hitting stable all-core boosts above 2150 MHz with modest voltage adjustments, though results vary by silicon lottery. The point is the headroom is there if you want it, and the card doesn't arrive already pushed to its absolute limit from the factory.

At 1440p, 16GB is more than you'll ever need with current titles. The typical VRAM usage at 1440p with high settings sits in the 6 to 10GB range for demanding games, so you're never going to hit the ceiling. At 4K with maximum texture settings, you'll see usage climb into the 10 to 12GB range in the most demanding titles, and having 16GB means you can run those settings without the game spilling over into system RAM (which causes the stutter and frame time spikes that make 8GB cards miserable in those scenarios). This is future-proofing that's already paying off, not hypothetical future-proofing.

The 256-bit memory bus, combined with the 128MB Infinity Cache, delivers 512 GB/s of raw bandwidth. For context, Nvidia's RTX 3080 10GB launched with a 320-bit bus and 760 GB/s of bandwidth, which looks better on paper. But AMD's Infinity Cache changes the real-world picture significantly. The effective bandwidth for typical gaming workloads is much higher than the raw 512 GB/s figure suggests, because frequently accessed data sits in the cache and doesn't need to traverse the memory bus repeatedly. At 1440p, the Infinity Cache hit rate is high enough that the bandwidth advantage of wider-bus cards largely disappears. At 4K, the cache is under more pressure, but the 16GB capacity means the data that does need to go to GDDR6 is managed efficiently.

The upscaling situation is more nuanced. AMD's FidelityFX Super Resolution (FSR) is the relevant technology here, and FSR's key advantage over Nvidia's DLSS is that it's open source and runs on any GPU, including Nvidia hardware. FSR 1.0 was a spatial upscaler (no temporal data, just clever sharpening and upscaling), which meant image quality at Performance mode was noticeably softer than DLSS. FSR 2.0 and later versions introduced temporal upscaling, which is much more competitive with DLSS 2.x in image quality terms. The RX 6800 supports FSR in all its forms, and at Quality or Balanced presets, FSR 2.x delivers genuinely good results. The card doesn't support DLSS at all, obviously, being an AMD product, and XeSS (Intel's upscaler) has limited relevance here.

The practical recommendation is this: if ray tracing is your primary concern and you want the best RT performance per pound, Nvidia's Ampere or Ada Lovelace cards are the better choice. But if you're primarily a rasterisation gamer who occasionally wants RT effects without completely tanking your frame rate, the RX 6800 handles light to moderate ray tracing in supported titles well enough. And the FSR 2.x support means you have a solid upscaling option that's available in a growing number of titles. The game library supporting FSR has expanded considerably since launch, which makes this less of a compromise than it was when the card first shipped.

The honest comparison, though, is that Nvidia's NVENC produces better quality output at the same bitrate than AMF, particularly at the lower bitrates that Twitch and YouTube impose on most streamers. The difference is visible if you're comparing recordings side by side, though casual viewers probably won't notice. AV1 hardware encoding is not present on RDNA 2 cards. That came with RDNA 3 (the RX 7000 series). If AV1 encode support matters to you for YouTube uploads or Discord streaming, this card doesn't have it. AV1 decode is supported, so you can watch AV1 content efficiently, but encode is software-only.

For content creators doing video editing rather than live streaming, the picture is similar. AMD's compute performance in applications like DaVinci Resolve has improved significantly with RDNA 2, and the 16GB VRAM is a genuine asset for working with high-resolution footage. 4K timelines and colour grading work well. But if you're deep into the Adobe ecosystem, Nvidia's CUDA acceleration tends to be better supported in Premiere Pro and After Effects, and that can matter for render times. For gaming-focused users who occasionally stream, AMF is fine. For dedicated content creators, the encoding situation is a real consideration.

Published benchmark power measurements show the RX 6800 typically drawing in the 220 to 250W range under sustained gaming loads, depending on the title and settings. Some workloads push closer to the 250W rated TGP, others sit comfortably below it. Transient power spikes are worth mentioning because RDNA 2 cards have been documented to produce brief current spikes that exceed the rated TGP. These are short-duration events, but they mean you want a PSU with some headroom rather than one that's right at the calculated minimum. A 650W PSU is the sensible minimum for a mid-range CPU pairing; 750W gives you comfortable headroom and is the recommendation most builders settle on.

The efficiency story is actually one of the RX 6800's stronger points relative to its competition at launch. RDNA 2's performance-per-watt was a genuine step forward for AMD, and the Gaming X Trio's power delivery design is solid. MSI uses a quality VRM implementation with enough phases to deliver clean power to the GPU, which contributes to both stability under load and the card's overclocking headroom. Your electricity bill won't love a 250W GPU, but it's not the worst offender in this tier by a significant margin.

AMD's RDNA 2 architecture uses a distributed power delivery design that means the hotspot temperature (measured at the highest-temperature point on the die) can be 10 to 20 degrees higher than the average die temperature. This catches some users off guard when they see their monitoring software reporting 85 to 90 degree junction temperatures and assume something is wrong. It isn't. AMD designed RDNA 2 to operate with junction temperatures up to 110 degrees Celsius before any throttling occurs, and the Gaming X Trio keeps the junction well below that ceiling. The average GPU temperature is the more comparable figure when you're looking at how the card sits relative to competitors.

Idle temperatures are sensible. The Gaming X Trio includes a zero-RPM mode where the fans stop completely when the GPU isn't under load, which means a silent desktop experience. The fans only spin up when the GPU temperature rises above a threshold (typically around 60 degrees Celsius under load). Some owners have noted that in very warm ambient conditions (above 25 degrees Celsius room temperature), the junction temperature climbs higher than expected, which is worth considering if you're in a warm climate or a poorly ventilated case. But in a well-ventilated mid-tower with reasonable airflow, the thermal performance is genuinely good.

The zero-RPM mode at idle is a proper zero-RPM implementation. The fans genuinely stop, not just slow down. This matters because GPU fans at very low RPM can sometimes produce an irregular, almost stuttering sound that's more annoying than fans at moderate speed. Zero-RPM eliminates that entirely. You won't hear this card sitting on your desktop browsing the web or watching video content. The fans only become audible once you're actually gaming, and even then, owner reports consistently describe the noise as a low, smooth hum rather than the high-pitched whine that cheaper coolers produce.

The fan design uses a combination of fan sizes and blade profiles across the three fans, which MSI markets as helping to reduce turbulence and noise. Whether the specific blade geometry makes a measurable difference is debatable, but the end result is a card that's quieter under load than many competitors at this power level. A handful of owner reviews mention coil whine, which is a known characteristic of some GPU samples rather than a design flaw. It's not universal, but if you're particularly sensitive to electrical noise, it's worth being aware that coil whine on any GPU is a lottery. The majority of owners report no issues.

At 4K, the picture is more nuanced but still strong. Published benchmarks show the RX 6800 delivering 50 to 70 FPS at 4K maximum settings in demanding titles, which puts it in playable territory without upscaling. With FSR 2.x at Quality preset, those numbers climb to 65 to 90 FPS depending on the title, with image quality that's genuinely hard to distinguish from native at Quality settings. For 4K gaming at 60Hz, this card is comfortably capable. For 4K at high refresh rates, you'll be leaning on FSR or dropping some settings, which is true of most cards at this price point. The 16GB VRAM means you're not compromising on texture quality to hit those frame rates.

At 1080p, the card is overkill for most monitors, but it's not wasted if you're running a high refresh rate 1080p display. Published benchmarks show 120 to 200+ FPS at 1080p maximum settings depending on the title, which means a 240Hz 1080p monitor can actually be fed properly in less demanding games. The Infinity Cache's high hit rate at 1080p is a genuine performance advantage here, and the RX 6800 actually performs very well relative to its 1440p numbers at 1080p because of this. It's not the typical use case for a card of this tier, but if you're on 1080p now with plans to upgrade your monitor later, you're not leaving performance on the table.

Against the RTX 3070 Ti, the RX 6800 Gaming X Trio is generally competitive in rasterisation performance, with results that trade blows depending on the title. AMD titles and those optimised for AMD's architecture tend to favour the RX 6800; Nvidia-optimised titles (particularly those using DLSS) tend to favour the 3070 Ti. The VRAM advantage is significant: 16GB versus 8GB on the 3070 Ti. That gap has become more meaningful over time as games push VRAM requirements higher. Against the RTX 3080 10GB, the RX 6800 is generally a step behind in rasterisation performance, with the 3080 pulling ahead by roughly 10 to 15 percent in most published benchmarks. The 3080 also has a stronger ray tracing advantage and DLSS, which is a real differentiator if those features matter to you. But the RX 6800's 16GB versus the 3080's 10GB is a meaningful counter-argument for longevity.

The comparison table makes the trade-offs clear. The RX 6800 Gaming X Trio wins on VRAM by a significant margin, runs cooler and quieter than the 3080 at lower power consumption, and delivers competitive 1440p rasterisation performance. It loses on ray tracing, DLSS availability, and raw 4K performance versus the 3080. Against the 3070 Ti, it's a closer fight where the VRAM advantage and lower power draw are compelling arguments. The right choice depends on your priorities, but the VRAM situation has only become more relevant since these cards launched.

The 16GB VRAM gets specific praise from owners who game at 4K or who noticed VRAM-related issues on previous 8GB cards. A few reviewers explicitly mention that they chose the RX 6800 over the RTX 3070 specifically because of the VRAM advantage, and report satisfaction with that decision. Performance in the games people actually play (Call of Duty, Warzone, Battlefield, Cyberpunk, various RPGs) is described as excellent at 1440p, with owners hitting the frame rates that published benchmarks would predict. The AMD driver experience gets a mixed but generally positive reception, with most owners reporting stable drivers and no significant issues.

The complaints are relatively minor and consistent with what the specs would predict. A small number of owners mention coil whine, which is a GPU lottery issue rather than a systematic design fault. A few mention the card's size requiring careful case selection. The ray tracing performance relative to Nvidia comes up in a couple of reviews from owners who specifically wanted strong RT performance and feel the card is a step behind. And a handful of owners on older PCIe 3.0 platforms note that they see slightly lower performance than published benchmarks on PCIe 4.0 platforms, which is expected behaviour rather than a fault. None of the complaints are deal-breakers, and the overall pattern is of a card that delivers what it promises.

But here's where it gets interesting. The 16GB VRAM on the RX 6800 is not matched by many newer cards at similar price points. The RTX 4070 ships with 12GB, the RX 7800 XT ships with 16GB (that's the direct AMD successor to consider). If you find the RX 6800 Gaming X Trio at a price that reflects its position as a previous-generation card, the value proposition is actually strong. You're getting a card that handles 1440p gaming excellently, has enough VRAM to remain relevant at 4K for several more years, runs cool and quiet, and has a strong owner satisfaction record. The question is purely whether the current asking price reflects that positioning.

For someone building or upgrading a 1440p gaming rig who finds this card at the right price, it remains a genuinely good choice. For someone who prioritises ray tracing heavily, streams and wants the best encode quality, or is building a 4K-first setup and wants the latest upscaling technology, a newer card might be a better fit. The value tier here is solidly in the "excellent if priced right, marginal if priced at launch MSRP in a market with newer alternatives" bracket. Check the current price against what a new RX 7800 XT costs before committing.

The honest caveats are worth restating. Ray tracing performance is behind Nvidia's Ampere cards at the same tier. There's no DLSS, only FSR, which is good but not identical to DLSS 2.x in image quality at aggressive upscaling presets. AMF encoding is decent but not NVENC. And in a market where newer generation cards exist, you need to be buying this at a price that reflects its age. If those trade-offs don't affect how you actually game, and for a lot of people they won't, then this is a card worth serious consideration. The VRAM advantage over 8GB competitors has aged very well.

Who should buy this: 1440p gamers who want excellent frame rates, strong future-proofing from the 16GB VRAM buffer, and a quiet, cool-running card. Anyone who was considering an 8GB card and worries about VRAM longevity. Builders who want a premium cooler without paying flagship prices.

Who should look elsewhere: Ray tracing enthusiasts who want the best RT performance for their money. Streamers who need the best possible encode quality. Anyone whose primary use case is 4K and wants the very latest upscaling technology. And anyone comparing prices who finds newer-generation alternatives at the same or lower cost.

Score: 8.5 out of 10. It's a genuinely good GPU that's aged well, with one eye-catching VRAM advantage that keeps it relevant. Just make sure the price reflects where it sits in the current market.
