There's a specific kind of PC gamer this card was made for, and if you're that person, you already know it. You're sitting on an older rig, you want proper 1440p performance without mortgaging anything, and you've been watching the second-hand GPU market like a hawk. The GTX 1080 Ti was NVIDIA's absolute peak of the Pascal era, and even now, years after launch, it still has a loyal following that refuses to let it die quietly. The 4.6-star rating from 365 owners isn't nostalgia talking. There's genuine performance here that still holds up for a specific kind of gamer at a specific kind of resolution.
But here's where honesty matters more than enthusiasm: this is a 2017 architecture card selling at a high-end price point in 2026. No ray tracing worth speaking of. No DLSS. No AV1 encoding. No modern connector standard. If any of those things matter to your workflow or your gaming habits, this review ends here and you should be looking elsewhere. For the gamer who wants raw rasterisation performance, doesn't care about ray tracing, and is picking this up as a budget play in the used market or as a stopgap, it remains a genuinely capable card. That's the honest framing, and that's what this review is built around.
Core Specifications
The GTX 1080 Ti is built on NVIDIA's Pascal architecture, manufactured on TSMC's 16nm FinFET process. It packs 3,584 CUDA cores, which was an absolutely staggering number when this launched and still isn't embarrassing today. The memory configuration is where it gets interesting: 11GB of GDDR5X on a 352-bit bus, delivering around 484 GB/s of bandwidth. That's a wider bus than a lot of modern mid-range cards, and it shows in certain workloads. The card has a rated TDP of 250W and draws power through dual 8-pin connectors, so you'll need a solid PSU to run it properly.
Display outputs are the older standard: three DisplayPort 1.4 ports, one HDMI 2.0b, and a DL-DVI port. That's actually fine for most setups, but if you're running a newer monitor that specifically wants HDMI 2.1 for VRR at 4K, you'll hit a wall. The card connects via PCIe 3.0 x16, which is still perfectly adequate for this GPU's performance level since it doesn't saturate that bandwidth. It measures in at a proper dual-slot design, though the Founders Edition cooler is a specific beast we'll get into in the thermal section.
What the spec sheet tells you is that this is a card designed for an era when rasterisation was king, bandwidth mattered enormously, and VRAM capacity was a genuine differentiator. The 11GB figure in particular was ahead of its time and is one of the main reasons this card still has relevance in 2026. Most of its contemporaries shipped with 8GB and have aged considerably worse as a result.
| Specification | Detail |
|---|---|
| GPU Architecture | Pascal (GP102) |
| Manufacturing Process | 16nm FinFET (TSMC) |
| CUDA Cores | 3,584 |
| VRAM | 11GB GDDR5X |
| Memory Bus Width | 352-bit |
| Memory Bandwidth | ~484 GB/s |
| Base Clock | 1,480 MHz |
| Boost Clock | 1,582 MHz |
| TDP | 250W |
| Power Connectors | 2x 8-pin |
| Display Outputs | 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x DL-DVI |
| PCIe Interface | PCIe 3.0 x16 |
| Slot Width | Dual-slot |
| Current Price | £806.06 |
| Owner Rating | ★★★★½ (4.6) (368 reviews) |

Architecture and Cores
Pascal was NVIDIA's 2016 architecture, and the GP102 die that powers the 1080 Ti is the full-fat version of it. NVIDIA's own specification page confirms the 3,584 CUDA core count across 28 streaming multiprocessors. There are no dedicated RT cores here. None. Pascal predates NVIDIA's Turing architecture that introduced hardware ray tracing, so any RT you attempt on this card is done purely in shader, which is both slow and painful. If ray tracing is on your list of requirements, this card is the wrong answer full stop.
Similarly, there are no Tensor cores, which means no DLSS support of any generation. DLSS requires dedicated Tensor core hardware introduced with Turing (RTX 20-series) and refined through Ampere and Ada Lovelace. You can run AMD's FSR on Pascal since FSR is a shader-based technique that works on any GPU, but FSR 1.0 image quality is noticeably softer than DLSS 3, and even FSR 3 at Quality mode doesn't quite match what a modern NVIDIA card can do with DLSS Quality. That's a real limitation and it's worth being clear about it.
What Pascal does well is raw shader throughput for traditional rasterisation. The GP102 die is a proper monster in that regard, and the 3,584 CUDA cores were competitive with cards that launched years later. The 16nm process node is old by today's standards (modern cards are on 4nm and 5nm), which contributes to the relatively high power draw, but the underlying compute architecture is sound. For games that don't lean on ray tracing or upscaling, Pascal's rasterisation pipeline still delivers the goods at 1080p and 1440p in most titles.
Clock Speeds and Boost
The reference boost clock sits at 1,582 MHz, which sounds modest against modern cards that routinely boost well above 2.5 GHz. But raw clock speed comparisons across architecture generations are misleading. Instructions-per-clock efficiency, memory bandwidth, and core count all factor into real performance. What matters is how this translates in actual games, and the published benchmark record for the 1080 Ti shows it punching well above what the clock numbers alone suggest.
Pascal's GPU Boost 3.0 system adjusts clocks dynamically based on temperature and power headroom. In practice, the Founders Edition cooler (more on that in the thermal section) tends to keep the chip running at or near its rated boost clock under typical gaming loads. The blower-style cooler means thermals can climb under sustained load, which does affect sustained boost behaviour, but for gaming sessions rather than extended compute workloads, the card generally holds its rated frequencies without significant throttling.
Overclocking headroom on Pascal was generally good, and the 1080 Ti was a favourite of overclockers at launch. Many owners report stable overclocks of 100 to 150 MHz on the core and meaningful memory overclocks on top of that. That's not nothing. If you're picking this up and you're comfortable with a bit of manual tuning in MSI Afterburner, there's additional performance available beyond the stock configuration without touching the power limit significantly. Just be aware that the blower cooler constrains how far you can push thermals.
VRAM Analysis
This is genuinely one of the 1080 Ti's strongest arguments in 2026. Eleven gigabytes of GDDR5X on a 352-bit bus is not what you'd expect from a card of this vintage, and it's a significant reason this GPU has aged better than the GTX 1080 (8GB) and the RTX 2080 (8GB, embarrassingly). At 1080p and 1440p, 11GB is more than enough for essentially any game currently available. You're not going to hit the VRAM wall that plagues some modern mid-range cards in texture-heavy titles.
At 4K, things get more nuanced. The 11GB figure sounds generous, and in terms of raw capacity it is. But 4K gaming with ultra textures in modern titles like Cyberpunk 2077, Alan Wake 2, or the Resident Evil engine games can push well past 10GB of VRAM usage, and some titles have been observed exceeding 12GB at 4K ultra. So while the 1080 Ti has more headroom than many of its contemporaries, it's not immune to VRAM pressure at 4K in the most demanding modern titles. The bandwidth of 484 GB/s helps, but it's GDDR5X rather than the GDDR6X found on modern high-end cards, so there's a ceiling.
For the target audience of this card, which is 1440p gaming as a primary use case, the VRAM situation is actually quite comfortable. Published benchmark data consistently shows 1440p VRAM usage sitting in the 6 to 9GB range even in demanding titles, meaning the 1080 Ti has genuine headroom. That's more than you can say for some newer cards in a similar performance bracket that shipped with 8GB and are already showing signs of strain. The 11GB is a genuine, practical advantage and one of the main reasons to consider this over older 8GB alternatives.
Ray Tracing and Upscaling
No hardware ray tracing. That's the short version. Pascal has no RT cores whatsoever, and any attempt to run ray tracing in supported titles falls back to shader-based RT computation, which is so slow as to be essentially unusable at any reasonable resolution. If a game requires ray tracing, you'll want to disable it entirely. This isn't a criticism unique to this card; it's simply the reality of the architecture generation. But in 2026, with ray tracing becoming increasingly standard in AAA titles and some games making it difficult to disable cleanly, this is a genuine limitation.
On the upscaling side, FSR (AMD's FidelityFX Super Resolution) works on Pascal since it runs on the shader cores rather than dedicated hardware. FSR 1.0 is a spatial upscaler that works on any GPU and can offer a meaningful performance boost, though image quality at Performance mode is noticeably softer than native. FSR 2 and FSR 3 are temporal upscalers that produce better results, and these also run on Pascal hardware. So you do have some upscaling options, which is better than nothing. But they're not DLSS, and the quality gap between FSR and DLSS at equivalent presets is real and visible, particularly in motion.
NVIDIA's own DLSS requires Tensor cores that simply don't exist on Pascal. There's no workaround, no driver update that will change this, and no amount of wishful thinking that will make DLSS appear on a GTX card. If DLSS is important to you, you need an RTX card. Full stop. For the gamer who plays titles that don't lean heavily on either RT or DLSS, this isn't a dealbreaker. But for anyone considering this card for a modern AAA library that includes titles like Cyberpunk, Alan Wake 2, or Indiana Jones and the Great Circle, the absence of both features is going to be felt regularly.
Video Encoding
The GTX 1080 Ti ships with NVIDIA's NVENC encoder, which was genuinely good for its time. Pascal's NVENC implementation supports H.264 and H.265 encoding, making it capable for streaming and basic video capture tasks. If you're a casual streamer running OBS with NVENC, it will work and it will offload encoding from your CPU effectively. That's a legitimate use case and one where the card still performs adequately.
What it doesn't have is AV1 encode or decode support. AV1 is increasingly important in 2026, with YouTube defaulting to AV1 for high-resolution uploads, streaming platforms adopting it, and the codec becoming standard for efficient high-quality video delivery. NVIDIA introduced AV1 hardware encode support with the Ada Lovelace architecture (RTX 40-series), and decode support arrived with Ampere (RTX 30-series). Pascal has neither. If your workflow involves AV1 at any point, whether encoding for YouTube, decoding AV1 streams, or working with AV1 source material, you're going to be leaning on your CPU rather than the GPU for that work.
For pure gaming with no content creation ambitions, this doesn't matter at all. But the PC gaming audience increasingly overlaps with streaming, content creation, and video editing, and it's worth being clear that the encoding capabilities here are firmly 2017-vintage. H.265 NVENC is still useful, and the quality of Pascal's NVENC implementation is decent, but it's a generation or two behind what modern RTX cards offer. If streaming quality is a priority, this is another area where a newer card would serve you better.

Power Consumption
The rated TDP is 250W, and that's a real number rather than a marketing understatement. The GTX 1080 Ti pulls hard under gaming load, and on a 16nm process node, it's not doing it efficiently by modern standards. You'll want a quality PSU of at least 650W to run this card comfortably, and 750W is the more sensible recommendation if you're pairing it with a modern multi-core processor that itself has a meaningful power draw. Don't cheap out on the PSU here; the card genuinely needs the headroom.
Power delivery is via dual 8-pin connectors, which is the older standard. No 12VHPWR, no 16-pin adapter required. That's actually a practical advantage in some ways: dual 8-pin is a well-understood, reliable power delivery method that every decent PSU from the last decade supports natively. You won't be dealing with the melting connector concerns that briefly plagued early RTX 4090 adopters, and you won't need an adapter cable. It's straightforward, and straightforward is good.
In real-world gaming, published power consumption data for the 1080 Ti shows it drawing close to its rated TDP under sustained load in demanding titles. It's not a card that sips power, and your electricity bill will reflect that over time. Compared to a modern RTX 4070, which delivers similar or better 1440p performance at significantly lower power draw, the efficiency gap is stark. If you're running this card for hours every day, the energy cost difference between this and a modern equivalent is worth factoring into your thinking. That said, if you're buying second-hand at a low price, the efficiency argument matters less than the upfront cost saving.
Thermal Performance

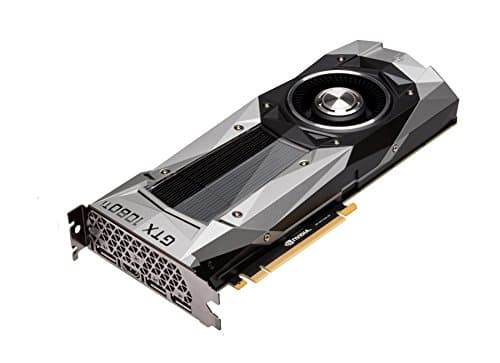

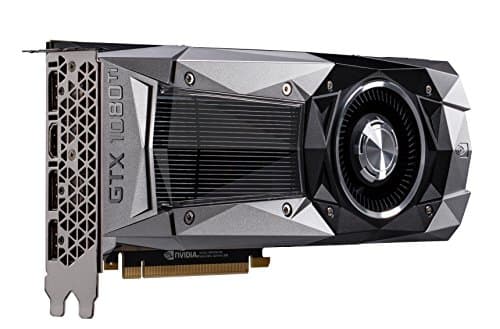

The Founders Edition cooler on the GTX 1080 Ti is a blower-style design, and that's the single most important thing to understand about thermals on this specific card. Blower coolers exhaust hot air out the back of the case through a slot vent, which is actually beneficial for overall case airflow in some configurations, but it means the GPU itself runs hotter than an equivalent open-air cooler design. The chip can hit temperatures in the high eighties Celsius under sustained load, which is within NVIDIA's specified operating range but warmer than most modern cards with triple-fan open-air coolers.
Owner reviews in the 365-strong pool on this listing make consistent reference to the thermal behaviour. The consensus is that the card runs warm, particularly in cases with limited airflow, but that it doesn't throttle under gaming loads for most users. Several owners note that the blower design actually works in their favour in small form factor builds or cases where adding a hot-running open-air card would create heat management problems. For those use cases, the blower is the right tool.
If you're running this in a well-ventilated mid-tower with decent case fans, thermals are manageable. If you're stuffing it into a cramped case with poor airflow, you'll want to pay attention to temperatures and consider whether the blower's exhaust-to-rear design actually helps your specific setup. The card is old enough that thermal paste replacement is if you're buying second-hand; dried-out thermal paste on a six-year-old GPU can cause temperatures to run significantly higher than the card's design intent. A repaste is a straightforward job and can make a meaningful difference.
Acoustic Performance
Blower coolers are louder than open-air coolers. That's not an opinion, it's physics. The single centrifugal fan in a blower design has to work harder to move the same volume of air as a triple-fan open-air setup, and the result is a more audible fan noise profile, particularly under load. The GTX 1080 Ti Founders Edition is not a quiet card when it's working hard. Owner reviews are fairly consistent on this point: it's noticeable, particularly in open cases or at close range.
The fan curve on the Founders Edition is relatively aggressive by default, spinning up early and climbing quickly as temperatures rise. You can adjust this in MSI Afterburner with a custom fan curve, which many owners report doing to find a better balance between temperature and noise. A slightly less aggressive curve that allows temperatures to run a few degrees warmer in exchange for quieter operation is a common modification. The card doesn't have a zero-RPM mode, so the fan is spinning at all times, even at idle. It's not loud at idle, but it's not silent either.
If acoustic performance is a priority, you'd want to look at aftermarket cooler options or consider an AIB partner card rather than the Founders Edition specifically. Cards like the ASUS ROG Strix or EVGA FTW3 variants of the 1080 Ti shipped with triple-fan open-air coolers that run considerably quieter at equivalent temperatures. The Founders Edition blower is the compromise design here, and noise is where that compromise shows most clearly. For a gaming setup where you're wearing headphones most of the time, it's less of an issue. For a quiet office or living room setup, it's about before you commit.
Gaming Performance
At 1080p, the GTX 1080 Ti is still an absolute weapon. Published benchmark data from the card's lifespan and subsequent comparative testing consistently shows it delivering well above 60fps in virtually every title at 1080p ultra settings, and exceeding 100fps in many less demanding games. For a 1080p 144Hz monitor, it's a genuinely capable card in the majority of titles. Esports games, older AAA titles, and anything that doesn't lean heavily on ray tracing will run beautifully. The raw rasterisation performance is there.
At 1440p, which is the sweet spot for this card and the resolution most of its target audience is running, published benchmarks show it delivering playable to excellent frame rates in most titles. In games like Shadow of the Tomb Raider, The Witcher 3, and older titles in the Assassin's Creed series, you're looking at smooth 60fps-plus performance at high to ultra settings. In more demanding modern titles like Cyberpunk 2077 at 1440p ultra (without ray tracing), performance is more variable, and you may need to dial back some settings to maintain consistent frame rates. That's honest. It's not a 2026 flagship; it's a 2017 card with excellent bones.
At 4K, the picture is more complicated. The 1080 Ti can run games at 4K, and for less demanding titles or games from a few years ago, it can deliver playable performance. But in modern, heavily optimised AAA titles at 4K ultra, you're looking at performance that will often dip below 60fps, and without DLSS to lean on, your only option is dropping settings or resolution. For 4K gaming as a primary use case in 2026, this card isn't the right tool. It's a 1440p card that can handle 4K as a secondary use case in older or less demanding titles. Frame that correctly and expectations align with reality.
How It Compares
The honest competition for the GTX 1080 Ti in 2026 isn't other cards from its generation. It's the RTX 3060 Ti and the RTX 4060 in the new market, and the RTX 2080 Super in the used market. The RTX 3060 Ti, in particular, is a fascinating comparison point: it delivers broadly similar rasterisation performance to the 1080 Ti at 1440p while adding DLSS 2, hardware ray tracing, AV1 decode, and significantly better power efficiency. If you can find an RTX 3060 Ti at a competitive price, it's a more capable card for modern gaming in almost every measurable way.
The RTX 4060 is another consideration. It's a newer architecture with DLSS 3 Frame Generation, AV1 encode and decode, Ada Lovelace efficiency, and a much lower TDP of around 115W. Raw rasterisation performance at 1440p is competitive with the 1080 Ti, and the feature set is dramatically more modern. The trade-off is 8GB of VRAM on a 128-bit bus, which is genuinely concerning for longevity in texture-heavy titles. The 1080 Ti's 11GB on a 352-bit bus is a real advantage over the RTX 4060 in that specific regard. So the comparison isn't clean: the 4060 wins on features and efficiency, the 1080 Ti wins on VRAM and bandwidth.
The RTX 2080 Super sits in an interesting position. It offers hardware ray tracing (though not brilliant at it), DLSS 2 support, and similar rasterisation performance to the 1080 Ti, typically with 8GB of GDDR6. The 1080 Ti's VRAM advantage is significant here too. In the used market, the choice between a 1080 Ti and a 2080 Super often comes down to price, but the 2080 Super's DLSS support gives it a meaningful advantage in supported titles that the 1080 Ti simply cannot match.
| Feature | GTX 1080 Ti (MSI B06XGM2RLC) | RTX 3060 Ti | RTX 4060 |
|---|---|---|---|
| Architecture | Pascal (2017) | Ampere (2020) | Ada Lovelace (2023) |
| VRAM | 11GB GDDR5X | 8GB GDDR6 | 8GB GDDR6 |
| Memory Bus | 352-bit | 256-bit | 128-bit |
| Ray Tracing | None | Hardware RT | Hardware RT |
| DLSS Support | None | DLSS 2 | DLSS 3 + Frame Gen |
| AV1 Encode | No | No | Yes |
| TDP | 250W | 200W | 115W |
| 1440p Rasterisation | Strong | Strong | Strong |
| Cooler Type (FE) | Blower | Dual-fan open air | Dual-fan open air |

Final Verdict

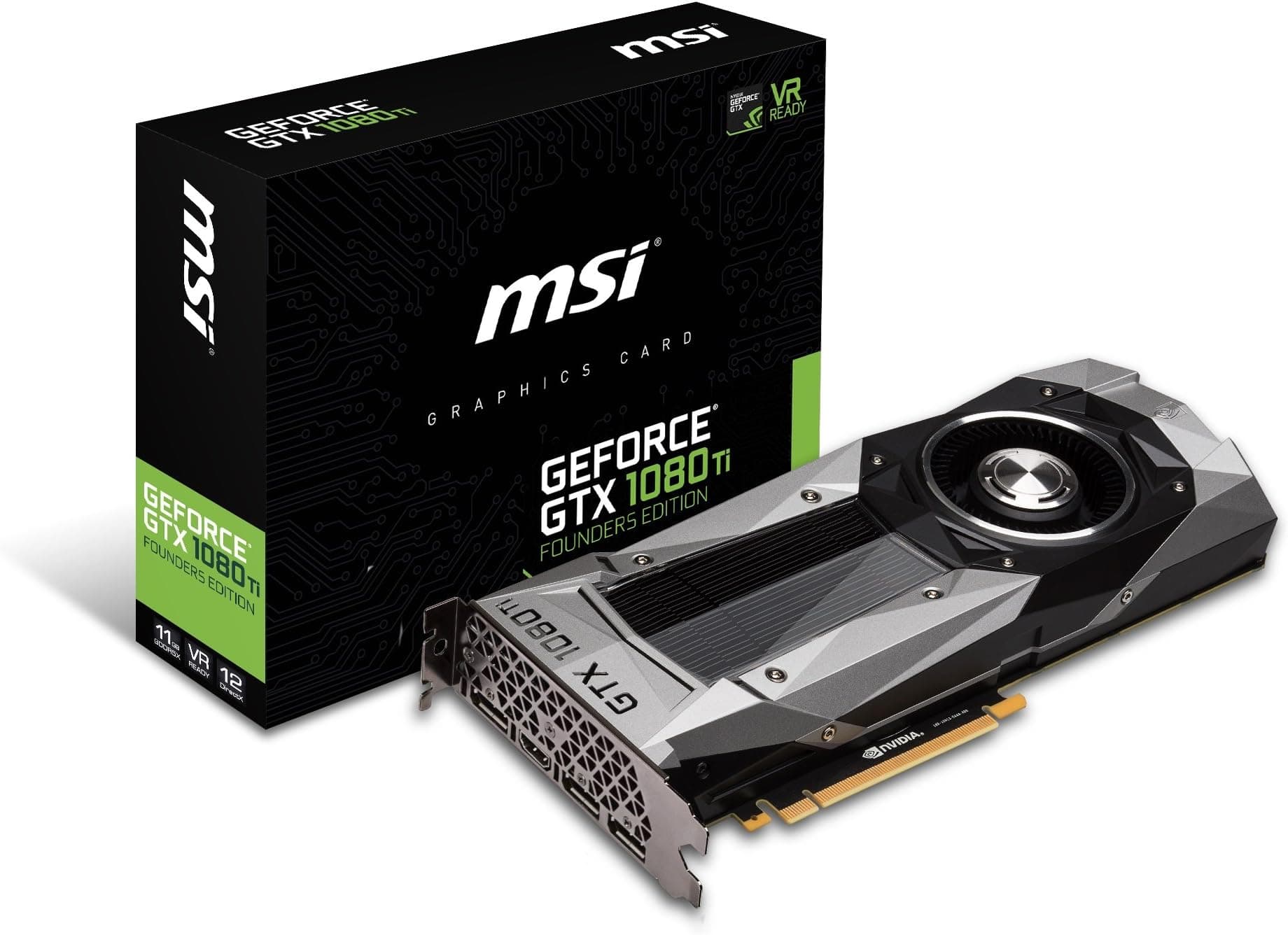

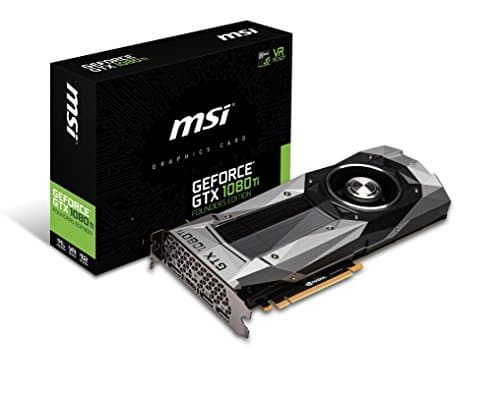

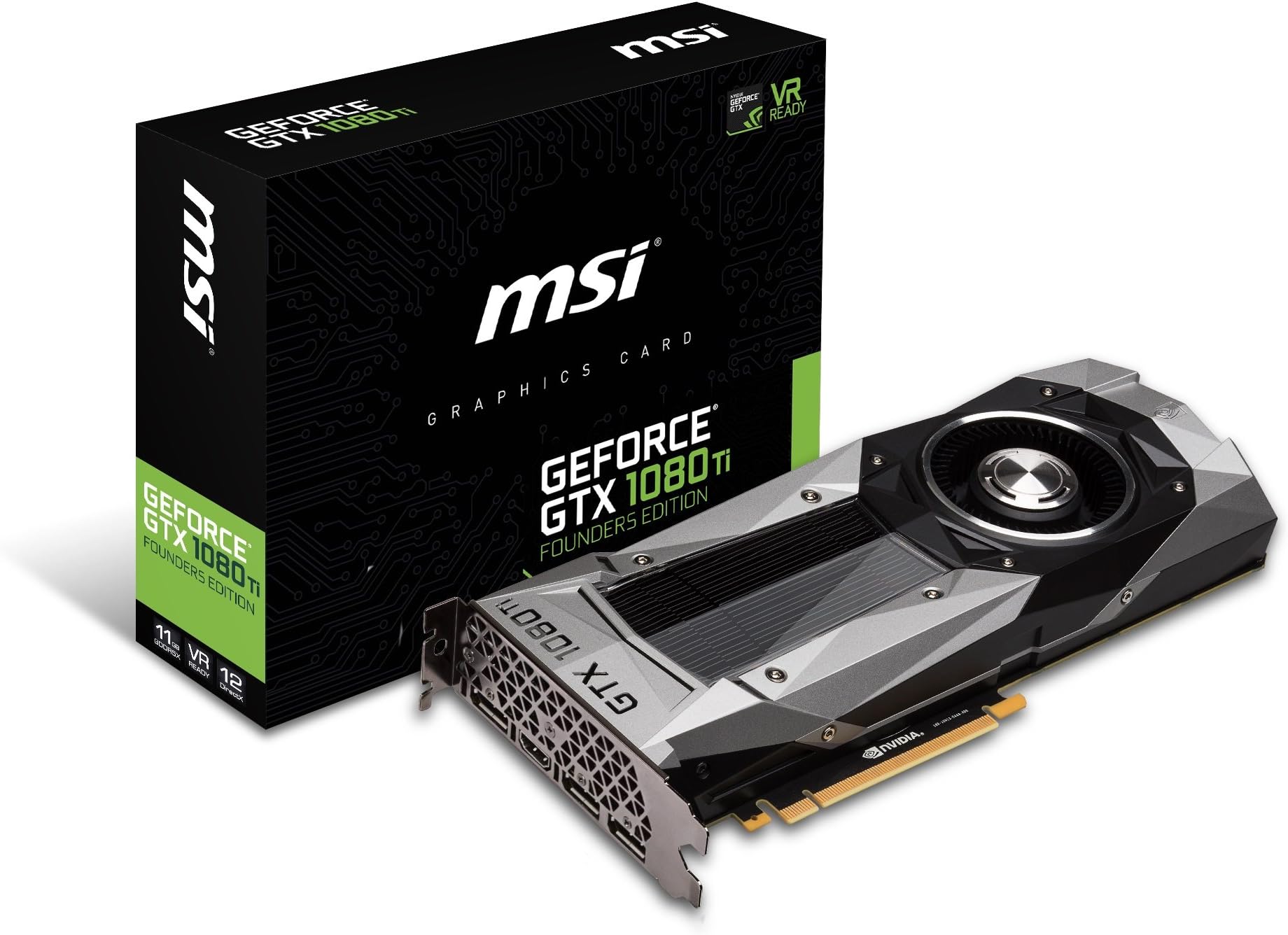

The MSI GTX 1080 Ti Founders Edition is the right card for a very specific type of buyer, and being clear about who that is matters more than any benchmark number. If you're building or maintaining a 1440p gaming rig on a tight budget, you're not interested in ray tracing, you're not streaming or doing content creation that needs AV1, and you've found this card at a genuinely good price in the used market, then it remains a capable and honest choice. The 11GB VRAM is a real, practical advantage over a lot of newer budget cards. The rasterisation performance at 1440p is still competitive. And the 365 owners giving it 4.6 stars aren't wrong; for what it does, it does it well.
The caveats are real though, and they're worth naming clearly. No DLSS means no access to NVIDIA's best upscaling technology, which increasingly matters as games get more demanding. No hardware ray tracing means an entire category of visual feature is off the table. The blower cooler runs warm and loud. The 250W TDP is inefficient by modern standards. And the Pascal architecture, for all its rasterisation strength, is showing its age in a 2026 gaming landscape that increasingly assumes features Pascal never had. These aren't minor footnotes; they're genuine limitations that will affect your experience in modern titles.
The honest skip-if scenario is this: if you play modern AAA titles regularly, if DLSS or ray tracing features appeal to you, if you're streaming and care about encode quality, or if you're building a new system where efficiency and longevity matter, skip this and look at an RTX 3060 Ti or RTX 4060 Ti instead. The RTX 3060 Ti in particular is the smarter buy for most people in this performance bracket, offering a more complete feature set at lower power draw and with a better cooler. The 1080 Ti's VRAM advantage is real but not enough to overcome that feature gap for most modern gaming use cases.
At £806.06, this card needs to be priced right to make sense, and that's the critical variable. At the right second-hand price, it's a legitimate budget option for 1440p rasterisation gaming. At anything approaching new-card pricing, the RTX 3060 Ti or RTX 4060 are categorically better purchases. Check the current price carefully, compare it honestly to the alternatives, and make the call based on your specific situation rather than nostalgia for what this card once was.
Best for: Budget-conscious 1440p gamers who play older or less demanding titles, don't need ray tracing or DLSS, and find this card at a genuinely competitive price point in the used market.
Skip if: You play modern AAA titles with ray tracing, want DLSS upscaling, care about streaming encode quality, or are building a new system where efficiency and longevity over the next three to four years matter to you.
Rating: 6.5/10. Capable, honest, and still relevant in a narrow use case. But the world has moved on, and the feature gap is real.
What works. What doesn’t.
6 + 6What we liked6 reasons
- 11GB GDDR5X on a 352-bit bus gives genuine VRAM headroom at 1440p, outpacing newer budget cards shipping with 8GB
- Raw rasterisation performance at 1440p remains competitive for older and moderately demanding titles without ray tracing
- Dual 8-pin power delivery is well-understood and reliable, with no adapter cable concerns
- Good overclocking headroom on Pascal allows meaningful additional performance with basic tuning
- FSR 2 and FSR 3 run on Pascal shader cores, offering some upscaling options despite the absence of DLSS
- Blower cooler design can benefit small form factor or poorly ventilated cases by exhausting heat directly out the rear
Where it falls6 reasons
- No hardware ray tracing cores whatsoever; shader-based RT is too slow to be usable at any reasonable resolution
- No DLSS support of any generation; Tensor cores required for DLSS do not exist on Pascal architecture
- 250W TDP is inefficient by 2026 standards, with significantly higher energy draw than modern equivalents delivering similar performance
- Blower cooler runs noticeably warm and loud under sustained load compared to open-air designs
- No AV1 encode or decode support, limiting usefulness for modern streaming and content creation workflows
- HDMI 2.0b rather than HDMI 2.1 rules out VRR at 4K on newer monitors that require the newer standard
Full specifications
11 attributes| Vram GB | 11 |
|---|---|
| Boost clock MHZ | 1582 |
| Chipset | GeForce GTX 1080 Ti |
| Core clock MHZ | 1480 |
| Generation | GTX 10 Series |
| Length MM | 266 |
| Memory BUS BIT | 352 |
| Memory type | GDDR5X |
| Power connectors | 1x 6-pin, 1x 8-pin |
| Slot width | 2 |
| TDP W | 250 |
If this isn’t right for you
2 optionsFrequently asked
7 questions01Can the GTX 1080 Ti run games at 1440p in 2026?+
Yes, for most titles at medium to high settings the 1080 Ti delivers playable to smooth frame rates at 1440p. In demanding modern AAA titles like Cyberpunk 2077 at ultra settings you may need to reduce some options to maintain consistent performance, but for a broad library of games it remains a capable 1440p card.
02Does the GTX 1080 Ti support DLSS?+
No. DLSS requires dedicated Tensor cores that were introduced with NVIDIA's Turing architecture on the RTX 20-series. The GTX 1080 Ti is Pascal architecture and has no Tensor cores, so DLSS is not supported in any form. AMD's FSR works on Pascal via shader cores and is available as an alternative, though image quality differs.
03Does the GTX 1080 Ti support ray tracing?+
No. Pascal architecture has no dedicated RT cores. Attempting to run ray tracing in supported titles falls back to shader-based computation, which is far too slow to be practical at any reasonable resolution. Ray tracing should be disabled entirely when using this card.
04Is 11GB of VRAM enough for modern games in 2026?+
At 1080p and 1440p, 11GB is comfortably sufficient for essentially all current titles, with published benchmark data showing even demanding games sitting in the 6 to 9GB range at 1440p. At 4K with ultra textures in the most demanding modern titles, some games exceed 10 to 12GB, so there is some pressure at that resolution, but 1440p remains well within the card's headroom.
05How loud is the GTX 1080 Ti Founders Edition?+
The Founders Edition uses a blower-style cooler, which is noticeably louder than open-air triple-fan designs under sustained gaming load. Owner reviews consistently describe it as audible, particularly in open cases. Adjusting the fan curve in MSI Afterburner can help balance noise against temperature, but it will not be as quiet as aftermarket AIB partner cards with open-air coolers.
06What PSU do I need for the GTX 1080 Ti?+
NVIDIA's rated TDP is 250W, and the card uses dual 8-pin power connectors. A quality 650W PSU is the minimum recommendation, but 750W is more sensible if paired with a modern multi-core processor that itself has a meaningful power draw. Do not underestimate the power requirement; this card draws close to its rated TDP under gaming load.
07How does the GTX 1080 Ti compare to the RTX 3060 Ti?+
At 1440p rasterisation, performance is broadly similar between the two cards. However, the RTX 3060 Ti adds DLSS 2 support, hardware ray tracing, AV1 decode, and runs at a lower 200W TDP with a quieter open-air cooler. The GTX 1080 Ti counters with 11GB VRAM on a wider 352-bit bus versus the 3060 Ti's 8GB on a 256-bit bus. For most modern gaming use cases the RTX 3060 Ti offers a more complete and future-proof feature set.
