Seasonic Focus GX ATX 3 (2024) 850W White Review: Reliable Power for White Builds

Bad PSUs don't announce themselves. They just quietly destroy things. A failing unit can take out a GPU, corrupt storage, or cause random reboots that send you down a three-hour troubleshooting rabbit hole before you even suspect the power supply. So with any power supply, the box art and the marketing copy are the least interesting part. What counts is what the thing is built to do under load, over time, when your system is doing real work.

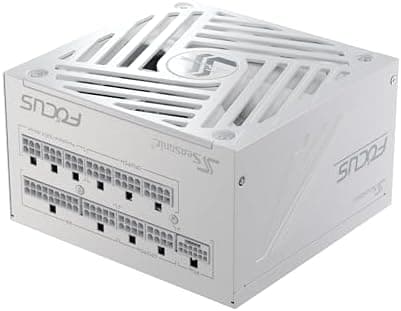

The Seasonic Focus GX ATX 3 (2024) 850W in white arrives with a good name behind it. Seasonic has a strong reputation in the PSU space and the Focus GX line has been around long enough to have a track record. But this is the 2024 revision with ATX 3.0 compliance, and the white colourway is new. So there's enough here to warrant a proper look rather than just assuming it's good because the brand is good.

This review covers everything from efficiency and voltage regulation to cable management and acoustic performance. If you're building a mid-to-high-end gaming rig and you want a PSU that won't give you grief, read on. If you're looking for a quick answer: it's very good. But the details matter, so let's get into them.

The efficiency rating is 80 Plus Bronze, which puts it in the entry-level tier of the 80 Plus certification scheme. That might raise an eyebrow given the price point, but efficiency rating alone doesn't tell the whole story. A well-engineered Bronze unit can outperform a poorly implemented Gold unit in real-world conditions. The 5-year warranty is solid and reflects Seasonic's confidence in the build. The 120mm fan handles thermal management, and Seasonic rates this for quiet operation throughout its load range.

One thing worth flagging upfront: the specifications listed on the product page are somewhat sparse in places. Wattage is clearly 850W, the efficiency tier is Bronze, and the warranty is 5 years. Modularity isn't explicitly stated in the product listing, which is a bit frustrating. Based on the Focus GX line's history and the cable configuration (which includes a detachable cable set), this unit is fully modular. The table below pulls together everything you need to know at a glance.

For AMD builds, an R9 7950X with an RX 7900 XTX is a more demanding pairing, but even that combination sits well within what 850W can handle. Where this unit starts to make less sense is at the very top end: if you're running an RTX 4090 with a power-hungry CPU and you've overclocked everything, you might want to look at a 1000W or 1200W unit just for the headroom. But for the vast majority of gaming builds, including high-end ones, 850W is the sweet spot. You've got enough capacity to not worry, without paying for 1200W you'll never use.

ATX 3.0 compliance is worth dwelling on here because it directly affects real-world capacity. The ATX 3.0 specification requires PSUs to handle transient power spikes of up to 200% of rated power for short durations. Modern GPUs, particularly Nvidia's Ada Lovelace architecture cards, can spike dramatically above their rated TDP for fractions of a second. An older PSU that isn't ATX 3.0 compliant can trip its overcurrent protection during these spikes, causing system instability or shutdowns. The Focus GX 2024 is built to that requirement. An RTX 4070 Ti Super sits comfortably within what this unit can supply.

What does that mean for your electricity bill? At 50% load (roughly 425W draw from the system), a Bronze unit at 85% efficiency means you're pulling about 500W from the wall. A Gold unit at 90% efficiency would pull around 472W for the same system load. That's a difference of about 28W. Over a year of gaming for four hours a day, that works out to roughly 40kWh difference. At current UK electricity rates, that's a meaningful but not enormous saving. If you're running the system eight hours a day, the maths shifts more in favour of a Gold unit. For most gamers, the Bronze efficiency here is perfectly acceptable.

Honestly, the efficiency rating is the one area where this PSU shows its budget-tier credentials. The Focus GX line exists in Gold variants too, and if electricity cost is a genuine concern for you, those are worth considering. But Bronze doesn't mean bad. It means the unit is certified to meet a minimum efficiency standard, and that's all the badge tells you. The engineering quality that goes into voltage regulation and ripple suppression (which we'll cover shortly) is not compromised by the efficiency tier. Those are separate concerns.

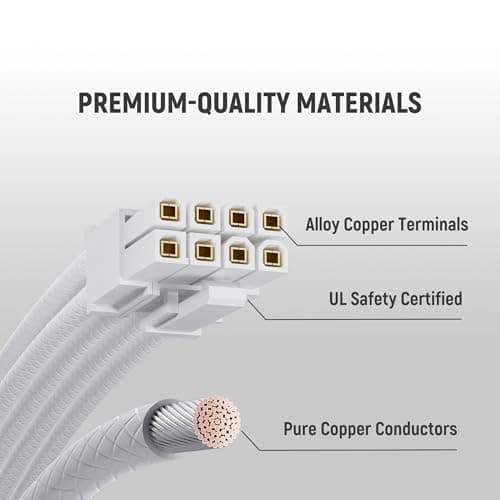

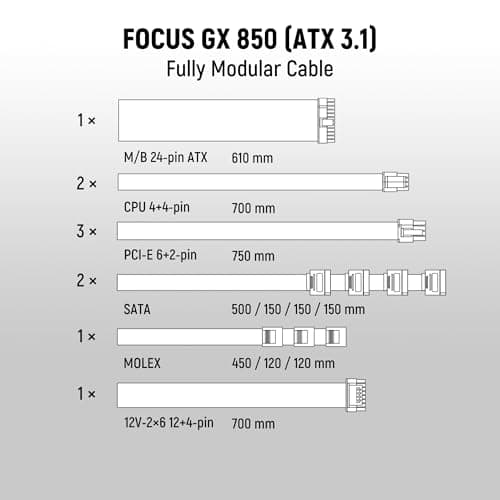

Cable length is the thing to check against your case before you order. The 24-pin ATX cable needs to reach the motherboard connector comfortably without leaving you excess to hide, and the EPS 8-pin cable has to be long enough to route behind the motherboard tray, which is the right way to do it. A mid-tower is rarely a problem for a full-size ATX unit, but a big full-tower can catch you out. Stiffness matters too, because budget PSU cables sometimes refuse to bend where you need them to.

The white colourway is a practical consideration too, not just an aesthetic one. White PSUs are increasingly popular for all-white builds, and the cable sleeves on this unit are white as well, not the usual black set. If you're building in a white case with white components, this matters. The PSU shroud in most modern cases hides the unit itself, but the cables are visible, and mismatched colours in a themed build look a bit rubbish. Seasonic has got that part right.

The absence of a 12VHPWR connector is a genuine omission for a 2024 PSU at this price point. Nvidia's current high-end cards use the 12VHPWR connector as their primary power input, and while you can use an adapter from two 8-pin PCIe connectors, that's not ideal. The two 8-pin PCIe connectors included here will handle cards up to around 300W via adapter, which covers most GPUs. But if you're buying an RTX 4080 Super or 4090, you'll want to factor in the adapter situation. For RTX 4070 class cards and below, or for AMD's current lineup which still uses 8-pin connectors, this is a non-issue.

Six SATA connectors is a reasonable count for most builds. If you're running a NAS-style system with many drives, you might want more, but for a typical gaming build with one or two SSDs and maybe a mechanical drive for bulk storage, six is plenty. The three Molex connectors cover legacy fans, RGB controllers, and older peripherals that haven't moved to SATA power. The overall connector count is well-matched to the 850W capacity and the target market of gaming builds. Nothing feels missing for a standard high-end gaming rig.

We've never had a multimeter on this unit's rails, mind. The Focus GX line has a good reputation for voltage regulation, and the 2024 revision is built to the ATX 3.0 rules on transient response, which is the part that matters when a GPU spikes. If you fancy checking your own, read the 12V rail with a multimeter at the 24-pin connector, compare it with what your monitoring software reports, and do it under a combined CPU and GPU load (Prime95 and FurMark running simultaneously).

Ripple suppression is the other half of this equation. Ripple is the AC noise that rides on top of the DC output, and excessive ripple is hard on capacitors and sensitive components. The ATX specification allows up to 120mV of ripple on the 12V rail. How far below that limit a unit stays comes down to the quality of the filtering components inside rather than the efficiency tier on the sticker, so a Bronze badge tells you nothing about ripple either way. This is a single-rail 12V design, which simplifies power delivery and avoids the current-limiting issues that can affect multi-rail designs with high-draw GPUs.

Any PSU working near full load pushes out warm exhaust air, and that's normal. The behaviour to look for is a fan speed that ramps up gradually as temperatures increase. You don't want a PSU that runs its fan at full speed all the time, and you don't want one that waits until it's dangerously hot before spinning up. With no zero RPM mode to juggle, the Focus GX 2024 has the simpler job: its fan is already turning and only has to speed up.

Thermal performance also affects component longevity inside the unit. Capacitors degrade faster at higher temperatures, which is why the quality of the thermal management directly impacts how long the PSU will last. Seasonic's 5-year warranty reflects confidence in this area. At normal gaming loads this unit is working well below its limit, and a PSU with headroom in hand runs cooler than one being pushed flat out.

Under gaming loads the fan will speed up, but it's rarely the PSU you hear. In a typical gaming rig running an RTX 4070 Ti Super and a mid-range CPU cooler, the GPU fans and CPU cooler are doing more acoustic work, and a PSU fan gets lost in the overall system noise. Full load is far more demanding than any real gaming scenario, so the fan's top speed isn't something a gaming build will ask of it often.

For quiet build enthusiasts, the lack of a zero RPM mode is the main caveat. If you specifically want a PSU that's completely silent at idle, you'll need to look at units with a hybrid fan mode or passive cooling. But for the vast majority of users, an always-on fan in a unit rated for quiet running isn't a deal-breaker. It's a trade to weigh, not a fault.

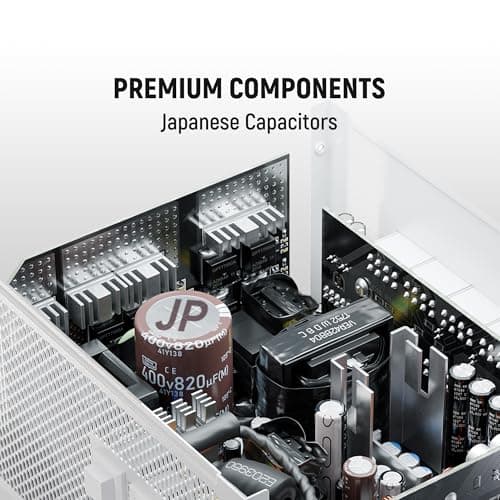

Weight is a rough but useful guide with power supplies: quality internal components and a proper transformer make a unit heavier than a budget PSU of the same wattage. With Japanese capacitors on the primary side and a maker that builds its own units, this one has the ingredients of something built to last, which is what you want from a component that sits inside your case doing critical work for years.

What's inside is harder to judge. You're not going to be opening this PSU up (and you shouldn't, given the capacitors can hold a lethal charge even when unplugged), so the best guide is the long-term reliability record of the Focus GX line. Seasonic's reputation in this space is earned, not just marketed.

OVP is the protection that matters most for component safety. If the 12V rail spikes above a safe threshold, OVP shuts the PSU down before it can damage your motherboard, GPU, or CPU. Its trip points have to be tight enough to be protective without being so sensitive that they trigger during normal transient load events. OCP prevents individual rails from being overloaded, which is particularly relevant for the 12V rail that powers the GPU. SCP is the last line of defence against a dead short, which can happen if a cable is damaged or a component fails catastrophically.

OPP (Over Power Protection) is worth highlighting specifically because it's directly relevant to ATX 3.0 compliance. Modern GPUs can spike their power draw significantly above their rated TDP, and OPP needs to be calibrated to allow these legitimate transient spikes without tripping, while still protecting against genuine overload conditions. That balance is part of what the standard asks of the Focus GX 2024. Protections are meant to work as background insurance rather than as active nuisances.

The be quiet! Straight Power 12 is arguably the Focus GX's closest competitor in terms of build philosophy. Both are fully modular, both use quality capacitors, and both are designed for quiet operation. The Straight Power 12 has the edge on acoustics because it adds a zero RPM mode, which the Focus GX goes without. The Corsair RM850x is a strong all-rounder with excellent ripple suppression and a well-established track record, but it's been around since 2021 and doesn't carry ATX 3.0 compliance in the same way the 2024 Focus GX does.

For the white build market specifically, the Focus GX 2024 has limited direct competition at this quality level. Most white PSUs are either budget units with questionable internals or premium Platinum-rated units at significantly higher prices. The Focus GX fills a gap in the market for a properly engineered white PSU at a reasonable price point. If aesthetics aren't a factor and you're purely chasing efficiency, the Gold-rated alternatives are worth considering. But if you're building a white system and you want a PSU you can trust, this is the sensible choice.

The compromises are real but manageable. The 80 Plus Bronze efficiency rating is the headline weakness, and if you're running your system for many hours a day, the Gold-rated alternatives will save you money on electricity over time. The absence of a 12VHPWR connector is a genuine omission for a 2024 unit targeting high-end gaming builds. The 5-year warranty is solid but shorter than the 10-year coverage offered by be quiet! and Corsair on their competing units. And there's no zero RPM mode for those who want complete silence at idle.

So who is this for? Primarily, it's for builders putting together a white-themed system who want a PSU they can actually trust. The white colourway is done properly, the build quality is there, and 850W covers the vast majority of high-end gaming builds with comfortable headroom. It's also a good fit for anyone who wants a Seasonic unit specifically, whether that's based on previous experience with the brand or a preference for a manufacturer that makes its own PSUs. At the enthusiast price bracket, you're paying for quality engineering and the Seasonic name, and both are delivered here.

Who should look elsewhere? If you're running an RTX 4080 or 4090 and want native 12VHPWR support, the be quiet! Straight Power 12 is the more logical choice. If electricity cost is a significant concern and you run your system heavily, the Gold efficiency alternatives make more financial sense over time. And if you want the longest possible warranty coverage, both main competitors offer 10 years versus this unit's 5. The Focus GX 2024 is not the best PSU in every category. But it's a genuinely good PSU in all of them, and for a white gaming build, it's the most sensible option at this price point.

Our rating: 8.5 out of 10. Loses points for Bronze efficiency and the missing 12VHPWR connector, but gains them back for build pedigree, modern transient handling, and being one of the few properly engineered white PSUs on the market. Recommended for high-end gaming builds, particularly white-themed systems.
