MSI MEG ACE X570 AM4 Motherboard Review: Is the Premium Justified?

Pick the wrong motherboard and you'll feel it for years. Not in some dramatic, catastrophic way, but in the slow accumulation of annoyances: a BIOS that fights you every time you tweak something, VRMs that throttle your CPU under sustained load, USB ports that flake out at inconvenient moments. The MSI MEG ACE AMD X570 AM4 DDR4 ATX Motherboard sits at the premium end of the AM4 ecosystem, and on paper it makes a strong case for itself. The question is whether the spec sheet holds up against real-world owner experience, and whether the price premium over mid-range X570 options is actually justified.

X570 as a platform is worth understanding before we get into the board specifics. It was AMD's flagship chipset for Ryzen 3000, 4000, and 5000 series processors, and it brought PCIe 4.0 support across both CPU and chipset lanes at a time when Intel was still shipping PCIe 3.0. That matters for NVMe storage speeds and GPU bandwidth. The MEG ACE sits above MSI's MAG and MPG lines, positioning it as a serious enthusiast board rather than a mainstream option. With 749 owner reviews averaging ★★★★½ (4.6), the real-world feedback is unusually positive for a product at this price tier.

So what's the full picture? The specs are genuinely impressive, the VRM implementation is one of the stronger ones on X570, and the BIOS (more on that later) is MSI's Click BIOS 5, which has its moments of frustration but is broadly functional. There are a few things to know before buying, particularly around the active chipset cooling and some reported BIOS quirks. None of them are dealbreakers. But they're worth knowing.

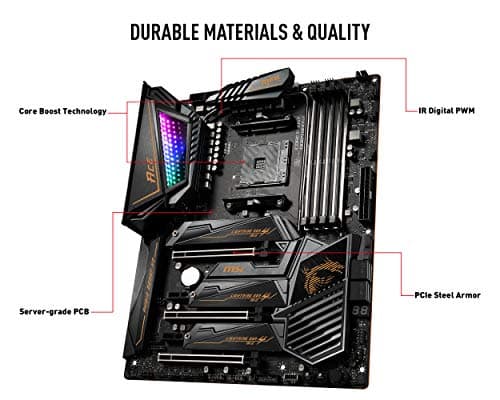

Power delivery is handled by a 16-phase VRM setup, which is one of the headline numbers here. The board uses 60A power stages from Infineon, which is a meaningful spec rather than a marketing number. The heatsinks covering the VRM area are chunky and properly connected to the MOSFETs rather than just sitting near them, which matters more than their visual bulk. There's a 24-pin ATX power connector, dual 8-pin EPS CPU power connectors (both populated, which is good practice for high-TDP Ryzen chips), and the board supports AMD StoreMI for tiered storage configurations.

The full specification breakdown is below. The price field pulls live, so you're always seeing the current market rate rather than a number I wrote down months ago.

In practical terms, the MEG ACE is best matched to Ryzen 5000 series processors. The Ryzen 9 5950X, 5900X, 5800X, and 5600X all sit comfortably within what this board's VRM can handle, and the PCIe 4.0 support from the CPU lanes means you're getting full bandwidth to your primary GPU and top M.2 slot. Ryzen 3000 series chips work fine too, and given that Ryzen 5000 prices have come down considerably as AM5 has taken over the enthusiast market, pairing a 5800X3D or 5900X with this board makes genuine sense in 2024 and 2025 as a cost-effective high-performance build.

One thing worth flagging: AM4 is effectively a mature, closed platform now. AMD's current flagship socket is AM5, which uses DDR5 and supports Ryzen 7000 series and beyond. Buying an AM4 board in 2025 means accepting there's no CPU upgrade path beyond the existing Ryzen 5000 lineup. That's not necessarily a problem. The 5950X is still a genuinely fast chip. But if you're planning to upgrade your CPU in two years, you'd be buying a new platform anyway. Know what you're signing up for.

The chipset on X570 boards runs warm, which is why almost every X570 motherboard ships with an active chipset fan. The MEG ACE is no exception. That small fan sits under the PCIe slots and keeps the X570 chipset within thermal limits, but it does introduce a potential long-term reliability concern. Small fans on motherboards aren't renowned for their longevity. A handful of owners in the review pool mention the fan becoming audible after extended use, though the majority report it's quiet enough to be inaudible in a typical case. MSI uses a decent-quality fan here rather than the cheapest possible option, which helps. If the fan does eventually fail, replacement is possible but fiddly.

On the feature side, X570 gives you native USB 3.2 Gen 2 (10Gbps) support, SATA RAID modes (0, 1, and 10), and AMD StoreMI support for combining an SSD and HDD into a tiered storage volume. The chipset also handles the additional M.2 and SATA connections beyond what the CPU provides directly. The MEG ACE's third M.2 slot, which runs at PCIe 3.0 x4 or SATA, routes through the chipset rather than the CPU. That's worth knowing if you're stacking three NVMe drives and wondering why the third one benchmarks slightly slower than the first two.

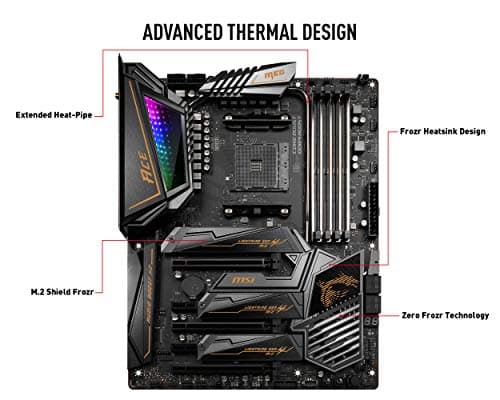

The heatsinks covering the VRM area are substantial and connected via a heatpipe that runs between the two heatsink blocks flanking the CPU socket. This isn't decorative. A heatpipe-linked VRM heatsink genuinely improves heat distribution compared to two isolated heatsink blocks, and owners running Ryzen 9 5950X chips (the most demanding AM4 processor at 105W TDP with significant power spikes under all-core load) report stable operation without thermal throttling. That's the practical test that matters more than any theoretical phase count.

The dual 8-pin EPS CPU power connectors are both present and both should be used if you're running a high-TDP chip. Some builders only connect one, which is fine for mid-range CPUs but leaves performance on the table with a 5900X or 5950X. The board's power delivery circuitry is genuinely overbuilt relative to what AM4 CPUs need, which is exactly what you want in a board you're planning to run for five or more years. VRM components degrade over time, and having headroom built in means that degradation matters less.

The MEG ACE supports XMP profiles (Intel's standard, but universally adopted by DDR4 kit manufacturers) and AMD's own EXPO standard isn't relevant here since EXPO is a DDR5 feature. XMP 2.0 is what you'll be using. The board handles it without drama for most kits, though a few owners report needing to manually set subtimings for kits running above DDR4-3800 to achieve full stability. That's not a board flaw so much as a reality of high-speed DDR4 tuning on any platform.

Capacity-wise, 128GB across four slots means 32GB modules, which are available but pricey. Most builders will run 32GB total (4x8GB or 2x16GB) or 64GB (4x16GB). Running four populated slots rather than two does slightly reduce maximum achievable memory frequency due to increased electrical load on the memory traces, but the difference is small and most people won't notice it in practice. If you're specifically chasing maximum memory overclocks, two sticks in slots A2 and B2 (second and fourth from the CPU) is the standard recommendation.

Beyond the M.2 slots, there are six SATA 6Gb/s ports for traditional 2.5-inch SSDs and 3.5-inch hard drives. One thing to be aware of: enabling the third M.2 slot in SATA mode will disable one of the SATA ports, as they share bandwidth. This is standard chipset behaviour on X570 and not specific to this board, but it's worth mapping out your storage configuration before you start the build. The board also supports AMD StoreMI, which lets you combine a fast SSD and a slower HDD into a single tiered volume, though in practice most people find it simpler to just manage their drives separately.

RAID support covers modes 0, 1, and 10 across both SATA and NVMe (AMD RAIDXpert2). NVMe RAID on X570 is a bit of a niche use case, but it's there if you need it. The M.2 slots all use the standard 2280 form factor with support for 2242, 2260, and 22110 drives via the included standoffs. The heatsink covers for the M.2 slots are included in the box, which is worth mentioning because some boards at lower price points make you buy them separately.

There's also a single PCIe x1 slot, which sits below the second x16 slot. Useful for a sound card, a USB expansion card, or other low-bandwidth add-in cards. The slot layout means that with a triple-slot GPU in the primary x16 slot, you'll cover the x1 slot but the second x16 slot remains accessible, which is a sensible design choice. Some boards stack the x1 slot between the two x16 slots and end up with it permanently blocked by any modern GPU.

Lane allocation is worth understanding clearly. The Ryzen 5000 CPU provides 24 PCIe 4.0 lanes total: 16 go to the primary GPU slot, 4 go to the top M.2 slot, and 4 connect to the X570 chipset. The chipset then provides additional PCIe 4.0 lanes for the second M.2 slot, the second x16 slot (running at x4), and other connectivity. There's no bifurcation support for running the primary x16 slot at x8/x8 for dual GPU configurations, but dual GPU gaming is effectively dead as a use case, so that's not a real-world limitation for anyone.

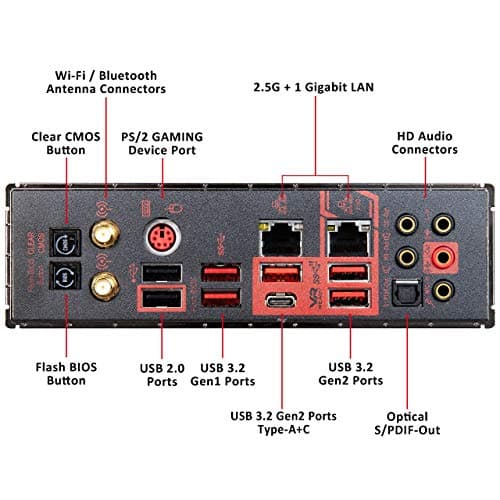

The USB count is adequate but not generous for a flagship board. Seven USB ports on the rear panel means you'll likely be relying on your case's front panel headers for day-to-day connectivity, which is fine as long as your case has good front panel USB options. The board provides internal headers for two USB 3.2 Gen 1 ports (via a 19-pin header), two USB 2.0 ports (via dual 9-pin headers), and a USB 3.2 Gen 2 Type-C front panel header, which covers modern case designs well. There's no USB 3.2 Gen 2x2 (20Gbps) support, which was a reasonable omission at the time this board launched but is slightly noticeable now.

There's no BIOS Flashback button on the rear I/O panel, which is a genuine omission on a board at this price. BIOS Flashback lets you update firmware without a CPU installed, which is critical if you're buying a board to pair with a new CPU that the shipped BIOS doesn't support yet. On the MEG ACE, you'll need a compatible CPU in the socket to perform a BIOS update. That's manageable but less convenient than boards that include the feature. The audio section uses a Realtek ALC1220 codec with audio capacitors separated from the main PCB, which is the standard approach for reducing electrical interference. It's not audiophile-grade, but it's solid for gaming and general use.

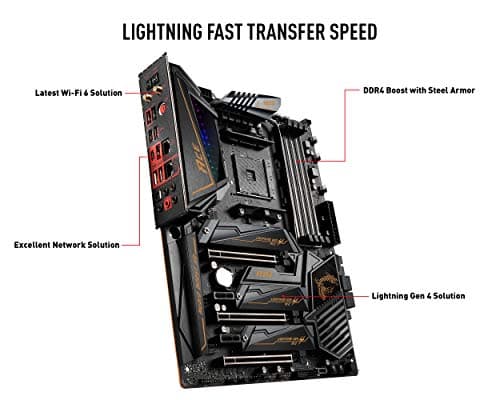

Wi-Fi comes via an Intel AX200 module, which supports Wi-Fi 6 (802.11ax) on both 2.4GHz and 5GHz bands. Maximum theoretical throughput is 2.4Gbps on the 5GHz band with a Wi-Fi 6 router, though real-world speeds depend heavily on your router, distance, and interference. Bluetooth 5.0 is included via the same module, which covers modern peripherals without issue. The antenna connectors on the rear panel accept the two included antennas, which are the standard swivel-base type. They work fine. Nobody's winning awards for Wi-Fi antenna aesthetics.

Intel's AX200 has a good reputation for driver stability and consistent performance, which matters more than peak theoretical speeds for day-to-day use. The Intel AX200 specification covers MU-MIMO, OFDMA, and BSS Colouring, all of which are Wi-Fi 6 features that improve performance in congested wireless environments. If you're in a flat with twenty networks visible, Wi-Fi 6's interference handling is noticeably better than Wi-Fi 5. The module is soldered to the board rather than being a replaceable M.2 card, which is worth knowing if you want to upgrade to Wi-Fi 6E later. You can't.

Fan control is one area where MSI has improved over the years. Click BIOS 5 lets you set fan curves per header with temperature source selection, meaning you can tie a case fan's speed to chipset temperature rather than CPU temperature if that makes more sense for your airflow setup. Six fan headers total gives you enough to cover most builds without needing a fan hub. The BIOS also includes a Hardware Monitor section with real-time sensor readouts, which is useful for checking VRM temperatures without booting into Windows.

A small but meaningful detail: the board includes a debug LED display (a two-digit hex code readout) on the motherboard itself, which shows POST codes during boot. This is genuinely useful for diagnosing boot failures. If your system won't POST, the debug code tells you whether the problem is memory, GPU, CPU, or something else, which saves hours of component-swapping guesswork. Some owners in the review pool specifically mention this as helpful during initial build troubleshooting. The BIOS stability overall gets positive marks from the owner review base, with the main reported issue being occasional XMP instability at the higher end of the supported speed range, which is a platform characteristic rather than a board-specific flaw.

Aesthetically, the MEG ACE goes for a predominantly black and silver look with controlled RGB. There are ARGB and RGB headers for connecting additional lighting, and the board itself has some onboard RGB in the chipset heatsink area. It's not as aggressively lit as some of the gaming-focused boards in MSI's lower tiers, which is probably the right call for a flagship product. The overall impression is of a board that looks expensive without screaming for attention, which suits the intended audience.

Build quality in the physical sense, so the feel of the DIMM latches, the PCIe slot retention mechanism, the M.2 screw standoffs, is good. Nothing feels cheap or fragile. The VRM heatsinks are secured with screws rather than push-pins, which is a detail that matters for long-term thermal contact. Push-pin heatsinks can loosen over time as the board flexes during thermal cycles. Screwed heatsinks don't. It's a small thing that separates boards built to last from boards built to a price point.

The ASUS ROG Crosshair VIII Hero is arguably the most direct competitor. It uses a 14-phase VRM configuration with 50A power stages versus the MEG ACE's 16-phase 60A setup, which gives the MSI board a theoretical edge in current delivery. The ASUS BIOS (UEFI) is generally considered the best in class on AM4, with more granular overclocking controls and better memory compatibility out of the box. If you're a serious memory overclocker, the ROG board's BIOS advantage is real. The Gigabyte AORUS Master uses a 14-phase VRM with 55A stages and a similar feature set to the MEG ACE, but Gigabyte's BIOS has historically been the weakest of the three in terms of usability and stability.

For most builders, the differences between these three boards in day-to-day use are small. All three handle the full Ryzen 5000 lineup without VRM throttling. All three support PCIe 4.0, Wi-Fi 6, and 2.5GbE. The MEG ACE's advantage is the slightly stronger VRM and the competitive pricing that X570 boards have reached as the platform matures. The ASUS board's advantage is the BIOS. The Gigabyte board's advantage is sometimes price. Choose accordingly.

The criticisms that appear with any regularity are worth taking seriously. The most common complaint is around XMP stability at speeds above DDR4-3600, with some owners needing to manually adjust memory timings to achieve stability with faster kits. This is partly a Ryzen platform characteristic rather than a board-specific flaw, but the ASUS ROG boards do tend to handle high-speed XMP more gracefully out of the box. A smaller number of owners mention the chipset fan becoming audible after extended use, typically after a year or more of operation. Not a common complaint, but it's consistent enough to be worth noting. And a handful of builders flag the absence of BIOS Flashback as an inconvenience when building with a CPU that requires a BIOS update.

The positive reviews also frequently mention the build experience itself. The component layout makes cable routing straightforward, the M.2 heatsink covers are easy to remove and reinstall, and the debug LED display is specifically called out as helpful during initial troubleshooting. For a board that will be installed once and then not touched for years, the build experience matters more than some reviewers acknowledge. A board that's annoying to build on creates frustration that colours the whole ownership experience.

The value question really comes down to what you're comparing it to. Against a B550 board at half the price, the MEG ACE offers more PCIe 4.0 M.2 slots, better VRM headroom for high-TDP chips, 2.5GbE instead of 1GbE, and Wi-Fi 6 included. If you're building around a Ryzen 9 chip and want the platform to last five years, the premium is justified. If you're building around a Ryzen 5 5600X and mostly gaming, a good B550 board saves you money without meaningful performance compromise.

Against the ASUS ROG Crosshair VIII Hero at a similar price, the choice is genuinely close. The MSI board has a stronger VRM on paper. The ASUS board has a better BIOS and BIOS Flashback. For most builders, neither advantage is decisive. If you're planning to push memory overclocking or want the flexibility to install a new CPU without needing an existing compatible chip for BIOS updates, the ASUS board has a practical edge. If you're prioritising raw power delivery for a high-TDP workstation build, the MEG ACE's VRM numbers are the better spec. Both are good boards at fair prices for what they offer.

For memory overclocking, the board's 16-phase VRM and the comprehensive BIOS options give you the tools to push DDR4 kits beyond their rated XMP speeds if you want to. The practical ceiling for most Ryzen 5000 chips is around DDR4-3800 to DDR4-4000 with the Infinity Fabric running in synchronous mode, beyond which you either need to run async mode (which adds latency) or accept that your specific CPU's memory controller won't cooperate. The MEG ACE doesn't add artificial limits here. Whether you hit those ceilings depends on your CPU sample and your memory kit, not the board.

The debug LED and the comprehensive sensor monitoring in the BIOS make the overclocking process less painful than it can be on boards without those features. When a memory overclock fails and the system reboots, the debug code tells you immediately whether it's a training failure or a stability issue, which helps you decide whether to back off the frequency or adjust the timings. Small quality-of-life details, but they add up when you're spending an afternoon dialling in a memory overclock.

The weaknesses are real but manageable. No BIOS Flashback is an inconvenience if you're pairing it with a CPU that requires a firmware update. The Click BIOS 5 interface is functional but not as polished as ASUS's UEFI for advanced memory overclocking. The active chipset fan is a long-term reliability consideration that comes with X570 territory rather than being specific to this board. And the rear USB port count is adequate rather than generous for a premium product.

Who should buy this? Anyone building a high-end AM4 system around a Ryzen 9 chip and wanting a board that will handle sustained workloads without compromise. Content creators, developers, and workstation users who want AM4's now-competitive pricing without sacrificing platform quality. Who should look elsewhere? Builders on tighter budgets who are pairing a mid-range Ryzen 5 chip with the board for gaming only (a good B550 board makes more sense). Anyone who specifically needs BIOS Flashback or wants the best possible memory overclocking BIOS (the ASUS ROG Crosshair VIII Hero is the better pick in that case). And anyone who wants a current-generation upgrade path, because AM4 is a closed book at this point.

Overall score: 8.5 out of 10. The VRM and the build quality are genuinely excellent. The minor omissions keep it from a higher mark, but for an AM4 flagship in 2025, it's one of the better options available.

If you want the best BIOS experience on AM4 and BIOS Flashback support, the ASUS ROG Crosshair VIII Hero (Wi-Fi) is the direct alternative at a similar price point. The VRM is slightly less powerful on paper but more than adequate for any AM4 CPU, and the UEFI is the best you'll find on this platform for memory tuning. Worth the premium over the MEG ACE if BIOS quality is your priority.

And if you're open to moving platforms entirely, the current AM5 ecosystem with Ryzen 7000 series offers a forward upgrade path that AM4 doesn't. The total build cost is higher due to DDR5 memory pricing, but you're buying into a platform that will receive new CPUs for several more years. The AMD Ryzen product page covers the current AM5 lineup if you want to compare. For a pure value-per-performance build today, AM4 still makes sense. For a platform you're planning to upgrade incrementally over five years, AM5 is the more logical foundation.
