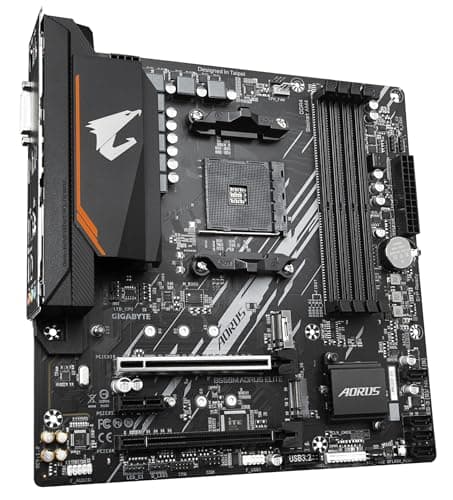

Gigabyte B550M AORUS ELITE Review: Solid Micro-ATX B550 for Ryzen 5000 Builds

Pick the wrong motherboard and you'll know about it. Maybe it's the board that throttles your Ryzen 5600 under sustained load because the VRM runs hot enough to fry an egg. Maybe it's the one with a BIOS so confusing that enabling XMP takes forty-five minutes and three forum posts. Or maybe it just dies six months in and takes your OS drive with it. Motherboards are the part of a build that nobody thinks about until something goes wrong, and by then it's already too late.

The Gigabyte B550M AORUS ELITE sits in a crowded spot. It's a micro-ATX B550 board aimed squarely at people building a mid-range Ryzen system who want something that feels properly put together without spending silly money on a full-fat ATX board they don't need. With AMD's AM4 platform now fully mature, B550 has become the sweet spot for Ryzen 5000 builds, and there's no shortage of options fighting for your cash. So the question is whether this one earns its place or just blends into the noise.

With 4,837 owner reviews averaging 4.2 stars, there's a solid body of real-world experience to draw on here. That's not a small sample. And the pattern in those reviews tells you quite a bit about where this board delivers and where it cuts corners. We've dug into all of it, cross-referenced the specs, and compared it against the obvious alternatives. Here's what you need to know.

Storage comes via two M.2 slots, both running PCIe 3.0 x4, which is worth paying attention to because this is one of the key areas where the B550M AORUS ELITE differs from its bigger sibling. There's no PCIe 4.0 M.2 action here. For the GPU, you get a single PCIe 4.0 x16 slot (reinforced, which Gigabyte calls Ultra Durable), plus additional PCIe 3.0 slots for expansion cards. Connectivity on the rear I/O includes USB 3.2 Gen1, and there's a front panel USB 3.2 Gen1 Type-C header for cases that support it. Gigabyte's AMP-UP Audio uses a Realtek ALC1200 codec with WIMA capacitors, which is a step above the basic budget-board audio implementations.

Networking is Gigabit Ethernet, not 2.5GbE. That's a notable omission compared to some competitors at this price point, and it's one of the genuine compromises you're making by going with the M rather than a larger AORUS variant. Display output is handled via HDMI and DisplayPort for builds using a Ryzen APU, and RGB FUSION 2.0 is on board for addressable LED and standard RGB strip headers. Below is the full spec breakdown.

One thing to be aware of: if you're buying a brand new board and a Ryzen 5000 chip, you should check whether the board ships with a BIOS version that already supports your CPU. Gigabyte has been reasonably good about shipping updated BIOS versions on newer stock, but it's not guaranteed. If you're buying second-hand or old stock, you might need a compatible Ryzen 3000 chip to do the initial BIOS update before your 5000 series chip will POST. It's a known AM4 platform quirk, not specific to Gigabyte, but worth knowing before you're staring at a blank screen wondering what went wrong.

What the B550M AORUS ELITE does not support is 1st and 2nd Gen Ryzen (Zen and Zen+). That's a B550 chipset limitation across the board. If you've got an older Ryzen 1000 or 2000 chip you were hoping to reuse, this isn't the board for you. You'd want a B450 or X470 board for those. For anyone building fresh with a Ryzen 5600, 5700X, 5800X, or 5900X though, this board is a perfectly sensible platform. AMD's Ryzen desktop processor lineup is well documented if you want to double-check compatibility before buying.

B550 supports CPU overclocking, which X470 and B450 also do, but it brings improved memory overclocking support and better overall memory controller behaviour compared to the older chipsets. The B550M AORUS ELITE's rated 4733MHz memory ceiling (under OC) reflects this. In terms of USB bandwidth from the chipset, B550 provides USB 3.2 Gen2 capability (though the specific port configuration varies by board implementation), plus USB 2.0 ports for legacy devices. SATA comes in at four ports on this board, which is enough for most builds that lean on M.2 for primary storage.

One chipset-level feature worth mentioning is that B550 does not support PCIe bifurcation in the same way X570 does, and there's no Thunderbolt support (that's an Intel thing anyway). For mainstream gaming and productivity builds, none of that matters. But if you're planning a workstation with multiple NVMe drives in RAID or exotic expansion cards, B550 has limits. For a micro-ATX gaming build paired with a Ryzen 5000 chip? It's entirely adequate and the chipset-level feature set matches what the platform actually needs.

For the chips this board is realistically paired with, the 5+3 phase VRM is workable. A Ryzen 5 5600 has a TDP of 65W and won't stress a 5+3 design. A Ryzen 7 5700X at 65W is similarly fine. Where you start to push things is with the 5800X (105W TDP) and especially the 5900X (105W TDP) under sustained multi-threaded loads. Owner reviews flag this: some users running 5800X builds report that the VRM area runs warm under heavy workloads, and Gigabyte's heatsink coverage on the M variant is less generous than on the larger boards. It's not a disaster, but it's a genuine consideration. The board is not really designed to be a 5900X platform.

For a 65W Ryzen 5 or Ryzen 7 build, which is the sweet spot this board is aimed at, the power delivery is adequate and the digital VRM design brings good efficiency and reasonable voltage control. The "pure digital" designation means cleaner voltage regulation compared to older analogue designs, which is a genuine benefit for memory stability and CPU longevity. Just don't buy this board and then drop a 5950X in it and wonder why your Cinebench scores look soft. It's a micro-ATX B550 board with a 5+3 phase VRM. Use it accordingly.

The headline memory speed is 4733MHz under OC, which is a solid ceiling for a B550 board. In practice, the Ryzen 5000 memory sweet spot is around 3600MHz CL16 to 3800MHz CL16 for gaming, where the Infinity Fabric runs at 1:1 with the memory controller. Pushing beyond that gets into diminishing returns territory quickly. The fact that this board can technically run 4733MHz is useful for enthusiasts who want to experiment, but most builds will settle at 3600MHz and call it done. JEDEC DDR4 specifications define the base standard, but the real-world sweet spots for Ryzen are well understood by the community.

XMP support is present, so if you're buying a kit rated at 3200MHz or 3600MHz, enabling XMP in the BIOS will get you there without manual tweaking. Owner reviews suggest XMP enabling is generally straightforward on this board, which is not always the case. Some B550 boards from other manufacturers have had issues with certain memory kits at rated speeds, but the Gigabyte BIOS has a decent memory compatibility record. Four slots also means you can run 64GB if you want (4 x 16GB), which is more than enough for any gaming or productivity workload you'd pair with a mid-range AM4 build.

The four SATA 6Gb/s ports give you room for additional storage, whether that's SATA SSDs or mechanical hard drives for bulk storage. That's a reasonable complement for a micro-ATX build. Most people doing a fresh build in 2024 will use one or both M.2 slots and maybe one SATA drive for extra capacity, and four SATA ports is more than enough for that. There's no mention of RAID support in the core feature set, so if RAID is important to you, check the BIOS options carefully before committing.

One thing owner reviews mention positively is the M.2 installation experience. The slot placement on this board is reasonably accessible, and the retention mechanism works without drama. That sounds trivial, but anyone who's wrestled with a badly positioned M.2 screw on a cramped micro-ATX board knows it's not. The thermal guard on some Gigabyte B550 variants is not specified for both slots on this board, so check your drive's thermal behaviour if you're running sustained sequential workloads, though NVMe throttling under gaming loads is rarely an issue in practice.

PCIe 4.0 x16 for the GPU means you're getting the full bandwidth available from the Ryzen 5000 CPU's PCIe lanes. For current-generation GPUs, PCIe 4.0 x16 is plenty. Even PCIe 3.0 x16 doesn't meaningfully bottleneck any current GPU in gaming workloads, so having PCIe 4.0 here is future-proofing more than a current necessity. Still, it's the right spec to have. The additional PCIe 3.0 slots accommodate expansion cards like capture cards, sound cards, or additional NVMe adapters if you need them.

Lane sharing is worth understanding on B550. When you run both M.2 slots simultaneously, the chipset manages bandwidth allocation, and in some configurations SATA ports may be disabled depending on what's installed. The manual is your friend here. For the vast majority of builds using one or two M.2 drives and a GPU, there's no conflict. But if you're planning a dense storage configuration with multiple M.2 drives and multiple SATA devices, read the manual's lane sharing table before you commit to a layout. It's not unique to this board; it's a B550 platform characteristic.

The front panel connectivity includes a USB 3.2 Gen1 Type-C header, which is genuinely useful if your case has a front panel Type-C port. It's not USB 3.2 Gen2 Type-C (which would give 10Gb/s), but Gen1 Type-C at 5Gb/s is still fast enough for most front-panel use cases. Owner reviews mention the I/O panel positively in terms of layout, with the ports being well spaced and easy to access. The I/O shield is integrated into the board, which simplifies installation and looks cleaner than a separate shield.

One rear I/O feature that's not present here is a BIOS Flashback button. Some competing boards at similar price points include this, which lets you update the BIOS without a CPU installed. Given the AM4 platform's BIOS update requirements for Ryzen 5000 compatibility, the absence of Flashback means you need a compatible CPU to do the initial update if the board ships with older firmware. It's not a dealbreaker, but it's worth knowing. A Clear CMOS button or jumper is present, which at least makes recovery from a bad BIOS setting straightforward.

There is no built-in WiFi on this board. That's not unusual for a board at this price point in the micro-ATX category, but it's worth stating plainly. If your build location doesn't have easy access to a wired Ethernet run, you'll need a PCIe WiFi card or a USB WiFi adapter. PCIe WiFi cards are cheap and generally work well, so it's not a big deal, but it's an extra purchase to factor in. The WiFi Alliance maintains the current WiFi standards if you want to understand what a WiFi 6 card would add.

Bluetooth is similarly absent from the built-in feature set. Again, not unusual for a wired-first micro-ATX board in this category, but worth noting if you use Bluetooth peripherals. A combined WiFi/Bluetooth PCIe card solves both issues at once and costs very little. The GbE controller itself is handled by a Realtek chip, which has broad driver support and works reliably across Windows versions. Realtek's GbE controllers are industry standard at this price point and there's nothing wrong with them.

Overclocking support on B550 is proper. You can adjust CPU multiplier, core voltage, memory timings, and memory frequency. The board's 5+3 phase VRM limits how far you can push things on high-TDP chips, as discussed earlier, but for a Ryzen 5 5600 or Ryzen 7 5700X, there's enough headroom to tighten memory timings, push a mild all-core overclock, or enable PBO (Precision Boost Overdrive) for automatic performance optimisation. PBO is particularly good on Ryzen 5000 and the BIOS implementation on this board handles it without drama.

Owner reviews are broadly positive about BIOS stability. There are occasional reports of needing a BIOS update to resolve memory compatibility issues with certain kits, which is common across all B550 boards and not specific to Gigabyte. The Q-Flash Plus feature (present on some Gigabyte boards) is not confirmed for this specific variant, so check the product page before assuming you can update BIOS without a CPU. What is confirmed is that the BIOS is regularly updated by Gigabyte, and the AM4 platform has a mature firmware ecosystem at this point. Updates are straightforward via the Q-Flash utility within the BIOS itself.

Aesthetically, this is a clean board. Black PCB, silver/grey heatsinks, no garish colours. The RGB FUSION 2.0 implementation supports both addressable (ARGB) and standard RGB LED strip headers, so you can connect RGB fans or strips and control them via Gigabyte's software. The RGB on the board itself is subtle rather than overwhelming, which will suit builders who want some lighting without their case looking like a nightclub. If RGB isn't your thing, you can disable it entirely in the BIOS without needing to install any software.

The PCB quality is what you'd expect from Gigabyte at this tier. The component placement is sensible, with the 24-pin ATX connector and 8-pin CPU power connector in the standard positions. The M.2 slots are accessible without removing other components. SATA ports are angled, which helps with cable management in compact cases. Owner reviews consistently mention that installation is straightforward, with no unusual clearance issues or awkwardly placed headers. For a micro-ATX build in a compact case, that kind of practical build experience matters quite a bit.

The other natural comparison is the ASRock B550M Pro4, which sits at a similar price point in the micro-ATX B550 space, though if you're exploring the full range of options, it's worth checking out the best ASUS motherboards as well. The ASRock brings 4+2 phase power design (slightly less than the 5+3 here), a similar M.2 configuration, and a reputation for solid BIOS stability. The Gigabyte edges ahead on audio quality (ALC1200 versus ALC897 on the ASRock) and the reinforced PCIe slot. The ASRock has a slight edge in BIOS clarity for first-time builders based on owner feedback. Neither is a clear winner; it comes down to which ecosystem you prefer and which specific features matter to you.

The MSI B550M PRO-VDH WiFi is worth a mention as well, because it adds built-in WiFi at a competitive price. If wireless connectivity matters to you, the MSI's built-in WiFi 5 is a genuine convenience advantage over the Gigabyte's wired-only approach. The MSI's VRM is weaker and the audio implementation is less refined, but for a casual gaming build where WiFi is essential, it's a legitimate alternative to consider.

The criticisms cluster around a few specific areas. VRM thermals under heavy sustained loads with 105W TDP chips come up repeatedly from owners running 5800X builds. It's not catastrophic failure territory, but thermal throttling under extended Blender renders or similar workloads is reported by a minority of users. The 1GbE LAN gets a mention from owners who upgraded from a board with 2.5GbE and noticed the step down. And a small number of owners report issues with specific memory kits at rated speeds, though BIOS updates have resolved most of these over time.

The BIOS experience gets positive marks from owners who've used other brands. Several reviews specifically compare it favourably to MSI's BIOS interface and note that Gigabyte's layout is cleaner and more intuitive for basic tasks. Fan control in particular gets praise. The RGB FUSION software gets a mixed reception (it's not the most polished software suite), but since you can control the RGB from within the BIOS itself, the software dependency is optional rather than mandatory. That's a sensible design choice that more manufacturers should adopt.

For a Ryzen 5 5600 or 5700X build in a compact case, this board hits the value sweet spot well. You're getting a properly specified micro-ATX B550 board with good audio, solid connectivity, and a BIOS that doesn't make you want to throw your PC out of the window. The PCIe 4.0 GPU slot means your graphics card is running at full bandwidth, and the 4733MHz memory ceiling gives you room to run a fast DDR4 kit without hitting a wall. For the intended use case, the money is well spent.

Where the value proposition weakens is if you're trying to use this as a budget platform for a high-end chip. Pairing a 5900X with this board to save money on the motherboard is false economy. The VRM will be working harder than it should, and you'll be leaving performance on the table compared to a proper ATX board with a beefier power delivery design. The board is honest about what it is. The value calculation is straightforward: if the spec list matches your build requirements, it's good value. If you need what it doesn't have, spend more on the right board rather than compromising on the wrong one.

The limitations are real and worth stating plainly. The 5+3 phase VRM is not for 105W chips under sustained loads. Both M.2 slots run at PCIe 3.0, so if you've bought a Gen4 NVMe drive expecting Gen4 speeds, you'll be disappointed. The 1GbE LAN is adequate but behind competitors offering 2.5GbE at similar prices. And the lack of BIOS Flashback adds a small complication to first-time builds with Ryzen 5000 chips on older firmware. None of these are catastrophic, but together they define the board's ceiling clearly.

Who should buy this? Anyone building a compact Ryzen 5000 system in a micro-ATX case with a 65W to 95W chip who wants a properly specified board without paying for features they don't need. Who should skip it? Anyone running a 5900X or 5950X (get a proper ATX board with a beefier VRM), anyone who needs Gen4 M.2 storage, or anyone who wants 2.5GbE built in. The Gigabyte product page has the full spec breakdown if you want to verify compatibility before buying. For the right build, this is a genuinely good choice. For the wrong build, there are better options. Know which one you're doing.

Score: 8/10. A proper micro-ATX B550 board for sensible Ryzen 5000 builds. The compromises are real but fair for the price. Match it to the right chip and it'll serve you well.

• Need a beefier VRM for a 5800X or 5900X? The Gigabyte B550 AORUS PRO gives you 12+2 phases with 50A DrMOS, PCIe 4.0 M.2, and 2.5GbE in an ATX format. It's more money, but it's the right tool for high-TDP chips.
• Need built-in WiFi in a micro-ATX board? The MSI B550M PRO-VDH WiFi includes WiFi 5 and Bluetooth at a competitive price. The VRM and audio are weaker, but if wireless is essential and you're running a 65W chip, it's a reasonable trade.
• Want Gen4 M.2 in a micro-ATX form? The Gigabyte B550M AORUS PRO AX brings PCIe 4.0 M.2, WiFi 6, and a stronger VRM in the same form factor. It costs more, but it addresses the main gaps in this board's spec sheet.
• On a tighter budget? The ASRock B550M Pro4 comes in slightly cheaper and still supports Ryzen 5000. The audio is less refined and the VRM is marginally weaker, but for a basic gaming build on a strict budget, it's a legitimate option.
