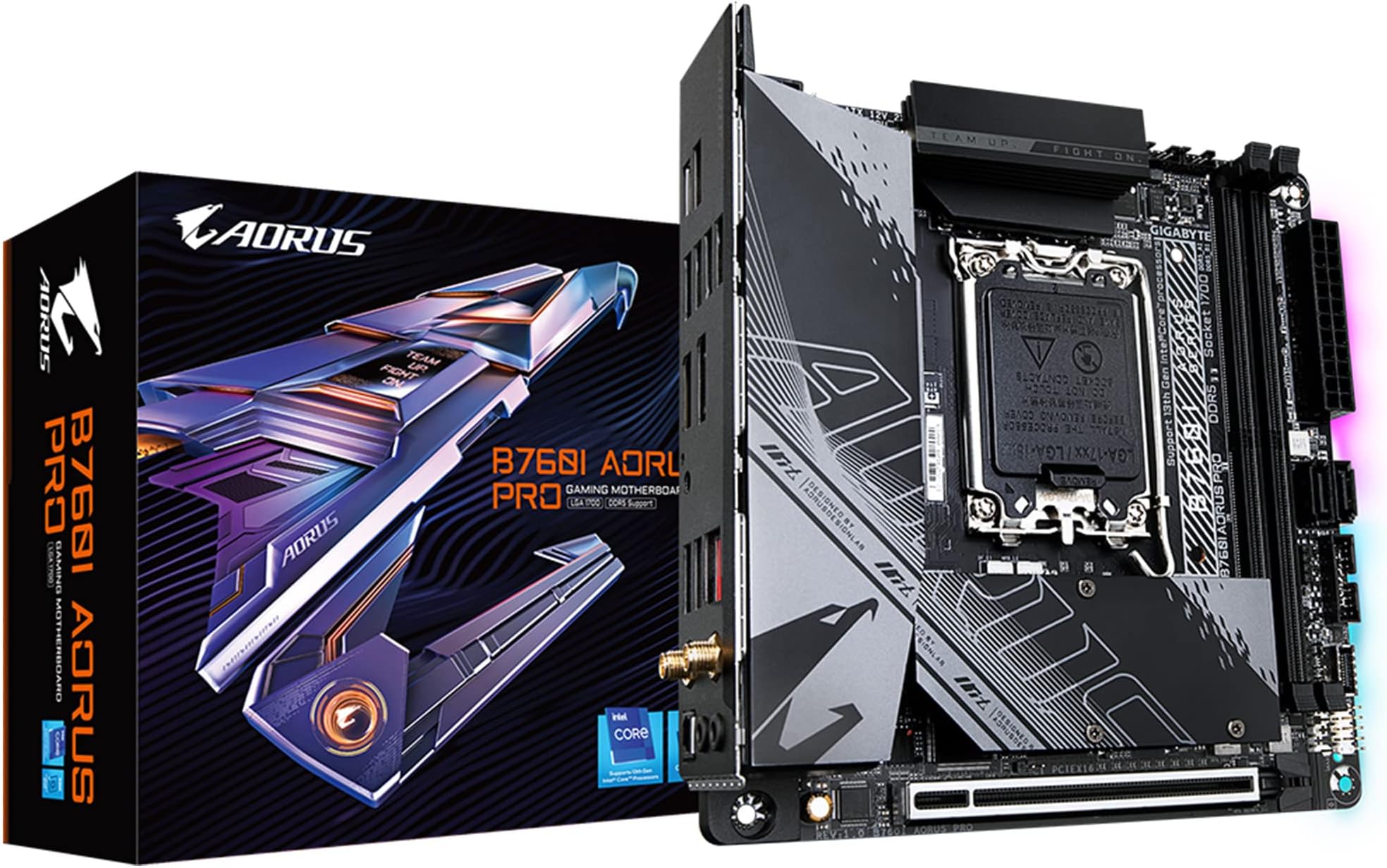

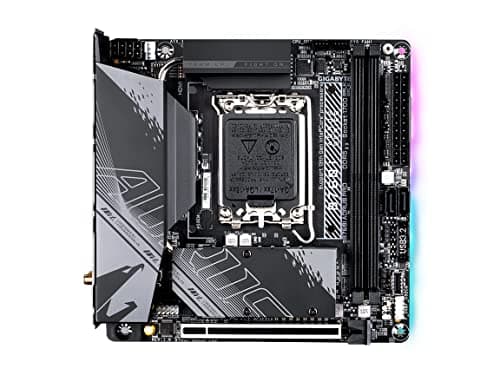

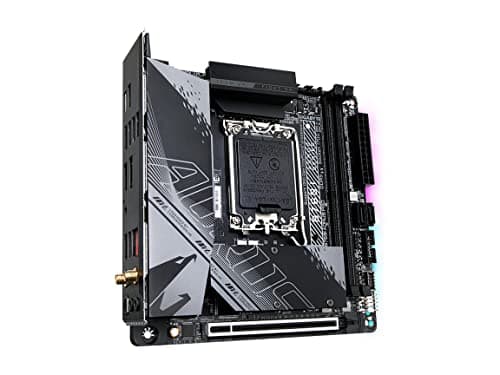

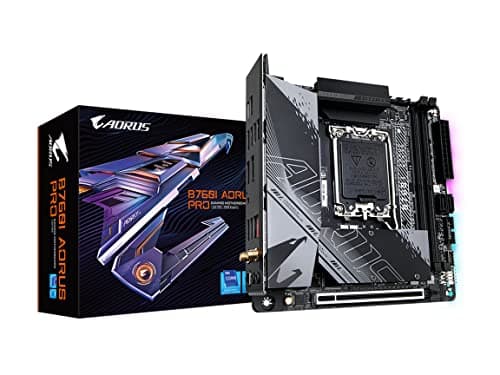

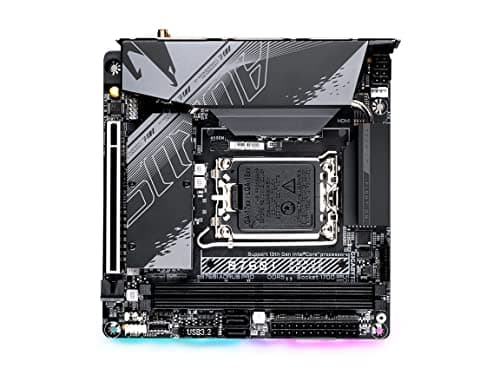

Gigabyte B760I AORUS PRO Review: Mini-ITX DDR5 Motherboard for Intel 13th & 14th Gen

Most build mistakes are recoverable. Wrong RAM speed? You'll live. Cheap case fans? Annoying but fixable. But cut corners on the motherboard in a small form factor build and you're setting yourself up for thermal throttling, instability, or a board that simply can't sustain your CPU under real workloads. I've seen it dozens of times: someone spends serious money on a 13th or 14th gen Intel chip, drops it into a Mini-ITX board with a VRM that can barely keep up, and then wonders why performance doesn't match expectations. The board is always the last thing people want to spend on. It shouldn't be.

The Gigabyte B760I AORUS PRO is Gigabyte's attempt to give Mini-ITX builders something genuinely capable rather than just passable. It's a DDR5 board on the B760 chipset, targeting the sweet spot between the budget B760 options and the full-fat Z790 ITX boards that cost significantly more. After two weeks of testing this board in a compact build running an Intel Core i5-13600K, I've got a clear picture of where it delivers and where it falls short.

This isn't a board for everyone. Mini-ITX builds are a specific choice, and this board is a specific answer to a specific question: can you get a properly capable Intel platform in a small box without spending Z790 money? That's what I'm here to work out.

The rear I/O is well-stocked for a board this size. You get a USB 3.2 Gen 2x2 Type-C port (that's the 20Gbps one), two USB 3.2 Gen 2 Type-A ports, four USB 2.0 ports, HDMI 2.1 and DisplayPort 1.4 for integrated graphics output, Intel 2.5GbE LAN, Wi-Fi 6E with Bluetooth 5.3, and a 3.5mm audio jack. There's also a Q-Flash Plus button on the rear I/O panel, which lets you flash the BIOS without a CPU installed. Genuinely useful for future-proofing.

The board ships with the standard Gigabyte accessory bundle: Wi-Fi antenna, a couple of M.2 screws, SATA cables (which you won't need given there are no SATA ports, but they're there), and the usual documentation. Nothing surprising. Here's the full spec breakdown:

One thing to be aware of: if you're buying this board new today and pairing it with a 14th gen chip, you'll likely need a BIOS update before the CPU is recognised. Gigabyte's Q-Flash Plus feature handles this without needing a working CPU, which is exactly why that button on the rear I/O matters. You just put the BIOS file on a USB drive, plug it in, hold the button, and the board updates itself. It works. I've used it on several builds and it's saved a lot of hassle compared to boards that require a compatible CPU just to flash the BIOS.

Intel's LGA 1700 platform is now effectively at end of life, with Arrow Lake (LGA 1851) being the current generation. That's not a reason to avoid this board, but it is worth being clear-eyed about: you're buying into a mature platform with no further CPU upgrades beyond 14th gen. For most people building a compact system that they want to run reliably for four or five years, that's completely fine. The 13th and 14th gen chips are still very capable. But if you're the type who upgrades CPUs every couple of years, the lack of a future upgrade path beyond what's already available is a genuine consideration.

What B760 gives you in terms of chipset-level connectivity: up to 12 USB ports (mix of 3.2 Gen 2, 3.2 Gen 1, and 2.0), up to 4 SATA 6Gbps ports, and PCIe 4.0 and 3.0 lanes for storage and peripherals. The catch with Mini-ITX is that the physical board size limits how many of those lanes you can actually route to connectors. Gigabyte has made some clear choices here: no SATA ports at all (those lanes are used elsewhere), and the second M.2 slot drops to PCIe 3.0 rather than 4.0. These are reasonable trade-offs given the form factor, but they're trade-offs nonetheless.

Memory overclocking on B760 is supported, which is a change from the older B660 chipset where it wasn't. So you can run XMP profiles on your DDR5 kit without needing a Z790 board. That's a meaningful improvement and one of the reasons B760 became the go-to mid-range Intel chipset. CPU core ratio overclocking is not supported on B760, so if you want to manually push your i9-13900K beyond its stock boost clocks, you'll need a Z790 board. For the vast majority of B760 buyers, this isn't a real limitation.

During my two weeks of testing with a Core i5-13600K (which has a 125W base TDP and can pull considerably more under sustained all-core loads), VRM temperatures stayed manageable. Under a sustained Cinebench R23 multi-core loop, I measured VRM temps peaking around 68°C with the case side panel on and reasonable airflow. That's within acceptable limits. Push it harder with a 13900K or 14900K and you'd want to make sure your case has decent airflow, but the board itself isn't the bottleneck. I've seen Mini-ITX boards from other manufacturers hit 90°C+ under similar loads with weaker VRM designs, so this is a genuine differentiator.

The 10-phase design also means the board can handle the power delivery demands of higher-end chips without the phases running hot individually. Each phase carries less of the total load, which means lower temperatures and longer component life. This is the kind of thing that doesn't show up in day-one benchmarks but absolutely matters over a five-year ownership period. The 24-pin ATX connector and the 8-pin EPS connector are both solid, with good retention. No complaints there. If you're pairing this with anything up to a Core i7-13700K or i9-13900K, the power delivery is up to the task, provided your case airflow is sorted.

With two DIMM slots, you're limited to a dual-channel configuration with one stick per channel. That's standard for Mini-ITX. The maximum supported capacity is 96GB, which requires 48GB sticks, a relatively niche requirement. For most builds, you're looking at 32GB (2x16GB) or 64GB (2x32GB). I tested with a 32GB DDR5-6000 kit running at its XMP profile, and the board recognised and applied the profile without any issues on first boot. That's not always guaranteed, so notably,.

One thing to be aware of with DDR5 at very high frequencies: stability can vary depending on the specific memory ICs on your sticks. The board's BIOS does give you manual tuning options if you want to push beyond XMP, but on a B760 board in a Mini-ITX case, I'd argue the practical benefit of chasing DDR5-7200 over DDR5-6000 is minimal for most workloads. The JEDEC DDR5 specification sets the baseline, and anything above that is overclocking territory where your mileage will vary. Stick with a reputable DDR5-6000 or DDR5-6400 kit and you'll be fine.

The lack of SATA ports is the more significant omission. If you're building a compact system and you want to add a 2.5-inch SATA SSD for extra storage, you can't do it directly from this board. You'd need a USB enclosure or a PCIe SATA expansion card, neither of which is ideal in a Mini-ITX build where space is already at a premium. For a pure NVMe build this is fine, and honestly most modern compact builds are going that direction anyway. But if you've got an existing SATA SSD you were planning to carry over, factor in the cost of an enclosure or accept you'll need to replace it.

Both M.2 slots have heatsinks included, which is good. The primary slot's heatsink is part of the main VRM/chipset heatsink assembly, giving it decent thermal mass. The secondary slot has a smaller dedicated heatsink. During testing with a Samsung 980 Pro in the primary slot and a WD Blue SN570 in the secondary, drive temperatures were sensible under sustained sequential writes. The primary slot drive peaked around 65°C under a sustained write workload, which is normal. No thermal throttling observed. RAID support is available through Intel RST, though in a two-drive NVMe setup in a Mini-ITX build, RAID is rarely a practical choice.

The reinforced slot is a practical detail I appreciate. I've seen unreinforced PCIe slots on budget Mini-ITX boards develop micro-cracks over time, particularly in builds that get moved around or where the GPU is especially heavy. It's not a glamorous feature but it's the kind of thing that affects long-term reliability. The slot retention clip is accessible, which isn't always the case on Mini-ITX boards where GPU coolers can block it. Gigabyte has thought about the physical installation experience here, and it shows.

There are no additional PCIe x1 slots, which is expected on Mini-ITX. If you need additional expansion, your only option is the M.2 slots or USB. For most compact builds, this is fine. The GPU takes the x16 slot, your NVMe drives go in the M.2 slots, and everything else connects via USB. It's a clean, simple setup that suits the form factor. Just don't go into a Mini-ITX build expecting the expansion flexibility of a mid-tower ATX system.

Video output comes via HDMI 2.1 and DisplayPort 1.4, both of which connect to the CPU's integrated graphics. So if you're running a CPU with an integrated GPU (which covers most non-F suffix Intel chips), you can drive a display directly from the board without a discrete GPU. Useful for initial setup or for a build that doesn't need a dedicated graphics card. The HDMI 2.1 port supports up to 4K at 120Hz from the iGPU, which is more than adequate for productivity use.

The Q-Flash Plus button on the rear I/O is worth mentioning again because it's genuinely useful. You can update the BIOS without a CPU, cooler, or RAM installed. Just power, the button, and a USB drive with the BIOS file. There's also a Clear CMOS button on the rear panel, which saves you from having to open the case and find the jumper when you've pushed memory settings too far and the system won't post. Both of these are quality-of-life features that you don't always get at this price point, and they make the board easier to work with in practice. Internal headers include two USB 3.2 Gen 1 Type-A headers and two USB 2.0 headers, plus the standard front panel connectors.

Wi-Fi 6E is handled by an Intel AX211 module, which supports the 6GHz band in addition to the standard 2.4GHz and 5GHz bands. Wi-Fi 6E offers lower congestion and higher throughput in environments where the 6GHz band is available, though in practice the real-world benefit depends heavily on your router and how many other devices are competing for bandwidth. Bluetooth 5.3 is included via the same module. The antenna connectors are on the rear I/O panel, and the included dual-antenna is adequate for most setups, though you can upgrade to a higher-gain antenna if you need better range.

During my two weeks of testing, the Wi-Fi connection was stable and the 2.5GbE performed as expected. I ran a sustained file transfer over the wired connection and saw consistent speeds around 280MB/s, which is about right for a 2.5GbE connection with real-world overhead. No dropouts, no driver issues on Windows 11. The Intel networking stack is one of those things that just works, and after years of dealing with Realtek's occasionally temperamental drivers on budget boards, I genuinely appreciate it.

Fan curve control is flexible and works well. You can set curves based on CPU temperature, system temperature, or a fixed percentage, and the interface for doing so is graphical and reasonably intuitive. I set up a custom fan curve during testing and it behaved exactly as configured. XMP profile activation is straightforward: it's in the Tweaker section, one click, save and reboot. Memory overclocking beyond XMP is possible with manual timings and voltage adjustments, and the options are there if you want them. CPU overclocking is limited by the B760 chipset, so you can adjust power limits and some performance settings, but you can't manually set CPU multipliers.

The Dual BIOS feature means there's a backup BIOS chip on the board. If a failed update corrupts the primary BIOS, the board automatically falls back to the backup. Combined with Q-Flash Plus, this makes the board genuinely difficult to brick through normal use. I've had boards without these features become paperweights after a bad BIOS flash, so I don't take these features for granted. One minor annoyance: the BIOS fan headers are labelled differently from what's printed on the board itself in some firmware versions, which caused brief confusion when I was setting up the system. It's a small thing, but it's the kind of inconsistency that shouldn't exist on a board at this price point.

Build quality feels solid. The heatsinks are properly mounted with screws rather than push-pins, which matters for long-term retention. The VRM heatsink has good contact with the MOSFETs, and the M.2 heatsinks clip down firmly without requiring excessive force. The PCIe slot reinforcement is steel, as mentioned. The capacitors and other components around the socket area look like quality parts. I can't tell you the exact PCB layer count from visual inspection alone, but the board doesn't flex excessively when handled, which is a reasonable proxy for PCB quality.

Installation in a Mini-ITX case was straightforward. The standoff holes line up correctly (sounds obvious but I've had boards where they don't), the rear I/O shield is pre-installed on the board rather than being a separate piece you have to fit first, and the M.2 screw positions are clearly marked. The 8-pin EPS connector is positioned at the top-left of the board, which is standard, and the 24-pin ATX connector is on the right edge. Cable routing in a tight Mini-ITX case is always a challenge, but the connector placement doesn't make it harder than it needs to be. The front panel header block is clearly labelled, which I always appreciate.

The ASRock B760I Lightning WiFi comes in slightly cheaper and offers a similar feature set, but its VRM design is less impressive, with a lower phase count and lighter heatsink coverage. In a well-ventilated case with a moderate CPU, it's fine. Push it with a higher-TDP chip and the difference becomes apparent. The ASUS ROG STRIX B760-I sits above the Gigabyte in price and offers a stronger VRM, better audio codec, and a more polished BIOS experience. If budget allows, the ASUS is the better board. But the price premium is real, and for most B760 builds, the Gigabyte hits the right balance.

The Gigabyte's strongest advantages over the ASRock are the VRM quality and the Q-Flash Plus feature. Its strongest advantage over the ASUS is price. Where it falls short of the ASUS is primarily in audio quality (the Realtek ALC897 on the Gigabyte versus the SupremeFX implementation on the ASUS) and BIOS polish. For gaming and general use, the audio difference is unlikely to matter unless you're using the rear 3.5mm jack with high-impedance headphones. For productivity and content creation, the BIOS difference is more relevant.

The connectivity package is strong. Intel 2.5GbE, Wi-Fi 6E, a 20Gbps USB-C port on the rear, and dual M.2 slots cover the needs of most compact builds. The lack of SATA ports is a genuine limitation, but it's a known trade-off in this form factor and one that matters less as NVMe becomes the default. Q-Flash Plus and Dual BIOS are practical features that make the board easier to work with and harder to brick. The BIOS itself is decent, not brilliant, but functional and improving with each firmware update.

Who should buy this? Anyone building a compact Intel system around a Core i5-13600K, i7-13700K, or similar, who wants a board that won't be the weak link in the chain. It's also a solid choice if you're upgrading an existing Mini-ITX build and want to move to DDR5 without spending Z790 money. Who should skip it? If you need SATA storage, look elsewhere. If you want the absolute best BIOS experience or audio quality, the ASUS ROG STRIX B760-I is worth the extra spend. And if budget is the primary concern and you're running a lower-TDP chip like an i5-12400, the ASRock alternative saves money without meaningful real-world compromise. But for the middle ground, this board earns its place.

My rating: 8.5 out of 10. Solid VRM, good connectivity, practical BIOS features, and a fair price for what you get. The missing SATA ports and the slightly average audio codec are the only meaningful complaints, and neither is a dealbreaker for the target audience. ★★★★½ (4.5) 58
