ASUS PRIME B550-PLUS Review: Reliable AM4 Motherboard for Ryzen Builds

You know what kills more PC builds than dodgy RAM or a bad PSU? A motherboard that looked fine on paper, shipped with a BIOS so broken it wouldn't POST with the CPU you bought, and had VRMs that throttled under any sustained load worth caring about. Nobody puts that on the box. Nobody warns you in the product listing. And yet here we are, with thousands of forum posts from people wondering why their Ryzen 5 5600X is stuttering under load on a board that cost them good money.

The ASUS PRIME B550-PLUS sits in a market that is genuinely crowded. B550 boards have been around long enough now that the good ones are well-understood, the bad ones have been publicly humiliated in owner reviews, and the middling ones (which is most of them) have been quietly discounted. So where does this one land? That's what this review is about. Not benchmarks. Not synthetic scores. Just: is this a board you can trust, and is it worth your money compared to what else is out there?

With 983 owner reviews averaging 4.5 stars on Amazon, there's clearly something going right here. But averages hide a lot. So let's get into the actual detail, because the spec sheet and the real-world owner feedback tell a more nuanced story than a star rating ever could.

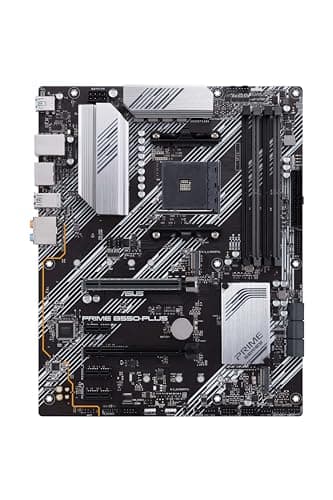

The full ATX layout means you get proper spacing between components, which matters more than people give it credit for. Cramped mATX boards can cause real headaches with cable routing and GPU clearance. The PRIME B550-PLUS avoids all of that. Six SATA ports, multiple fan headers, and a layout that ASUS has clearly thought about rather than just slapping components wherever they fit. That said, it's not loaded with extras. No built-in WiFi on the base model. No Thunderbolt. No 2.5G networking. If those things matter to you, that's relevant context we'll come back to.

Here's the full spec breakdown:

If you're buying new today, the most likely scenario is you're pairing this with a Ryzen 5000 chip. That's a solid combination. The Ryzen 5 5600 in particular is still genuinely excellent value for gaming and everyday workloads, and the B550 chipset gives you everything you need to run it properly. Ryzen 3000 chips also work fine, though at this point you'd be buying second-hand, and if you're going that route you might as well stretch to a 5000 series part. The performance jump is real.

There is also support for Ryzen 4000G APUs (the ones with integrated graphics) via BIOS update, which opens up an interesting option for anyone building a system without a dedicated GPU. Not the most common use case, but it's there. What you won't find here is AM5 support. That's a different socket entirely, reserved for Ryzen 7000 series and beyond. If you're planning to upgrade to next-gen AMD, this board is a dead end. But if you're building a solid AM4 system and expecting it to run well for the next few years without needing an upgrade, the PRIME B550-PLUS makes complete sense.

Overclocking support on B550 is a bit nuanced. You can't adjust base clock (BCLK) in any meaningful way, and CPU core overclocking is technically limited compared to X570. In practice, though, AMD's Precision Boost 2 does a pretty good job of extracting performance automatically, and manual overclocking on Ryzen 5000 rarely beats PBO (Precision Boost Overdrive) anyway. What B550 does support properly is memory overclocking, which is where you'll actually see gains. XMP profiles work, and manual tuning of timings and voltages is available through the BIOS. More on that in the memory section.

The chipset also brings six SATA 6Gb/s ports, which is generous for this tier. You're not going to run out of storage connectivity unless you're building a NAS, which you wouldn't be doing with a B550 board anyway. USB connectivity at the chipset level is solid: a mix of USB 3.2 Gen 1 and Gen 2 ports, plus USB 2.0 for legacy devices. The rear I/O includes a USB 3.2 Gen 2 Type-C port, which is a genuinely useful addition. No passive PCH heatsink concerns here either. B550 runs cooler than X570 (which infamously needed an active fan), so the board stays quiet.

Where things get interesting is the upper end of the CPU range. The Ryzen 9 5950X is a 105W TDP chip that can pull significantly more than that under boost conditions. Several owners have reported running 5950X chips on this board without issues, which is reassuring. That said, if you're planning on pushing a 5950X with aggressive PBO settings and heavy all-core workloads like video rendering or 3D work, a board with beefier VRM coverage (the ASUS TUF B550-PLUS or an X570 board) would give you more headroom. For the Ryzen 5 and Ryzen 7 range, the PRIME B550-PLUS is absolutely fine.

The VRM heatsink design is functional rather than flashy. It covers what it needs to cover, makes good contact with the components underneath, and doesn't rely on airflow from the CPU cooler to stay within safe temperatures. That last point matters if you're running a tower cooler that exhausts away from the VRM area. Some cheaper boards rely on incidental airflow to keep their VRMs in check, which works fine in a well-ventilated case but can cause problems in tighter builds. The PRIME B550-PLUS doesn't have that problem. The heatsink does its job independently.

XMP profiles are supported, so if you buy a kit rated at 3200MHz or 3600MHz, enabling XMP in the BIOS is a one-click job. ASUS also supports DOCP (their implementation of AMD's EXPO equivalent for DDR4), which works the same way. Manual overclocking beyond that is possible but gets progressively harder as you push higher. Reaching 4000MHz+ with all four slots populated is genuinely difficult on any B550 board, not just this one. The memory controller on Ryzen CPUs has limits, and the B550 platform doesn't add any magic. Two sticks in slots A2 and B2 (the second and fourth slots from the CPU) is the recommended configuration for stability.

One thing worth flagging from owner feedback: a handful of users reported that their memory ran at stock JEDEC speeds on first boot rather than the XMP profile, which is completely normal behaviour. You have to manually enable XMP in the BIOS after first install. It's not a fault. But if you're new to building, it can be confusing to see your 3600MHz kit running at 2133MHz and assume something's wrong. ASUS's QVL (Qualified Vendor List) for memory is extensive, and sticking to kits on that list will save you headaches.

The six SATA ports are a genuine strength. Most people don't need six SATA devices anymore, but if you're building a system with multiple HDDs for storage alongside your NVMe boot drive, having the ports available is genuinely useful. RAID 0, 1, and 10 are supported across the SATA ports, which covers most use cases. There's no RAID support for M.2 NVMe drives on B550, but that's a chipset limitation rather than anything ASUS-specific.

One thing to be aware of: when you populate the second M.2 slot, it shares bandwidth with some of the SATA ports. Specifically, SATA ports 5 and 6 become unavailable when M.2_2 is in use. ASUS documents this clearly in the manual, and it's a common B550 chipset limitation rather than a design flaw. For most builds it won't matter at all. But if you're planning a storage-heavy configuration with multiple M.2 drives and multiple HDDs, it's worth checking the manual before you commit to a layout.

The second PCIe x16 slot runs at x4 via the chipset. This is fine for a secondary GPU in compute workloads, a capture card, a 10G network card, or any other expansion card that doesn't need full x16 bandwidth. Physically it looks like an x16 slot, which can be confusing, but the electrical lanes are x4. Worth knowing if you're planning a multi-GPU setup, though AMD dropped CrossFire support anyway so that's largely academic. Two PCIe x1 slots round things out for smaller expansion cards.

The GPU slot placement leaves a reasonable gap between the first x16 slot and the first x1 slot below it, which matters for GPU cooling. Modern GPUs with triple-fan coolers are wide, and boards that cram the x1 slot right up against the x16 slot end up blocking airflow to the bottom fan. The PRIME B550-PLUS doesn't have that problem. The layout feels considered rather than thrown together, which is more than you can say for some competitors at this price point.

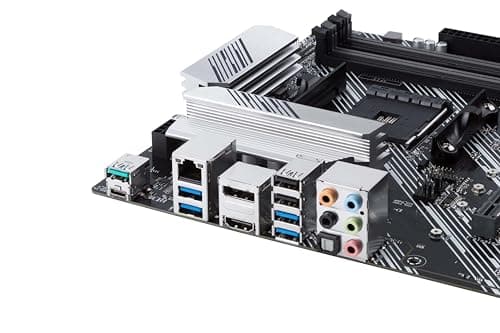

Audio output comes via a Realtek ALC887 codec, which is fine for most people but not going to excite anyone who cares about audio quality. If you're a serious audiophile you'll be using a dedicated DAC anyway. The rear audio stack covers the standard 3.5mm jacks for speakers and headphones, plus optical S/PDIF out for those who want it. Display outputs are present for APU users (Ryzen G-series chips with integrated graphics), covering HDMI and DisplayPort, though most people buying this board will be using a discrete GPU.

One thing that comes up repeatedly in owner feedback is the pre-installed I/O shield. ASUS ships the PRIME B550-PLUS with the I/O shield pre-attached to the board rather than as a separate piece you have to install in the case first. This sounds like a small thing but it's genuinely one of those quality-of-life improvements that makes a build go more smoothly. No more fighting with a sharp metal plate, no more forgetting to install it before the board goes in. Small detail, but appreciated.

What you don't get is 2.5G Ethernet. Competitors like the MSI MAG B550 TOMAHAWK and the ASUS TUF B550-PLUS have 2.5G networking, which is a meaningful upgrade if you have a 2.5G capable router or switch. The PRIME B550-PLUS sticking with 1G is one of the places where ASUS has clearly differentiated it from their pricier B550 offerings. It's not a dealbreaker for most people, but it's worth knowing if networking speed matters to you.

There's no WiFi built in. Full stop. If you need wireless connectivity, you'll need either a PCIe WiFi card or a USB WiFi adapter. This is the same situation as most B550 boards at this price point, though some competitors do include WiFi at similar prices. The ASUS PRIME B550-PLUS AC and PRIME B550-PLUS WiFi variants exist if you specifically need wireless, so if that's a requirement, check those out instead. The base PRIME B550-PLUS assumes you're on wired Ethernet, which is the right assumption for a desktop build.

Fan control via Fan Xpert 2+ is available through the ASUS software in Windows, which is useful for fine-tuning cooling profiles without rebooting into the BIOS every time. The board has multiple fan headers, all of which support both PWM and DC mode fans. The BIOS fan curve editor works well and gives you enough control points to set up a proper temperature-response curve rather than just choosing from a few presets. This matters if you care about noise levels, and you should.

BIOS updates have been consistently delivered for the PRIME B550-PLUS throughout its life, covering AMD AGESA updates, Ryzen 5000 compatibility, and bug fixes. Owner feedback is broadly positive about BIOS stability, with the main complaint being the occasional need to update the BIOS before a new CPU will POST. ASUS includes BIOS FlashBack functionality on this board, which lets you update the BIOS from a USB drive without a CPU installed. That's a genuinely useful feature if you're buying a new CPU that might need a newer BIOS version to work. It's the kind of thing that saves you a trip to a friend's house with a compatible CPU.

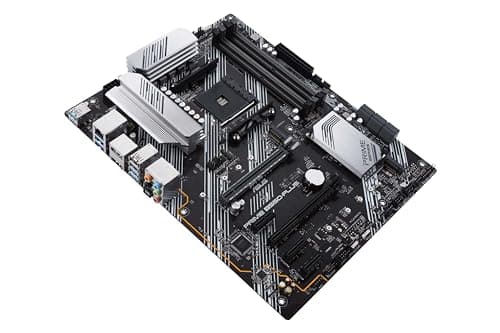

Build quality feels solid. The heatsinks are properly mounted with screws rather than push-pins, which matters because push-pin heatsinks can work loose over time and lose contact with the components they're meant to cool. The PCB feels substantial, and the component placement suggests someone actually thought about the build process rather than just optimising for manufacturing cost. The SafeSlot GPU reinforcement is a nice touch, and the pre-installed I/O shield (mentioned earlier) is one of those small things that signals a manufacturer actually cares about the user experience.

A few owners have flagged that the SATA port placement is slightly awkward with longer graphics cards installed, which is a common complaint across many ATX boards and not unique to this one. The ports are right-angled, which helps, but if you're running a very long GPU you'll want to connect your SATA cables before installing the graphics card. Standard advice for any ATX build, really. The M.2 heatsink covers the primary slot and is easy to remove and reinstall, which matters because you'll probably be doing that during the build process.

The MSI MAG B550 TOMAHAWK is probably the most direct competitor. It has a stronger VRM (12+2 phases with better MOSFET quality), 2.5G Ethernet instead of Gigabit, and a similarly clean aesthetic. It's generally priced slightly above the PRIME B550-PLUS, which reflects those upgrades. If you're running a Ryzen 9 5900X or 5950X and doing heavy workloads, the TOMAHAWK's beefier VRM gives you more headroom. For Ryzen 5 and 7 builds, the difference is largely academic.

The Gigabyte B550 AORUS PRO comes in with a flashier aesthetic (more RGB, more aggressive heatsink design) and also features 2.5G Ethernet. Gigabyte's BIOS has improved significantly over the years but still lags behind ASUS in terms of usability, and owner feedback on Gigabyte boards tends to be more mixed when it comes to BIOS stability. The PRIME B550-PLUS's consistency and BIOS quality is a genuine advantage over the Gigabyte option for users who aren't comfortable digging through a confusing BIOS interface.

The PRIME B550-PLUS wins on BIOS quality and USB-C specification (Gen 2 on the rear is better than Gen 1), loses on Ethernet speed, and sits at a competitive price point. For a first-time builder or someone who values reliability and ease of use over raw specs, it's the right call. Power users with demanding CPUs should look at the TOMAHAWK.

The BIOS first-boot experience is smooth. The board POSTs quickly, the BIOS detects RAM correctly (though you'll need to enable XMP manually as mentioned earlier), and the initial setup doesn't require any obscure settings to get things running. Several owners noted that they were up and running in Windows within an hour of unboxing, which is the kind of feedback that tells you a board is well-sorted at a fundamental level.

There are a few minor niggles. The 24-pin ATX connector is positioned at the right edge of the board as expected, but the 8-pin EPS CPU power connector is at the top-left, which can make cable routing tricky in cases with top-mounted PSUs and limited cable length. This is a common layout across most ATX boards, but it's worth checking your PSU cable length before you commit to a case. The CPU fan header is in the standard position near the CPU socket, and there are enough additional fan headers distributed around the board to cover most cooling configurations without needing a fan splitter.

The complaints that do come up are mostly consistent. The lack of 2.5G Ethernet is the most common criticism, and it's a fair one. At the price this board sits at, competitors do offer faster networking. A smaller number of users reported initial BIOS issues that were resolved by updating to the latest firmware, and a handful had RAM compatibility issues with specific kits that weren't on the QVL. Neither of these are unusual for any motherboard, and ASUS's support response gets generally positive marks when issues do arise.

The negative reviews (and there aren't many) cluster around two areas: DOA units (which happen with any hardware at some rate and is a logistics issue as much as a quality issue) and a small number of users who had difficulty getting their specific CPU or RAM combination working without BIOS updates. The latter is worth taking seriously if you're buying a very new Ryzen chip, because BIOS FlashBack exists precisely for this scenario. Do your homework before buying, check the QVL for your RAM, and you'll likely have no problems at all.

Whether that trade-off makes sense depends entirely on your priorities. If you're on wired Gigabit and your router doesn't support 2.5G anyway (which is most home routers), the networking difference is irrelevant. If you're building a NAS or have a 2.5G capable network infrastructure, the TOMAHAWK is the better choice. For the majority of home builders doing gaming and productivity work on a standard home network, the PRIME B550-PLUS's lower price point and BIOS quality make it the smarter buy.

The AM4 platform is also worth considering from a value perspective. AM4 CPUs, particularly Ryzen 5000 series, are now available at very competitive prices as the market has moved on to AM5. You can build a genuinely powerful system on AM4 for significantly less than an equivalent AM5 build, and the PRIME B550-PLUS is one of the better foundations for that kind of value-focused build. It's not a board for someone who wants to upgrade to Ryzen 7000 in two years. But if you're building for now and expecting to get five or more years out of the platform, it's a very sensible choice.

• Only Gigabit Ethernet - competitors offer 2.5G at similar prices
• No onboard WiFi - you'll need a separate card or adapter
• AM4 is a dead-end platform - no upgrade path to Ryzen 7000
• VRM headroom limited for Ryzen 9 heavy workloads - fine for gaming, less ideal for sustained all-core loads on 5950X

The honest downsides are the Gigabit-only Ethernet (which matters if you have 2.5G infrastructure, doesn't matter if you don't) and the fact that AM4 is a platform with a ceiling. Ryzen 5000 is where it ends. If you're the kind of person who upgrades their CPU every two years, this board is a bad fit. If you're building a system you want to run for five years without touching it, AM4 is actually a great choice right now because the CPUs are mature, well-understood, and increasingly affordable.

Who should buy this? Someone building their first proper gaming or productivity PC on a budget, pairing it with a Ryzen 5 5600 or Ryzen 7 5700X, who wants a reliable foundation with a BIOS that won't make them want to throw the whole thing out the window. Someone who values long-term stability over cutting-edge specs. Someone who doesn't need WiFi built in and isn't running a 2.5G home network. That's a lot of people, and for those people, this board is a proper recommendation.

Who should look elsewhere? Anyone running a Ryzen 9 5950X with heavy all-core workloads should look at the MSI MAG B550 TOMAHAWK for its stronger VRM. Anyone who needs 2.5G networking should do the same. Anyone building a future AM5 platform should obviously skip B550 entirely and look at the ASUS PRIME X670-P or similar AM5 options.

Score: 8 out of 10. One point off for the Gigabit-only Ethernet. One point off for the lack of WiFi at this price. Everything else is where it should be.

• Need 2.5G Ethernet and stronger VRM: MSI MAG B550 TOMAHAWK. Slightly higher price, meaningfully better networking, beefier power delivery. The go-to recommendation for Ryzen 9 builds.
• Need WiFi built in: ASUS PRIME B550-PLUS WiFi variant, or the ASUS TUF Gaming B550-PLUS WiFi. Both include Intel WiFi 6 and keep the same solid ASUS BIOS foundation.
• Building for AM5 and Ryzen 7000: The ASUS PRIME B650-PLUS is the natural successor, bringing AM5 socket support, DDR5 memory, and PCIe 5.0 M.2. It's a newer platform with higher entry costs but a longer upgrade runway.
• Want to spend less and don't need PCIe 4.0: The ASUS PRIME B450M-A II is a budget option that still gives you solid ASUS BIOS quality with a B450 chipset. You lose PCIe 4.0 M.2 and some USB features, but it's a legitimate choice for budget Ryzen 5 builds.

Specifications sourced from ASUS's official product page and AMD's B550 chipset documentation. Memory compatibility should be verified against the ASUS QVL for this board before purchase. PCIe specifications follow the PCI-SIG PCIe standard. USB specifications follow the USB Implementers Forum USB 3.2 specification.
