MSI MAG PANO 110R PZ Review UK (2026) - Build Tested Over Two Weeks

I've built in a lot of cases over the past twelve years, and I can usually tell within the first ten minutes whether something is going to be a pleasure or a proper headache. Tight cable routing channels, panels that don't sit flush, GPU clearances that look fine on paper but eat into your radiator space in practice, front panels with USB-A only when every new peripheral wants USB-C. These aren't minor gripes. They're the things that add an hour to a build and leave you questioning your choices. So when the MSI MAG PANO 110R PZ landed on my bench, I went in with a specific checklist: does the 400mm GPU clearance hold up with a real card installed, how does the back-connect motherboard support actually work in practice, and is the panoramic glass design doing anything useful for airflow or is it just there to look good?

The PANO 110R PZ sits in the mid-range bracket, competing with cases like the Corsair 4000D Airflow and the Fractal Design Pop Air. That's a tough neighbourhood. Both of those have earned their reputations over years of builds and community feedback. MSI is coming in with a slightly different angle here, leaning hard into the back-connect motherboard compatibility and that wide panoramic glass side panel. Whether that's enough to justify the price over the established competition is exactly what two weeks of building and testing is designed to answer.

I built a full system inside the PANO 110R PZ, ran it through thermal testing, pulled it apart, rerouted cables, and generally tried to find the weak spots. Here's what I found.

Fan support is generous. The front supports up to three 120mm or two 140mm fans. The top takes up to two 120mm or two 140mm. The rear has a single 120mm exhaust position. MSI includes three 120mm ARGB fans in the box, which is decent for this price tier. A lot of cases at this level ship with one or two fans and expect you to buy the rest separately. Getting three out of the box means you can actually run a reasonable airflow configuration from day one without an immediate additional spend.

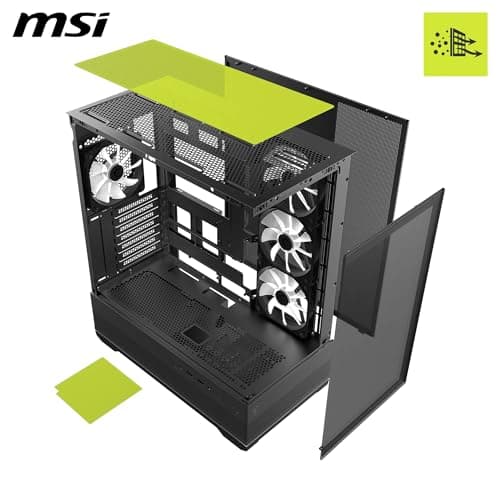

The removable dust filters cover the front intake and the top panel, both of which pull out without tools. The PSU sits at the bottom rear in the standard orientation, and the case supports PSU lengths up to around 180mm, which covers the vast majority of standard ATX power supplies. The front I/O includes the USB 20Gbps Type-C port, which is a proper modern spec rather than the slower USB 3.2 Gen 1 Type-C you still see on some cases in this bracket.

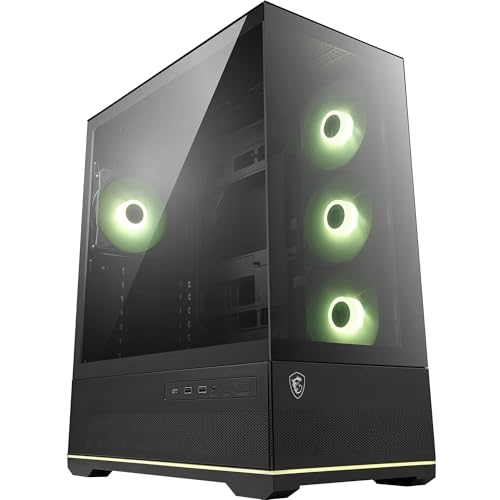

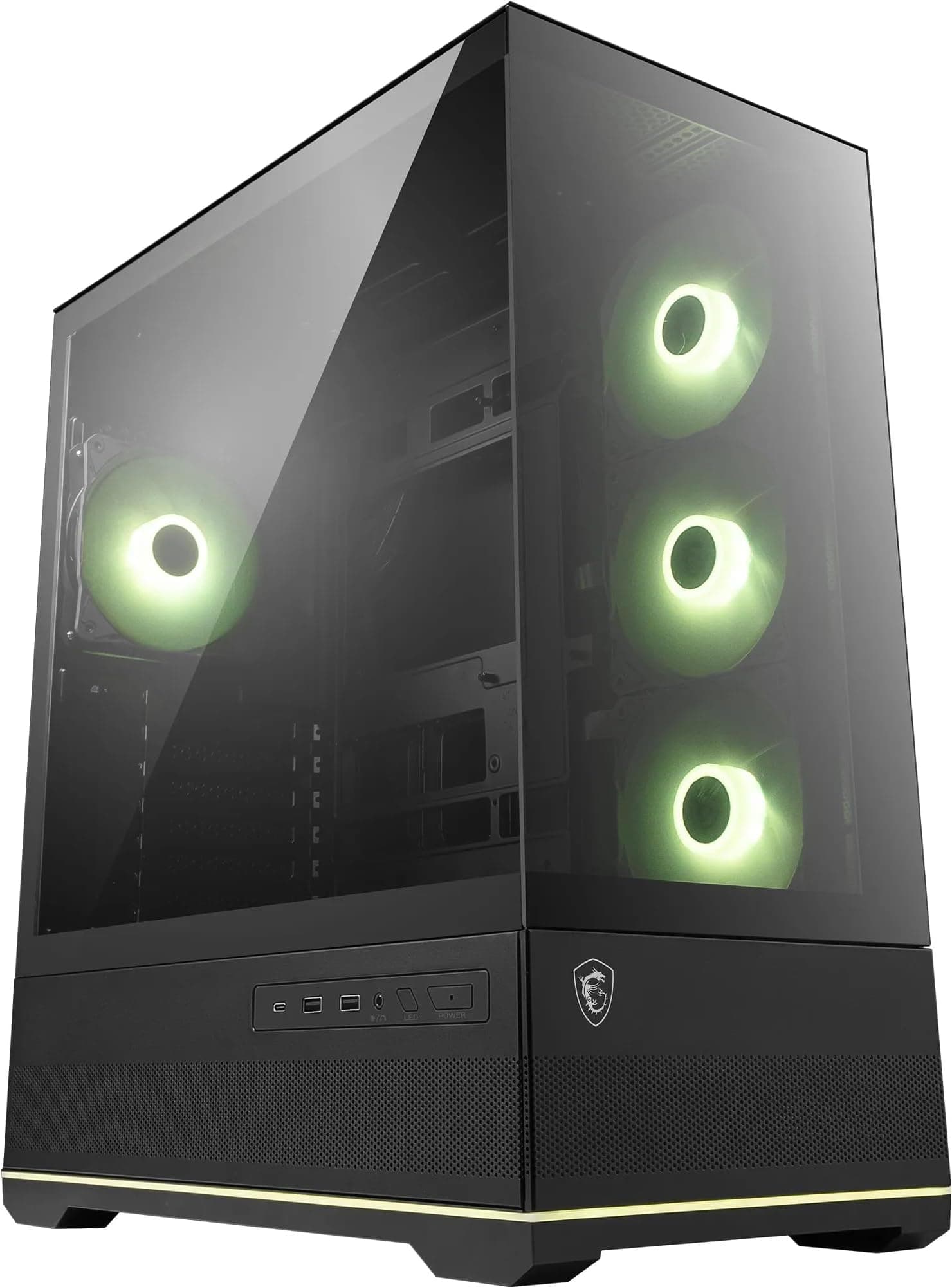

The panoramic glass panel is the defining visual feature. It runs almost the full height and depth of the left side, held in place by a magnetic latch system rather than thumbscrews. That's a nice touch. Removing the panel to get inside takes about two seconds, and there's no risk of dropping a screw into the case while you're trying to access the internals. The glass itself feels solid, not the thin wobbly stuff you get on budget cases. I did notice it picks up fingerprints aggressively, which is worth knowing if you're planning to have this on a desk where people will inevitably touch it.

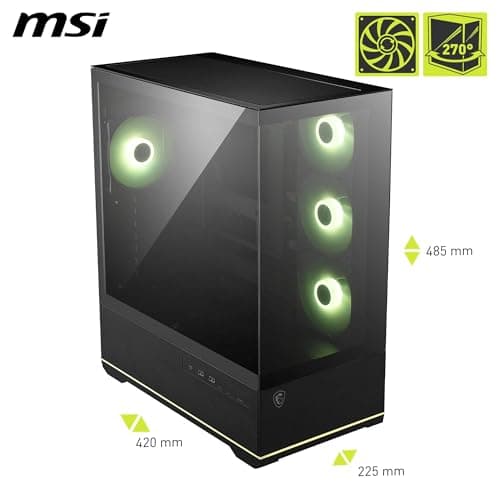

The overall footprint is competitive with the Corsair 4000D, which measures 453 x 230 x 466mm. The PANO 110R PZ is actually slightly narrower and shallower, which is useful if desk space is tight. The Fractal Pop Air comes in at 462 x 217 x 427mm, so they're all in a similar ballpark. None of these are cases you'd call compact, but they're all manageable for a standard home or office desk setup.

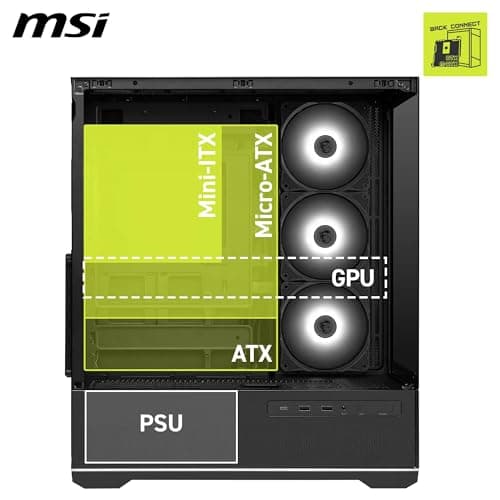

Standard ATX and Micro-ATX boards work fine too, obviously. The standoff layout is conventional, and I had no issues fitting a standard ATX board during testing. The back-connect support is an additional feature rather than a requirement. E-ATX is not supported, which is worth noting if you're running a high-end HEDT platform, but for the vast majority of gaming and workstation builds in this price bracket, ATX is the standard anyway.

The motherboard tray has a large CPU cutout, which is important for installing aftermarket coolers without removing the board. I measured the cutout at roughly 180 x 160mm, which is large enough to access the backplate mounting points for most tower coolers and AIO pump heads without any issues. The tray itself feels rigid, no flex when you're tightening standoffs, which is a basic requirement that cheaper cases sometimes fail.

The GPU sits on a standard PCIe riser bracket arrangement, and the case supports both horizontal and, with an optional riser cable (not included), vertical GPU mounting. Vertical mounting lets you show off the GPU cooler through the panoramic glass, which is clearly part of the design intent here. The vertical mount bracket positions the card roughly 20mm from the glass panel, which is enough clearance to avoid any thermal issues from restricted airflow over the GPU cooler.

I tested with a three-slot GPU (the RTX 4080 Super uses a 3.5-slot cooler in some configurations) and had no issues with the PCIe slot spacing or the PSU shroud clearance below. The bottom of the case has enough room that even chunky triple-fan cards don't feel cramped. One thing worth checking before you buy: if you're planning to run a front 360mm radiator and a 400mm GPU simultaneously, measure your specific card. You'll likely be fine, but it's worth confirming rather than assuming.

For AIO liquid coolers, the front panel supports up to a 360mm radiator, which is the main mounting location for larger AIOs. The top panel supports up to 240mm. The rear supports a single 120mm, which is fine for a small AIO exhaust but not really a primary mounting point for anything bigger. I ran a 240mm AIO mounted at the top during part of my testing period, and the clearance between the radiator fans and the top of the RAM slots was around 35mm, which is fine for standard height DDR5 sticks but might be tight with tall heatspreaders. Worth measuring if you're running something like Corsair Dominator Titanium with the tall fins.

The front 360mm radiator position is the more interesting one for serious cooling setups. With a 360mm rad up front and the three included 120mm fans running as intake, you've got a solid push configuration that should keep even a hot CPU well within limits. I ran the system with a 360mm front-mounted AIO and saw CPU temperatures under sustained Cinebench R23 load sitting around 72 degrees Celsius with the fans at around 1200 RPM. That's a decent result for a mid-range case.

The 3.5-inch drive cage uses tool-free mounting with rubber-dampened sleds. The drives click in without needing a screwdriver, which is a nice quality-of-life feature. The rubber dampening is there to reduce vibration noise from spinning hard drives, and it does make a noticeable difference compared to cases with rigid metal-only mounting. I ran two 3.5-inch drives during testing and couldn't hear them over the fan noise at normal operating speeds.

For most modern builds, the M.2 slots on the motherboard will handle primary storage, so the 3.5-inch bays are mainly relevant if you're adding bulk storage HDDs. Two bays is enough for most home builds. If you're building a NAS-adjacent system that needs four or more spinning drives, this isn't the right case for that job. But for a gaming PC with one or two HDDs for game libraries alongside M.2 boot drives, the storage provision here is perfectly adequate.

Even with a standard ATX board, the cable routing options are solid. There are multiple cable routing channels behind the motherboard tray, with Velcro straps at several points to keep bundles tidy. The gap between the motherboard tray and the rear panel measured around 22mm, which is enough to route a 24-pin ATX cable and a couple of SATA power cables without the panel bulging when you close it. I've seen cases at twice this price with less rear clearance, so this is a genuine positive.

The PSU shroud covers the bottom section of the case and hides the power supply and most of the cable mess. There are cutouts in the shroud for routing cables up to the motherboard area, and the positioning of those cutouts is sensible. The main 24-pin cutout lines up well with where the connector sits on a standard ATX board, and the CPU power cable has a dedicated routing channel that runs up the left side of the case behind the tray. One minor gripe: the cable tie anchor points could be more numerous. There are enough to do a clean job, but a couple more near the GPU power routing area would have been helpful.

The three included ARGB fans are 120mm units running at up to around 1200 RPM. They're not the highest static pressure fans on the market, but they're adequate for general use and they're quiet at lower speeds. I measured noise levels at around 28 dBA at 800 RPM and around 36 dBA at full speed, which is acceptable for a gaming system. If you're building a silent PC, you'd probably swap these out for something like Noctua NF-A12x25 units, but for most gaming builds they'll do the job without being annoying.

The thermal performance I recorded over two weeks of testing was consistently good. With the three front fans as intake and one rear 120mm as exhaust (using one of the included fans), the system ran with positive pressure, which helps keep dust out of unfiltered gaps. GPU temperatures under sustained gaming load (I ran a two-hour session of a demanding title) sat around 68 degrees Celsius with the RTX 4080 Super, which is well within the card's thermal limits. The top mesh panel also helps with hot air extraction, and adding a 240mm radiator or two 140mm fans up top would improve exhaust capacity further if you're running a particularly hot CPU.

The USB 20Gbps Type-C is the headline feature here, and it's genuinely useful. At 20Gbps, this is fast enough to connect an external NVMe enclosure and get close to the drive's maximum read speeds. It's also fast enough for high-speed USB-C peripherals, docking stations, and fast charging for phones and tablets. The internal header for this port is a 20Gbps USB-C header, so you'll need a motherboard with that header to use it at full speed. Most current mid-range and high-end ATX boards have this, but it's worth checking your specific board's spec sheet.

The two USB-A ports are USB 3.2 Gen 1, which gives you 5Gbps each. That's fine for mice, keyboards, USB drives, and most peripherals. I'd have liked to see at least one of these upgraded to Gen 2 (10Gbps), but at this price point it's not a dealbreaker. The audio jack worked cleanly with my testing headset, no interference or static. Overall the I/O provision is modern and practical, and the USB-C spec in particular is better than what you get on several competing cases at this price.

Panel alignment was good on my review unit. The tempered glass side panel sits flush with the front and top panels, and the magnetic latch holds it firmly without any rattle. The top mesh panel is held by two thumbscrews and lifts off cleanly. The front panel is a push-fit design that clips onto the chassis, and it came off and went back on without any drama. I checked the edges on all the panels and the internal metalwork for sharp edges, which is a genuine safety concern on cheaper cases. I found one slightly rough edge on the PSU shroud cutout, but nothing that would cut you during a normal build. Everything else was properly deburred.

The finish on the exterior is a matte black powder coat that looks clean and resists fingerprints reasonably well (better than the glass panel, anyway). The screws included in the accessory bag are all standard sizes and the quality is fine. Nothing stripped during testing, which sounds like a low bar but it's one that some budget cases fail. The overall build quality is appropriate for the price. It's not going to feel like a premium product when you put it next to a Lian Li O11 Dynamic, but it's solid, well-finished, and doesn't have any of the obvious quality control issues that sometimes show up in this price bracket.

The Corsair 4000D Airflow is probably the most direct comparison. It's a proven airflow case with a mesh front, good cable management, and a solid build quality. It doesn't include any fans in the box (the base model), which is a meaningful difference when you factor in the cost of buying three decent 120mm fans separately. The 4000D Airflow also doesn't have native back-connect motherboard support, which matters if you're planning to build with one of the newer back-connect boards. The PANO 110R PZ's USB-C at 20Gbps also beats the 4000D Airflow's USB-C, which runs at 10Gbps on the standard model.

The Fractal Pop Air is a slightly different proposition. It's a cleaner, more minimalist design with good airflow and Fractal's typically excellent build quality. It includes two 140mm fans, which move more air than the three 120mm units in the PANO 110R PZ, but it doesn't have back-connect support and the front I/O is similar in spec. The Pop Air tends to be slightly more expensive in the UK market, so the PANO 110R PZ represents better value if the back-connect feature is relevant to your build.

The thermal performance over two weeks of testing was consistently solid. Temperatures stayed sensible under load, the mesh front does its job, and the airflow configuration with the included fans is balanced enough for most gaming builds without needing immediate upgrades. The build experience was largely positive. Cable management is good, the magnetic glass panel is a quality-of-life improvement over thumbscrews, and I didn't encounter any sharp edges or panel alignment issues that would make the build frustrating.

Where it falls slightly short is in the dust filter coverage (the Corsair and Fractal options both include a bottom filter that the PANO 110R PZ lacks) and the rear cable tie anchor density could be better. These are minor points rather than serious problems, but they're worth knowing about. For a standard gaming build in the mid-range bracket, especially one using a back-connect motherboard, the PANO 110R PZ is a strong recommendation. For builders who don't care about back-connect and want the most proven airflow case at this price, the Corsair 4000D Airflow is still a safe choice. But the MSI is the more interesting product, and at its current price it represents solid value.

Rating: 8.5 out of 10. Recommended for back-connect builds and anyone who wants a clean panoramic glass aesthetic without paying premium case prices.
