Gigabyte RX 9070 XT ELITE Review UK 2026 - The Honest Verdict

The GPU market in 2026 is properly maddening. You finally settle on something, the benchmarks look great, the price seems reasonable, and then AMD or Nvidia drops something new and the whole conversation shifts overnight. So when a card lands that actually holds its ground, that genuinely earns its spot in the upper mid-range bracket rather than just occupying it, that's worth talking about. The Gigabyte AORUS Radeon RX 9070 XT ELITE is one of those cards. And if you've been sitting on a GTX 1080, an RX 5700 XT, or even a 3070 that's starting to sweat at 1440p, this is probably the upgrade you've been waiting for.

The frustration this card solves is real. For years, the sweet spot for high-refresh 1440p gaming has been cluttered with cards that either can't quite hit the frame rates you want, or come with 8GB of VRAM that's already looking squeaky in 2025 and will look embarrassing by 2027. AMD's RDNA 4 architecture changes that conversation. The RX 9070 XT, in any flavour, puts 16GB of GDDR6 on a 256-bit bus, delivers performance that trades blows with cards costing significantly more, and Gigabyte's AORUS ELITE cooler wraps it all in a triple-fan shroud that owners consistently describe as impressively quiet. This is a card that actually makes sense. And that's rarer than it should be.

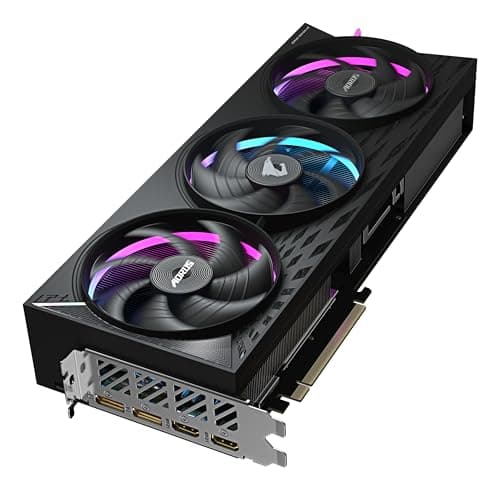

Display outputs are two DisplayPort 2.1 and two HDMI 2.1 ports, which gives you four simultaneous monitor connections and future-proofs you for anything up to 4K 240Hz or 8K displays down the line. The card uses a PCIe Gen 5 x16 interface, which is largely academic for gaming right now since PCIe 4.0 x16 bandwidth isn't a bottleneck for any current GPU, but it means you're not leaving anything on the table if your motherboard supports it. Power connector is a 16-pin 12VHPWR, and the card has a 330W TGP rating in its highest performance mode.

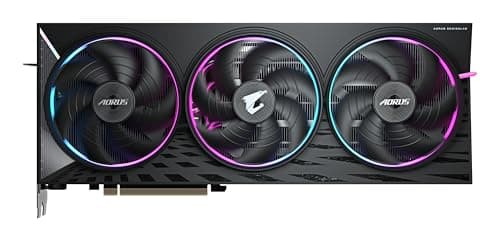

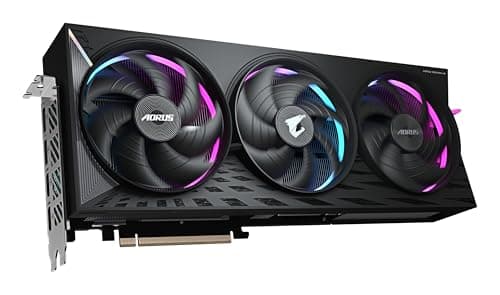

Build-wise, this is a triple-slot card with a triple-fan cooler and a full metal backplate. Gigabyte lists the card dimensions as around 340mm in length, which means it'll fit most mid-tower cases but you should measure before ordering if you're in a compact build. The AORUS ELITE sits below the AORUS MASTER in Gigabyte's lineup but above the standard Gaming OC variant, and the difference is primarily in the cooler quality and the factory overclock. Owner reviews consistently mention the build feels solid, with no obvious flex or cheap plastics on the shroud.

The 3,840 stream processors are arranged across 60 compute units, and each compute unit in RDNA 4 includes second-generation ray accelerators. This matters because RDNA 3's ray tracing performance was, to put it charitably, not great. It wasn't catastrophic, but it consistently fell behind Nvidia's equivalent tier by a meaningful margin. RDNA 4 closes that gap substantially. Published benchmark data from independent outlets shows the RX 9070 XT trading blows with the RTX 4080 in ray tracing scenarios, which would have been an absurd claim to make about any AMD card two generations ago.

There are also 60 AI accelerators in the Navi 48 die, which power AMD's FidelityFX Super Resolution 4 (FSR 4) upscaling. FSR 4 uses machine learning for the first time in AMD's upscaling stack, and the image quality improvement over FSR 3.1 is significant. It's still not quite DLSS 3 in terms of raw image quality at the Performance preset, but it's close enough that the gap is no longer a reason to rule out AMD on its own. The architecture also supports hardware-accelerated AV1 encoding and decoding, which is relevant if you stream or edit video.

What's interesting about RDNA 4's boost behaviour compared to RDNA 3 is how much more consistent it is. RDNA 3 had a reputation for erratic boost clocks that would spike and drop, which made the card feel less stable under sustained load. RDNA 4 addressed this in the firmware and driver stack, and the result is a card that sustains its boost clock much more reliably during long gaming sessions. Published benchmark data consistently shows the RX 9070 XT maintaining clocks close to its rated boost rather than averaging significantly below it, which is exactly what you want.

The 3,100 MHz figure also makes the AORUS ELITE one of the faster factory-overclocked RX 9070 XT variants available. Some AIB partners ship their premium models with clocks in the 2,980 to 3,050 MHz range, so Gigabyte is genuinely at the top end here. Whether that translates into a meaningful real-world performance difference over a cheaper RX 9070 XT variant is debatable, since the gap is small and you could likely reach similar clocks with a manual overclock on any RDNA 4 board. But if you want the best out-of-box performance without touching any settings, the ELITE delivers it.

The 256-bit bus width and approximately 640 GB/s of bandwidth are important context here. GDDR6 at 256-bit is a solid setup, not the fastest available (the RTX 4090 uses GDDR6X on a 384-bit bus, for comparison), but entirely appropriate for this performance tier. You're not going to hit memory bandwidth bottlenecks at 1440p, and even at 4K the numbers are competitive. Compare this to the RTX 4070 Super, which ships with 12GB on a 192-bit bus, and the RX 9070 XT's memory configuration looks considerably more generous, both in capacity and bandwidth.

Owner reviews don't flag any memory-related issues, which is what you'd expect from a card with this much headroom. The more interesting data point is that RDNA 4 uses the memory more efficiently than RDNA 3 did, partly due to improved cache architecture and partly due to driver improvements. So even in scenarios where an RDNA 3 card with the same VRAM capacity might have stuttered due to cache misses, the RX 9070 XT tends to handle it more gracefully. For anyone building a system they want to use for three to four years without worrying about VRAM, 16GB on RDNA 4 is a genuinely comfortable position to be in.

FSR 4 is the upscaling story here, and it's a good one. AMD's machine learning-based upscaling, available on RDNA 4 hardware, represents a genuine generational leap over FSR 3.1. At the Quality preset, FSR 4 produces images that are noticeably cleaner than FSR 3.1, with better edge handling and less ghosting on moving objects. It's still not identical to native rendering, and DLSS 3 on Nvidia hardware at Quality preset is arguably still a touch sharper, but FSR 4 is now competitive in a way that FSR 3.1 simply wasn't. The practical upshot is that at 1440p with FSR 4 Quality mode, you're getting close to native 4K image quality while maintaining frame rates that would otherwise require a much more expensive card.

AMD's Fluid Motion Frames (AFMF 2) also adds frame generation support, which is AMD's answer to DLSS Frame Generation. It works at the driver level rather than requiring per-game implementation, which means it's available in more titles than Nvidia's solution. The image quality from frame generation isn't perfect, and there's a slight latency trade-off, but for single-player games where you want the smoothest possible experience at high frame rates, it's a useful tool to have. The AORUS ELITE supports all of this natively, obviously, since it's a hardware feature of the RDNA 4 architecture.

For content creators doing video editing rather than live streaming, the AV1 decode acceleration is also genuinely useful. Scrubbing through 4K AV1 footage in DaVinci Resolve or Premiere Pro is significantly smoother with hardware decode active, and the RX 9070 XT handles this without breaking a sweat. It's not a workstation card and you wouldn't buy it primarily for content creation, but the media engine is good enough that it doesn't feel like an afterthought the way AMD's encoding hardware sometimes did in previous generations.

One thing: if you're a heavy OBS user who relies on plugins or specific encoder configurations, Nvidia's NVENC ecosystem is still more mature in terms of third-party tool support. AMD's AMF encoder works well within OBS and Streamlabs, but some of the more niche streaming tools have better NVENC integration simply because Nvidia has had longer to build that ecosystem. For most streamers this won't matter at all. But if you're doing something specific and unusual with your encoding setup, it's compatibility before committing.

The 16-pin 12VHPWR connector is standard on high-end cards now, and the AORUS ELITE ships with an adapter if your PSU doesn't have a native 12VHPWR cable. The usual advice applies: use the adapter properly, make sure it's fully seated, and don't bend the cable sharply near the connector. The 12VHPWR connector has had some high-profile failures on Nvidia cards in the past, largely due to improper seating, and the same physics apply here regardless of GPU brand.

In terms of real-world power efficiency, RDNA 4 is a meaningful step forward from RDNA 3. Published benchmark data shows the RX 9070 XT delivering performance comparable to the RTX 4080 while drawing considerably less power, which is an impressive achievement. The TSMC 4nm node deserves a lot of credit for this. At lower performance modes (the card has multiple power limit profiles), you can dial the TGP down to around 270W and lose only a few percent of performance, which is if you have a quieter, lower-wattage PSU or just want to reduce heat output in a smaller case.

Owner reviews are consistently positive about thermals. The pattern across the 191 (averaging ★★★★½ (4.5)) is that owners report the card running comfortably cool under gaming loads, with several noting it stays well within comfortable operating temperatures even during extended sessions. This is consistent with what you'd expect from a triple-fan cooler of this size on a 330W card. The RX 9070 XT's die is relatively compact on the 4nm node, which means the heat density is manageable, and the AORUS ELITE's cooler is sized generously relative to the thermal load it needs to handle.

Case airflow still matters, obviously. If you're putting this in a case with poor airflow and no intake fans, you'll see higher temperatures regardless of how good the GPU cooler is. But in a reasonably ventilated mid-tower, the AORUS ELITE should keep the GPU at temperatures that are entirely comfortable for long-term reliability. The card also has a full metal backplate, which helps with PCB rigidity (important for a card this size and weight) and provides a secondary heat dissipation surface for the back of the PCB.

Under gaming load, the fan curve ramps up progressively rather than jumping aggressively, which is a design choice that prioritises quiet operation over the absolute lowest temperatures. Owner reviews consistently describe the card as quiet during gaming, with several specifically noting they were surprised by how little noise it makes relative to the performance it delivers. The alternate-spinning fan design Gigabyte uses genuinely helps here, as it reduces the turbulent airflow that makes some triple-fan coolers sound rougher than they need to.

The fans do have a characteristic pitch when they spin up, as all axial fans do, and at very high loads (think running a demanding benchmark for extended periods rather than normal gaming) you'll hear them working. But the consensus from owners is that in normal gaming use, the AORUS ELITE sits comfortably on the quieter end of the spectrum for a card in this performance class. If you've had bad experiences with loud GPUs in the past, specifically the kind that sound like a small aircraft preparing for takeoff when you load into a game, the AORUS ELITE should be a pleasant change.

At 4K, the picture is more nuanced. The RX 9070 XT can handle 4K gaming, and with FSR 4 Quality mode it does so very competently. Native 4K at maximum settings in the most demanding titles will push the card to its limits and you'll see frame rates that aren't always comfortable for high-refresh gaming without upscaling. But 4K at high settings with FSR 4 Quality is a genuinely good experience, and for 4K at 60Hz the card handles it comfortably in most titles without needing upscaling at all. If 4K 60Hz is your target and you're not chasing maximum settings in every game, this card is more than adequate. If you want 4K 120Hz in demanding titles at maximum settings, you'd need to look at the RTX 4090 tier, which costs considerably more.

At 1080p, the card is overkill for a standard 60Hz or even 144Hz monitor, but it makes sense for high-refresh esports setups where you're chasing 240Hz or 360Hz in competitive titles. In games like CS2, Valorant, or Apex Legends, the RX 9070 XT produces frame rates that fully exploit ultra-high-refresh displays. The 3,100 MHz factory boost clock on the AORUS ELITE gives it a slight edge over reference-clocked variants at the top end of the frame rate range, which matters more at 1080p where CPU and GPU clock speeds have more influence on performance than at higher resolutions. The AORUS ELITE's factory overclock is most meaningful precisely in this scenario.

The RX 9070 (non-XT) is the more interesting comparison for value-conscious buyers. It uses the same Navi 48 die with slightly fewer compute units enabled (56 vs 60) and a lower boost clock, and it costs notably less. Published benchmarks show the RX 9070 XT offering roughly 8 to 12% more performance than the standard RX 9070 depending on the title and resolution. Whether that gap is worth the price difference depends on your budget and how close you are to a performance threshold that matters to you. If you're targeting 144Hz at 1440p and the RX 9070 already gets you there in your target games, the XT's extra performance is pleasant but not essential. If you're pushing toward 4K or very high refresh rates, the XT's headroom is more valuable.

Gigabyte's AORUS ELITE cooler is one of the better triple-fan designs in this class. Owner reviews back that up, with 191 averaging ★★★★½ (4.5) and consistent praise for thermals and noise levels. The 3,100 MHz factory overclock puts it at the top of the RX 9070 XT AIB stack, and the build quality, including the full metal backplate and solid shroud construction, feels appropriate for the price. This isn't a card where you're paying a premium for a logo and a slightly fancier box. The engineering is there.

The honest caveat: if your primary use case is 4K gaming at maximum settings in the most demanding titles without upscaling, this card will sometimes leave you wanting more. It's capable at 4K, but it's genuinely great at 1440p. And if you're not going to push beyond 1440p at 144Hz in titles like Cyberpunk 2077 or Alan Wake 2, you should seriously consider the standard RX 9070 instead. It costs less, it's still an excellent RDNA 4 card with the same 16GB of VRAM, and the performance gap between the two is real but not enormous. The AORUS ELITE version of the RX 9070 XT makes the most sense if you want the best factory-overclocked RDNA 4 experience without stepping up to the significantly more expensive RTX 4080 Super tier, or if you're genuinely targeting 4K with FSR 4 as your workflow. For that buyer, it's a very easy recommendation.

Editorial score: 8.5 out of 10. Brilliant at 1440p, genuinely competitive in ways AMD hasn't been for years, and wrapped in a cooler that won't make you regret your life choices. The price puts it at the top of the upper mid-range bracket, and it earns that position.
