Most people building a high-end PC spend ages agonising over the GPU, the CPU, the cooler, and then just grab whatever PSU has decent reviews and call it sorted. Which is fine, until you're trying to route a spaghetti junction of cables through a mid-tower at midnight, or you realise your iCUE LINK hub needs its own power cable and yet another spare PCIe connector. The CORSAIR HX1500i SHIFT Fully Modular ATX Power Supply is Corsair's answer to that exact frustration, and honestly, it's a pretty interesting one.
So here's the verdict upfront, because that's how we do things: this is a genuinely clever PSU aimed squarely at Corsair ecosystem builders who want less cable chaos and native RTX 50-series support without faff. The side-mounted SHIFT connectors are a legitimately smart idea, the built-in iCUE LINK hub removes a whole cable run from your build, and Cybenetics Platinum efficiency means it's not wasting your electricity. doesn't apply to you. Keep reading.

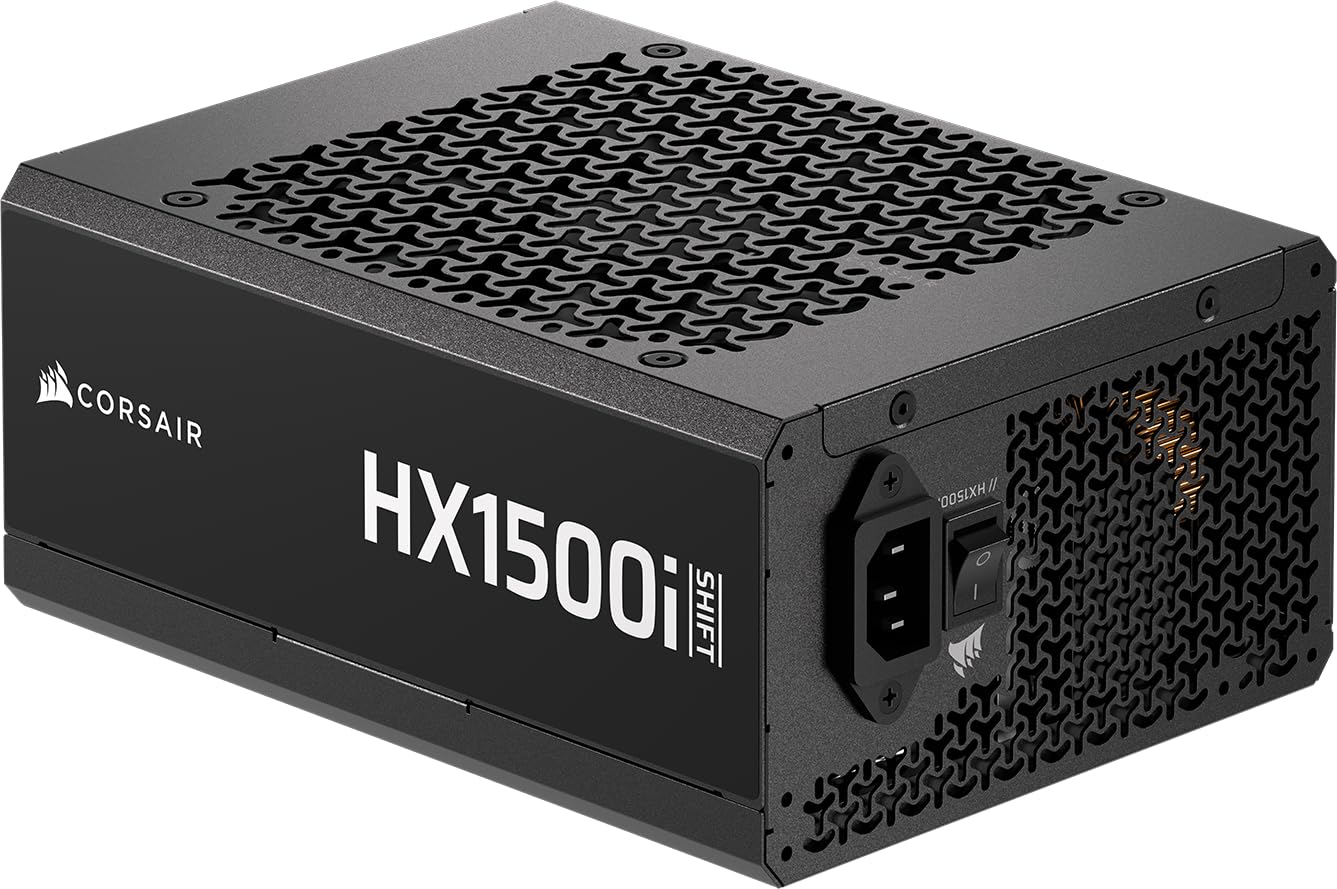

This is the CORSAIR HX1500i SHIFT Fully Modular ATX Power Supply with Built-in iCUE LINK System Hub, Dual Native 12V-2x6 Cable, ATX 3.1 and PCIe 5.1 compliance, Side-Mounted Connectors, and Cybenetics Platinum efficiency. It's a 1500W unit built for people who want the whole Corsair ecosystem to just work together cleanly. Whether that justifies the price depends entirely on your build.
Core Specifications: CORSAIR HX1500i SHIFT Fully Modular ATX Power Supply
Let's start with the numbers. The HX1500i SHIFT is rated at 1500W, which puts it at the very top of what most enthusiast builders will ever need. It carries Cybenetics Platinum efficiency certification, meaning up to 91% overall efficiency, which is a meaningful step above the more common 80 Plus Gold standard you'll find on most mid-range units. The warranty is five years, which is solid but not exceptional at this price point (some competitors offer seven or even ten years at similar money).
Modularity is fully modular, which at 1500W is non-negotiable really. You'd be drowning in cables otherwise. The fan is a 120mm unit, and there's no zero-RPM mode listed in the spec sheet, so expect the fan to spin at all times under load. That said, Corsair rates it for quiet operation, and owner feedback generally backs that up at moderate loads. The protection suite covers OVP, OCP, OPP, and SCP, which is the standard set for a PSU at this level.
The headline features are the integrated iCUE LINK System Hub (more on that shortly), the dual native 12V-2x6 connectors for RTX 40 and 50-series GPUs, and the side-mounted SHIFT connector layout. These aren't just marketing bullet points. They solve real problems that anyone who's built a system with Corsair cooling gear will immediately recognise. Below is the full spec rundown.
| Specification | Detail |
|---|---|
| Wattage | 1500W |
| Efficiency Certification | Cybenetics Platinum (up to 91%) |
| Modularity | Fully Modular |
| Fan Size | 120mm |
| Zero RPM Mode | No |
| Warranty | 5 Years |
| ATX Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| 12V-2x6 Connectors | 2 (Native, no adapters) |
| ATX 24-pin | 1 |
| EPS 8-pin | 1 |
| PCIe 8-pin | 2 |
| SATA | 6 |
| Molex | 3 |
| Protection | OVP, OCP, OPP, SCP |
| iCUE LINK Hub | Built-in, supports up to 24 devices |
Wattage and Capacity
1500W is a lot. To put that in context, a system running an Intel Core i9-14900K or AMD Ryzen 9 7950X paired with an RTX 4090 will peak at around 700 to 800W under full synthetic load. Even a dual-GPU workstation or a system with heavy overclocking and lots of NVMe storage rarely breaches 1200W. So at 1500W, you have genuine headroom. Not just a bit of headroom. A substantial cushion that means this PSU will barely be working hard most of the time, which is actually good for efficiency and longevity.

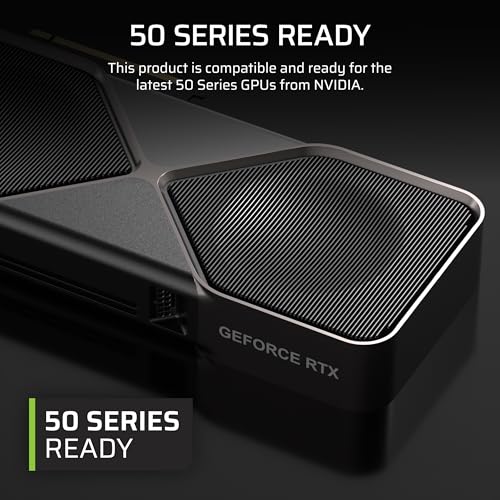

For RTX 50-series builds, which are the obvious target here given the dual native 12V-2x6 cables, the extra headroom makes more sense. Nvidia's RTX 5090 has a total graphics power of around 575W, and with a high-end CPU and multiple storage devices, a well-specced system could realistically approach 900 to 1000W under peak gaming load. The 1500W rating means you're never going to hit the wall, and the PSU will spend most of its time operating in the 50 to 70% load range, which is exactly where Platinum-rated units are most efficient.
If your build is more modest, say a mid-range gaming rig with an RTX 4070 and a Ryzen 7 CPU, then honestly 1500W is overkill. You'd be better served by an 850W or 1000W unit at a lower price point. This PSU makes sense for high-end single-GPU workstations, dual-GPU setups, heavily overclocked systems, or anyone planning to run a lot of Corsair iCUE LINK cooling gear off the same unit. Use our PSU calculator to work out what wattage your specific build actually needs before committing to a 1500W unit.

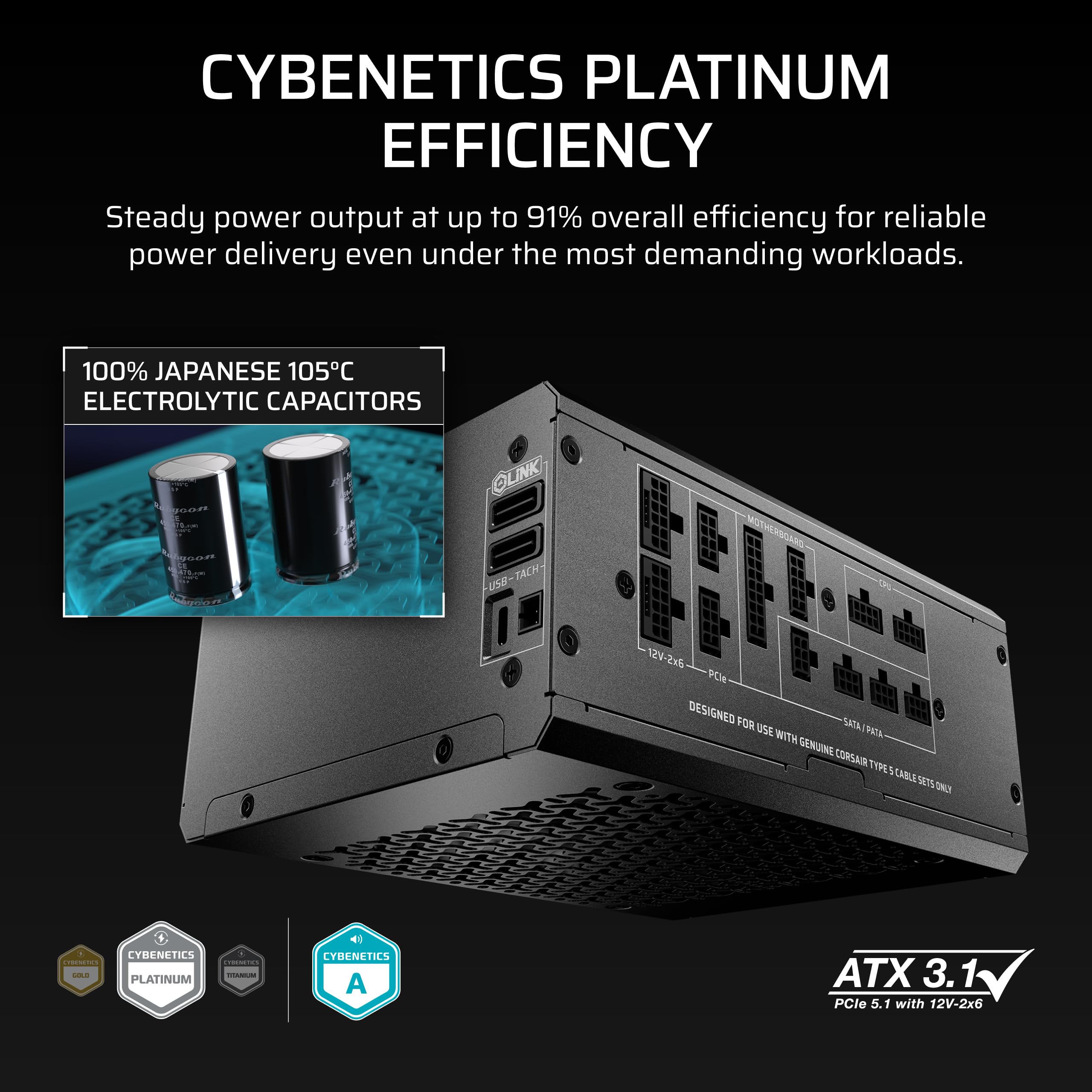

Efficiency Rating: Cybenetics Platinum Explained
The HX1500i SHIFT carries Cybenetics Platinum certification, which Corsair rates at up to 91% overall efficiency. This is worth understanding properly because efficiency ratings get thrown around a lot without much explanation. What it means in practice is that at 50% load (750W output), the PSU draws around 820 to 830W from the wall. The remaining watts are lost as heat. At 80 Plus Gold, you'd expect around 87 to 88% at the same load point. That difference might sound small, but over a year of daily use it adds up to a meaningful reduction in your electricity bill.
notably, that Cybenetics and 80 Plus are different certification bodies with different testing methodologies. Cybenetics tests at European mains voltage (230V) and uses a broader range of load conditions, which arguably makes it more representative of real-world UK use than the 80 Plus standard, which tests at 115V. So when Corsair says Cybenetics Platinum, that's actually a more meaningful certification for UK buyers than an equivalent 80 Plus Gold or Platinum badge. The spec sheet here also notes "less noise, and cooler temperatures" as direct benefits of the high efficiency, which makes sense: less wasted energy means less heat to dissipate, which means the fan doesn't have to work as hard.
At 20% load (around 300W), efficiency is typically slightly lower than at 50% load for most PSUs, and the HX1500i SHIFT won't be different. At 100% load, efficiency drops slightly too. The sweet spot is that 40 to 70% load range, and given that most gaming systems will sit in that range with a 1500W unit, you're getting near-peak efficiency during normal use. For a PSU in the enthusiast price bracket, Cybenetics Platinum is the right certification to have. Anything less at this price point would be a red flag.
Modularity and Cable Management: The SHIFT System

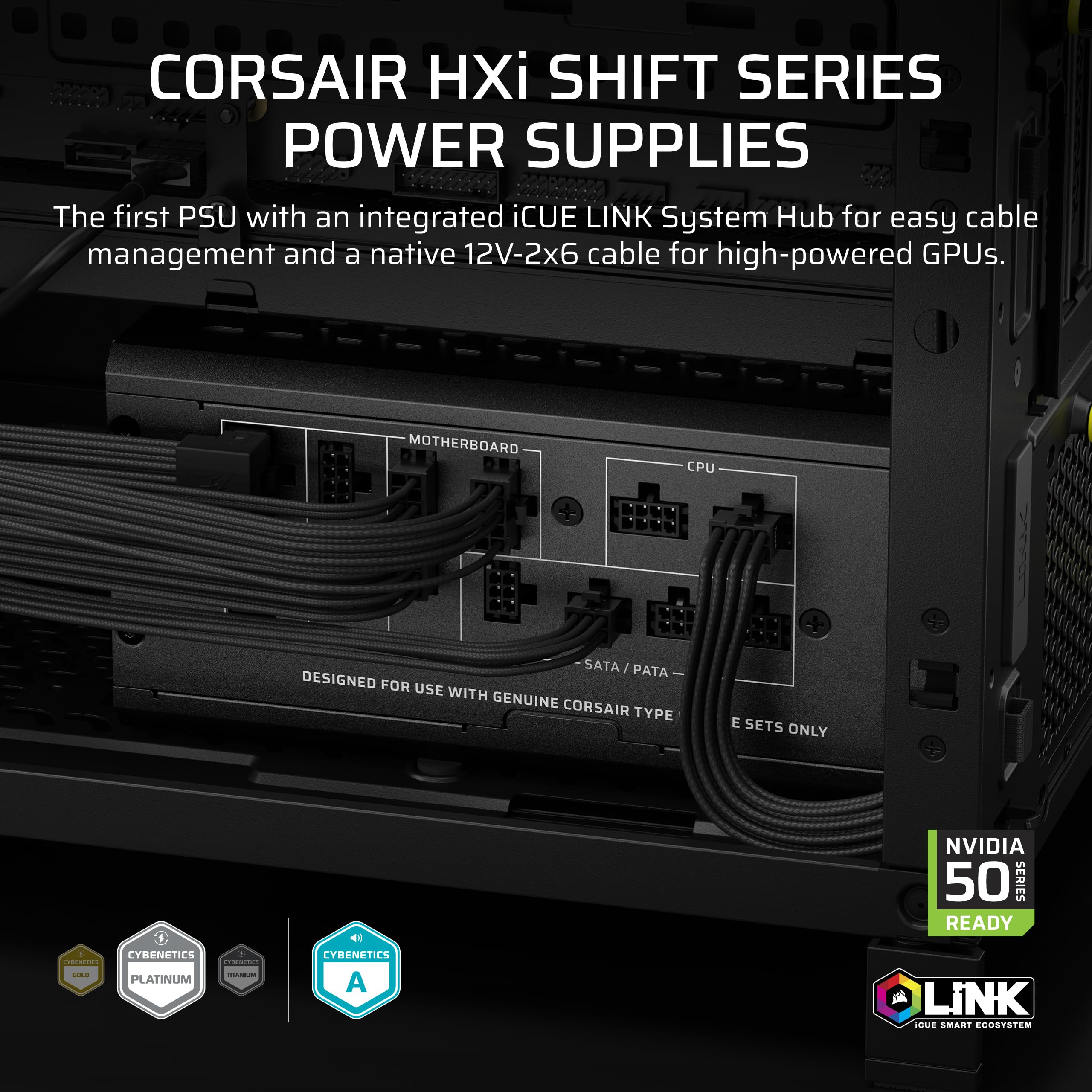

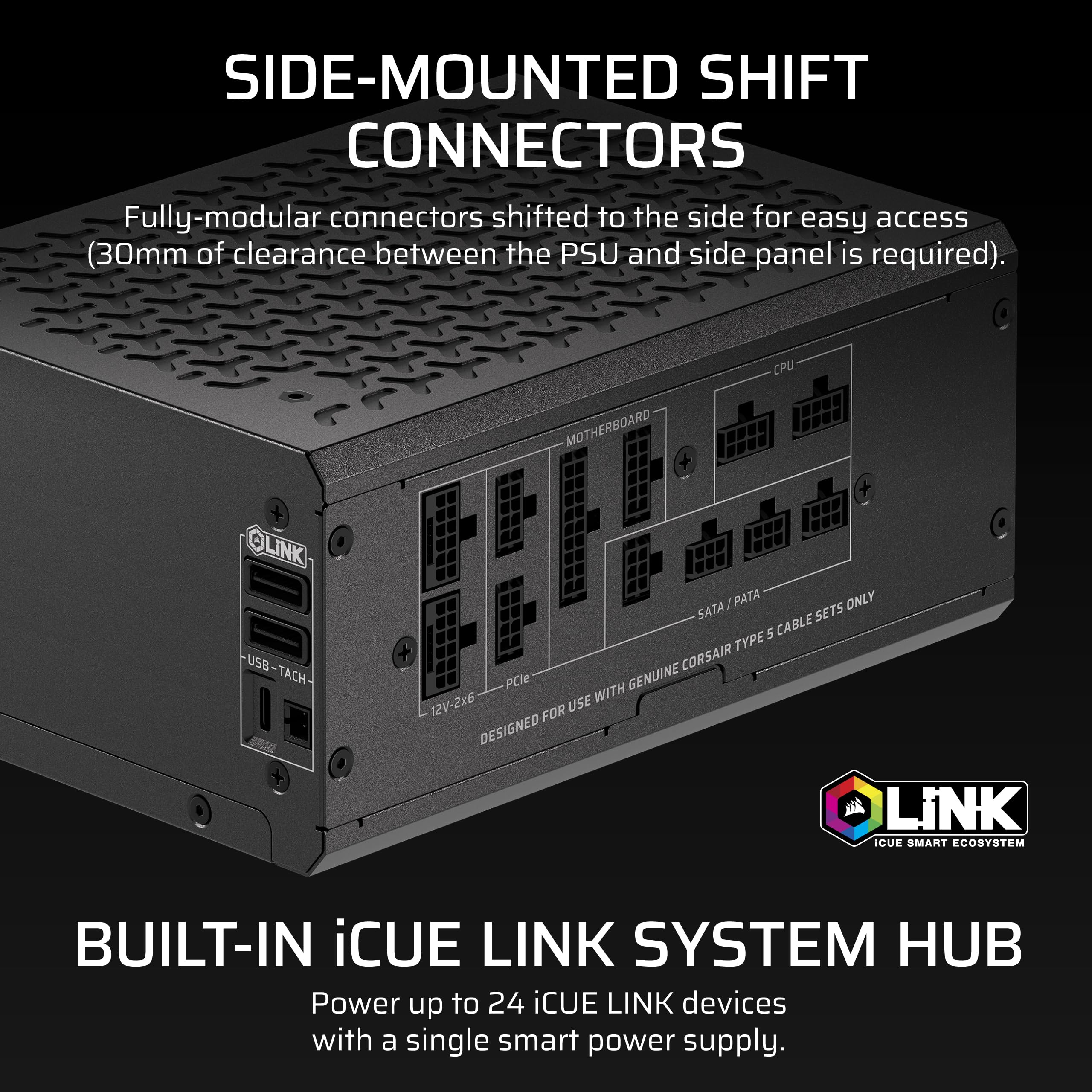

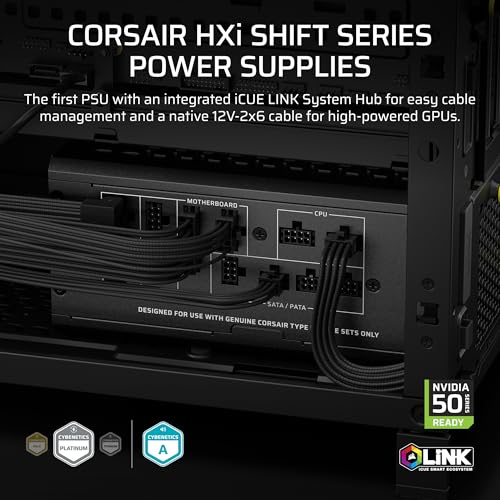

Fully modular is the baseline expectation for any PSU above the mid-range, so that alone isn't the story here. The story is where the connectors are. Corsair has moved all the modular connections to the side of the PSU rather than the traditional rear-facing position. They call this the SHIFT system, and the idea is that cables route directly sideways into the cable management zone behind the motherboard tray, rather than making a U-turn from the back of the PSU. In cases with a traditional PSU shroud, this can genuinely clean up the build significantly.

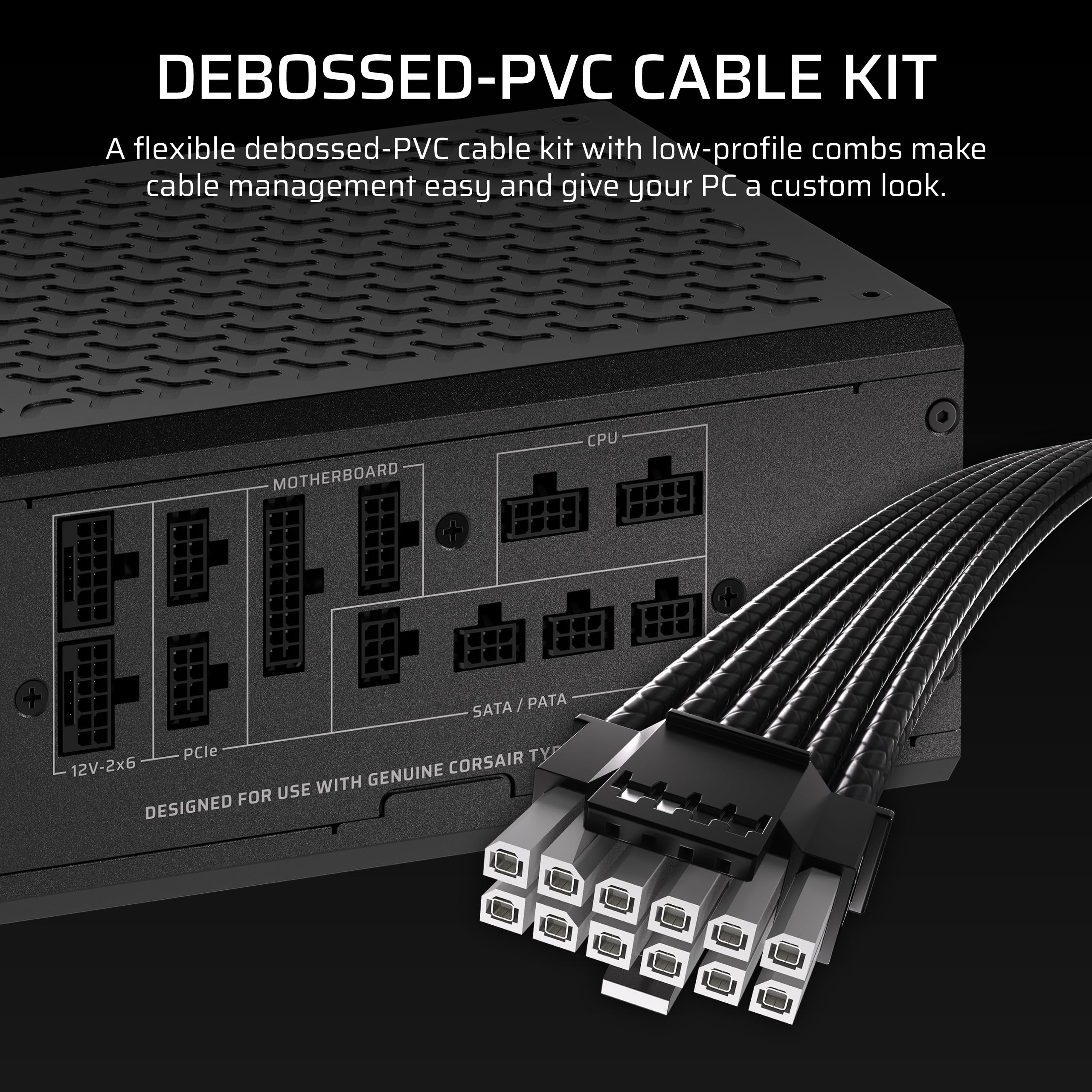

The cable quality on Corsair HX-series units has historically been good. Sleeved cables, decent lengths, and connectors that click in properly without feeling like they're going to snap. Owner reviews on this unit don't flag cable quality as a concern, which is consistent with what you'd expect from a flagship-tier Corsair PSU. The modular connectors themselves are on the side, which does mean the PSU needs to be oriented correctly in your case for the SHIFT system to work as intended. Most modern cases with bottom-mounted PSU compartments will accommodate this, but it's your specific case before buying.
The other cable management story here is what you don't need. Previously, if you were running Corsair iCUE LINK devices, you'd need to mount a separate iCUE LINK System Hub inside the case, route a power cable to it from the PSU, and manage that extra cable run. With the HX1500i SHIFT, the hub is built into the PSU itself. You connect your iCUE LINK devices directly to the PSU. No extra hub, no extra power cable, fewer cables overall. For a Corsair-heavy build with multiple iCUE LINK fans and a liquid cooler, this is genuinely useful. For a build with no Corsair cooling gear, it's a feature you've paid for and won't use.
Connectors and Compatibility
The connector lineup covers what you'd expect for a 1500W flagship unit, though it's worth going through it properly because the 12V-2x6 situation is the main talking point for anyone building with current or next-gen Nvidia hardware. The dual native 12V-2x6 cables mean you can connect two RTX 40 or 50-series GPUs directly without needing an adapter. No 4x8-pin to 12VHPWR adapter, no melting connector concerns from dodgy third-party adapters. Just plug in and go. For a single RTX 5090 or 4090, you use one cable. For dual-GPU workstations, you've got both covered natively.
The PCIe 5.1 compliance and ATX 3.1 standard support are relevant here too. ATX 3.1 introduced tighter transient load specifications, which matters for modern GPUs that can spike power draw very rapidly. A PSU that's not ATX 3.1 compliant can struggle with these transients, potentially causing instability. The HX1500i SHIFT is fully compliant, so you're covered for current and near-future GPU generations.
The rest of the connector set looks like this:
- 1x ATX 24-pin (motherboard)
- 1x EPS 8-pin (CPU power)
- 2x PCIe 8-pin (for older GPUs or additional devices)
- 2x 12V-2x6 native connectors (RTX 40/50 series)
- 6x SATA (plenty for most builds)
- 3x Molex (for older devices, fans, etc.)
One thing: there's only one EPS 8-pin connector listed. Some high-end motherboards, particularly HEDT (High End Desktop) boards and certain Z790 or X670E boards designed for extreme overclocking, use dual EPS connectors. If your board has two CPU power sockets and you want to use both, check whether Corsair provides a second EPS cable or a splitter in the box. For most gaming builds, one EPS 8-pin is absolutely fine.
Voltage Regulation and Ripple
Voltage regulation and ripple suppression are the specs that most PSU reviews gloss over, which is a shame because they're genuinely important for system stability. The HX series from Corsair has consistently used a fully digital control platform, which gives tighter voltage regulation than traditional analogue designs. The 'i' suffix in HX1500i indicates the digital interface and monitoring capabilities, which feed data back to iCUE for real-time voltage, current, and power readings. That's useful for diagnosing stability issues and for keeping an eye on your system's actual power consumption.
For a PSU at this level, you'd expect 12V regulation well within the ATX 3.1 specification of plus or minus 5%, and realistically within plus or minus 2% for a quality unit. The Cybenetics Platinum certification process includes ripple and noise testing, and Platinum-rated units are expected to deliver clean power with ripple suppression that keeps noise well below the ATX specification limits. This matters for component longevity, particularly for sensitive components like NVMe SSDs and high-frequency memory.
The single-rail design (which is standard for high-wattage units like this) means the full 1500W is available on a single 12V rail, rather than being split across multiple rails with individual current limits. This is the right approach for a 1500W unit powering modern GPUs, which can draw several hundred watts from a single connector. Multi-rail designs at this wattage would just create artificial bottlenecks. The digital control platform also means the PSU can respond quickly to transient load changes, which is exactly what ATX 3.1 compliance demands.
Thermal Performance
Thermal management on a 1500W PSU is a serious engineering challenge. Even at 91% efficiency, you're dissipating up to 135W as heat at full load. The 120mm fan handles this, and Corsair's approach with the HX series has traditionally been to use a quality fan with a well-designed heatsink layout inside the unit. The fan runs continuously (no zero-RPM mode), which means it's always moving air through the unit, keeping internal temperatures stable even during extended gaming sessions or rendering workloads.
The lack of a zero-RPM mode is a minor point against this unit compared to some competitors, but at 1500W it's arguably the right call. Passively cooling a 1500W PSU at any significant load would require a much larger heatsink, and the thermal cycling that comes from a fan that switches on and off repeatedly can actually stress components more than a fan that runs continuously at low speed. Corsair's decision to keep the fan spinning at all times is pragmatic engineering rather than a cost-cutting measure.
The Cybenetics Platinum efficiency directly benefits thermal performance. Less wasted energy means less heat generated inside the unit, which means the fan doesn't need to spin as fast to keep temperatures in check. Under typical gaming loads (which for a 1500W PSU means 40 to 60% utilisation), the internal temperatures should stay well within comfortable operating limits. Owner feedback doesn't flag thermal issues or unexpected shutdowns, which is consistent with what you'd expect from a well-engineered unit at this price point.
Acoustic Performance
Corsair rates the HX1500i SHIFT for quiet operation, and the 120mm fan is a reasonable size for managing noise at typical loads. Larger fans can move the same volume of air at lower RPM, which generally means less noise. The 120mm fan here is smaller than the 135mm or 140mm fans you'll find on some competing units, which is a minor acoustic trade-off. That said, at the load levels most users will actually run this PSU at (which is well below 1500W for most gaming builds), the fan speed should be low enough that it's not audible over case fans and a CPU cooler.
Owner reviews don't flag noise as a significant complaint, which is encouraging. The general pattern in feedback suggests the fan is noticeable but not intrusive under normal gaming loads, and only becomes more prominent under sustained heavy workloads. For a quiet build, this isn't the most acoustically optimised PSU on the market, but it's not going to be the loudest component in your case either. If absolute silence is your priority, you'd want a unit with a zero-RPM mode and a 135mm or 140mm fan, but for most gaming builds the HX1500i SHIFT is perfectly acceptable acoustically.

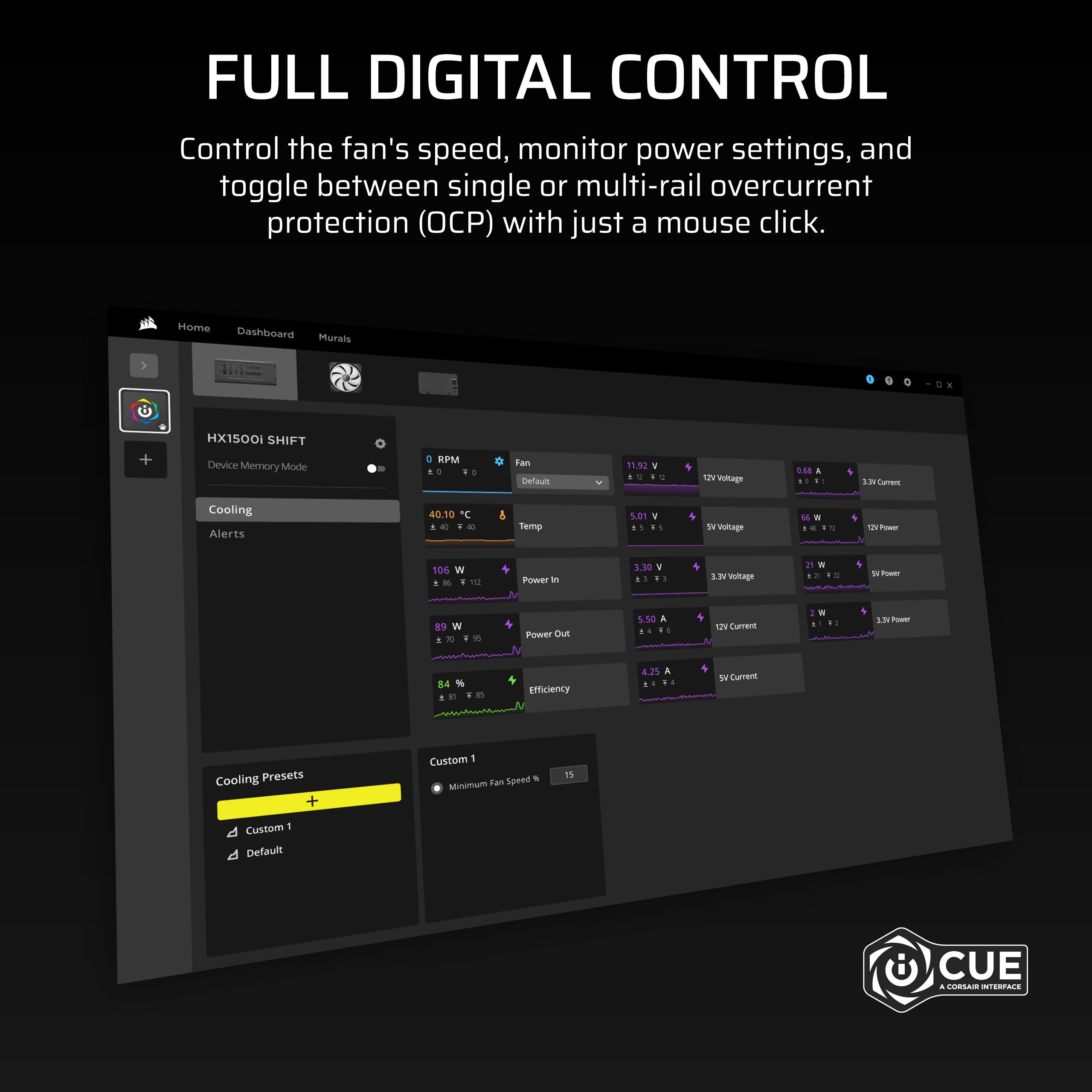

The iCUE software integration is here too. Because the PSU has digital monitoring built in, you can potentially use iCUE to monitor fan speed and power draw in real time. This doesn't directly affect acoustics, but it does mean you can keep an eye on whether the fan is ramping up under load, which is useful for diagnosing whether a noise issue is PSU-related or coming from elsewhere in the system. For a Corsair ecosystem build where iCUE is already running, this is a nice bonus.
Build Quality
The HX series has historically been built on platforms from established OEM partners, and the 'i' digital series in particular has used quality internal components. Corsair doesn't publish the specific capacitor brands for this unit, but HX-tier PSUs have traditionally used Japanese primary capacitors, which are rated for higher temperatures and longer operational life than the Chinese alternatives found in budget units. For a PSU in the enthusiast bracket, Japanese primary caps are a reasonable expectation, and there's nothing in the owner feedback to suggest otherwise.
The fully modular connector board, the digital control platform, and the Cybenetics Platinum certification all point to a unit that's been properly engineered rather than just spec-sheeted. The SHIFT connector system is a new mechanical design, and new designs always carry some risk of unforeseen issues, but early owner feedback doesn't flag connector reliability problems. The side-mounted connectors use the same modular connector standard as the rear-mounted versions on other Corsair units, so cable compatibility with other Corsair HX cables should be maintained.
The five-year warranty is the standard for Corsair's HX range, and it's a reasonable safety net. Some competitors at this price point offer longer warranties (seven or ten years), which is worth factoring in if long-term peace of mind is important to you. That said, a well-made PSU running well within its rated capacity should last considerably longer than five years in practice. The combination of Platinum efficiency (less heat generated), quality internal components, and the fact that most users will run this unit at 40 to 60% of its rated capacity means the thermal stress on internal components is relatively low, which is good for longevity.
Protection Features
The HX1500i SHIFT covers the four core protection features: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), and Short Circuit Protection (SCP). These are the essential safeguards that protect both the PSU and your components in the event of a fault. OVP cuts power if the output voltage exceeds safe limits, protecting your motherboard and GPU from voltage spikes. OCP limits the current on each rail, preventing a single component from drawing more than its safe maximum. SCP shuts the unit down immediately if a short circuit is detected anywhere in the system.
OPP is the one that's most relevant for a 1500W unit. Over Power Protection prevents the PSU from being asked to deliver more than its rated output, even if multiple components simultaneously demand more power than the unit can safely provide. For a 1500W PSU used in a system that will rarely exceed 1000W, OPP is essentially a last-resort safety net rather than something that will ever trip under normal use. But it's good to have, particularly for workstation users who might push the system harder over extended periods.
What's not listed in the spec sheet is Over Temperature Protection (OTP) and Under Voltage Protection (UVP). This doesn't necessarily mean they're absent. Many PSUs include these features without explicitly listing them in marketing materials. But since they're not in the verified spec data, it's not something to state as fact either way. For a flagship-tier PSU at this price, the expectation would be a full protection suite, and the four confirmed protections are the most critical ones for day-to-day use.
How It Compares: CORSAIR HX1500i SHIFT vs the Competition
At the enthusiast end of the PSU market, the HX1500i SHIFT faces competition from a couple of obvious rivals. The be quiet! Dark Power 13 1500W is the most direct competitor in terms of wattage and price tier. It carries 80 Plus Titanium certification (which typically means slightly higher efficiency than Cybenetics Platinum at some load points), offers a ten-year warranty versus Corsair's five, and uses a 135mm fan for potentially quieter operation. What it doesn't have is the integrated iCUE LINK hub or the SHIFT connector system, so for Corsair ecosystem builders it's a different proposition entirely.
The Seasonic Prime TX-1600 is another comparison point, sitting at the very top of the Seasonic range with 80 Plus Titanium efficiency and a twelve-year warranty. Again, no iCUE LINK integration, no SHIFT connectors, but exceptional build quality and one of the longest warranties in the business. If you're not in the Corsair ecosystem and you just want the best-built 1500W PSU money can buy, the Seasonic is worth serious consideration.
The honest answer is that the HX1500i SHIFT's unique selling points (the iCUE LINK hub and the SHIFT connectors) are specifically valuable to Corsair ecosystem builders. If that's you, the premium over a standard HX1500i is justified. If it's not, you're paying for features you won't use, and the be quiet! or Seasonic alternatives offer longer warranties and comparable or better efficiency for similar money.
| Feature | CORSAIR HX1500i SHIFT | be quiet! Dark Power 13 1500W | Seasonic Prime TX-1600 |
|---|---|---|---|
| Wattage | 1500W | 1500W | 1600W |
| Efficiency | Cybenetics Platinum (91%) | 80 Plus Titanium | 80 Plus Titanium |
| Modularity | Fully Modular | Fully Modular | Fully Modular |
| Fan Size | 120mm | 135mm | 135mm |
| Zero RPM Mode | No | Yes | Yes |
| Warranty | 5 Years | 10 Years | 12 Years |
| iCUE LINK Hub | Built-in (24 devices) | No | No |
| 12V-2x6 Native | Yes (x2) | Yes | Yes |
| ATX Standard | ATX 3.1 | ATX 3.0 | ATX 3.0 |
Final Verdict: CORSAIR HX1500i SHIFT Fully Modular ATX Power Supply
The CORSAIR HX1500i SHIFT Fully Modular ATX Power Supply is a genuinely clever product, but it's clever in a very specific way. The integrated iCUE LINK System Hub is the headline feature, and it's a real quality-of-life improvement for anyone building with Corsair cooling gear. Connecting up to 24 iCUE LINK devices directly to the PSU, without needing a separate hub and its associated cable run, is the kind of thing that makes a build noticeably cleaner. The SHIFT side-mounted connectors are a similarly smart idea that solves a real cable management problem in cases with PSU shrouds.
The Cybenetics Platinum efficiency is genuinely good, better than the 80 Plus Gold you'll find on most competitors at similar prices, and more relevant to UK mains voltage than the 80 Plus standard. The dual native 12V-2x6 cables mean RTX 50-series compatibility without adapters, which is the right call for a 2026 flagship PSU. The five-year warranty is adequate but not exceptional at this price. And with only a small number of owner reviews at the time of writing, it's a relatively new product without the long-term reliability track record of established alternatives.
Who should buy this? Corsair ecosystem builders. Specifically, anyone running iCUE LINK fans, a Corsair liquid cooler, or planning to build a Corsair-heavy system with an RTX 50-series GPU. The combination of the built-in hub, native 12V-2x6 cables, and ATX 3.1 compliance makes this the most complete Corsair-native PSU available right now. For those builders, the premium is justified. Who should skip it? Anyone who isn't in the Corsair ecosystem. If you're running Noctua fans, a DeepCool cooler, and you just need a reliable 1500W PSU, the be quiet! Dark Power 13 offers a longer warranty and comparable efficiency. And frankly, if your build peaks at under 1000W, consider whether you need 1500W at all. A quality 1000W Gold or Platinum unit at a lower price point will serve most high-end gaming builds just as well, with money left over for something that actually improves performance.
Bottom line: a 9/10 for Corsair ecosystem builders, a 7/10 for everyone else. The technology is genuinely good. The question is whether you're the person it was designed for. For more help working out your actual power requirements, use our PSU wattage calculator before committing.
What works. What doesn’t.
5 + 4What we liked5 reasons
- Built-in iCUE LINK hub eliminates a separate hub and cable run for Corsair cooling builds
- Dual native 12V-2x6 connectors for RTX 40 and 50-series GPUs without adapters
- Cybenetics Platinum efficiency up to 91%, better than most Gold-rated competitors
- Side-mounted SHIFT connectors genuinely improve cable routing in most cases
- ATX 3.1 and PCIe 5.1 compliant for current and next-gen GPU compatibility
Where it falls4 reasons
- No zero-RPM mode, fan runs continuously
- Five-year warranty is shorter than be quiet! and Seasonic competitors at similar prices
- iCUE LINK hub is wasted money if you are not in the Corsair ecosystem
- Only a small number of owner reviews at time of writing, limited long-term reliability data
Full specifications
9 attributes| Efficiency rating | Platinum |
|---|---|
| Form factor | ATX |
| ATX version | ATX 3.1 |
| FAN size MM | 140 |
| Generation | HXi SHIFT Series |
| Modularity | fully_modular |
| Pcie 5 ready | true |
| Warranty years | 10 |
| Wattage W | 1500 |
Will it run on what you have?
Free toolFrequently asked
5 questions01Is the CORSAIR HX1500i SHIFT Fully Modular ATX Power Supply good for gaming?+
Yes, but it depends on your build. At 1500W with Cybenetics Platinum efficiency and dual native 12V-2x6 connectors, it handles any single or dual-GPU gaming system comfortably. For most gaming builds peaking under 1000W, it provides substantial headroom. It is particularly well suited to RTX 50-series builds and Corsair iCUE LINK cooling setups. If your gaming rig is more modest, a quality 850W or 1000W unit will be more cost-effective.
02What wattage PSU do I need for an RTX 5090 build?+
Nvidia recommends at least an 1000W PSU for RTX 5090 systems, but a high-end CPU like an i9-14900K or Ryzen 9 7950X plus NVMe storage and case fans can push total system draw toward 900 to 1000W under full load. The HX1500i SHIFT at 1500W gives you a very comfortable margin. For most RTX 5090 gaming builds, 1200W to 1500W is the sensible range. Use our PSU calculator to get a more accurate figure for your specific components.
03What is Cybenetics Platinum and how does it compare to 80 Plus Gold?+
Cybenetics Platinum means up to 91% efficiency, certified by Cybenetics using European 230V testing conditions which are more representative of UK mains voltage than the 80 Plus standard (which tests at 115V). 80 Plus Gold typically achieves around 87 to 88% efficiency at 50% load. Cybenetics Platinum is a step above, meaning less wasted energy as heat, lower electricity costs over time, and a cooler, quieter PSU under load. For a PSU in the enthusiast price bracket, Cybenetics Platinum is the right certification to expect.
04How long is the warranty on the CORSAIR HX1500i SHIFT?+
Five years. This covers manufacturing defects and component failures under normal use. Five years is solid for a PSU, though it is that some competitors at similar price points offer ten or twelve-year warranties. In practice, a well-made PSU running well within its rated capacity should last considerably longer than five years, but if long warranty coverage is a priority, the be quiet! Dark Power 13 and Seasonic Prime ranges offer longer terms.
05Do I need the iCUE LINK hub feature if I am not using Corsair fans or coolers?+
No. The integrated iCUE LINK System Hub is specifically for connecting Corsair iCUE LINK compatible devices such as Corsair fans, AIO coolers, and lighting controllers. If your build uses fans or coolers from other brands, this feature does nothing for you. It is a meaningful selling point for Corsair ecosystem builders, but if you are not in that ecosystem, you are paying for a feature that will sit unused. In that case, alternatives like the be quiet! Dark Power 13 or Seasonic Prime TX-series offer comparable or better specs with longer warranties.
