MSI MAG PANO M100L PZ White Review UK 2026

There's a specific type of case that sits in my testing queue and makes me genuinely curious before I've even opened the box. Not the ones with seventeen RGB zones and a name that sounds like a sports car. Not the ultra-budget stuff that flexes when you look at it wrong. I'm talking about cases that clearly have a design vision, something the manufacturer actually thought about, but where you don't know until you're elbow-deep in cable routing whether that vision translated into something you'd actually want to build in. The MSI MAG PANO M100L PZ White is exactly that kind of case.

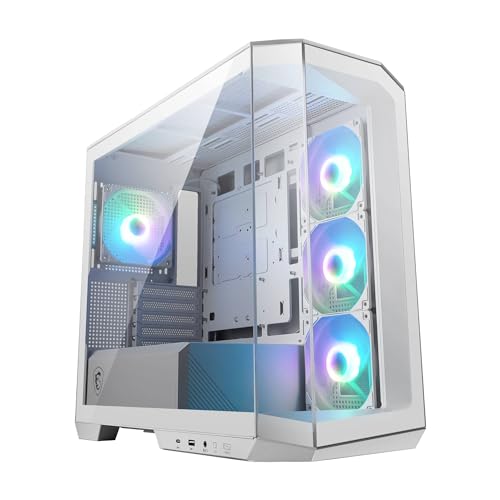

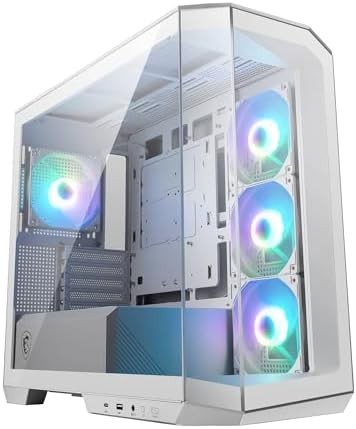

I've built in a lot of Micro-ATX cases over the years. Some are just shrunk-down ATX towers with the same problems, just smaller. Others genuinely embrace the compact format and make smart compromises. The PANO M100L is MSI's attempt at a panoramic-glass mATX case, and the name tells you the story: four-sided tempered glass, a white finish, and a form factor that's supposed to sit on your desk looking like a showpiece. Whether it actually works as a build platform is a different question entirely, and that's what two weeks of hands-on testing is here to answer.

This MSI MAG PANO M100L PZ White PC Case Review covers everything from the actual clearance numbers to the cable management situation behind the motherboard tray, and I'll be honest about where MSI got it right and where I found myself muttering at the workbench. The focus keyword here isn't just SEO fluff: MSI MAG PANO M100L PZ White PC Case Review: Micro-ATX Design Insights is genuinely what this is, because the mATX-specific design decisions are what make or break this case.

The case ships with three 120mm ARGB fans pre-installed, which is a decent starting point. Fan support goes up to a 360mm radiator at the front, which is the headline cooling spec and something I'll dig into properly in the airflow section. The top panel supports up to 240mm, and there's a single 120mm exhaust position at the rear. Steel construction throughout the main chassis, with four panels of tempered glass giving you that panoramic look MSI is going for. Weight is around 7.5kg without any components, which feels about right for the build quality on offer.

One thing worth flagging before we get into the table: this is priced in the enthusiast tier. Check the current price below because it moves, but you're not buying a budget case here. You're paying for the glass, the ARGB fans, and the white finish. Whether that's worth it depends entirely on what you're building and why.

The footprint is manageable. At 390mm deep, it won't hang off the back of a shallow desk, and the 399mm height means it'll clear most monitor stands without issue. I had it sitting on a standard 600mm-deep desk for the entire test period and it never felt cramped or awkward. The white finish is clean and the four-panel glass design means you can see the internals from pretty much any angle, which is either a selling point or a reason to make sure your cable management is tidy. There's no hiding a messy build in this thing.

One thing I noticed straight away is that the case has a fairly small physical footprint relative to the internal volume. MSI has done a decent job of using the space efficiently, which is something a lot of mATX cases get wrong. They either end up too cramped inside or they're basically an ATX case with a smaller motherboard tray. The PANO M100L feels like it was actually designed around the mATX form factor rather than just scaled down from something bigger. Whether that translates to a good build experience is a separate conversation, but the dimensions are at least sensible.

I built with an mATX board and had no fitment issues at all. The tray is flat, the standoffs are properly aligned, and the I/O shield area is clean. Some cheaper cases have slightly warped trays that make it annoying to get the board seated properly. Not an issue here. The steel feels solid enough that the tray doesn't flex when you're applying pressure to seat RAM or a GPU.

The motherboard area is reasonably spacious given the chassis size. You've got enough room to work around the board without constantly knocking cables or fans. The front fan bracket sits close to the board, and with a 360mm radiator installed at the front you will be working in tighter quarters, but it's manageable. I've built in cases where fitting a front radiator basically required you to have the hands of a surgeon. This isn't that bad. The cable routing holes around the tray are in sensible positions, and the grommets are present, which is a small detail that makes a real difference when you're trying to keep things tidy.

There's no vertical GPU mount option on the PANO M100L, which is a shame given the panoramic glass design. If you're buying this case specifically to show off a card, a vertical mount would have been a natural addition. MSI hasn't included one, and there's no obvious aftermarket bracket solution that fits cleanly. So if vertical GPU mounting is on your wishlist, this isn't your case.

The PCIe slot area is standard, with four expansion slots covered by removable brackets. The brackets are the punch-out type rather than tool-free, which is a minor annoyance. Once they're out they're out, so if you ever remove a card you'll need to either leave the slot open or find a replacement bracket. Most cases at this price point have moved to tool-free or re-usable brackets, so this feels like a cost-cutting decision that MSI probably shouldn't have made. It's not a dealbreaker, but it's noticeable.

AIO support is where things get interesting. The front panel supports up to a 360mm radiator, which is the main AIO mounting position. The top supports up to 240mm. I tested with a 240mm AIO mounted at the top and had no issues with RAM clearance, which is a common problem in compact cases where the radiator hangs over the first DIMM slot. With a 360mm front-mounted AIO, you'll want to check that your specific radiator and fan combination doesn't push the total depth beyond what the front bracket can accommodate. MSI's own documentation covers this, and I'd recommend checking the MSI product page for the specific radiator thickness limits before ordering a thick radiator.

The rear exhaust position takes a single 120mm fan, which is standard. If you're running a 360mm front AIO and a 240mm top AIO simultaneously, you'll have a lot of radiator surface area and only one exhaust point at the rear. That's a configuration I'd think carefully about. In practice, most builds will run either a front 360mm or a top 240mm, not both, and in that scenario the airflow balance is fine. I ran a 240mm top AIO with the three included 120mm fans at the front as intake and temperatures were sensible throughout the test period.

The 3.5-inch bay sits in the PSU shroud area, which is a common placement in modern cases. It keeps the drive out of the main airflow path and tucks it away neatly. The 2.5-inch bays are mounted on the back of the motherboard tray, which is good for cable management but means you need to route SATA cables through the tray, which adds a bit of fiddling. Tool-less mounting for the 2.5-inch drives would have been nice. You're using screws, which is fine but slightly slower.

The M.2 situation depends entirely on your motherboard, since the case itself doesn't have any dedicated M.2 mounting positions beyond what the board provides. Most modern mATX boards have two or three M.2 slots, so this isn't really a case-level concern, but it's worth mentioning for completeness. If you're planning a build with four or more M.2 drives, you'll need a board with the slots to match, because the case won't help you out there. For a typical gaming or workstation build with one or two M.2 drives, the storage situation is perfectly adequate.

There are Velcro straps pre-installed in the rear channel, which I appreciate. It's a small thing but it makes a real difference when you're trying to bundle cables neatly. The routing holes around the motherboard tray are in sensible positions and the grommets are rubber, not just bare holes, so cables don't chafe. The PSU shroud covers the bottom of the case and hides the power supply and most of the cable bulk, which helps the overall look considerably.

The 24-pin motherboard cable is the awkward one in any compact case, and the PANO M100L is no exception. Getting it routed cleanly behind the tray and then back through to the board without it bulging the side panel is a bit of a puzzle. I ended up routing it through the top cable hole and then down the side of the board, which worked but took a couple of attempts. If you're using a modular PSU with a flat 24-pin cable, life gets easier. If you're using a non-modular PSU, budget some extra time for this. The GPU power cables route more naturally through the lower cable holes, and the CPU EPS cable has a dedicated routing path near the top of the tray that works well.

The included fans are ARGB and they spin quietly at lower speeds. They're not the highest static pressure fans in the world, but they move decent air through the front mesh. I ran the system under load for extended periods and temperatures were acceptable. The three front fans as intake, combined with the rear 120mm exhaust, creates a reasonable positive pressure environment that keeps dust accumulation manageable. If you're adding a top radiator, you'll want to think about whether you're running it as intake or exhaust, because running both the front fans and a top radiator as intake will create significant positive pressure that can cause issues with exhaust.

The four-sided glass design does limit airflow options compared to a case with a solid or mesh top panel. Glass doesn't breathe, so the only real airflow paths are the front mesh, the rear 120mm, and whatever you put at the top. For a mid-range gaming build this is fine. For a high-end system with a power-hungry GPU and a hot CPU, you'll want to think carefully about your cooling configuration and potentially add a top exhaust fan to supplement the rear. The panoramic aesthetic comes with thermal trade-offs, and MSI is honest about this in the design. It's a showpiece case that also happens to cool adequately, not a pure airflow case that happens to look nice.

The USB Type-C port is the headline I/O feature and it's genuinely useful. Gen 2 means 10Gbps, which is fast enough for external SSDs and most peripherals. The internal header requires a USB 3.2 Gen 2 Type-C connector on your motherboard, so check your board has one before getting excited about this. Most modern mATX boards do, but budget boards sometimes skip it. The two Type-A ports are USB 3.2 Gen 1 (5Gbps), which is standard and perfectly adequate for mice, keyboards, and USB drives.

The audio jack is a combined 3.5mm TRRS connector, which works with headsets that have a single combined plug. If you're using separate headphone and microphone cables, you'll need an adapter or you'll be plugging into the rear I/O panel instead. This is a common compromise on modern cases and it's not unique to MSI, but it's worth knowing. The overall I/O selection is good for the form factor. You're not getting the four USB ports of a larger case, but three ports plus audio is a reasonable complement for a compact build.

Panel alignment is good. All four glass panels sit flush and the gaps are even. This matters more on a white case than a black one because misaligned panels catch the light and look immediately cheap. MSI has got this right. The top panel removes easily for radiator installation, and the front panel pops off with a bit of firm pressure to release the clips. The clips feel secure without being so tight that you're worried about breaking something every time you take the panel off.

The one build quality gripe I mentioned earlier, the punch-out PCIe brackets, is worth repeating here. At this price point, with this level of finish quality elsewhere, it's a genuine disappointment. Everything else about the case says MSI cared about the details. The punch-out brackets say they stopped caring at the expansion slots. It's not a fatal flaw but it's the kind of thing that makes you raise an eyebrow. The thumbscrews throughout the rest of the case are decent quality and don't strip easily, which is more than can be said for some competitors. The overall build quality impression is positive, with that one specific exception.

The Fractal Pop Mini Air prioritises airflow with a mesh front panel and a more traditional side-glass design. It's a more practical case in terms of thermal performance but it doesn't have the four-sided glass showpiece aesthetic. The Cooler Master NR400 is a more budget-oriented option that offers solid build quality and good cable management but lacks the visual drama of the PANO M100L. Neither competitor ships with ARGB fans included, which is worth factoring into the value comparison.

Where the PANO M100L wins is on aesthetics and included accessories. The four-sided glass, the white finish, and the three included ARGB fans make it a genuinely attractive package for a build that's going to sit on a desk and be looked at. Where it loses is on pure airflow potential and the punch-out brackets. If you're building a high-performance system where thermals are the priority, the Fractal Pop Mini Air is probably the smarter choice. If you're building a mid-range system that needs to look good, the PANO M100L makes a strong case for itself.

The practical side of the build experience is good but not exceptional. Cable management is workable with a modular PSU and some patience. Clearances are sensible for most mid-range and upper-mid-range components, though the 330mm GPU limit will catch out anyone trying to fit the longest current-gen cards. The airflow is adequate for most builds but the glass-heavy design means it'll never compete with a dedicated mesh case on thermals. And those punch-out PCIe brackets are genuinely annoying at this price point.

Who should buy this? Someone building a mid-range gaming or productivity system in mATX format who wants the build to look as good as it performs. Someone who's going to put it on a desk where it'll be seen, not hidden in a corner. Someone running a 240mm or 280mm AIO, or the three included fans in a push configuration, with a GPU that's 320mm or shorter. That's a lot of builds, actually.

Who should skip it? Anyone running a flagship GPU that's longer than 330mm. Anyone who needs more than one 3.5-inch drive bay. Anyone building a high-performance system where thermals are the absolute priority and aesthetics are secondary. And anyone who's going to be irritated every time they look at those punch-out brackets.

Overall, this is a well-executed case for its intended purpose. The MSI MAG PANO M100L PZ White PC Case Review: Micro-ATX Design Insights conclusion is that MSI has built something genuinely attractive and mostly practical, with a couple of design decisions that feel like they were made to hit a price point rather than to serve the builder. At its current price, it's competitive with other enthusiast-tier mATX cases and the included ARGB fans add real value. I'd give it a solid 7.5 out of 10. Recommended, with the caveats noted.
