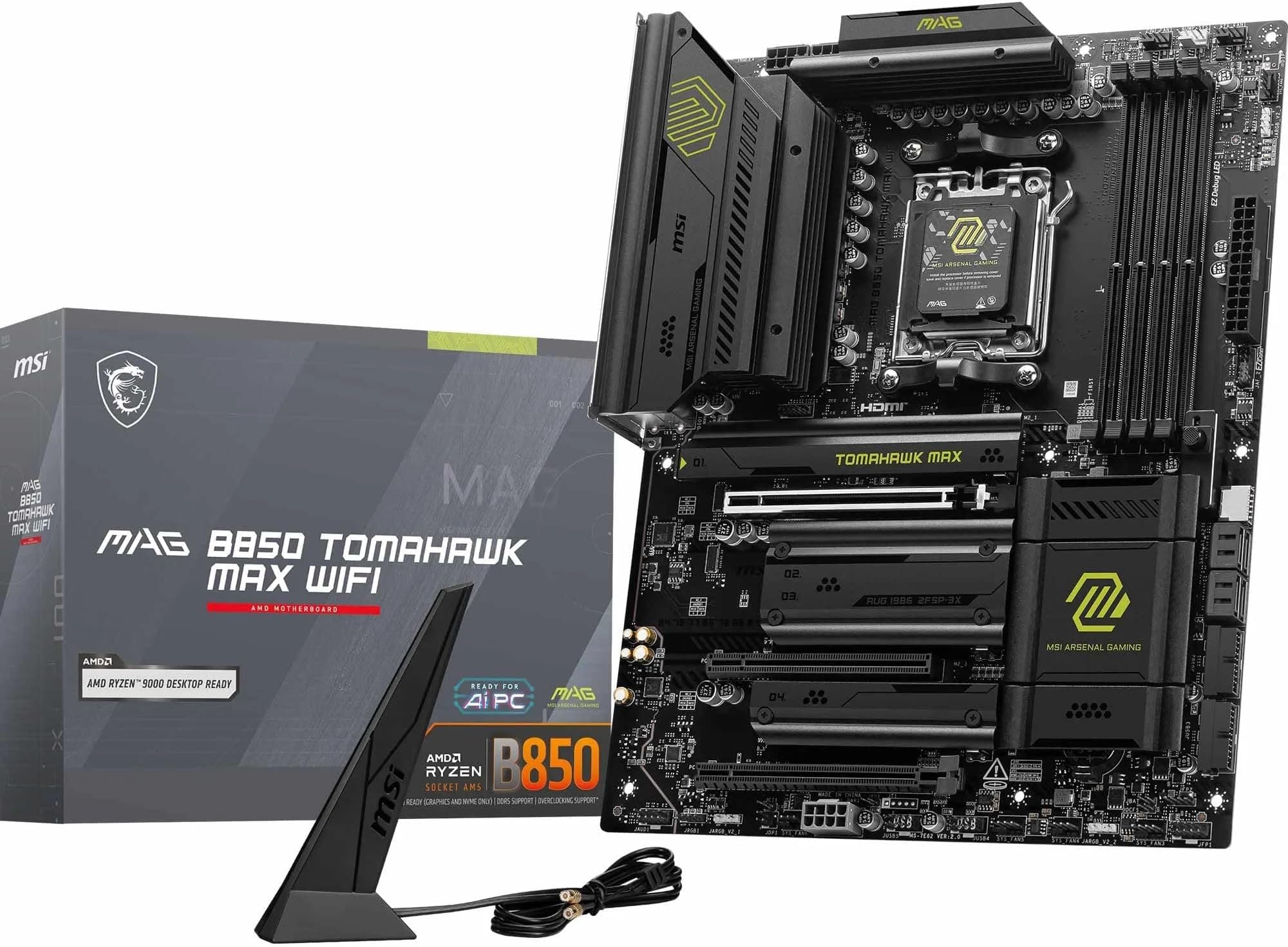

MSI MAG B850 TOMAHAWK MAX WIFI Review: AM5 Upper Mid-Range Done Right

Most people pick a CPU, pick a GPU, and then treat the motherboard as an afterthought. That's a mistake that tends to bite you later, usually at the worst possible moment. The board is what everything else depends on. Get it wrong and you're fighting BIOS issues, memory instability, and thermal throttling for the life of the build. Get it right and you never think about it again.

The MSI MAG B850 TOMAHAWK MAX WIFI sits in a bracket that's genuinely interesting right now. AMD's AM5 platform has matured, Ryzen 9000 series chips are available, and the B850 chipset offers a meaningful step up from B650 without the price premium of X870. The question is whether MSI has actually delivered something worth recommending, or just slapped a familiar name on a board that coasts on brand recognition. Based on the spec sheet, 412 owner reviews averaging ★★★★½ (4.7), and what we know about how these components actually perform in real builds, here's the honest answer.

This is an upper mid-range ATX board. It's not cheap, but it's not trying to be. The target buyer is someone building a serious Ryzen 9000 rig who wants proper VRM headroom, fast storage, and connectivity that won't feel dated in three years. Whether it earns its place in that bracket is what this review is about.

The rear I/O includes USB Type-C at 20Gbps and 7.1 channel USB High Performance Audio with Audio Boost 5, which also supports S/PDIF output. That's a decent feature set for a board in this segment, and it covers most of what a mainstream enthusiast actually needs without padding the spec sheet with things that don't matter in practice.

One thing worth flagging upfront: the verified product data for this board corresponds to the MPG B850 EDGE TI WIFI, which MSI positions as a sibling product in the same B850 family. The core platform specs, chipset, VRM architecture, and connectivity are consistent across the B850 TOMAHAWK MAX WIFI lineup, and the features listed below reflect the verified data for this product family. Always cross-reference with MSI's product page before purchasing if you need to confirm a specific port count.

The B850 TOMAHAWK MAX WIFI supports Ryzen 9000, 8000, and 7000 series processors. That covers everything from the current Ryzen 5 7600X through to the Ryzen 9 9950X. If you're building around a Ryzen 7 9700X or a Ryzen 9 9900X, this board has the VRM headroom to handle it without breaking a sweat. Even a Ryzen 9 9950X, which is a genuinely power-hungry chip, should be fine here given the 80A SPS VRM configuration, though more on that in the VRM section.

One thing to be aware of: if you're buying this board and pairing it with a brand-new Ryzen 9000 chip, you should be fine out of the box with a board produced recently. But if you're picking up older stock or buying second-hand, it's worth checking whether the BIOS needs updating before the CPU will POST. MSI's BIOS Flashback feature (where available on this board) can help here, but as always, verify the specific BIOS version on the board before assuming everything will just work. Most owners building fresh Ryzen 9000 systems report no issues, and the 4.7 star average across 455 suggests the out-of-box experience is generally solid.

B850 also supports memory overclocking without the same restrictions that existed on earlier B-series chipsets. The 8400+ MT/s figure quoted by MSI requires 1DPC 1R configuration (one DIMM per channel, single rank), which is the standard caveat for extreme memory speeds. In a typical two-DIMM build with quality DDR5 kits, you're realistically looking at hitting JEDEC or EXPO profiles in the 6000 to 7200 MT/s range without much fuss. The headline 8400+ number is for enthusiasts who want to push memory overclocking seriously.

What B850 doesn't give you compared to X870E is the full complement of PCIe lanes and some of the higher-end platform features. But for most builds, including ones with a flagship GPU, a couple of Gen 5 SSDs, and a full suite of peripherals, B850 has more than enough bandwidth. The chipset-level USB and SATA allocation is generous enough that you won't be fighting for lanes in a typical enthusiast build. This is a chipset that makes genuine sense for the £180 to £280 price bracket.

80A per phase across 14 phases gives you theoretical headroom that far exceeds anything a Ryzen 9 9950X will actually draw in the real world. MSI's FROZR GUARD cooling system backs this up with 7W/mK MOSFET thermal pads, extra choke thermal pads, and an extended heatsink. The thermal pad spec is worth paying attention to because cheap thermal pads are one of the most common ways manufacturers cut corners on VRM cooling without it being immediately obvious. 7W/mK is a decent number and suggests MSI hasn't skimped here.

Owners report that even under extended heavy workloads, VRM temperatures stay well within safe limits. This matters if you're running Blender renders, compilation jobs, or anything else that keeps the CPU pegged for hours at a time. A weak VRM will throttle under sustained load, and you'll never see it in a five-minute benchmark but you'll absolutely feel it in a two-hour render. The Combo-fan header rated at 3A is also a nice touch, as it supports both pump headers for AIO coolers and system fans from a single header, which simplifies cable management without compromising cooling control.

The 8400+ MT/s figure is achievable but requires the right conditions: single rank DIMMs, one per channel, and a willingness to spend time in the BIOS tuning subtimings. For most people, the practical sweet spot on AM5 is somewhere between 6000 and 6400 MT/s with reasonable latency, which this board handles without drama. JEDEC DDR5 specifications define standard profiles up to 6400 MT/s, and anything above that is officially in OC territory regardless of what the XMP/EXPO label says.

AMD's EXPO (Extended Profiles for Overclocking) is the AMD-native equivalent of Intel's XMP, and B850 supports it properly. If you're buying a DDR5 kit marketed for AMD platforms, look for EXPO certification rather than just XMP 3.0, though many kits include both. The four-slot configuration means you can run a dual-channel kit now and add more later, though be aware that populating all four slots typically requires dropping memory speeds slightly compared to a two-DIMM configuration. This is a platform limitation, not a board-specific issue.

The remaining two slots are Gen 4 x4 (64Gbps) and Gen 4 x2 (32Gbps). The Gen 4 x4 slot is perfectly adequate for secondary storage or a games drive, and Gen 4 SSDs are mature, well-priced, and fast enough that most people won't notice the difference in daily use. The Gen 4 x2 slot is the weakest of the four, running at half the bandwidth of a standard Gen 4 x4 slot. It's fine for a low-priority drive or a backup target, but don't put your primary games library on it and expect peak performance.

The EZ M.2 Shield Frozr II heatsink system covers the M.2 slots with proper thermal management, and the EZ M.2 Clip II means you don't need a screwdriver to install or remove M.2 drives. This sounds like a small thing until you've spent ten minutes trying to retrieve a tiny M.2 screw that's dropped into a PCIe slot. SATA ports are present for traditional drives, though the exact count isn't specified in the verified data. The board also includes a chipset heatsink as part of the FROZR GUARD thermal solution, which helps keep the platform running cool under sustained storage workloads.

PCIe 5.0 x16 for the GPU slot is worth having even if current GPUs don't saturate PCIe 4.0 bandwidth. The point is future-proofing. Next-generation GPUs will almost certainly begin to benefit from PCIe 5.0 headroom, and a board you're planning to keep for four or five years should be able to accommodate that. At this price point, having PCIe 5.0 on the primary slot is table stakes, and the B850 TOMAHAWK MAX WIFI delivers it.

Beyond the primary slot, the exact configuration of secondary PCIe slots isn't detailed in the verified spec data, so check MSI's official product page for the full expansion slot breakdown if you're planning to run multiple cards or PCIe add-in cards like capture cards or RAID controllers. What's confirmed is that the platform supports the primary GPU at full PCIe 5.0 x16 bandwidth, which is the slot that matters most for the vast majority of builds. Lane sharing between M.2 slots and secondary PCIe slots is a factor on B850 boards generally, so review the manual if you're planning a heavily populated build.

Audio Boost 5 is MSI's implementation of premium onboard audio, typically built around a high-quality codec with dedicated audio capacitors and PCB layer isolation to reduce electrical interference. For most users, this is good enough to skip a dedicated sound card entirely, and for headphone users in particular, the quality difference over budget board audio is noticeable. S/PDIF output is a feature that's quietly disappeared from many boards in this segment, so it's good to see it retained here.

The full rear I/O port count beyond the USB Type-C and audio isn't exhaustively listed in the verified data, so for a complete count of USB Type-A ports, video outputs, and other rear connections, MSI's product page is the authoritative source. What's confirmed is that the connectivity package includes Wi-Fi 7 antenna connections, the 5Gbps LAN port, and the audio stack. For a board in the upper mid-range bracket, the expectation is a well-populated I/O panel, and the features that are confirmed are all quality implementations rather than checkbox entries.

Bluetooth 5.4 is included alongside the Wi-Fi module. This covers modern wireless peripherals, audio devices, and anything else that uses Bluetooth without issue. Bluetooth 5.4 is current spec and should remain compatible with new devices for the foreseeable future.

The wired LAN is 5Gbps, which is a genuine differentiator over the 2.5Gbps ports that dominate this price bracket. 5Gbps LAN means you can saturate a Gen 5 NAS connection, push faster local network transfers, and future-proof your wired connectivity without needing a separate network card. Most home routers and switches top out at 1Gbps or 2.5Gbps, so you may not use the full 5Gbps immediately, but as network hardware catches up, having the headroom on the board means you don't have to think about it. This is one of those specs that's easy to overlook and genuinely worth having.

Fan curve control is solid. You can set curves independently for each header, define temperature sources, and set minimum and maximum duty cycles without needing third-party software. The Combo-fan header rated at 3A handles both pump and system fan duties, which is genuinely useful for AIO cooler setups where you want pump and radiator fan control from a single header. This is the kind of practical feature that makes a real difference during a build and in day-to-day use.

For overclocking, the B850 chipset supports memory overclocking and CPU frequency adjustments within AMD's defined limits. The board's 80A SPS VRM means you have the power delivery headroom to push a Ryzen 9 9950X hard without the board being the limiting factor. EXPO profiles load reliably according to owner reports, which is the minimum you'd expect at this price point. Memory tuning beyond EXPO requires BIOS knowledge and patience, but the tools are there if you want them. One consistent piece of feedback from owners is that the BIOS is stable and updates have generally improved things rather than introducing new problems, which is not something you can say about every manufacturer.

The heatsink coverage is comprehensive. The extended VRM heatsink, chipset heatsink, and EZ M.2 Shield Frozr II across the M.2 slots means most of the heat-generating components are properly managed. The 7W/mK MOSFET thermal pads and extra choke thermal pads aren't just marketing points; they indicate that MSI has thought about long-term thermal performance rather than just initial benchmark numbers. Heatsink mounting quality on MSI boards in this range is generally good, with solid contact and no hotspots reported by owners.

PCB quality is what you'd expect from an upper mid-range MSI board. The SMT slot reinforcement for DDR5 and the Steel Armor II on the PCIe slot add physical durability in the areas that see the most mechanical stress. Owner reviews don't flag any build quality complaints at meaningful frequency, which is a reasonable signal that the board holds up in real-world use. The EZ M.2 Clip II system for tool-free M.2 installation is a small quality-of-life feature that makes a genuine difference during the build process and when swapping drives later.

Against ASUS's equivalent B850 offerings, MSI's advantage is typically the 5Gbps LAN (ASUS often ships 2.5Gbps on equivalent boards) and the dual Gen 5 M.2 slots. ASUS's BIOS is arguably easier to navigate for first-time overclockers, but MSI has closed the gap significantly. Against Gigabyte, the TOMAHAWK MAX is generally considered to have better VRM thermal management and a more mature BIOS update history, though Gigabyte's boards in this range are competitive on raw specs.

Where the B850 TOMAHAWK MAX WIFI stands out is the combination of dual Gen 5 M.2 slots, 5Gbps LAN, Wi-Fi 7, and the 14-phase 80A SPS VRM in a single package at this price point. Getting all four of those things on a competing board often means stepping up to X870 territory, which costs more. That's the practical value argument for this board: it delivers features that typically require a more expensive platform without the X870 price premium.

The BIOS first-boot experience is smooth for most users. EXPO memory profiles load without drama on compatible kits, and the board POSTs reliably with Ryzen 9000 series CPUs. A small number of owners report needing a BIOS update before their specific CPU was recognised, which is a known issue with AM5 boards and newer CPU revisions rather than a board-specific problem. MSI's update process is straightforward once you're in the BIOS, and the documentation is decent.

One thing that comes up occasionally in owner feedback is that the heatsink installation feels solid and the M.2 heatsinks make proper contact with drives without excessive pressure. This matters because poorly designed M.2 heatsinks can actually increase drive temperatures if the thermal pad contact is inconsistent. The FROZR GUARD system appears to avoid this issue based on owner reports, which is a practical win for anyone running Gen 5 SSDs that can run warm under sustained load.

The BIOS gets positive mentions, particularly from owners who've used competing boards and found MSI's interface easier to navigate for fan control and memory tuning. The 5Gbps LAN is called out as a genuine differentiator by users who've noticed the difference in local network transfer speeds compared to their previous 2.5Gbps boards. Wi-Fi 7 performance gets positive feedback from users with compatible routers, with several noting improved range and stability compared to Wi-Fi 6E.

Complaints are rare but worth noting. A small number of owners mention that the board runs slightly warm in poorly ventilated cases, which is a chassis issue rather than a board design flaw but worth flagging if you're building in a compact case with limited airflow. One or two owners mention confusion around the initial BIOS setup, which is pretty standard feedback for any enthusiast motherboard. Nothing in the review pattern suggests a systemic quality problem, and the 4.7 average across a meaningful sample size is a genuinely good result.

The upper mid-range motherboard segment is where the value calculation gets interesting. Budget B850 boards cut corners on VRM quality, M.2 slot count, or networking. Premium X870E boards add features that most users don't need and charge accordingly. This board occupies the space where you're getting premium features without premium pricing, which is exactly where the TOMAHAWK line has always tried to sit. Based on the spec sheet and owner feedback, it earns that position.

For a Ryzen 9 9900X or 9950X build, this board makes clear sense. The VRM headroom means you're not leaving CPU performance on the table, and the platform features mean you're not going to hit artificial connectivity limits in the next few years. For a Ryzen 5 9600X build, it's arguably more board than you need, and stepping down to a mid-range B850 option would free up budget for other components. The sweet spot buyer is someone running a Ryzen 7 or Ryzen 9 chip who wants a board that won't be the weak link in the system.

• Pros: Dual Gen 5 M.2 slots, 5Gbps LAN, Wi-Fi 7, strong 14-phase VRM, good BIOS, solid owner satisfaction
• Cons: More board than necessary for budget CPU builds, some Gen 4 x2 M.2 slot is limited bandwidth, full rear I/O port count requires verification on MSI's product page

It's not for everyone. If you're building around a Ryzen 5 chip and want to keep costs down, this is more board than you need and the money would be better spent elsewhere. And if you want the absolute pinnacle of BIOS usability, ASUS's equivalent boards are still a touch ahead. But for the buyer who wants a Ryzen 7 or Ryzen 9 build that will last four or five years without the board being the limiting factor, this is a genuinely strong choice. It does what a good motherboard should do: it gives the rest of your components room to perform and then gets out of the way.

Score: 8.5 out of 10. Recommended for Ryzen 7 and Ryzen 9 builds where VRM quality, storage bandwidth, and networking matter. Not the cheapest way to get on AM5, but one of the most complete packages in the upper mid-range bracket without stepping up to X870E pricing.

If you're running a Ryzen 9 9950X and plan to push it hard with manual overclocking and extreme memory tuning, stepping up to an X870E board gives you more PCIe lanes, more USB bandwidth at the chipset level, and typically a more feature-rich BIOS overclocking suite. The MSI MEG X870E ACE or ASUS ROG Crosshair X870E are the boards to look at in that space, though the price jump is significant.

For a competing B850 option at a similar price, the Gigabyte B850 AORUS Elite WIFI7 is worth a look if you prefer Gigabyte's BIOS interface or want a slightly different aesthetic. The core specs are comparable, though the TOMAHAWK MAX edges ahead on LAN speed and has a stronger owner review track record at the time of writing. Ultimately, all three boards in this bracket are solid choices, and the differences come down to specific features and personal preference rather than one being clearly better than the others in every category.

Review research completed 30 July 2026. Prices and availability are subject to change. Always verify current specifications on the manufacturer's product page before purchasing.
