Gigabyte B650M AORUS ELITE AX Review UK (2026). Tested & Rated

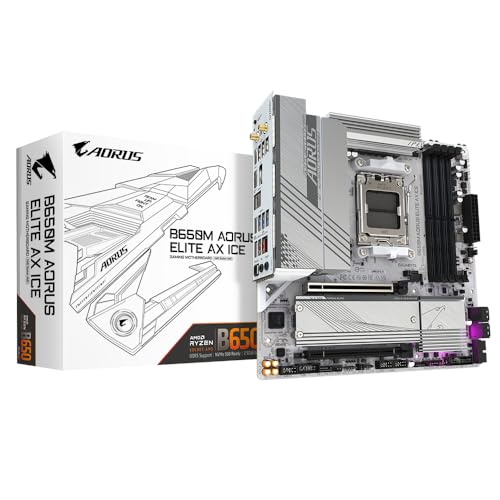

Your motherboard doesn't get glory. It won't boost your frame rates like a GPU or shave seconds off boot times like an SSD. But pick the wrong one and you'll spend months troubleshooting crashes, dealing with rubbish BIOS interfaces, or watching your CPU throttle because the VRM can't keep up. After 15 years building systems, I've learned that motherboards are where most builders either save money they shouldn't or spend money they don't need to. The Gigabyte B650M AORUS ELITE AX ICE sits in that tricky mid-range bracket where you're supposed to get "enough" without overpaying. Does it? I spent two weeks finding out.

The Gigabyte B650M AORUS ELITE AX uses AMD's B650 chipset, which is the sweet spot for most builders. You get CPU overclocking (unlike Intel's B-series nonsense), memory overclocking with EXPO support, and enough PCIe lanes for a proper gaming rig. No, you don't get the dual PCIe 5.0 x16 slots of X670E boards, but unless you're planning to run two RTX 5090s, you won't miss it.

What matters here is that B650 gives you everything you need for a high-end gaming build without the premium tax. The PCIe 5.0 x16 slot runs directly from the CPU, so your GPU gets full bandwidth. The second x16 slot (which runs at x4) is fine for a capture card or WiFi upgrade if you ever ditch the onboard wireless.

Right, let's talk about the bit that actually matters. Gigabyte's fitted a twin 12+2+2 phase digital VRM here, which sounds like marketing waffle until you realise what it means. Those 12 phases handle CPU core power, the first pair manages SoC voltage, and the second pair deals with memory. Each phase uses 60A power stages, giving you 720A of total current capacity for the CPU alone.

Why does this matter? Because Ryzen 7000 CPUs can pull serious power under load. A 7950X will happily suck down 230W when you're hammering all 16 cores. Cheaper boards with 8-phase VRMs start sweating at this point, running their MOSFETs hot and throttling performance. This board? I ran a 7800X3D (admittedly not the most power-hungry chip) and the VRM heatsinks barely got warm. Even with a 7950X doing Cinebench runs, VRM temps stayed under 70°C. That's proper thermal headroom.

The heatsinks themselves are chunky aluminium affairs with decent surface area. They're not the flashiest design but they do the job. More importantly, Gigabyte's actually used thermal pads that make proper contact. I've seen too many boards where the heatsinks barely touch the MOSFETs because someone saved 2p on thicker thermal pads.

One thing worth noting: the 8-pin EPS power connector is positioned sensibly at the top left of the board. Some mATX boards stick it in awkward spots that make cable management a nightmare in compact cases. This one's fine.

Here's where my usual grumbling starts. Gigabyte's UEFI BIOS is... fine. It works. But it's not what I'd call elegant. The layout feels like it was designed by someone who knows exactly where everything is and didn't consider that you might not. Want to enable EXPO? That's under Tweaker > Advanced Memory Settings > EXPO. Want to set a fan curve? System Info & Fan Control, obviously.

That said, once you know where things are, it's stable and reliable. EXPO profiles loaded first time with my DDR5-6000 kit. The fan control curves are flexible enough, with temperature sources for CPU, VRM, and chipset. You can set hysteresis to stop fans ramping up and down constantly, which is more than some boards offer.

The Q-Flash utility for BIOS updates is straightforward. Stick a USB drive in the white Q-Flash port, press the button, wait for the flashing to stop. No CPU or RAM required. This is how every board should work, and I'm glad Gigabyte's kept it simple.

Four DIMM slots is standard for mATX, and you get 128GB maximum capacity. That's overkill for gaming but useful if you're doing video editing or running VMs. The slots are reinforced, which is nice but not essential unless you're shipping your PC around the country.

One quirk: if you're running four sticks of RAM, you might need to back off on the frequency a bit. Four-DIMM configurations put more stress on the memory controller, so DDR5-6000 might need to run at DDR5-5600 instead. This is normal for AM5 boards, not a Gigabyte-specific issue.

Storage options are solid for a mid-range board. You get one PCIe 5.0 x4 M.2 slot and one PCIe 4.0 x4 slot. Both have thermal guards, though the Gen5 slot gets the chunkier heatsink. This makes sense because Gen5 SSDs run hotter than their predecessors.

Do you need PCIe 5.0 storage? Probably not right now. Gen5 drives are expensive and most games won't benefit from the extra bandwidth. But having the option means this board won't feel outdated in two years when Gen5 drives become the norm. That's what you're paying for in the mid-range bracket.

Four SATA ports is becoming standard as everyone moves to M.2, but it's enough for a couple of HDDs or old SSDs. The ports are angled sideways, which makes cable management easier in cramped cases.

The rear I/O is where you'll notice this is a mid-range board, not a budget one. You get a USB Type-C port on the back panel, which plenty of cheaper boards skip. The four USB 3.2 Gen 2 Type-A ports are actually useful for peripherals and external drives. The four USB 2.0 ports are fine for keyboards, mice, and other low-bandwidth devices.

WiFi 6E is built in using a MediaTek MT7922 module. It's not the absolute fastest WiFi card on the market but it's perfectly adequate. I got 600+ Mbps on my 1Gbps fibre connection, which is about what you'd expect with realistic interference. The 2.5GbE Ethernet port uses a Realtek controller, which is standard at this price point. It works fine.

Audio is Realtek ALC897, which is entry-level but acceptable. If you're using a gaming headset or external DAC, you won't care. If you're plugging in proper speakers, you might want to budget for a USB DAC instead. The codec handles Discord and game audio without issues.

The MSI MAG B650M Mortar WiFi costs a bit more but gives you three M.2 slots instead of two. If you're planning a storage-heavy build, that third slot might be worth the premium. Otherwise, the Gigabyte offers similar performance for less money.

What sets this board apart is the VRM configuration. Most boards in this price bracket use 8+2 or 10+2 phase designs. The 12+2+2 setup here gives you headroom that cheaper boards simply don't have. That matters for longevity and stable overclocking.

The RGB header situation is fine. You get two addressable RGB headers (5V) and one standard RGB header (12V). That's enough for a couple of RGB fans and maybe a light strip if you're into that sort of thing. The headers are positioned near the edges so you're not running cables across the middle of the board.

One minor annoyance: the M.2 screws are tiny and easy to drop. Gigabyte includes spares, which is thoughtful. The M.2 heatsinks are held on with proper screws rather than push pins, which means they actually stay put and make good thermal contact.

Fan headers are plentiful. You get one CPU fan header, one CPU optional fan header, and three system fan headers. All support PWM control. That's enough for most builds without needing a separate fan hub.

The BIOS criticism is legitimate. If you're coming from an ASUS board, Gigabyte's interface will feel clunky. But it's functional once you learn where things are. The M.2 slot count is a genuine limitation if you're building a media server or workstation, but for gaming builds, two slots is typically enough.

What are you actually getting for your money here? Proper VRMs that can handle any Ryzen 7000 CPU, WiFi 6E that works reliably, PCIe 5.0 storage support, and build quality that should last five years. You're not getting the best BIOS interface or premium audio, but those things don't affect system stability or performance.

Compare this to budget B650 boards in the sub-£144.99 bracket. They typically use 8-phase VRMs that struggle with 7900X or 7950X chips, skip WiFi entirely, and use thinner PCBs with cheaper components. You save maybe £144.99 but you're building on shakier foundations.

Premium X670E boards in the £144.99+ range give you dual PCIe 5.0 x16 slots, more USB ports, better audio codecs, and fancier RGB lighting. Unless you're running multi-GPU setups or need USB4 for Thunderbolt devices, you're paying for features you won't use. The performance difference in gaming is negligible.

For builders in the mid-range bracket who want reliability over flashy features, this is one of the better B650 options available. Just be prepared to spend some time learning where Gigabyte hides settings in the BIOS.
