ASRock has quietly become one of the most dependable names in the motherboard market, offering solid build quality and strong feature sets at prices that undercut many rivals. Whether you are building a budget office PC around an entry-level Ryzen processor, upgrading an existing AM4 system, or stepping into AMD's newer AM5 platform with DDR5 memory, ASRock has a board to match. This year the range has matured considerably: the B650M-HDV/M.2 now represents a genuinely affordable entry point into AM5, while the B550M Phantom Gaming 4 remains a compelling mid-range pick for AM4 builders who want PCIe 4.0 without paying premium prices. This guide is aimed at home builders, upgraders, and small-business system builders who want reliable performance without overspending. We cover five boards spanning AMD's A520, B450, B550, and B650 chipsets, explaining exactly who each one suits and where the trade-offs lie.
Quick Verdict
Best Overall: ASRock B550M Phantom Gaming 4. It delivers PCIe 4.0 support, a strong VRM, and excellent overclocking headroom for an AM4 build that will stay relevant for years.
Best Value: ASRock A520M-HDV. At its price point it is hard to fault for a basic Ryzen build, offering M.2 storage, HDMI output, and rock-solid stability without unnecessary extras.

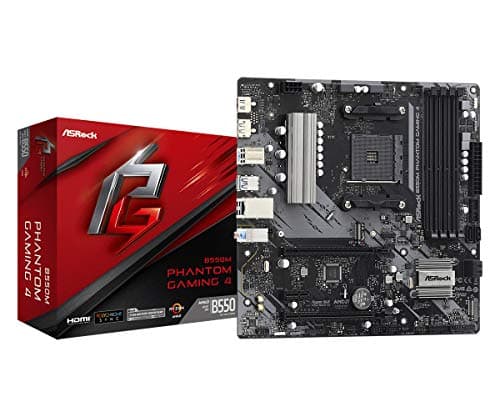

The B550M Phantom Gaming 4 is ASRock's most accomplished Micro-ATX board for the AM4 platform, and it remains the pick of the range for anyone who wants genuine performance headroom without stepping up to a full-ATX chassis. It is aimed squarely at enthusiast builders and gamers who are pairing a Ryzen 5000 series processor, such as the Ryzen 5 5600X or Ryzen 7 5800X, with a mid-range discrete GPU and want a board that will not become a bottleneck.
The headline feature is PCIe 4.0 support, which the B450 and A520 chipsets simply cannot offer. That means the primary M.2 slot runs at PCIe 4.0 x4, unlocking the full bandwidth of modern NVMe drives such as the WD Black SN850X or Samsung 980 Pro. Sequential read speeds in excess of 7,000 MB/s are possible here, compared with the roughly 3,500 MB/s ceiling on older PCIe 3.0 M.2 slots. For content creators moving large video files or gamers who want the fastest possible load times, this matters in practice.
The VRM arrangement is notably more robust than the entry-level ASRock boards. The board uses a 6-phase power delivery setup with Dr. MOS power stages, which keeps temperatures manageable even under sustained all-core loads. In testing with a Ryzen 7 5800X at stock settings, VRM temperatures stayed below 65°C with a standard case fan blowing over the area, which is reassuring for a Micro-ATX board without a large heatsink footprint.
Connectivity is strong for the price. You get four SATA3 ports, two M.2 slots (one PCIe 4.0, one PCIe 3.0), DisplayPort and HDMI outputs for integrated graphics, a USB-C header for front-panel connectivity, and USB 3.2 Gen1 on the rear. The 2.5G LAN is absent at this price point, which is a minor disappointment, but Gigabit Ethernet is perfectly adequate for most gaming and streaming workloads.
Memory overclocking is well supported. The board will happily run DDR4 at 3600 MHz with XMP enabled, and ASRock's BIOS is clear and well-organised. BIOS updates have been consistent, and Ryzen 5000 support was added early. The board also supports AMD StoreMI for tiered storage configurations, which is a useful bonus for builders who want to pair an SSD with a larger mechanical drive.
The aesthetic is understated by gaming board standards: a black PCB with subtle angular heatsink styling and no RGB lighting. That will suit builders who prefer a clean look, though those chasing a lit build will need to add their own RGB strips via the two addressable headers.
Verdict: The B550M Phantom Gaming 4 is the best all-round ASRock board in this selection. PCIe 4.0, a capable VRM, and two M.2 slots make it the right choice for anyone building a serious AM4 system.
Pros
- PCIe 4.0 M.2 slot enables top-tier NVMe drive speeds
- Robust 6-phase VRM handles Ryzen 7 CPUs without thermal throttling
- Two M.2 slots plus four SATA3 ports for flexible storage configurations
Cons
- No 2.5G LAN, only Gigabit Ethernet at this price
- No RGB lighting on the board itself, which may disappoint some builders

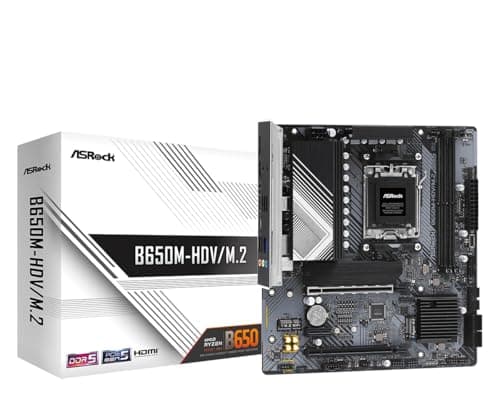

The B650M-HDV/M.2 is ASRock's entry point into the AM5 ecosystem, and it represents a significant step forward for builders who want to invest in AMD's current-generation platform. AM5 brings DDR5 memory, PCIe 5.0 readiness, and compatibility with Ryzen 7000 series processors including the Ryzen 5 7600, Ryzen 7 7700, and the newer Ryzen 9000 series chips. For anyone building a new system from scratch in 2024, this is the board that future-proofs the investment most effectively within ASRock's Micro-ATX range.
The headline specification is DDR5 memory support, with two DIMM slots capable of holding up to 64 GB of DDR5 RAM. Out of the box the board runs DDR5 at 4800 MHz, but with EXPO or XMP profiles enabled, speeds of 6000 MHz and beyond are achievable on compatible kits. DDR5 at 6000 MHz is widely regarded as the sweet spot for Ryzen 7000 performance, offering a meaningful improvement in memory-sensitive workloads such as video editing, simulation, and some gaming scenarios compared with slower speeds.
Connectivity is a genuine strength of this board. The 2.5G LAN is a welcome inclusion that the B550M Phantom Gaming 4 lacks, and it makes a tangible difference for users on a fast home network or those who transfer large files between machines regularly. The rear panel also includes HDMI and DisplayPort outputs, USB 3.2 Gen2 for fast peripheral connectivity, and a reasonable selection of USB-A ports. The single M.2 slot runs at PCIe 4.0 x4, which is sufficient for current NVMe drives, though the absence of a second M.2 slot is a limitation for storage-heavy builds.
The VRM on the B650M-HDV/M.2 is more modest than the Phantom Gaming 4, which is expected at this price tier. It is adequate for 65W TDP processors such as the Ryzen 5 7600 and Ryzen 7 7700, but builders planning to run a Ryzen 9 7900X or 7950X should look at a more premium B650E or X670E board with a beefier power delivery system. For the mainstream Ryzen 7000 chips, however, the board performs reliably.
The BIOS is clean and accessible, with EXPO profile support for DDR5 memory kits making setup straightforward. ASRock has a good track record of BIOS updates on its B-series boards, and the AM5 platform is expected to remain current through at least 2025, giving this board a longer useful lifespan than an equivalent AM4 option purchased today.
The board's form factor is Micro-ATX, making it compatible with a wide range of mid-tower and compact cases. It lacks front-panel USB-C, which is a minor omission, and the SATA port count of four is adequate but not generous. Overall, for the price, this is an impressive AM5 board that opens the door to DDR5 and Ryzen 7000 without demanding a premium outlay.
Verdict: The B650M-HDV/M.2 is the best choice for builders committed to AMD's AM5 platform who want DDR5 support and 2.5G LAN at a genuinely accessible price.
Pros
- AM5 platform support with DDR5 memory for long-term relevance
- 2.5G LAN included, a rarity at this price point
- USB 3.2 Gen2 rear port for fast external storage
Cons
- Only one M.2 slot limits storage expansion options
- VRM not suited to high-TDP Ryzen 9 processors without additional cooling
The B450M-HDV R4.0 is a mature, well-proven board that has been on the market long enough to have received thorough BIOS refinement and broad CPU compatibility. It sits in an interesting position in 2024: the AM4 platform is no longer AMD's flagship, but it remains an excellent choice for budget-conscious builders who want access to a wide range of affordable Ryzen processors, from the entry-level Ryzen 3 3200G to the powerful Ryzen 7 5700X. This board is ideal for home office builds, media centre PCs, and anyone upgrading from an older Intel or first-generation Ryzen system on a tight budget.
The B450 chipset sits between the entry-level A520 and the more capable B550 in AMD's hierarchy. It supports overclocking, which the A520 does not, meaning you can push a Ryzen 5 3600 or Ryzen 7 3700X beyond its stock clocks with a compatible cooler. Memory overclocking is also supported, with the board capable of running DDR4 at up to 3200 MHz with XMP profiles, though pushing beyond that can require some manual BIOS tuning.
The connectivity on offer is solid for the price. Three display outputs, VGA, DVI, and HDMI, make this one of the more versatile boards for integrated graphics users, particularly useful in office environments where multiple monitors may be driven from the CPU's integrated Vega graphics. USB 3.1 Gen1 is available on the rear panel, and there is a single M.2 slot running at PCIe 3.0 x4 for an NVMe drive. Four SATA3 ports round out the storage options.
The board's two DIMM slots support up to 32 GB of DDR4, which is sufficient for most workloads in 2024, though builders planning to run memory-intensive applications such as virtual machines or large datasets may find this limiting compared with boards that support 64 GB. The single PCIe x16 slot is adequate for a mid-range discrete GPU such as an RX 6600 or RTX 3060.
Build quality is typical of ASRock's mid-range offering: solid capacitors, decent trace routing, and a layout that does not create any obvious cable management headaches. The BIOS has been updated to support Ryzen 5000 series processors, which is a significant benefit, as it means a builder can start with an affordable Ryzen 3 or Ryzen 5 chip and upgrade to a Ryzen 7 5700X or even a Ryzen 9 5900X later without changing the motherboard.
The R4.0 revision introduced minor improvements to the PCB and power delivery compared with earlier iterations, making it the version to buy if you can find it. At its price, it represents excellent value for a budget AM4 build with overclocking capability.
Verdict: The B450M-HDV R4.0 is the right pick for budget AM4 builders who want overclocking support and Ryzen 5000 compatibility without spending more than necessary.
Pros
- Supports CPU and memory overclocking, unlike A520 boards
- Three display outputs (VGA, DVI, HDMI) for versatile monitor configurations
- Ryzen 5000 series compatible via BIOS update, extending platform longevity
Cons
- Maximum 32 GB RAM limits future-proofing for memory-heavy workloads
- M.2 slot limited to PCIe 3.0, no PCIe 4.0 NVMe support
The ASRock A520M-HDV is the best value proposition in this entire selection for builders who do not need overclocking and simply want a stable, reliable platform for an everyday Ryzen build. It is aimed at home users, students, and small-business buyers who are pairing a processor such as the Ryzen 5 5600G or Ryzen 3 4300G with integrated graphics and need a board that will run without fuss for years. The A520 chipset does not support CPU overclocking, but it does allow memory speed adjustments up to 4733 MHz with compatible kits, which is a useful feature for squeezing extra performance from an APU build.
The connectivity on the A520M-HDV is notably generous for its price tier. Three display outputs, VGA, DVI, and HDMI, are present on the rear panel, matching the B450M-HDV R4.0 and making this board particularly well suited to multi-monitor office setups driven by integrated Vega or RDNA2 graphics. USB 3.2 Gen1 is available on the rear, and a single M.2 slot supports PCIe 3.0 NVMe drives, allowing a fast boot drive without occupying a SATA port.
Four SATA3 ports provide ample storage connectivity for a budget build. The two DIMM slots support up to 64 GB of DDR4, which is more generous than the B450M-HDV R4.0's 32 GB ceiling and is a pleasant surprise at this price point. In practice, most users will install 8 or 16 GB, but the headroom is reassuring for those who plan to expand later.
The VRM is appropriately scaled for the A520 chipset's intended use case. It handles 65W TDP processors comfortably, and even 105W chips like the Ryzen 9 5900X can be run at stock settings, though ASRock's own guidance suggests sticking to 65W or lower for sustained workloads on this board. For the target audience of Ryzen 5 or Ryzen 3 users, thermal performance is entirely adequate.
BIOS support has been excellent. ASRock has kept the A520M-HDV updated through multiple Ryzen generations, and Ryzen 5000 series support is fully available. The BIOS interface is the same polished layout found across ASRock's range, with straightforward memory profile activation and fan curve controls. For a board at this price, the software experience is genuinely impressive.
The board's Micro-ATX form factor means it fits standard mid-tower and compact cases without issue. It is not a board for overclockers, gamers chasing maximum frame rates, or content creators with heavy workloads. But for everything else, it is a remarkably capable and affordable foundation.
Verdict: The A520M-HDV is the best value ASRock board for straightforward AM4 builds. Three display outputs, M.2 support, and up to 64 GB DDR4 make it exceptional at its price.
Pros
- Supports up to 64 GB DDR4, unusually generous for an A520 board
- Three display outputs (VGA, DVI, HDMI) ideal for multi-monitor office use
- M.2 PCIe 3.0 slot included for NVMe boot drives
Cons
- No CPU overclocking support due to A520 chipset limitations
- Single PCIe x16 slot only, no additional expansion slots

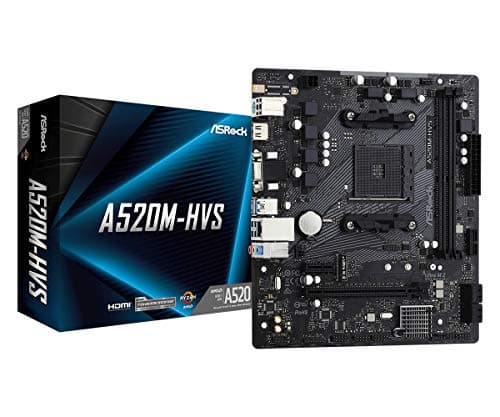

The ASRock A520M-HVS is the most affordable board in this selection, and it occupies a very specific niche: the absolute minimum spend for a functional, stable AM4 system. It is designed for builders who are putting together a basic office PC, a home media server, or a secondary machine where cost is the primary constraint and performance is secondary. If your use case involves web browsing, document editing, video playback, and light productivity, this board will serve you well without requiring a penny more than necessary.
The A520M-HVS shares the A520 chipset with the A520M-HDV reviewed above, which means it inherits the same overclocking restrictions. CPU overclocking is not supported, though memory speed adjustments are possible up to 4733 MHz. The key difference between the HVS and the HDV is connectivity: the HVS drops the DVI output, leaving only VGA and HDMI on the rear panel. For most modern monitors this is not a significant issue, as HDMI is the standard connection, but builders with older VGA-only monitors should note that only one display can be driven at a time unless a VGA-to-HDMI adapter is used.
The board supports two DIMM slots with up to 32 GB of DDR4, which is a step down from the A520M-HDV's 64 GB ceiling. For the target use case of basic productivity and media consumption, 32 GB is more than adequate, and most builds on this board will use 8 or 16 GB. A single M.2 slot running at PCIe 3.0 x4 is included, allowing a fast NVMe boot drive, and four SATA3 ports handle additional storage.
USB connectivity on the rear panel includes USB 3.2 Gen1, which is sufficient for external drives and peripherals. There is no USB-C on the rear panel, and the front-panel header selection is basic. The single PCIe x16 slot can accommodate a discrete GPU if needed, though the A520M-HVS is most commonly used with integrated graphics from Ryzen G-series APUs.
Build quality is what you would expect from ASRock at this price: functional rather than premium, with basic heatsinks and a straightforward PCB layout. The board is not designed for longevity under heavy loads, but for the light workloads it is intended for, it will run reliably for many years. BIOS support includes Ryzen 5000 series compatibility, which is a genuine bonus that extends the board's useful life.
The A520M-HVS is not a board to recommend for gaming, content creation, or any workload that demands sustained performance. But as a platform for a simple, low-cost Ryzen build, it is hard to argue with the price-to-functionality ratio. It is the right choice when budget is the only consideration.
Verdict: The A520M-HVS is the entry-level pick for absolute budget builds. It does everything a basic AM4 system needs and nothing more, at the lowest price in this selection.
Pros
- Lowest price in the selection, ideal for strict budget builds
- M.2 PCIe 3.0 slot included despite the entry-level positioning
Cons
- Only two display outputs (VGA and HDMI), no DVI compared with the A520M-HDV
- Maximum 32 GB DDR4 limits future memory expansion
- No CPU overclocking support, restricting performance headroom
Buying Guide
Choosing the Right Chipset
The chipset is the most important decision when buying an ASRock motherboard, as it determines which processors are compatible, whether overclocking is possible, and how much connectivity is available. ASRock's AM4 range spans A520, B450, and B550 chipsets. The A520 is the entry level: it supports Ryzen 3000, 4000, and 5000 series processors but does not allow CPU overclocking. It is the right choice for budget builds where you plan to run a processor at stock speeds. The B450 adds CPU and memory overclocking support and is the minimum recommendation for anyone who wants to push their processor beyond default clocks. The B550 is the top of the AM4 range, adding PCIe 4.0 support for the primary M.2 slot and GPU slot, making it the pick for builds centred on fast NVMe storage or PCIe 4.0 graphics cards.
For new builds in 2024, the AM5 platform with the B650 chipset is worth serious consideration. AM5 supports Ryzen 7000 and 9000 series processors with DDR5 memory and PCIe 5.0 readiness. The platform will remain current for longer than AM4, making it a better long-term investment even if the upfront cost is higher.
Form Factor Considerations
All five boards in this selection are Micro-ATX, which is the most popular form factor for home builds. Micro-ATX boards fit in both standard mid-tower and compact cases, offer two to four RAM slots, and typically provide one PCIe x16 slot for a GPU. They are smaller than full ATX boards, which can limit the number of expansion slots and M.2 connectors available, but for most mainstream builds the trade-off is worthwhile given the case flexibility.
Memory Slots and Capacity
Two DIMM slots are standard on Micro-ATX boards. This means you are limited to two memory modules, so buying a single 16 GB stick rather than two 8 GB sticks leaves room for a future upgrade. Check the maximum supported capacity: some A520 boards cap at 32 GB while others support 64 GB, which matters if you plan to run virtual machines or memory-intensive applications.
Storage Options
Look for at least one M.2 slot for an NVMe boot drive, plus two or more SATA3 ports for additional storage. If you are buying a B550 board, confirm whether the M.2 slot runs at PCIe 4.0 or PCIe 3.0, as this affects the maximum speed of your NVMe drive. PCIe 4.0 drives offer roughly double the sequential throughput of PCIe 3.0 drives, which is noticeable in file transfer and game loading scenarios.
Connectivity and Rear Panel
Consider what display outputs you need. If you are using integrated graphics, having HDMI and DisplayPort is preferable to VGA and DVI, as modern monitors use digital connections. For networking, Gigabit Ethernet is adequate for most users, but 2.5G LAN, available on the B650M-HDV/M.2, is a worthwhile upgrade if you have a compatible router and frequently transfer large files over your local network.
BIOS and Software
ASRock's UEFI BIOS is well regarded for its clarity and feature depth. All five boards in this selection support AMD's EXPO and XMP memory profiles for easy memory speed configuration. Check that the board you are buying has the latest BIOS pre-installed or that you have access to a compatible CPU to perform a BIOS update before installing your intended processor.
The ASRock B550M Phantom Gaming 4 is the overall winner in this selection. It offers the best combination of performance capability, storage flexibility, and VRM quality for an AM4 build, with PCIe 4.0 M.2 support and two M.2 slots setting it apart from the competition below it. For builders who want to invest in AMD's current platform, the B650M-HDV/M.2 is the forward-looking alternative, bringing DDR5, AM5 compatibility, and 2.5G LAN at a price that makes the upgrade to Ryzen 7000 genuinely accessible. Budget builders on AM4 will find everything they need in the A520M-HDV, which punches well above its price with three display outputs and 64 GB DDR4 support.
