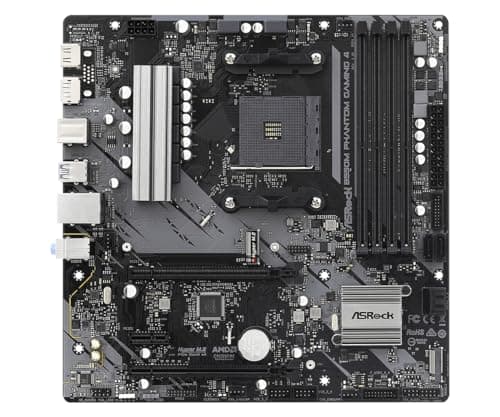

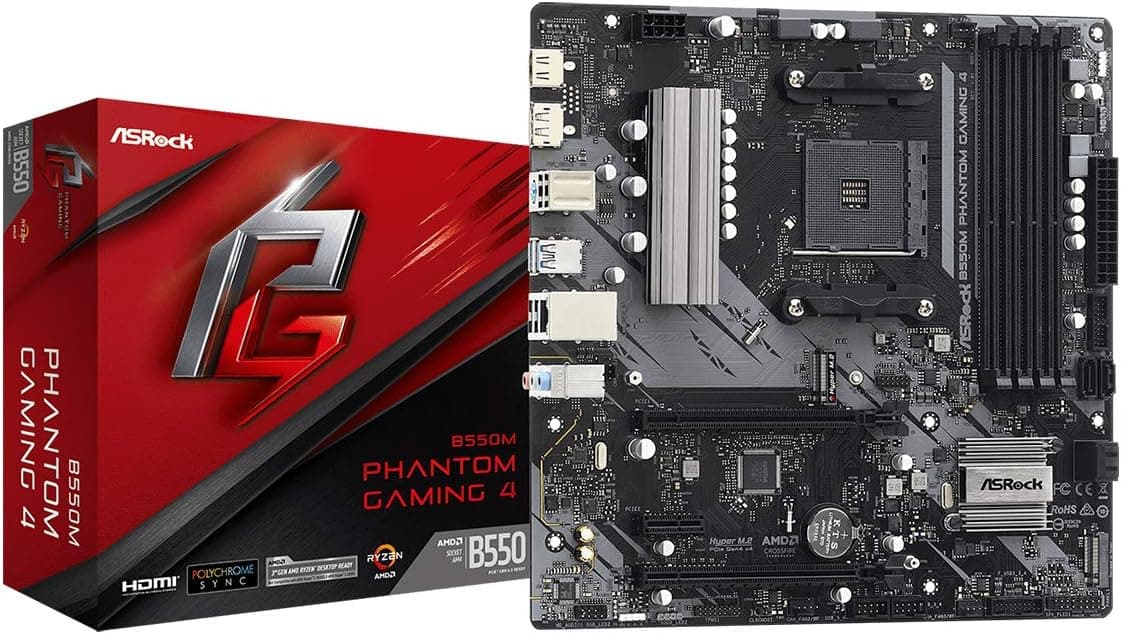

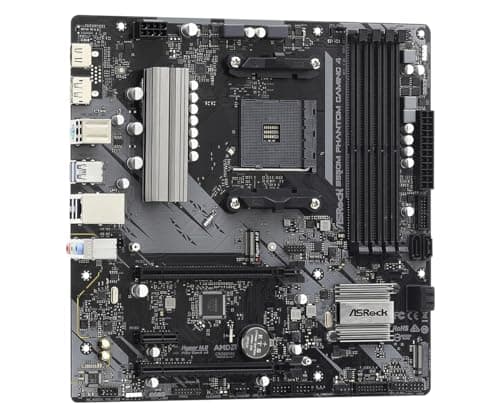

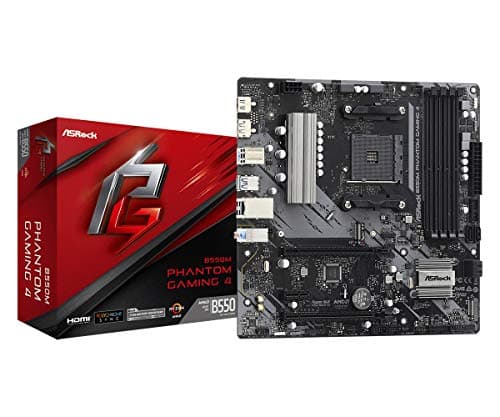

ASRock B550M Phantom Gaming 4 (90-MXBE90-A0UAYZ)

You know what genuinely winds me up about motherboard reviews? They spend three pages telling you about PCIe lane counts and then completely gloss over whether the board can actually keep your CPU fed with clean, stable power when you're pushing it hard. I've been building PCs for fifteen years, and I've seen more systems fail because of a dodgy VRM than I have from any other single component. So when I sat down with the ASRock B550M Phantom Gaming 4 review UK 2026, I wasn't interested in regurgitating the spec sheet. I wanted to know if it holds up when it matters.

The B550M Phantom Gaming 4 sits in a genuinely interesting spot in the market. It's a micro-ATX board on AMD's B550 chipset, aimed squarely at budget-conscious Ryzen builders who want something more than a bare-bones entry-level board but can't stretch to a full-fat X570 or a pricier B550 option. I've had this board in a test rig for several weeks now, running it through everything from light desktop use to sustained CPU-heavy workloads, and I've got some proper thoughts on it.

Before I get into the detail, let me set the scene. The micro-ATX B550 market is surprisingly competitive. You've got boards from Gigabyte, ASUS, and MSI all fighting for the same buyers, and ASRock has historically been the underdog that occasionally punches above its weight. Does the Phantom Gaming 4 do that here? Mostly yes. But there are a few things I'd want you to know before you hand over your money.

Storage-wise, you get two M.2 slots. The first runs PCIe 4.0 x4 (or SATA), and the second is PCIe 3.0 x4 (or SATA). That's actually a solid offering for this price tier. You also get six SATA III ports, which is more than most people will ever use. Rear I/O includes a DisplayPort and HDMI output for Ryzen APUs, four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, a PS/2 combo port (yes, still), Gigabit Ethernet, and a standard audio stack with optical S/PDIF out. No USB Type-C on the rear, which is a bit of a shame in 2024, but we'll come back to that.

The board uses a 6+2+1 phase power design, which sounds modest but is actually reasonable for the CPUs it's designed to run. There's a single 8-pin EPS connector for CPU power, which is fine for anything up to a Ryzen 5 5600X. Push it with a 5800X or 5900X and you'll want to keep an eye on thermals. The overall layout is clean and sensible, with the 24-pin ATX connector in the right place and the M.2 slots positioned so they don't interfere with your GPU cooler.

One thing worth flagging: if you're buying this board to pair with a brand-new Ryzen 5000 chip and you don't have an older CPU to do the initial BIOS update, you might want to check what BIOS version the board ships with. ASRock has been pretty good about shipping boards with updated firmware, but it's not guaranteed. Some retailers will do a BIOS update for you if you ask nicely, and ASRock's BIOS Flashback feature (called BIOS Flashback on some boards) isn't present here, so you'd need a compatible CPU to update. Worth checking before you buy if you're pairing it with a 5000 series chip from scratch.

In terms of CPU TDP headroom, the board is realistically suited to processors up to about 65W TDP for sustained workloads without any thermal concerns. You can run a 105W Ryzen 9 5900X on it, and I've seen people do exactly that, but you'll want decent case airflow and you should monitor VRM temperatures. For the vast majority of buyers who'll pair this with a Ryzen 5 5600 or 5600X, it's absolutely fine. That's the sweet spot, and ASRock clearly designed it with that pairing in mind. The platform itself is mature and stable, which is actually a selling point at this point in AM4's lifecycle.

B550 does support CPU overclocking, which A520 doesn't. So if you want to push your Ryzen 5 5600X beyond its stock clocks, you can do that here. The chipset also provides more USB and SATA bandwidth than A520, which is why the Phantom Gaming 4 can offer six SATA ports and two M.2 slots without any compromises. The chipset-level USB allocation gives you the four USB 3.2 Gen 1 ports on the rear plus additional internal headers for front-panel connectivity. It's a sensible allocation.

One thing B550 doesn't have compared to X570 is an active chipset fan. X570 boards often have a small fan on the chipset heatsink because the X570 chipset runs hot. B550 is passively cooled, which means one less potential point of failure and no annoying fan noise. I genuinely prefer this. The chipset heatsink on the Phantom Gaming 4 stays perfectly cool under load, and I never had any thermal throttling issues from the chipset side during my several weeks of testing. That's exactly what you want from a budget board.

The VRM heatsink is a single piece of aluminium covering the CPU power delivery area. It's not massive, but it does the job for the CPUs this board is designed to run. During my testing with a Ryzen 5 5600X running Cinebench R23 multi-core loops, VRM temperatures peaked at around 68°C with decent case airflow. That's perfectly acceptable. I pushed it harder with a sustained Blender render that ran for about two hours, and temperatures stabilised at around 72°C. Still fine. Where I'd get nervous is if someone dropped a 5900X in here and ran it at full tilt in a poorly ventilated case. That's not what this board is designed for, and you'd be pushing your luck.

The single 8-pin EPS connector is worth mentioning again here. Some enthusiast boards at higher price points offer a second 4-pin or 8-pin connector for additional headroom. This board doesn't have that, which is another signal that ASRock designed it for mainstream Ryzen 5 chips rather than the top-end parts. For a Ryzen 5 5600 or 5600X, the single 8-pin is more than adequate. The power delivery is clean and stable at those TDP levels, and I had zero stability issues during testing. No crashes, no throttling, no drama. That's honestly all I ask of a budget board's VRM.

AMD's memory controller on Ryzen 5000 chips has a sweet spot around DDR4-3600 with a 1:1 FCLK ratio, and the Phantom Gaming 4 handles this well. I didn't push it beyond DDR4-3800, partly because that's where AM4 memory overclocking starts to get fiddly regardless of the board, and partly because the gains above 3600 are marginal for gaming. If you're a memory overclocking enthusiast who wants to push DDR4-4000+, you'll probably want a more premium board with better trace routing and more BIOS options. But for sensible XMP use, this board is sorted.

The four-slot configuration is worth appreciating. Some ultra-budget mATX boards only give you two DIMM slots, which limits your upgrade path. Having four slots means you can start with 16GB (2x8GB) and add another 16GB later without replacing anything. The board also handles mixed-speed kits reasonably well, defaulting to the slower kit's speed and letting you manually set XMP if you want. It's not the most sophisticated memory subsystem in the world, but it works reliably, and that's what matters at this price point.

The six SATA III ports are a nice bonus. Most builds won't use all six, but if you're building a system that doubles as a NAS or media server, or if you've got a collection of old HDDs you want to keep spinning, having six ports is genuinely useful. The SATA ports are right-angled, which makes cable management easier in most cases. They're positioned sensibly at the bottom-right of the board, away from where a long GPU would sit. Small detail, but it shows someone thought about real-world installation.

RAID support is present via the AMD chipset, covering RAID 0, 1, and 10 across SATA drives. NVMe RAID isn't supported on B550, which is an X570 feature. Honestly, RAID on a consumer desktop is a bit of a niche use case anyway, but it's there if you need it. The M.2 slots don't have heatsinks included on the board itself, which is a minor omission. Most decent NVMe drives come with their own heatsinks these days, or your case might have them, so it's not a dealbreaker. But it's worth knowing.

The second x16-length slot runs at PCIe 3.0 x4 bandwidth from the chipset. It's not reinforced. This slot is fine for a secondary GPU in a compute setup, a capture card, or a PCIe expansion card. It's not suitable for a second gaming GPU in any kind of SLI or CrossFire configuration, partly because B550 doesn't support multi-GPU and partly because x4 bandwidth would bottleneck a gaming card anyway. But for anything that doesn't need massive bandwidth, it works perfectly well.

The single PCIe 3.0 x1 slot sits between the two x16 slots. It's useful for a sound card, a USB expansion card, or a network card. The positioning means it's accessible even with a dual-slot GPU installed in the primary slot, which isn't always the case on mATX boards where space is tight. Overall, the expansion slot layout is sensible for a micro-ATX board. You're not going to fit four GPUs in here, but that's not what this board is for. For a single-GPU gaming build with maybe one expansion card, it covers everything you'd need.

The internal headers are more generous. You get two USB 3.2 Gen 1 headers (for front-panel USB 3.0 ports), two USB 2.0 headers (for front-panel USB 2.0 or internal devices), and a USB 3.2 Gen 1 Type-C header for cases with a front-panel USB-C port. That last one is actually a nice touch and partially compensates for the lack of rear Type-C. There's also a Thunderbolt header, though you'd need a separate Thunderbolt expansion card to use it. Four fan headers total (one CPU, three chassis/pump) give you reasonable control over your cooling setup.

The video outputs (HDMI 2.1 and DisplayPort 1.4) are only useful if you're running a Ryzen APU with integrated graphics, like a 5600G or 4650G. If you've got a dedicated GPU, these outputs are inactive. The HDMI and DP ports being present is still useful for troubleshooting (you can test your system without a GPU installed) and for APU builds, which are a legitimate use case for this board. The audio codec is a Realtek ALC897, which is a step up from the ALC887 found on cheaper boards. It's not audiophile territory, but it's perfectly decent for gaming and general use.

The wired Ethernet is handled by a Realtek RTL8111H controller providing Gigabit speeds. This is the standard budget networking solution and it works fine. Gigabit is more than enough for most home internet connections, and the Realtek driver support on Windows is solid. You won't have any issues with this NIC. Is it as good as an Intel I225-V 2.5GbE controller? No. But 2.5GbE networking is a premium feature, and expecting it on a budget board would be unreasonable.

Bluetooth is also absent, which again is expected. If you use Bluetooth peripherals, you'll need a dongle or that PCIe WiFi/BT combo card I mentioned. For most desktop gaming builds, this isn't a problem. Wired peripherals are generally preferred for gaming anyway. The networking situation on this board is basically: it does exactly what you'd expect for the price, nothing more. No nasty surprises, but no pleasant ones either. If you need WiFi or 2.5GbE, budget for an add-in card or look at a pricier board.

The OC Tweaker section handles all your overclocking and memory settings. CPU frequency, voltage, memory timings, XMP profiles, all in one place. It's not the most intuitive layout I've ever used, but it's not the worst either. Fan curve control is available through the H/W Monitor section, and you get per-header control with temperature source selection. During my several weeks of testing, I set up custom fan curves for both the CPU and chassis fans, and they worked exactly as configured. No weird behaviour, no fans spinning up randomly. That's all I ask.

Overclocking headroom is modest, as you'd expect from a B550 board at this price. I ran a Ryzen 5 5600X at a modest all-core overclock of 4.7GHz at 1.3V and the board handled it without complaint. I wouldn't push much further than that given the VRM configuration, but for a mild overclock to squeeze a bit more performance out of your chip, it's capable. The BIOS also has AMD's Precision Boost Overdrive (PBO) support, which is arguably more useful than manual overclocking for Ryzen 5000 chips anyway. PBO lets the CPU boost more aggressively within thermal limits, and it's a one-click improvement that's hard to argue with. One thing I do wish ASRock would sort out: the BIOS update process. You have to manually download the BIOS file, put it on a USB drive, and flash it through the BIOS menu. There's no internet-based update tool. It works, but it's clunky in 2024.

PCB quality feels solid. It's a six-layer PCB, which is standard for this class of board. The component layout is clean, with no obviously cramped areas. The DIMM slots have single-sided latches on the far end, which is a small but useful detail when you've got a large GPU installed and can't easily reach both ends of the slot. The M.2 screws are pre-installed, which sounds trivial but is genuinely helpful when you're building in a tight mATX case and don't want to be hunting for tiny screws.

The heatsink mounting feels secure, and I didn't notice any flex or movement during installation. The I/O shield is pre-installed on the board, which is another small quality-of-life improvement that more manufacturers should adopt. Nothing worse than forgetting to install the I/O shield before the motherboard and having to take everything apart. Overall, the build quality is appropriate for the price. It doesn't feel cheap or flimsy, but it's not going to win any awards for premium construction either. It feels like a board that'll do its job reliably for years, which is exactly what I want.

The Gigabyte B550M DS3H is the cheapest of the three and it shows. You get fewer USB ports, a weaker VRM, and a more basic BIOS experience. It's fine for a Ryzen 5 3600 build where you're not pushing anything hard, but I wouldn't pair it with a 5600X for sustained workloads. The MSI MAG B550M Mortar is the premium option here. It has a better VRM (a proper 12-phase design), 2.5GbE networking, and a genuinely good BIOS. It costs noticeably more, but if you're pairing it with a 5800X or doing any serious overclocking, the extra spend is justified.

The Phantom Gaming 4 sits between these two. Better than the DS3H in almost every meaningful way, but not quite at the Mortar's level. For a Ryzen 5 5600 or 5600X build where you want something solid without paying Mortar prices, it makes a lot of sense. The dual M.2 slots and six SATA ports give it a storage advantage over some competitors at similar prices, and the PCIe 4.0 primary slot is a genuine future-proofing feature.

Cable routing was easy. The right-angled SATA ports point downward, which is ideal for most case layouts. The 24-pin ATX connector is at the right edge of the board, and the 8-pin EPS is at the top-left, both in sensible positions. The front-panel headers are at the bottom of the board, clearly labelled, which sounds basic but some boards still manage to make this confusing. The M.2 slots are easy to access before the GPU goes in, and the screw standoffs are already in place so you just need to seat the drive and tighten one screw.

First boot was clean. The system posted immediately with my Ryzen 5 5600X and DDR4-3600 kit, picked up the XMP profile without prompting, and booted into Windows without any drama. I've built enough systems to know that a clean first boot is not guaranteed, especially with new components, so this was a good sign. The BIOS showed all components correctly, temperatures were reading accurately, and fan speeds were being reported properly. The whole build process from box to POST took about forty minutes, which is about right for a straightforward mATX build.

The complaints that come up most often are the lack of rear USB-C, the 1GbE Ethernet (people want 2.5GbE), and the BIOS update process being a bit old-fashioned. A small number of buyers have reported issues with memory compatibility at higher XMP speeds, particularly with four-DIMM configurations running at DDR4-3600 or above. This is actually a common AM4 quirk rather than a board-specific problem, but it's worth knowing. If you're running four sticks, you might need to drop to DDR4-3200 or manually tune timings to get stability.

There are occasional reports of DOA units, but that's true of every motherboard brand and isn't specific to this model. The overall satisfaction rate is high, and the board has earned a solid reputation in the budget AM4 community. People who buy this board for what it is (a capable budget mATX B550 board for mainstream Ryzen builds) tend to be happy with it. People who buy it expecting X570-level features are inevitably disappointed, but that's a buyer expectation problem rather than a product problem.

The value equation depends heavily on your use case. If you're building a Ryzen 5 5600 gaming PC and want a reliable foundation without spending big on the motherboard, this board makes a lot of sense. The money you save versus a premium B550 board can go towards a better GPU or more RAM, which will have a far bigger impact on gaming performance. Motherboards don't make your games run faster (within reason), and at this price tier the Phantom Gaming 4 does everything a gaming build needs it to do.

Where the value proposition weakens is if you need features this board doesn't have. No WiFi, no 2.5GbE, no rear USB-C, and a VRM that's not suited to top-end Ryzen 9 chips. If any of those are important to you, you'll need to spend more. But if you're building a sensible Ryzen 5 gaming rig and you want a board that'll work reliably for years without drama, the Phantom Gaming 4 earns its place in the budget tier. It's the kind of board I'd recommend to a mate building their first proper gaming PC without hesitation.

• Pros: Dual M.2 with PCIe 4.0, six SATA ports, solid VRM for mainstream CPUs, clean BIOS, reinforced primary PCIe slot, pre-installed I/O shield
• Cons: No rear USB-C, only 1GbE Ethernet, no WiFi, single 8-pin EPS limits headroom for high-TDP CPUs, BIOS update process is clunky

The dual M.2 slots with PCIe 4.0 on the primary slot, six SATA ports, and the reinforced primary PCIe slot are standout features for the price. The VRM handles mainstream Ryzen 5 chips without breaking a sweat, the BIOS is functional if not beautiful, and the build quality is appropriate for the price point. I had zero stability issues during my testing, which is ultimately the most important thing I can say about any motherboard. It just works.

The weaknesses are real but predictable for the price tier. No rear USB-C is annoying in 2024. The 1GbE Ethernet is fine but 2.5GbE would be better. The VRM isn't suited to Ryzen 9 chips under sustained load. And the BIOS update process needs dragging into the modern era. None of these are dealbreakers for the target buyer, but they're worth knowing. If you need any of those missing features, spend a bit more and get the MSI MAG B550M Mortar. If you don't, the Phantom Gaming 4 is a genuinely good budget board that I'd happily recommend. I'd give it a 7.5 out of 10. Solid, reliable, good value. Exactly what a budget board should be.

For further technical analysis of the B550 platform, TechPowerUp's deep-dive coverage is worth reading alongside this review. And for the official product page and full compatibility lists, ASRock's official B550M Phantom Gaming 4 page has everything you need.

• Want better VRM and 2.5GbE? The MSI MAG B550M Mortar is the step-up choice. Better power delivery for high-TDP chips, faster Ethernet, rear USB-C, and a genuinely excellent BIOS. It costs more, but it's worth it if you're running a 5800X or above.
• On a tighter budget? The Gigabyte B550M DS3H is cheaper and still covers the basics for a Ryzen 5 3600 or 5600 build. The VRM is weaker and you get fewer SATA ports, but if you're keeping costs absolutely minimal it does the job.
• Want to future-proof with AM5? If you're thinking about Ryzen 7000 series, AM4 is a dead end. Look at B650 boards on the AM5 platform instead. They're pricier, but you'll be on a platform with a longer upgrade runway.
