Most motherboard problems aren't exotic. They're not driver conflicts or exotic hardware failures. They're a VRM that runs too hot under sustained load, or a BIOS that makes setting XMP feel like filing a tax return. That's what kills builds and wastes weekends. So before anything else: the ASUS Prime B550M-A WiFi II is a budget micro-ATX board on the AM4 platform, and for the majority of people building a sensible Ryzen 5 or Ryzen 7 machine in a compact case, it's a genuinely decent option. Not perfect. But decent in ways that matter.
Hundreds of owners have rated it, and the average is positive. That's not a fluke. At this price point in the budget motherboard bracket, that kind of sustained positive feedback usually means the board does what it says on the tin without causing drama. The complaints that do exist, and there are some, cluster around BIOS update requirements for certain CPU combinations and the usual micro-ATX compromises on expansion. Neither is a dealbreaker if you go in with eyes open.
Core Specifications

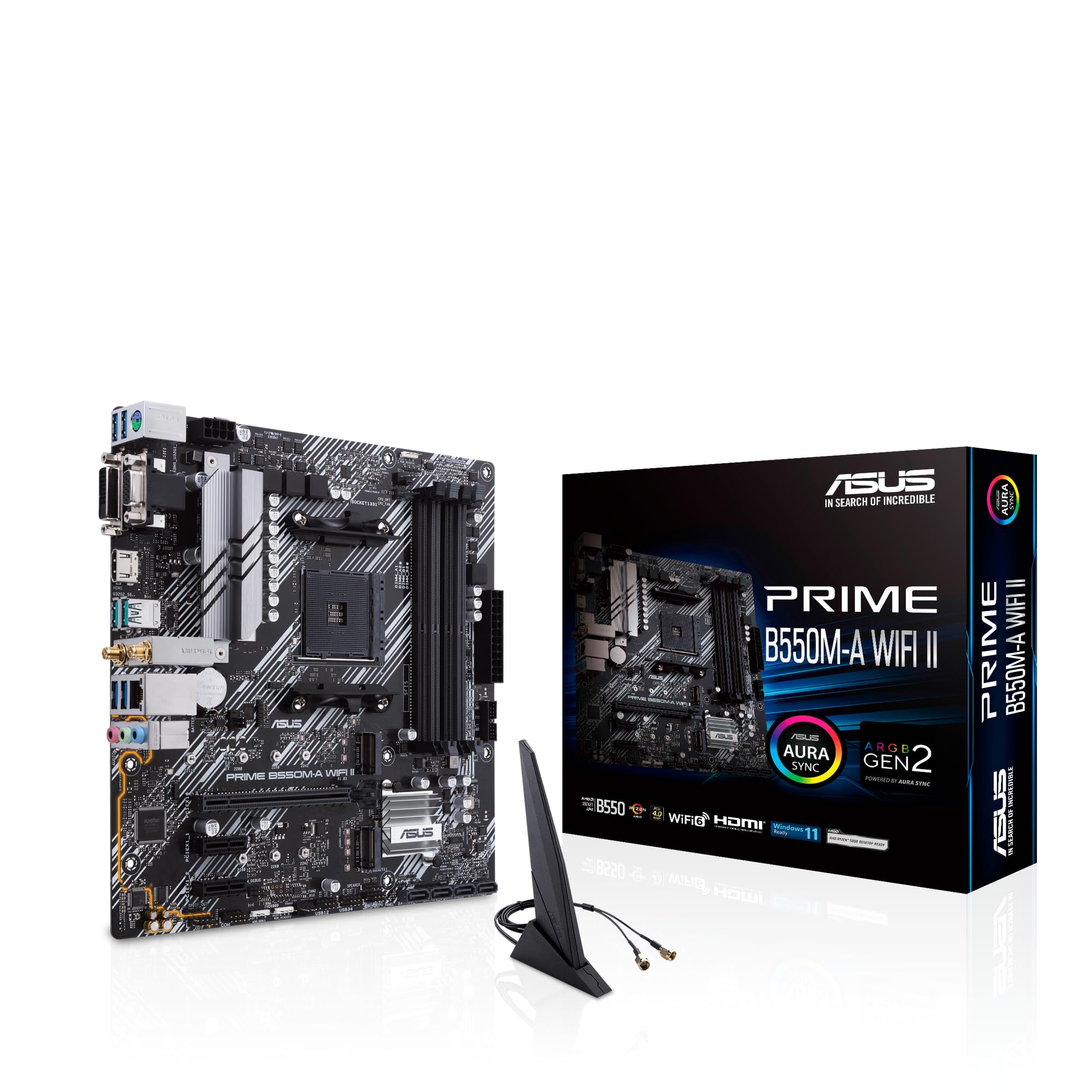

The ASUS Prime B550M-A WiFi II is a micro-ATX board built around AMD's B550 chipset on the AM4 socket. It takes four DDR4 memory slots with support for dual-channel operation, which is the standard setup for any Ryzen build. The form factor is 244mm x 244mm, which is proper micro-ATX, so it'll slot into any mid-tower or micro-ATX case without fuss. It's not small-form-factor territory, but it's not a full-size ATX board either. Good middle ground for most people.
Storage is handled by two M.2 slots. The primary slot runs at PCIe 4.0 x4, which is genuinely fast and future-proof for current NVMe drives. The secondary slot is PCIe 3.0 x4. You also get six SATA ports, which is generous at this price and means you're not forced to choose between an SSD and a couple of HDDs. For a budget board, that's a solid storage setup. The rear I/O includes USB 3.2 Gen 2 ports, USB 2.0, a Type-C port, HDMI and DisplayPort outputs for Ryzen APUs, and the 2.5Gb Ethernet jack alongside the WiFi antenna connectors.
The PCIe slot arrangement is what you'd expect from a B550 micro-ATX: one full-length x16 slot running at PCIe 4.0 (direct from the CPU) for your GPU, and a PCIe 3.0 x1 slot for anything else. It's not a board you're going to load up with expansion cards, but for a single GPU build with an NVMe drive or two, it covers everything you actually need.
| Specification | Detail |
|---|---|
| Socket | AMD AM4 |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX (244mm x 244mm) |
| Memory Slots | 4x DDR4, dual-channel, up to 128GB |
| Max Memory Speed (OC) | Up to 4600MHz+ (OC) |
| Primary M.2 Slot | PCIe 4.0 x4 / NVMe |
| Secondary M.2 Slot | PCIe 3.0 x4 / NVMe or SATA |
| SATA Ports | 6x SATA 6Gb/s |
| PCIe x16 Slot | PCIe 4.0 x16 (CPU direct) |
| PCIe x1 Slot | PCIe 3.0 x1 |
| Rear USB | USB 3.2 Gen 2, USB 2.0, Type-C |
| Networking | 2.5Gb Ethernet, WiFi 6 |
| Audio | Realtek ALC897 5.1-channel |
| Video Outputs | HDMI, DisplayPort (for APUs) |
| Price | £89.99 · Details |
Socket and CPU Compatibility
The AM4 socket is one of the longest-running CPU platforms in consumer PC history. AMD kept AM4 alive from 2016 all the way through to the Ryzen 5000 series in 2020 and 2021, which means there's a massive range of compatible processors. The B550M-A WiFi II officially supports Ryzen 3000 and Ryzen 5000 series processors out of the box, with Ryzen 5000 being the sweet spot for this board. Ryzen 5 5600X, Ryzen 7 5700X, Ryzen 9 5900X: all fair game.
There's a catch with older Ryzen 3000 chips, specifically the very first-generation Ryzen 1000 and 2000 series: B550 doesn't officially support them. This is a chipset limitation, not an ASUS quirk. If you're upgrading from an older platform and keeping your old CPU, check the ASUS CPU compatibility list before you buy. It's publicly available and takes two minutes to check. Don't skip that step.
One thing: if you're pairing this with a newer Ryzen 5000 G-series APU (the ones with integrated graphics), you'll want to double-check the BIOS version. ASUS has been good about pushing BIOS updates for B550 boards to support the full Ryzen 5000 lineup, but some boards ship from the warehouse with older firmware. The board does support BIOS Flashback, which means you can update the BIOS without a compatible CPU installed. That's a genuinely useful feature at this price, and it saves a lot of potential headaches.
Chipset Features
B550 sits in AMD's mid-range chipset tier, below the X570 but well above the A520. The practical difference from X570 is mostly about PCIe lane allocation and multi-GPU support, neither of which most people building a single-GPU gaming or workstation PC will ever miss. What B550 does give you is PCIe 4.0 from the CPU to the primary M.2 slot and primary x16 GPU slot, which is the bit that actually matters for performance. The chipset itself communicates via PCIe 3.0, which handles the secondary M.2 and the USB ports.
In terms of USB bandwidth from the chipset, B550 provides a reasonable allocation: you get USB 3.2 Gen 2 (10Gbps) ports, USB 3.2 Gen 1 (5Gbps) for the front panel header, and USB 2.0 for legacy devices. It's not as bandwidth-rich as X570, but for a single-GPU build with an NVMe drive and a few peripherals, you're not going to hit a wall. The six SATA ports are chipset-driven and all run at 6Gbps, with RAID 0, 1, and 10 support if you need it.
One thing B550 doesn't do is support CPU overclocking beyond the Precision Boost Overdrive (PBO) auto-overclocking that AMD builds into Ryzen. You can't manually set a fixed all-core overclock above stock on a B550 board the way you can on X570. PBO is actually quite effective on Ryzen 5000 chips and gives you most of the real-world performance gains anyway, but if you want to tinker with manual overclocking in detail, you'd need an X570 board. For most people, PBO is fine.
VRM and Power Delivery
This is where budget boards either justify themselves or fall apart. The B550M-A WiFi II uses a 6+2 phase VRM configuration. Six phases for the CPU VCore, two for the SoC. That's a reasonable setup for a board in this price bracket, and ASUS has paired it with a VRM heatsink, which is listed as a key feature. Whether the heatsink is large enough to handle sustained workloads is the real question, and the honest answer is: it's adequate for most Ryzen 5 chips and even the 65W Ryzen 7 5700X, but you'd want to be more cautious with a 105W Ryzen 9 5900X or 5950X under sustained all-core load.
Owner reviews don't flag widespread VRM throttling complaints, which is a good sign. The boards that genuinely have VRM problems show up in review patterns clearly: people report unexpected shutdowns, performance drops under sustained load, and high VRM temperatures even with good case airflow. None of that is a dominant theme in the feedback for this board. That suggests ASUS sized the VRM appropriately for the realistic use cases, even if it's not the beefiest implementation you'll find at any price.
The practical advice here is straightforward. If you're pairing this board with a Ryzen 5 5600 or 5600X, a Ryzen 7 5700X, or any of the lower-TDP Ryzen 5000 chips, you'll be absolutely fine. If you're determined to run a Ryzen 9 5900X at sustained all-core loads for extended rendering or video encoding sessions, you might want to look at a board with a beefier VRM. For gaming, even with a 5900X, the VRM should hold up because gaming workloads rarely sustain 100% all-core usage for long periods. But it's the ceiling.
Memory Support
Four DDR4 slots, dual-channel, maximum capacity of 128GB. You're unlikely to hit that limit unless you're running a very RAM-hungry workstation, but it's good to know the headroom is there. The practical sweet spot for most builds is 16GB or 32GB of DDR4, and this board handles both without complaint. Ryzen 5000 CPUs love fast memory, with the Infinity Fabric running best at 1:1 ratio up to around DDR4-3600 or DDR4-3800 depending on your specific chip and memory kit.
XMP (Intel's Extreme Memory Profile) and AMD's own EXPO profiles are supported here, which means if you buy a kit rated at DDR4-3600, you can enable that speed in the BIOS with a single toggle rather than manually tuning timings. ASUS labels its memory compatibility and overclocking work as OptiMem II, which refers to careful PCB trace routing and ground layer design to preserve signal integrity at higher speeds. In practice, this means the board is reasonably capable of running fast memory kits without instability, which is more than you can say for some cheaper alternatives that struggle above DDR4-3200.
One note from owner feedback: a small number of users report needing to tweak BIOS settings to get their memory running at rated XMP speeds consistently. This is fairly common across all B550 boards and isn't specific to this one. If your kit isn't running at rated speed after enabling XMP, try manually setting the frequency and primary timings. It's a five-minute fix and not a sign of a defective board. The memory compatibility list on ASUS's website is before you buy a kit, particularly if you're going above DDR4-3600.
Storage Options
Two M.2 slots is the headline, and the split between them is what matters. The first slot, positioned above the primary PCIe x16 slot, runs at PCIe 4.0 x4, which means it can handle the fastest current NVMe drives without a bottleneck. Drives like the WD Black SN850X or Samsung 980 Pro will run at full speed here. The second M.2 slot runs at PCIe 3.0 x4, which is still fast enough for any NVMe drive from the past several years. Older SATA M.2 drives are also supported in the second slot. Both slots have M.2 heatsinks included, which is a nice touch at this price and stops your NVMe drive from thermal throttling during sustained reads and writes.
Six SATA ports is genuinely good for a micro-ATX B550 board. Some competitors in this bracket cut it to four. Having six means you can run two SSDs, a couple of HDDs for bulk storage, and still have ports free. RAID 0, 1, and 10 are supported if you need redundancy or striping across multiple drives, though most home users won't bother. it's there.
One thing to be aware of: the second M.2 slot shares bandwidth with some of the SATA ports. When you install an NVMe drive in M.2 slot 2, a couple of the SATA ports are disabled. This is a B550 chipset limitation and not unique to this board, but it's the kind of thing that catches people out when they're planning a storage-heavy build. Check the manual's bandwidth sharing diagram before you commit to your storage layout. It's not a dealbreaker, just something to plan around.
Expansion Slots and PCIe
One PCIe 4.0 x16 slot, running direct from the CPU. That's your GPU slot, and it's reinforced with ASUS's SafeSlot design, which adds a metal bracket to stop heavy GPUs from physically deforming the slot over time. Modern GPUs are getting heavier every generation, so this is a practical feature rather than marketing fluff. The slot runs at full x16 bandwidth, which is what you want for any current or near-future GPU.
Beyond the primary GPU slot, there's a PCIe 3.0 x1 slot. That's it for expansion. Micro-ATX is always a compromise on expansion slots compared to full ATX, and this board reflects that. If you need a capture card, a sound card, or a PCIe network adapter, you have one slot to put it in. Most people won't need more than that. But if you're planning a complex multi-card setup or need multiple PCIe devices, a full ATX board is the right call.
The GPU slot placement is sensible: the x16 slot is in the standard position, and there's enough clearance below it for the x1 slot without the GPU blocking it entirely. In a compact micro-ATX case, a large triple-fan GPU might physically cover the x1 slot, making it inaccessible. Worth measuring your GPU against the case before assuming you can use both slots simultaneously. This is a case-planning issue rather than a board design flaw.
Connectivity and Rear I/O
The rear I/O panel is solid for a budget micro-ATX board. You get a mix of USB ports covering USB 3.2 Gen 2 (the fast 10Gbps ones), USB 2.0 for keyboards and mice and other legacy devices, and a USB Type-C port. There are also video outputs for Ryzen APU builds: HDMI and DisplayPort, which means if you're building a budget PC around a Ryzen 5 5600G or 5700G with integrated graphics, you don't need a discrete GPU to get a picture.
Audio is handled by a Realtek ALC897 codec with five 3.5mm jacks and an optical S/PDIF output. The ALC897 is a competent mid-range audio codec. It's not going to replace a dedicated sound card for serious audio work, but for gaming headsets, speakers, and general use, it's perfectly adequate. The signal-to-noise ratio is decent and the output is clean enough that most people won't have any complaints. If you're using a USB DAC or a USB headset, the onboard audio is irrelevant anyway.
Front panel headers include a USB 3.2 Gen 1 Type-A header and a USB 2.0 header. There's also a front panel audio header for case headphone and microphone jacks. The internal header selection is what you'd expect: CPU fan, chassis fan headers, and RGB headers for addressable LED strips if you want them. The fan headers are controlled through ASUS's Fan Xpert 2+ software, which gives you proper curve control rather than just low/medium/high presets. That matters for keeping noise levels sensible.
WiFi and Networking
This is one of the areas where the B550M-A WiFi II genuinely punches above its weight for the price bracket. You get 2.5Gb Ethernet via a Realtek controller, which is twice the bandwidth of the standard 1Gb Ethernet you'd find on cheaper boards. Whether you have a 2.5Gb router or switch to take advantage of it is another question, but having the capability built in means you're not leaving performance on the table if you do upgrade your network hardware.
WiFi 6 (802.11ax) is built in, which is the current mainstream standard and significantly faster and more reliable in congested environments than the older WiFi 5 (802.11ac). The Wi-Fi Alliance's WiFi 6 specification supports up to 9.6Gbps theoretical throughput across multiple streams, though real-world speeds depend heavily on your router and environment. Bluetooth is also included, which is useful for wireless peripherals, headsets, and controllers. The antenna connectors are on the rear I/O, and the antennas are included in the box.
Having both 2.5Gb Ethernet and WiFi 6 on a board at this price point is genuinely good value. A lot of competing boards at similar prices either offer standard 1Gb Ethernet or make you pay extra for WiFi as a separate add-in card. Getting both built in, and at 2.5Gb speeds for the wired connection, is a real practical advantage for anyone who cares about network performance. Even if you're currently on a 1Gb network, the 2.5Gb port means you won't need to upgrade the board when you eventually upgrade your network.
BIOS and Overclocking
ASUS's UEFI BIOS is one of the better implementations in the budget segment. It's not perfect, but compared to some of the confusing, poorly labelled interfaces you find on cheaper boards from less established brands, the ASUS BIOS is navigable. There's an EZ Mode for beginners that gives you a clean overview of system status, fan speeds, and basic settings, and an Advanced Mode for people who want to dig into memory timings, fan curves, and power limits. The transition between the two modes is a single keypress.
Fan Xpert 2+ is available through the BIOS and also through the ASUS AI Suite software in Windows. The fan curve control is genuinely useful: you can set temperature targets and fan response curves per header, which means you can keep your system quiet under light loads and ramp up cooling when things get busy. Owner reviews specifically mention the fan control as a positive, which is reassuring. Some boards at this price have fan headers that only support basic voltage-control fans rather than proper PWM, leading to fans that either blast at full speed or barely spin. This board handles PWM fans properly.
On overclocking: as noted in the chipset section, B550 doesn't support manual all-core overclocking in the traditional sense. What you do get is Precision Boost Overdrive, which you can enable in the BIOS to let the Ryzen CPU boost higher and longer than stock settings. For most Ryzen 5000 chips, enabling PBO and setting a negative curve offset (essentially undervolting slightly to reduce heat and allow higher sustained boost clocks) is the most effective tuning approach. The ASUS BIOS makes this reasonably accessible. Memory overclocking via XMP is straightforward. Overall, the BIOS experience is one of the board's genuine strengths relative to the competition at this price.
Build Quality and Aesthetics
The B550M-A WiFi II has a clean, no-nonsense aesthetic. Black PCB, grey and black heatsinks, no RGB lighting on the board itself. If you want a light show, you'll need to add your own RGB strips or fans. For people who don't care about RGB, this is actually a feature: the board looks professional and doesn't add visual noise to a build. The heatsinks cover the VRM and both M.2 slots, which is good for thermal management and gives the board a more finished look than bare PCBs.
Build quality feels appropriate for the price. The PCB is a standard four-layer design, which is typical for budget micro-ATX boards. The slot reinforcement on the primary PCIe x16 slot (SafeSlot) is a genuine quality addition. The M.2 heatsinks use a screwless retention mechanism on at least one slot, which makes swapping drives easier than boards that require you to remove a screw and risk stripping the standoff. Owner feedback doesn't flag any widespread quality control issues: no reports of bent pins, defective ports, or boards dying early in numbers that would suggest a manufacturing problem.
The component layout is sensible. The 24-pin ATX power connector is at the right edge of the board, the 8-pin CPU power connector is at the top, and the front panel headers are at the bottom right, which is where every case manufacturer expects them to be. The M.2 slots are accessible without removing the GPU, which isn't always guaranteed on micro-ATX boards with tight layouts. Small things, but they add up to a board that's actually pleasant to build with rather than a frustrating puzzle.
How It Compares
The main competition for the ASUS Prime B550M-A WiFi II in the budget micro-ATX B550 space comes from MSI and Gigabyte. The MSI B550M PRO-VDH WiFi is the most direct rival: similar price, similar form factor, similar feature set. The Gigabyte B550M DS3H is another option, though it typically comes in slightly cheaper and drops the WiFi.
The MSI B550M PRO-VDH WiFi matches the ASUS on most specs: AM4 socket, B550 chipset, DDR4 support, WiFi. Where the MSI falls slightly behind is BIOS quality, which is a consistent theme in owner feedback across both boards. ASUS's UEFI is generally considered more polished and easier to navigate, particularly for memory overclocking. The MSI board also uses a 6+2 phase VRM, so there's no significant advantage there either. The ASUS edges it on software support and BIOS refinement. The Gigabyte B550M DS3H is cheaper but loses the WiFi and drops to 1Gb Ethernet, which is a meaningful downgrade if networking matters to you.
If you're willing to spend more, the ASUS ROG Strix B550-F Gaming WiFi steps up to a full ATX form factor, a beefier VRM with 12+2 phases, and a more premium BIOS experience. It's significantly more expensive, but it's the right choice if you're pairing this with a Ryzen 9 5900X or 5950X and plan to push the CPU hard. For Ryzen 5 and Ryzen 7 builds, the extra VRM headroom on the ROG Strix is largely unnecessary, and the price premium is hard to justify.
| Feature | ASUS Prime B550M-A WiFi II | MSI B550M PRO-VDH WiFi | Gigabyte B550M DS3H |
|---|---|---|---|
| Socket | AM4 | AM4 | AM4 |
| Chipset | B550 | B550 | B550 |
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX |
| Memory Slots | 4x DDR4 | 4x DDR4 | 4x DDR4 |
| Primary M.2 | PCIe 4.0 x4 | PCIe 4.0 x4 | PCIe 4.0 x4 |
| Ethernet | 2.5Gb | 2.5Gb | 1Gb |
| WiFi | WiFi 6 | WiFi 5 | No |
| VRM Phases | 6+2 | 6+2 | 4+2 |
| BIOS Quality | Good | Average | Average |
| Price | £89.99 · Details | Similar | Lower |
Final Verdict
The ASUS Prime B550M-A WiFi II is a solid budget micro-ATX B550 board that does the important things right. The VRM is adequate for Ryzen 5 and Ryzen 7 builds without drama. The BIOS is one of the better ones in this price bracket. The 2.5Gb Ethernet and WiFi 6 combination is genuinely good value and better than what most rivals offer at the same price. Six SATA ports and two M.2 slots, with the primary running PCIe 4.0, means storage flexibility is real rather than theoretical. Hundreds of owners and a positive overall rating backs that up.
The compromises are real but predictable. Micro-ATX means limited expansion. B550 means no manual all-core overclocking. A 6+2 phase VRM means you should think twice before pairing this with a 105W Ryzen 9 chip if you're planning sustained heavy workloads. None of those are surprises if you've done your homework, and none of them are dealbreakers for the target audience: someone building a compact Ryzen 5 or Ryzen 7 machine for gaming, home working, or general use.
Who should buy this? Anyone building around a Ryzen 5 5600, 5600X, or Ryzen 7 5700X in a micro-ATX case who wants reliable WiFi 6 and 2.5Gb Ethernet without paying ATX board prices. It's a good fit for compact gaming builds, home office machines, and budget workstations that don't need extreme CPU headroom.
Who should skip it? If you need full ATX for more expansion slots, or if you're pairing a Ryzen 9 5900X with sustained all-core workloads, look at the ASUS ROG Strix B550-F Gaming WiFi instead. And if you genuinely don't need WiFi and can live with 1Gb Ethernet, the Gigabyte B550M DS3H costs less and covers the basics. Honest advice: most people don't need to spend more than this board costs. But some people do, and they'll know who they are.
Editorial score: 7.5 out of 10. Recommended for the right build. Not a board to stretch your budget for, but a board that justifies its place in the budget bracket without embarrassing itself.
What works. What doesn’t.
5 + 3What we liked5 reasons
- 2.5Gb Ethernet and WiFi 6 both included at budget pricing
- PCIe 4.0 primary M.2 slot for fast NVMe drives
- Six SATA ports, generous for a micro-ATX board
- ASUS UEFI BIOS is one of the better ones in this price bracket
- M.2 heatsinks and VRM heatsink included as standard
Where it falls3 reasons
- 6+2 phase VRM limits suitability for Ryzen 9 105W chips under sustained load
- Only two PCIe slots total, typical micro-ATX compromise
- M.2 slot 2 shares bandwidth with some SATA ports
Full specifications
11 attributes| Socket | AM4 |
|---|---|
| Chipset | B550 |
| Form factor | Micro-ATX |
| Bios flashback | false |
| M2 slots | 2 |
| MAX RAM GB | 128 |
| Network | 1GbE + Wi-Fi 6 |
| Pcie 5 slots | 0 |
| RAM slots | 4 |
| RAM type | DDR4 |
| Usb4 | false |
If this isn’t right for you
2 options
Frequently asked
5 questions01Is the ASUS Prime B550M-A WiFi II Motherboard overkill for just gaming?+
Not at all. It's actually well-matched to a gaming build. The PCIe 4.0 x16 GPU slot and PCIe 4.0 primary M.2 slot handle current GPUs and fast NVMe drives without any bottleneck. The WiFi 6 and 2.5Gb Ethernet are useful for online gaming. The VRM handles Ryzen 5 and Ryzen 7 gaming chips without issue. If anything, it's closer to ideal for gaming than it is for heavy workstation use.
02Will my existing CPU cooler work with the ASUS Prime B550M-A WiFi II Motherboard?+
If your cooler uses the AMD AM4 mounting bracket, it will work. AM4 has been the standard AMD socket since 2016, so any cooler bought for a Ryzen 1000, 2000, 3000, or 5000 series processor should mount directly. If your cooler is older than that or designed for Intel, you'll need an AM4 bracket, which most cooler manufacturers supply separately or include in the box.
03What happens if the ASUS Prime B550M-A WiFi II Motherboard doesn't work with my components?+
Amazon's standard 30-day return window applies, and the A-to-Z guarantee covers you if there's a dispute. Before buying, check the ASUS CPU compatibility list for your specific processor and verify your memory kit against the QVL (qualified vendor list) on the ASUS product page. Most compatibility issues can be identified before purchase with five minutes of research.
04Is there a cheaper motherboard I should consider instead?+
Yes, honestly. If you don't need WiFi and can live with standard 1Gb Ethernet, the Gigabyte B550M DS3H costs less and covers the core B550 feature set. It drops some connectivity features but is a legitimate option for a wired-only build on a tighter budget. The ASUS board earns its price premium through the WiFi 6 and 2.5Gb Ethernet combination, so if those features aren't relevant to your setup, the Gigabyte saves you money.
05What warranty and returns apply to the ASUS Prime B550M-A WiFi II Motherboard?+
The verified product data doesn't specify a warranty period for this board. ASUS typically offers a three-year warranty on motherboards sold through authorised UK retailers, but confirm this with the seller at point of purchase. Regardless, Amazon's 30-day returns policy and A-to-Z guarantee apply to purchases made through Amazon UK.
