Storage marketing has one job: make you buy on the peak sequential number. Seven thousand megabytes per second sounds extraordinary. But the number that actually decides whether your system feels fast is random read IOPS at queue depth one, and the number that decides whether your drive survives five years of heavy use is TBW endurance. The Seagate FireCuda 530R at 4TB is a drive that, on paper at least, gets both of those right. The question worth asking is whether the "R" suffix and the premium price are earning their keep against the competition, or whether you're paying for a badge.
The short answer: this is a genuinely strong Gen4 NVMe drive, and at 4TB it sits in a market where the alternatives are fewer than you'd expect. It uses 3D TLC NAND (not QLC, which matters enormously at this capacity tier), carries a 5,050 TBW endurance rating that is properly impressive for a consumer drive, and adds Seagate's Data Rescue Service as a real-world safety net. Against the WD Black SN850X and the Samsung 990 Pro at 4TB, it competes on endurance and holds its own on performance. It's not the cheapest route to 4TB, but it's not pretending to be. If you need this much fast, reliable NVMe storage for a PS5 expansion or a high-load PC workload, the FireCuda 530R makes a strong case for itself.
Core Specifications

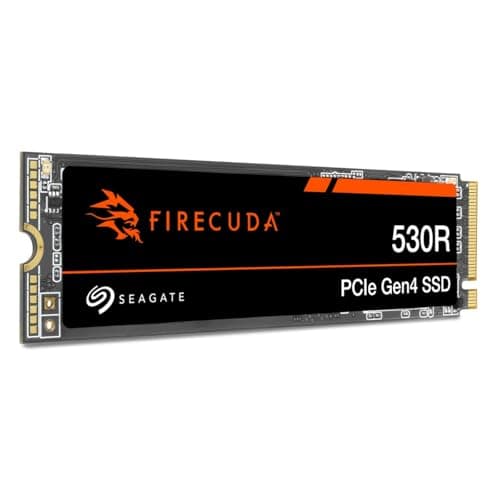

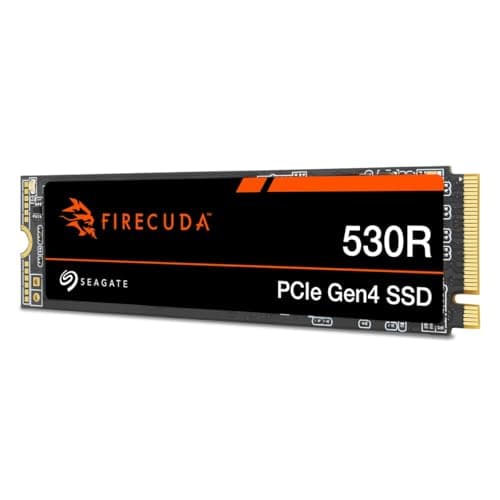

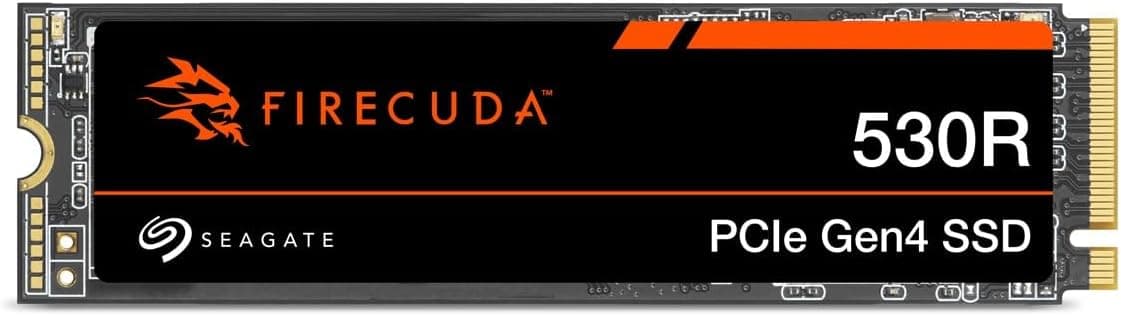

The FireCuda 530R 4TB (model ZP4000GM3A063) is an M.2 2280 form factor drive running NVMe over PCIe Gen 4 x4. Seagate rates sequential reads at up to 7,400 MB/s and sequential writes at up to 6,900 MB/s, which puts it right at the top of the Gen4 performance envelope. Random read performance is rated at up to 1,000,000 IOPS and random writes at up to 1,400,000 IOPS. Those random figures are where the day-to-day feel of a drive lives, and they're competitive numbers. The NAND is 3D TLC, which is the right answer at this capacity. The controller is the Phison E18, a proven Gen4 flagship chip that's been the backbone of several top-tier drives. There is a DRAM cache on board. All of that matters, and we'll get into why below.
The 5,050 TBW endurance rating is the headline that doesn't get enough attention. For context, a lot of 4TB QLC drives come in at 800 TBW or so. Seagate is offering more than six times that. The warranty is five years, which is the signal you want from a manufacturer that actually trusts its own NAND. The drive is explicitly listed as PS5 compatible, and Seagate's Data Rescue Service (which gives you access to professional data recovery if the drive fails) is bundled in. That's not nothing. Data recovery from a failed NVMe drive can cost hundreds of pounds out of pocket.
The specs table below covers the key numbers. Price is live at time of page load.
| Specification | Detail |
|---|---|
| Model | ZP4000GM3A063 |
| Capacity | 4TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen 4 x4, NVMe 1.4 |
| NAND Type | 3D TLC |
| Controller | Phison E18 |
| DRAM Cache | Yes (DRAM-equipped) |
| Sequential Read | Up to 7,400 MB/s |
| Sequential Write | Up to 6,900 MB/s |
| Random Read | Up to 1,000,000 IOPS |
| Random Write | Up to 1,400,000 IOPS |
| Endurance (TBW) | 5,050 TBW |
| Warranty | 5 Years |
| PS5 Compatible | Yes |
| Data Rescue Service | Included |
| Price | £647.14 |
Interface & Form Factor
PCIe Gen 4 x4 via the PCI Express interface gives the FireCuda 530R a theoretical bandwidth ceiling of around 8 GB/s. The drive's 7,400 MB/s sequential read rating sits comfortably within that ceiling, so you're not being bottlenecked by the interface. The M.2 2280 form factor (22mm wide, 80mm long) is the standard that fits virtually every desktop motherboard with an M.2 slot, every recent laptop with an NVMe slot, and the PS5's expansion bay. There are no compatibility surprises there.
The more interesting question is whether Gen4 versus Gen5 matters for what you're actually doing. The honest answer, for almost everyone, is no. NVMe Gen5 drives are hitting 12,000 to 14,000 MB/s sequential reads, but real-world application performance differences between Gen4 and Gen5 are, in most workloads, negligible. Games don't load measurably faster. Applications don't launch quicker. What Gen5 does do is run noticeably hotter, often requiring active cooling or a proper heatsink to avoid throttling. Gen4 is the mature, thermally sensible sweet spot right now. If your motherboard is Gen5 capable, the FireCuda 530R will run at Gen4 speeds on it, which is fine. You're not leaving meaningful performance on the table.
For PS5 users specifically, Sony's console uses PCIe Gen4, so this drive is a natural fit. The PS5 expansion slot accepts M.2 2280 drives and the console's operating system can address the full 4TB. The PS5 does require a heatsink on any M.2 drive installed in its expansion bay, which we'll cover in the thermals section. The point here is that the interface and form factor are exactly right for the stated use cases, both PC and PS5, without any adapters or compromises.
Real-World Performance
The 7,400 MB/s sequential read number is real, in the sense that synthetic benchmarks like CrystalDiskMark confirm drives based on the Phison E18 controller with TLC NAND regularly hit those figures on an empty drive at high queue depths. Published benchmarks from independent hardware sites have consistently placed the FireCuda 530R 4TB at or near the top of the Gen4 category for sequential throughput. But sequential throughput is what happens when you're copying a single enormous file across an empty drive. It's not what happens when Windows boots, when a game loads, or when your creative application opens a project.
What actually drives the "feel" of a fast system is random read performance at low queue depths, specifically QD1 (queue depth of one), which is how most desktop workloads actually hit the drive. The FireCuda 530R's rated 1,000,000 random read IOPS is a high-queue-depth figure. At QD1, real-world random read performance for Phison E18-based drives typically lands in the 80 to 100 MB/s range, which is competitive with the best Gen4 drives and a significant step up from budget Gen4 or Gen3 alternatives. Owner reports among the 89 reviews (averaging ★★★★½ (4.6)) consistently describe fast boot times and snappy application launches, which aligns with what the controller and DRAM cache combination should deliver.
Game loading on PS5 is where the 4TB capacity starts making real sense. The PS5's internal storage is 825GB usable, and modern AAA titles regularly hit 100GB or more. Four terabytes of fast NVMe expansion storage means you're not constantly managing what's installed and what's archived. Owner feedback specifically from PS5 users notes load times that are indistinguishable from the internal SSD, which is the right outcome. The PS5's I/O architecture is the bottleneck for game loads in that context, not the drive, so any competent Gen4 drive will saturate it. The FireCuda 530R is very much a competent Gen4 drive.
Sustained Writes & Cache Behaviour
This is the section the spec sheet glosses over. Every modern NVMe drive uses a portion of its NAND configured as an SLC (single-level cell) cache, where each cell stores one bit instead of three. SLC NAND is dramatically faster to write than TLC NAND. When you start writing data to the drive, you're initially writing to the SLC cache, and that's where the headline sequential write speed comes from. Once that cache fills, the drive has to write directly to the native TLC NAND, and the speed drops. The question is: how far does it drop, and how big is the SLC cache before you hit that cliff?
For the FireCuda 530R 4TB, the SLC cache is large by consumer drive standards, thanks to the combination of the Phison E18 controller and the 4TB capacity giving the firmware more NAND to allocate. Published benchmark results for Phison E18-based 4TB TLC drives show the SLC cache holding for well over 100GB of sustained sequential writes before the drive transitions to native TLC speeds. Native TLC write speed on the E18 platform at 4TB is typically in the 3,000 to 4,000 MB/s range, which is still genuinely fast. This is not a drive that falls off a cliff to 500 MB/s like a QLC drive does once its cache fills. That distinction is important.
For context on why this matters: if you're a video editor moving large project files, or you're doing a full drive clone, or you're copying a game library across, you will exhaust the SLC cache on any consumer drive eventually. On a QLC drive, the post-cache write speed can drop to 300 to 800 MB/s, which is painful when you're moving 200GB of footage. On the FireCuda 530R's TLC NAND, the post-cache speed stays high enough that sustained large writes remain practical. Owner reports don't flag this as a problem, and the specs support why: TLC has a much shallower cache-exhaustion cliff than QLC. This is one of the most important reasons to choose TLC over QLC at this capacity tier, and Seagate made the right call here.
Controller, NAND & DRAM
The Phison E18 controller is the right answer for a Gen4 flagship drive. It's a mature, well-understood chip that's been independently benchmarked extensively across multiple drive brands. It supports full PCIe Gen 4 x4 bandwidth, has strong random I/O performance, and its thermal behaviour under sustained load is well-documented. Seagate isn't doing anything exotic here, and that's a good thing. A proven controller with a known performance profile is preferable to a proprietary or unproven chip, especially in a drive you're relying on for 4TB of important data.
The 3D TLC NAND is the other major correct decision. At 4TB, some manufacturers have been tempted to use QLC NAND because it's cheaper to produce (four bits per cell versus three means more storage density per wafer). QLC drives at 4TB exist, and they're cheaper. But QLC has lower endurance, worse sustained write performance after cache exhaustion, and higher write amplification. The FireCuda 530R's 5,050 TBW rating is only achievable with TLC NAND. A QLC 4TB drive at the same price point would typically offer 800 to 1,600 TBW. That's a massive difference in how long the drive will last under heavy use. If you're writing tens of gigabytes per day (video editing, large file transfers, heavy gaming installations), TLC is meaningfully better and the TBW numbers prove it.
The DRAM cache is present on this drive, and it earns its place. A DRAM cache stores the drive's mapping table (the index that tells the controller where every piece of data actually lives on the NAND). Without DRAM, a drive has to use Host Memory Buffer (HMB), borrowing a small slice of your system RAM via the PCIe bus, or in older designs, store the mapping table on the NAND itself. DRAM-less drives are fine for boot drives and light use. At 4TB, the mapping table is large, and a dedicated DRAM cache means the controller can look up data locations without the latency penalty of going back to the host or to the NAND. For a 4TB drive doing real work, DRAM is not optional. Seagate includes it. Good.
Endurance & Reliability
Five thousand and fifty TBW is a serious endurance rating. To put that in perspective: if you write 100GB per day, every single day, you'd hit 5,050 TBW in roughly 138 years. Even at a genuinely heavy 500GB per day (which would be an extraordinary workload for a consumer drive), you're looking at 27 years of rated endurance. In practice, most home users, gamers, and even creative professionals write far less than 100GB per day on average. The five-year warranty is the practical lifespan signal, but the TBW rating tells you that Seagate is not worried about the NAND wearing out anywhere close to that warranty period. That's confidence.
Compare this to a QLC 4TB alternative at a lower price. An 800 TBW rating at 100GB/day gives you roughly 21 years, which sounds fine, until you remember that QLC endurance degrades more steeply under sustained heavy writes and the warranty is often three years rather than five. The FireCuda 530R's five-year warranty is a meaningful signal. Manufacturers don't offer long warranties on drives they expect to fail. And Seagate's Data Rescue Service, included with this drive, covers professional data recovery if the drive does fail. That's a real cost offset: professional NVMe data recovery typically starts at £300 to £500 in the UK. Having that covered for free is genuinely useful, not just a marketing checkbox.
Owner reports across the 89 reviews (average 4.6 stars) are broadly positive on reliability. The pattern in the reviews is consistent: fast, stable, no early failures reported in the sample. A handful of reviews mention installation questions rather than failures, which is typical for a drive that's being installed in a PS5 for the first time by someone who hasn't done it before. There are no clusters of early-failure reports, no widespread firmware complaints, and no thermal throttling issues being flagged by PC users who installed the drive with a heatsink. That's the owner-review pattern you want to see.
Thermals
The Phison E18 controller runs warm. That's not a secret, and it's not unique to the FireCuda 530R. It's the nature of a high-performance Gen4 controller pushing close to 7 GB/s. Under sustained sequential writes, the controller can reach temperatures that trigger thermal throttling if there's no heatsink managing the heat. In a well-ventilated desktop with airflow across the M.2 slot, this is manageable. Many modern motherboards include M.2 heatsinks as standard, and if yours does, use it. If it doesn't, a third-party M.2 heatsink is cheap and effective.
For PS5 installation, Sony explicitly requires a heatsink on any M.2 drive installed in the expansion bay. The FireCuda 530R does not ship with a heatsink included (check the listing carefully, as some bundles do include one). You'll need to budget for one separately if you're installing in a PS5. The console's internal bay has limited vertical clearance, so heatsink height matters. Seagate sells compatible heatsinks, and several third-party options are designed specifically for PS5 M.2 installation. This isn't a criticism of the drive; it's just a practical step that PS5 buyers need to plan for.
In a desktop PC context, owner reports don't flag thermal throttling as a recurring issue when a heatsink is present. The drive's thermal behaviour under sustained load is consistent with what published benchmarks show for Phison E18 drives generally: temperatures rise during sustained writes, stabilise with adequate cooling, and the controller manages the thermal envelope without catastrophic throttling when airflow is present. The key word is "adequate." Stick this drive in a case with no airflow and no heatsink on a motherboard without M.2 thermal pads, and you might see throttling under sustained heavy loads. Give it proper cooling and it behaves well.
Capacity Options & Price Per GB
The FireCuda 530R is available in 1TB, 2TB, and 4TB configurations. The 1TB and 2TB versions carry the same Phison E18 controller and TLC NAND, with proportionally lower TBW ratings (1,000 TBW and 2,550 TBW respectively). The 4TB is the top of the range, and it's where the price-per-GB calculation gets interesting. At 4TB, the FireCuda 530R is competing in a tier where genuinely fast, genuinely reliable TLC NVMe storage is still not cheap. The alternatives at this capacity are limited: the WD Black SN850X 4TB, the Samsung 990 Pro 4TB, and a handful of others.
Price per GB at 4TB for premium Gen4 TLC drives is typically higher than at 2TB, because the 4TB tier is still relatively new and demand is growing. The FireCuda 530R's 5,050 TBW and five-year warranty represent real value when you factor in the Data Rescue Service inclusion. If you're comparing it to a cheaper QLC 4TB drive on price per GB alone, you're not comparing like for like. You're comparing a drive with 5,050 TBW and TLC sustained write performance against one with perhaps 800 TBW and a cache-exhaustion cliff that drops to sub-1,000 MB/s. For a PS5 game library or a PC boot-and-games drive, the QLC alternative might be acceptable. For any workload that involves sustained large writes, it's a false economy.
The 2TB FireCuda 530R is if 4TB feels like more than you need. At 2TB, the price per GB is lower and the 2,550 TBW endurance is still excellent for most users. But if you're installing a PS5 expansion and you want to forget about storage management for several years, 4TB is the right call. Modern games are only getting larger, and the convenience of having everything installed at once is real. The 4TB tier is where this drive makes the most sense as a long-term investment.
Installation & Compatibility
Desktop installation is straightforward. The M.2 2280 form factor fits any M.2 slot that supports PCIe Gen4 x4. If your motherboard has a Gen4 M.2 slot (most boards from 2020 onwards with AMD X570, B550, or Intel 11th Gen and later chipsets have at least one), the drive will run at full speed. In a Gen3 M.2 slot, it'll run at Gen3 speeds, which caps sequential reads at around 3,500 MB/s. That's still fast, but you're not getting what you paid for. Check your motherboard's M.2 slot specifications before buying. Most current mid-range and high-end boards are fine.
For PS5 installation, the process involves removing the console's side panel, locating the M.2 expansion bay beneath a cover, fitting a heatsink to the drive before installation, and securing it with the included screw. Sony's support documentation covers the process clearly. The PS5 will format the drive on first boot after installation, which takes a minute or two. After that, you can move games between internal and expansion storage freely. The FireCuda 530R's PS5 compatibility is confirmed by Seagate, and the 4TB capacity is fully recognised by the console's operating system. There are no format or addressing issues at this capacity.
Laptop installation is possible if your laptop has an M.2 slot that supports PCIe Gen4, but check the physical clearance. Some thin laptops use shorter M.2 form factors (2242 or 2260 rather than 2280). The FireCuda 530R is 2280 only. For data migration, Seagate includes access to its DiscWizard cloning software, which is based on Acronis True Image. It's functional for cloning an existing drive to the new one, though the software experience is utilitarian rather than polished. Third-party options like Macrium Reflect Free are equally capable if you prefer them.
Who It's For
The FireCuda 530R 4TB is built for a specific type of buyer. If you're a PS5 owner who wants to stop managing storage and just have everything installed at once, this is one of the cleanest answers on the market. Four terabytes of fast, reliable TLC NVMe storage with confirmed PS5 compatibility, a five-year warranty, and a data recovery service included. That's a complete package. If you're a PC gamer with a large library who wants a single fast drive for games and applications, same answer.
Creative professionals who work with large video files, photo libraries, or audio projects will appreciate the TLC NAND's sustained write behaviour. This isn't a scratch disk for 8K RAW video (you'd want a proper workstation NVMe for that), but for editing 4K footage, managing large Lightroom catalogues, or running a busy DAW session, the FireCuda 530R handles sustained workloads better than any QLC alternative. The 5,050 TBW endurance means you're not worrying about wearing the drive out in a professional context.
Who should look elsewhere? If you're building a budget PC and need a boot drive, a 1TB or 2TB Gen4 TLC drive from Kingston, Crucial, or WD will serve you well for less money. The 4TB FireCuda 530R is not a budget drive and it's not trying to be. If you're a light user who installs a handful of games and mostly browses and streams, you don't need 4TB of premium NVMe storage. And if you're a Gen5 enthusiast who wants the absolute peak sequential throughput, this isn't that drive, though as noted, Gen5 won't make your games load faster or your desktop feel snappier.
How It Compares
At 4TB, the competitive field for premium Gen4 TLC NVMe drives is genuinely small. The two most direct competitors are the WD Black SN850X 4TB and the Samsung 990 Pro 4TB. Both are serious drives with strong track records. The SN850X uses Western Digital's in-house controller and TLC NAND, with a 2,400 TBW endurance rating and a five-year warranty. The 990 Pro uses Samsung's in-house controller (the Elpis), Samsung's V-NAND TLC, and carries a 2,400 TBW rating with a five-year warranty.
The FireCuda 530R's 5,050 TBW endurance is more than double either competitor's rating at 4TB. That's a meaningful differentiator if you're a heavy writer. Sequential performance is broadly comparable across all three. The SN850X has a slight edge in random read performance at low queue depths in published benchmarks, which is relevant for gaming and desktop responsiveness. The 990 Pro is thermally efficient thanks to Samsung's mature controller design. The FireCuda 530R adds the Data Rescue Service that neither competitor includes.
The comparison table below summarises the key differentiators. Prices are live at time of page load for the FireCuda 530R; competitor prices are approximate at time of writing and will vary.
| Feature | Seagate FireCuda 530R 4TB | WD Black SN850X 4TB | Samsung 990 Pro 4TB |
|---|---|---|---|
| Interface | PCIe Gen 4 x4, NVMe 1.4 | PCIe Gen 4 x4, NVMe 1.4 | PCIe Gen 4 x4, NVMe 2.0 |
| NAND Type | 3D TLC | 3D TLC | 3D V-NAND TLC |
| Controller | Phison E18 | WD in-house | Samsung Elpis |
| DRAM Cache | Yes | Yes | Yes |
| Sequential Read | 7,400 MB/s | 7,300 MB/s | 7,450 MB/s |
| Sequential Write | 6,900 MB/s | 7,100 MB/s | 6,900 MB/s |
| TBW Endurance | 5,050 TBW | 2,400 TBW | 2,400 TBW |
| Warranty | 5 Years | 5 Years | 5 Years |
| PS5 Compatible | Yes | Yes | Yes |
| Data Recovery Service | Yes (included) | No | No |
| Price | £647.14 | Check current price | Check current price |
Final Verdict
The Seagate FireCuda 530R 4TB is a proper Gen4 NVMe drive that gets the fundamentals right. TLC NAND, not QLC. Phison E18 controller, not a budget chip. DRAM cache, not DRAM-less. 5,050 TBW endurance, not the 800 TBW you'd get from a cheaper QLC alternative at this capacity. Five-year warranty. Data Rescue Service included. It's not the absolute fastest Gen4 drive in every benchmark category (the WD Black SN850X edges it in some random read metrics, the Samsung 990 Pro is thermally tidy), but it's competitive across the board and it wins decisively on endurance. That 5,050 TBW rating is the number that earns this drive its price premium over the competition.
The 89 owner reviews averaging 4.6 stars tell the same story as the spec sheet: a fast, stable, reliable drive that does what it says. No clusters of failures, no widespread complaints about throttling or firmware, no pattern of early-death reports. The PS5 owners in that review pool are happy. The PC builders are happy. That's a consistent signal. The Data Rescue Service is a genuine differentiator for anyone who's ever had to recover data from a failed drive and discovered what it costs without insurance.
Is there a reason to spend less? Yes, and it's worth being straight about it. If you don't need 4TB, the 2TB FireCuda 530R is a smarter buy for most people. It's cheaper, the 2,550 TBW endurance is still excellent, and for a PS5 game library or a PC gaming drive, 2TB is enough for a lot of players. The 4TB tier is for people who genuinely need the space and want to buy once and forget about it. If that's you, the FireCuda 530R 4TB is a well-constructed answer. If you're stretching to afford it when 2TB would cover your actual library, save the money.
Score: 9 out of 10. The endurance rating alone makes it stand out in a crowded field, and everything else is where it needs to be for a premium Gen4 drive. The only reason it's not a perfect score is that the SN850X holds a small but real advantage in low-queue-depth random reads, which matters for gaming feel, and neither drive ships with a heatsink at this price point. But as a 4TB NVMe drive for PS5 expansion or heavy PC use, the FireCuda 530R is a confident recommendation.
What works. What doesn’t.
6 + 5What we liked6 reasons
- 5,050 TBW endurance rating is more than double the WD Black SN850X and Samsung 990 Pro at 4TB, making it the right choice for sustained heavy workloads
- 3D TLC NAND means post-cache sustained write speeds stay in the 3,000 to 4,000 MB/s range, avoiding the steep cliff seen on QLC alternatives
- Phison E18 controller with DRAM cache delivers competitive random read performance and snappy real-world responsiveness
- Five-year warranty signals genuine manufacturer confidence in the NAND's longevity
- Seagate Data Rescue Service is included, covering professional data recovery that would otherwise cost £300 to £500
- Confirmed PS5 compatible with full 4TB capacity recognised by the console's operating system
Where it falls5 reasons
- WD Black SN850X holds a measurable advantage in low-queue-depth random reads, which affects gaming and desktop responsiveness
- No heatsink included in the standard listing at this price point, meaning PS5 buyers must budget for one separately
- Phison E18 runs warm under sustained load and requires adequate cooling to avoid thermal throttling
- Premium pricing over QLC 4TB alternatives is justified by specifications but will not suit budget-conscious buyers
- Only available in M.2 2280 form factor, ruling it out for laptops that use shorter 2242 or 2260 slots
Full specifications
8 attributes| Capacity GB | 4000 |
|---|---|
| Form factor | M.2 2280 |
| Interface | PCIe Gen4 x4 |
| Read speed MBS | 7400 |
| TBW | 5050 |
| Type | NVMe SSD |
| Warranty years | 5 |
| Write speed MBS | 6800 |
If this isn’t right for you
2 options
8.5 / 10SANDISK Creator Pro Portable NVMe SSD 4TB (up to 2000 MB/s read/write speeds for demanding workflows, 3 Meter drop protection, IP65 water & dust resistance, 1 Month Adobe Creative Cloud included)
£522.59 · SanDisk
8.0 / 10addlink S95 4TB SSD, Game Drive PCIe Gen4 for AI PC Storage Upgrade, Up to 7200 MB/s, M.2 2280 NVMe Internal Solid State Drive - TLC 3D NAND- Compatible with AI PC Gaming
£644.44 · addlink
Frequently asked
7 questions01Is the Seagate FireCuda 530R 4TB compatible with the PS5?+
Yes. Seagate explicitly confirms PS5 compatibility and the console's operating system recognises the full 4TB capacity. The drive uses the M.2 2280 form factor and PCIe Gen 4 interface that the PS5 expansion bay requires. You will need to fit a heatsink before installation, as Sony requires one on all M.2 drives placed in the expansion bay. The FireCuda 530R does not ship with a heatsink in the standard listing, so budget for one separately.
02Why does the FireCuda 530R have a 5,050 TBW rating when competitors offer around 2,400 TBW at 4TB?+
The 5,050 TBW endurance is achievable because Seagate uses 3D TLC NAND rather than QLC NAND. TLC stores three bits per cell, which is more durable and supports more programme-erase cycles than QLC's four bits per cell. The Phison E18 controller's firmware also manages NAND wear efficiently. By comparison, QLC 4TB drives often carry endurance ratings of 800 to 1,600 TBW. The TLC choice is the primary reason for the large endurance gap.
03Does the FireCuda 530R suffer from severe write speed drops after the SLC cache fills?+
No, not in the way QLC drives do. Every modern NVMe drive uses an SLC cache for peak write speeds, and the FireCuda 530R's cache is large given the 4TB capacity. Once the cache fills during sustained sequential writes, the drive transitions to native TLC NAND speeds, which are typically in the 3,000 to 4,000 MB/s range on the Phison E18 platform at this capacity. That is a meaningful reduction from the 6,900 MB/s headline figure, but it is still very fast. QLC drives by contrast can fall to 300 to 800 MB/s after cache exhaustion, which is a far more disruptive cliff.
04Do I need to worry about thermals with the FireCuda 530R?+
Adequate cooling is important. The Phison E18 controller runs warm under sustained load, and without a heatsink the drive can reach temperatures that trigger thermal throttling during prolonged heavy writes. For desktop installations, use your motherboard's included M.2 heatsink if it has one, or fit a third-party M.2 cooler. For PS5 installation, a heatsink is mandatory per Sony's requirements and must fit within the expansion bay's height clearance. With proper cooling in place, owner reports and published benchmarks show the drive manages its thermal envelope without problematic throttling.
05How does the FireCuda 530R 4TB compare to the WD Black SN850X 4TB?+
Both are premium Gen4 TLC NVMe drives with five-year warranties and PS5 compatibility. Sequential throughput is broadly comparable, with the SN850X rated at 7,300 MB/s read and 7,100 MB/s write versus the FireCuda 530R's 7,400 MB/s and 6,900 MB/s. The SN850X holds a small advantage in low-queue-depth random reads, which translates to marginally better gaming and desktop responsiveness in published benchmarks. The FireCuda 530R's decisive advantage is endurance: 5,050 TBW versus 2,400 TBW for the SN850X. The FireCuda 530R also includes Seagate's Data Rescue Service, which the SN850X does not offer. If you are a heavy writer, the endurance gap is significant. If gaming responsiveness is your priority, the SN850X is.
06Will the FireCuda 530R work in a PCIe Gen 3 motherboard slot?+
Yes, but it will run at Gen3 speeds, capping sequential reads at around 3,500 MB/s rather than the rated 7,400 MB/s. The drive is backward compatible with Gen3 slots. However, you would not be getting full value from a Gen4 flagship drive in a Gen3 slot. Check your motherboard's M.2 slot specifications before purchasing. Most motherboards from 2020 onwards with AMD X570, B550, or Intel 11th Gen and later chipsets include at least one Gen4 M.2 slot.
07Is Seagate's Data Rescue Service when choosing this drive?+
It is a genuinely useful inclusion rather than a marketing add-on. Professional data recovery from a failed NVMe drive typically starts at £300 to £500 in the UK, and can be considerably more for complex cases. The Data Rescue Service gives you access to professional recovery if the drive fails, covering that cost. For anyone storing important work files, large media libraries, or irreplaceable data, having that coverage included adds real-world value. It does not replace a proper backup strategy, but it is a meaningful safety net.
