Corsair 3500X RS-R ARGB Case Review 2026 - Build Tested UK Verdict

I've built in a lot of cases over the years, and the panel choice question comes up every single time. Glass looks great on a shelf, but crack open the thermals and you'll often find your components running noticeably hotter than they would in a mesh-fronted alternative. We're not talking marginal differences either. Depending on the case, the GPU and CPU temperatures under sustained load can swing by 10 degrees or more just because of what's sitting in front of your intake fans. That's not a cosmetic issue. That's a real-world performance issue. So when Corsair released the 3500X RS-R ARGB with a panoramic glass front panel and claimed it was still a capable thermal performer, I wanted to see that for myself. This is my Corsair 3500X RS-R ARGB case review 2026, and I've spent several weeks building and running a full system inside it to find out whether the looks and the thermals can actually coexist.

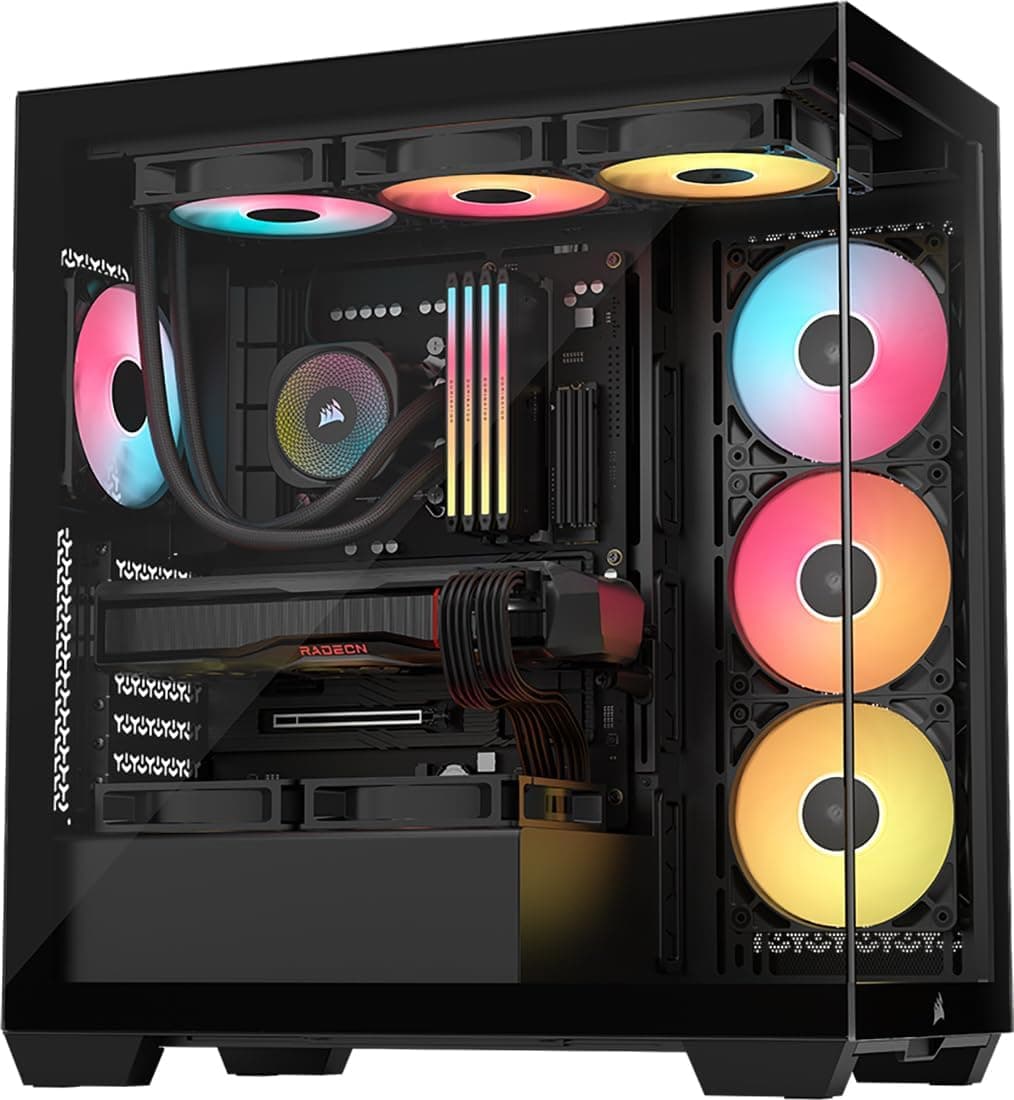

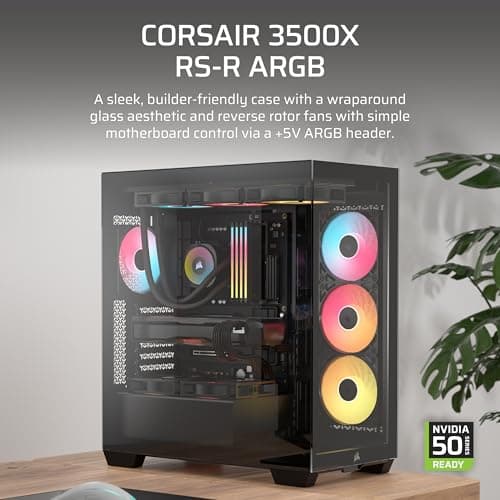

The 3500X RS-R is also doing something a bit different from most cases in this price bracket. It's designed specifically for reverse-connector motherboards, which is Corsair's way of pushing the clean-build aesthetic even further. The idea is that all your motherboard connectors face the back of the case, so the front-facing side of the board looks completely uncluttered. It's a genuinely interesting concept, and one that's gaining traction. But it does raise some practical questions about compatibility, cable routing, and whether the case actually delivers on that promise in a real build. I'll get into all of that.

Before we get into the detail, the quick context: I built a mid-range system inside this case using an ATX motherboard, a 280mm AIO, and a modern triple-slot GPU. I ran it through several weeks of gaming sessions, stress tests, and general use. The Corsair 3500X RS-R ARGB case review 2026 verdict is more nuanced than I expected going in.

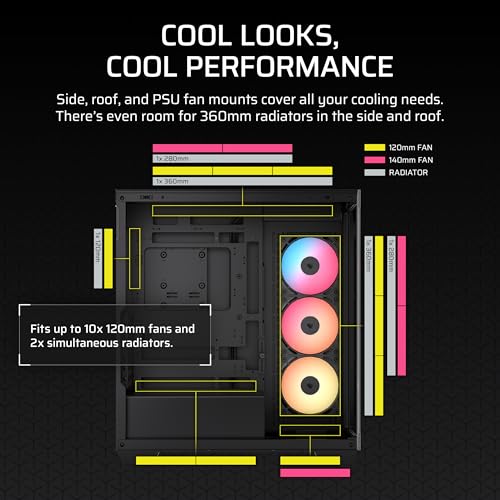

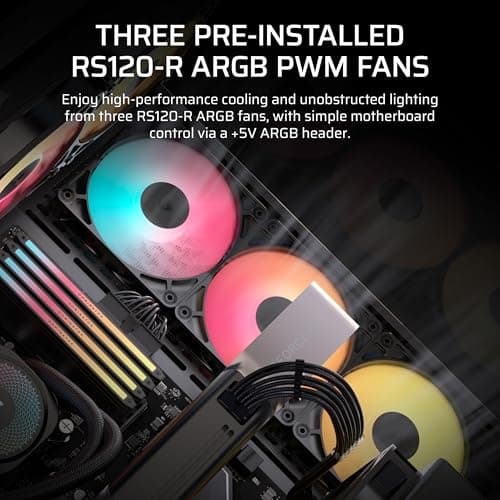

Three RS120-R ARGB fans come pre-installed at the front, which is a solid inclusion for a case at this price point. These are 120mm units with the reverse-motor design, meaning the motor hub faces away from you when the side panel is on, giving a cleaner look through the glass. Fan support overall is generous: up to 10x 120mm fans across the front (3x), top (3x), rear (1x), and bottom (3x) positions. Radiator support is equally capable, with a 360mm slot at the front, 280mm or 360mm at the top, and 120mm at the rear. That's more flexibility than you'd typically expect at this price.

The GPU anti-sag arm is a nice touch that I genuinely appreciate. Modern triple-slot cards are heavy, and over time sag is a real concern. The arm attaches to the case frame and supports the end of the GPU. It's not the most elegant implementation I've seen, but it works. The front I/O sits on the top panel and includes USB Type-A and Type-C ports alongside the standard audio jacks. Full specs are in the table below.

The footprint is wider than something like the Corsair 4000D Airflow, and noticeably deeper too. That extra depth is partly down to the front panel design and partly because the case needs room to accommodate the reverse-connector motherboard layout properly. If you're putting this on the floor, it's fine. On a desk, measure your space first. The rubber feet are decent quality and grip well on both carpet and hard surfaces, which matters more than people give credit for when you're routing cables and the case keeps sliding around.

Weight-wise, with three fans pre-installed and the tempered glass panels, this isn't a lightweight case. Moving it around during the build process was manageable but not exactly effortless. The steel frame feels solid rather than flimsy, and the overall rigidity is good. No flex in the top panel, no wobble in the chassis when you're pushing cables through grommets. For a case at this price tier, that's exactly what you want.

If you're using a conventional ATX board, the case still works perfectly well. The standoffs are in the right places, the mounting is straightforward, and nothing about the build process changes dramatically. You just won't get the full benefit of the clean-front aesthetic that the case is designed around. The cable routing channels are positioned with reverse-connector builds in mind, so some of the grommets and tie-down points are in slightly different positions than you'd find on a conventional case. It's not a problem, just something to be aware of when planning your cable runs.

E-ATX is not supported, which is worth flagging if you're running a high-end workstation board. The motherboard tray width won't accommodate anything beyond standard ATX dimensions. For the vast majority of gaming and productivity builds, that's not a limitation. But if you're planning a HEDT build, look elsewhere. The standoff quality is fine, no cross-threading issues during my build, and the pre-installed standoffs for ATX were correctly positioned out of the box.

The GPU anti-sag arm deserves a proper mention here because it's actually useful rather than just a marketing bullet point. Modern triple-slot cards, particularly the heavier AIB variants, genuinely do sag over time. The arm attaches to a bracket on the case frame and slides under the end of the GPU. It's adjustable in height, which is important because different cards sit at different heights depending on the PCIe slot position on your board. Getting it set up takes a few minutes of fiddling, but once it's in place it holds the card level properly.

Vertical GPU mounting isn't supported natively, which is a bit of a missed opportunity given the panoramic glass front. If you want to show off your GPU face-on, you'd need a third-party riser cable and bracket, and there's no obvious mounting point for that in this case. It's not a dealbreaker, but it's worth knowing if that was part of your build plan. The standard horizontal orientation looks fine through the side glass anyway, especially with the anti-sag arm keeping everything aligned.

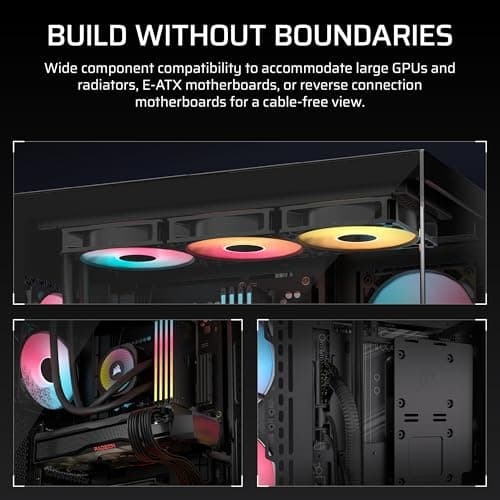

AIO support is where this case really opens up. The front panel accommodates a 360mm radiator, which is the most common choice for high-end cooling. I ran a 280mm AIO mounted at the top during my testing, and the installation was clean. Top mounting a 360mm is also possible, and Corsair's spec confirms 360mm support at the top position. The main thing to check with top-mounted radiators is RAM clearance. Tall RAM heatspreaders can interfere with the radiator fans depending on your specific board layout. In my build with standard-height DDR5, there was no issue, but if you're running something like Corsair Dominator with the tall fins, measure before you commit.

Rear mounting is limited to a single 120mm fan or radiator, which is standard for mid-towers. That rear position is best used as an exhaust fan rather than a radiator in most configurations. The pump mounting area on the top panel is accessible and the cable routing from the pump head to the radiator is manageable, though the reverse-connector design does mean you're thinking about cable runs slightly differently than in a conventional case. Nothing impossible, just requires a bit more planning upfront.

The 2.5-inch mounting points are distributed around the case, with some behind the motherboard tray and some on the PSU shroud itself. Tool-less mounting is available for the 2.5-inch bays, which is a nice touch. The 3.5-inch bays use traditional screws, which is fine. The drive cage itself is removable if you want to free up space for additional fans or just prefer a cleaner internal layout. Removing it is straightforward, just a couple of screws and it slides out.

M.2 support depends entirely on your motherboard, as the case doesn't have any dedicated M.2 trays of its own. That's normal for cases in this category. If your board has two or three M.2 slots, you're sorted for fast storage without touching the drive bays at all. The combination of NVMe on the board plus one or two SSDs in the 2.5-inch bays covers the storage needs of the vast majority of gaming builds. Just don't go in expecting a storage powerhouse.

Velcro straps are included, which I always appreciate. Zip ties are fine but Velcro is better for builds you might want to modify later. The PSU shroud covers the bottom of the case and hides the power supply and most of the cable mess effectively. The shroud has a cutout at the front for cable routing, and there's a channel running along the bottom that lets you route cables from the PSU to the right side of the case without them crossing the main chamber. It's a clean solution.

The reverse-connector design does change the cable management dynamic somewhat. With a compatible motherboard, you're routing almost everything through the back of the case, which means the front-facing side of the board looks completely clean. The case has additional routing channels and tie-down points specifically for this configuration. If you're using a conventional board, those extra channels are still useful for general cable management, they're just not as transformative. Either way, the end result is tidier than most cases at this price point. I've built in cases costing significantly more that had worse cable management provisions than this.

In practice, the three pre-installed RS120-R ARGB fans do a reasonable job of pulling air through those gaps. Under gaming load, my GPU temperatures were running around 5 to 8 degrees higher than they would in a comparable mesh-front case. That's a real difference, and it's the honest answer to the airflow question. If you're running a high-TDP GPU and you're pushing it hard for extended periods, that temperature delta matters. If you're doing lighter gaming or productivity work, it's much less of a concern. The CPU temperatures were less affected because the AIO I used at the top was exhausting directly out of the case regardless of the front panel design.

The included RS120-R fans are decent quality for bundled fans. They're not going to outperform premium aftermarket fans, but they're quieter than a lot of the generic fans you get with budget cases. The ARGB lighting is controlled through Corsair's iCUE software, which is comprehensive but does require installation and setup. If you're not into RGB management software, the fans will default to a rainbow cycle mode that looks fine without any configuration. Adding more fans to the top or bottom positions will improve thermals noticeably, and the case supports up to 10 fans total, so there's plenty of room to expand if you want to push the airflow harder.

The USB Type-C port requires a USB 3.1 Gen 2 header on your motherboard, which is worth checking before you buy. Most modern mid-range and high-end boards have this, but some budget boards don't. If your board doesn't have the header, the Type-C port simply won't work. The Type-A port connects to a standard USB 3.0 header, which is universal on any board made in the last decade. The audio jack is a single combo port rather than separate headphone and microphone sockets, which is fine for most headsets but worth knowing if you use separate devices.

There's no built-in fan controller or RGB hub on the I/O panel itself. Fan and RGB control goes through your motherboard headers or through a separate Corsair iCUE hub if you have one. The three included fans each have their own ARGB and PWM connectors, so you'll need three ARGB headers and three fan headers on your board to connect them all individually, or a hub to consolidate them. This is a minor inconvenience during the build but not a major problem. Most modern boards have enough headers, and Corsair sells hubs if yours doesn't.

The steel edges inside the case are reasonably well finished. I didn't encounter any genuinely sharp edges during my build, which puts it ahead of some cases I've worked with at similar price points. The PSU shroud is steel rather than plastic, which adds to the overall feeling of quality. The top panel has a mesh section for fan/radiator mounting, and the mesh is fine enough to act as a basic dust filter while still allowing decent airflow. A proper removable dust filter on the top would have been better, but the mesh is better than nothing.

The front glass panel is attached with magnets, which makes removal easy when you need to access the front fans or clean the filter behind it. There is a dust filter behind the front panel, which is good. It's a basic foam-style filter rather than a fine mesh, so it catches the larger particles but won't stop everything. Cleaning it is straightforward: pop the front panel off, pull the filter out, rinse it, let it dry, put it back. The right-side panel is plain steel and uses thumbscrews. Nothing exciting, but it does the job. The overall impression is of a case that's been designed thoughtfully rather than just assembled from generic parts.

The other comparison worth making is against the Lian Li Lancool 216. That case sits at a similar price point and offers a mesh front with good airflow, solid build quality, and a clean aesthetic. It doesn't have the reverse-connector support or the panoramic glass, but it will run cooler and it's a very capable build platform. For a conventional ATX build where thermals matter more than aesthetics, the Lancool 216 is a strong alternative.

Where the 3500X RS-R wins is in the combination of features at the price. The included GPU anti-sag arm, three ARGB fans, reverse-connector support, and the panoramic glass front is a genuinely strong package. You're not getting all of those things in competing cases at this price. The thermal compromise is real but manageable, especially if you add a couple of extra fans to the top or bottom positions.

The thermal compromise is the honest caveat. Glass fronts restrict intake airflow, and the 3500X RS-R is no exception. Under sustained load, you'll see GPU temperatures running higher than you would in a mesh-front alternative. How much that matters depends entirely on your use case. For a gaming build running modern titles at reasonable settings, it's manageable. For a workstation pushing a high-TDP GPU at 100% for extended periods, you'd want a mesh-front case. Adding fans to the top or bottom positions helps, and the case supports up to 10 fans total, so there's room to compensate if you're willing to invest in additional cooling.

At the current price of £69.00, this is competitively priced for what you get. Three ARGB fans, a GPU anti-sag arm, reverse-connector compatibility, and a panoramic glass front in one package is a strong value proposition. It's not the right case for every build, but for the builder it's aimed at, it's a well-executed product. Rating: 7.5 out of 10.
