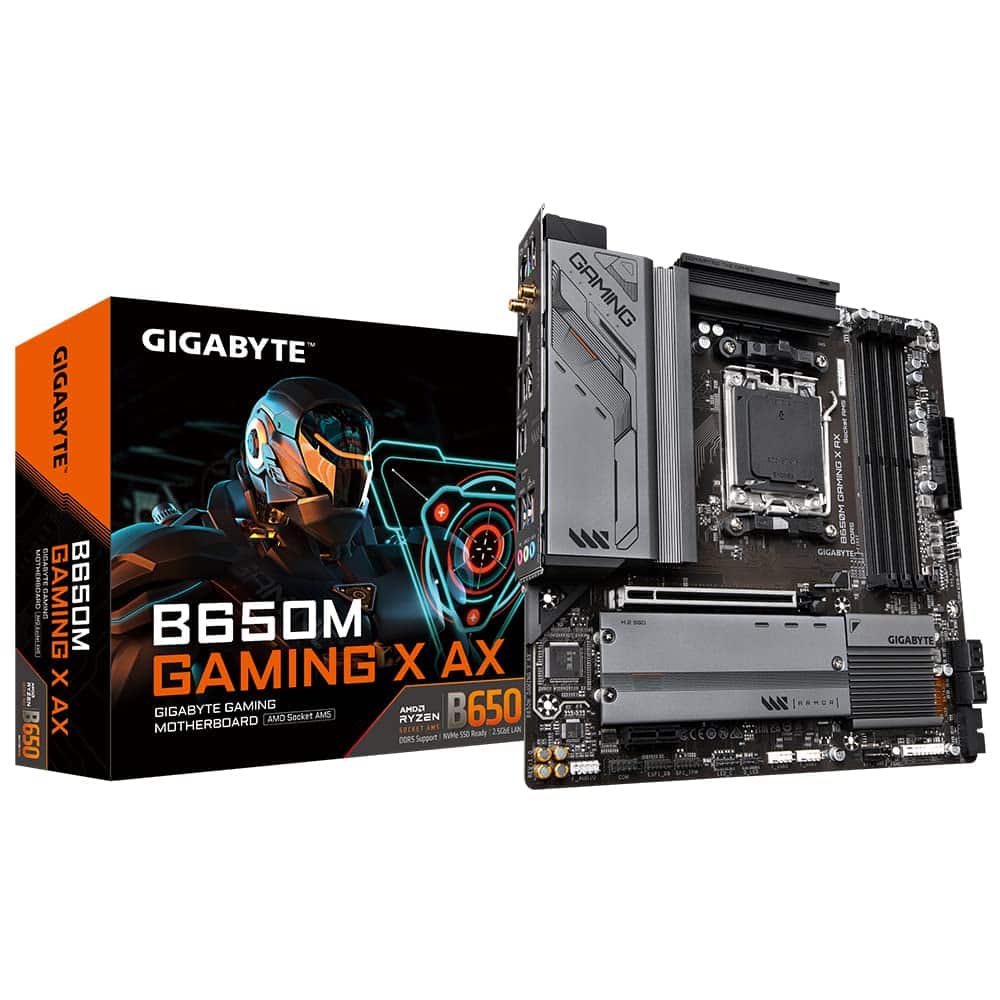

Gigabyte B650M Gaming X AX Review UK 2026

Picking a motherboard is where most AM5 builds quietly go wrong. You spend weeks agonising over the CPU, the GPU, the RAM, and then you just... grab whatever board fits the budget and hope for the best. The Gigabyte B650M GAMING X AX is exactly the kind of board people end up with in that situation, and the question worth asking is whether "ended up with" turns into "glad I got it" or "wish I'd spent a bit more."

The short answer: it's a solid micro-ATX board that covers the basics well, ships with Wi-Fi 6E and 2.5GbE at a price point where some rivals still charge extra for that, and will handle most Ryzen 7000 and 8000 series chips without drama. But the VRM is where things get interesting, and not entirely in a good way. If you're planning to pair this with a Ryzen 9 and push it hard, you need to read the VRM section before you buy anything. If you're running a Ryzen 5 or a modest Ryzen 7 in a compact build, this board is probably exactly what you need.

The 6+2+1 phase VRM is the headline number that matters most for long-term reliability, and we'll get into what that actually means in practice shortly. The board carries Gigabyte's Smart Fan 6 system for fan control, Q-Flash Plus for BIOS updates without a CPU installed, and the usual array of RGB headers for those who care about that sort of thing. Form factor is micro-ATX, so it'll fit in most mid-tower cases and obviously any mATX case, but you're giving up some expansion flexibility compared to a full ATX build.

Here's the full spec breakdown:

AMD has committed to AM5 support through at least 2027, which means buying into this platform now gives you a realistic upgrade path. You could start with a Ryzen 5 7600 today and drop in a future Ryzen 9000 series chip later without changing the board, assuming Gigabyte keeps the BIOS updated, which they generally do. That long-term viability is one of the genuine reasons to pick AM5 over older AM4 boards at this point, even if the entry cost is higher.

One practical note: if you're buying a newer Ryzen 8000 series chip and the board has been sitting in a warehouse since launch, you may need a BIOS update before the system will POST. This is where Q-Flash Plus earns its keep. You can update the BIOS using just a USB drive and the board's power connection, no CPU required. It sounds like a small thing until you're staring at a system that won't boot because the BIOS predates your CPU, and then it's the most important feature on the board. Owner reviews on this board specifically mention the Q-Flash Plus process working without issues, which is reassuring.

Chipset-level USB lanes give you the Gen 2 ports on the rear I/O, plus internal headers for front-panel USB. The board also provides SATA ports for anyone still running 2.5-inch drives or older SATA SSDs alongside their M.2 setup. PCIe lane allocation from the chipset handles the M.2 slots and any additional expansion, while the GPU slot runs directly off the CPU for maximum bandwidth. This is standard B650 behaviour and it's fine for the vast majority of builds.

Where B650 falls short compared to X670 is in the total lane count. If you're planning to run multiple high-bandwidth devices simultaneously, like a PCIe 5.0 SSD, a high-end GPU, and a capture card all pushing data at once, the X670E platform gives you more headroom. For a gaming PC or a productivity workstation with a single GPU and a couple of SSDs, B650 has more than enough. The B650M GAMING X AX doesn't include a PCIe 5.0 M.2 slot, which some competing boards at this price do offer, and that's a legitimate gap if you're planning to buy a Gen 5 SSD now or soon.

Gigabyte hasn't published the specific MOSFET part numbers in their marketing materials, which is frustrating but not unusual at this price point. What owner reviews do tell us is that the board runs stable under typical gaming and productivity workloads with mid-range chips. Nobody's reporting thermal shutdowns or VRM-related instability with Ryzen 5 7600 or Ryzen 7 7700X builds, which are the natural pairing for this board. The heatsink coverage on the VRM area looks adequate from the product images, but it's not the chunky alloy slab you'd find on a proper X670E board.

The honest advice here: if your CPU is a Ryzen 5 7600, Ryzen 7 7700, or Ryzen 7 7700X, this VRM is fine. If you're buying a Ryzen 9 7900X or above, either spend more on a board with a beefier power delivery setup, or at minimum ensure your case has decent airflow directed at the VRM area. The B650M GAMING X AX is not designed to be a high-end overclocking platform, and it doesn't pretend to be. It's designed to run mainstream chips reliably in compact builds, and at that job it does well.

In practice, most people will run DDR5-6000 or DDR5-6400, which is the sweet spot for Ryzen 7000 series performance. The memory controller in AM5 CPUs tends to be happiest around that frequency range, and pushing to DDR5-7200 or beyond often requires more voltage tweaking than the performance gain justifies. The fact that this board supports DDR5-8000 is more of a ceiling than a recommendation. Four slots also means you can start with two sticks and add more later, though with DDR5 it's generally better to buy your full kit upfront since mixing kits can cause compatibility headaches.

Owner reviews don't flag significant memory compatibility issues, which matters because DDR5 had a rocky start on AM5 with some early boards struggling to train certain kits reliably. Gigabyte has been reasonably diligent with AGESA updates that improve memory compatibility, and the B650M GAMING X AX has benefited from those updates through BIOS revisions. If you're buying a kit from the Gigabyte QVL list, you should be fine. If you're buying something obscure and cheap, you're taking a small gamble as you would on any platform.

Both M.2 slots also support NVMe drives, and the board should support SATA M.2 drives as well, though NVMe is what you'll almost certainly be using. The primary GPU slot is PCIe 5.0 x16, which is because some cheaper B650 boards run the GPU slot at PCIe 4.0. Having Gen 5 on the GPU slot is future-proofing that costs you nothing here. There are also SATA ports on the board for traditional 2.5-inch or 3.5-inch drives, useful if you're migrating storage from an older build.

The BIOS handles RAID configuration for the SATA ports if you need it, though RAID on a gaming board is a niche requirement. More practically useful is the straightforward drive detection and boot order management, which owner reviews suggest works without drama. No complaints about drives not being recognised or boot priority getting confused after BIOS updates, which has been a genuine issue on some competing boards. Straightforward storage setup is one of those things you only notice when it goes wrong, and here it seems to just work.

Being a micro-ATX board, you're not getting a sprawling array of expansion slots. There are additional PCIe slots for things like capture cards, sound cards, or Wi-Fi cards (though you won't need the latter since Wi-Fi is built in). The practical reality of mATX is that most people using this form factor aren't planning to fill every slot anyway. You've got your GPU, your M.2 drives, and that's the build. If you need multiple expansion cards, you probably want a full ATX board.

Lane sharing is worth understanding: the M.2 slots draw their bandwidth from the chipset, so they don't compete directly with the GPU slot. This is standard B650 architecture and means you can run two M.2 SSDs and a full-speed GPU simultaneously without any of them being bandwidth-throttled. Some very budget boards play games with shared lanes that reduce speeds when multiple devices are active, so it's good that this one doesn't have that problem. The PCIe 5.0 GPU slot also means you're not leaving any performance on the table with current or near-future graphics cards.

The front panel headers include a USB-C connector rated at 20Gb/s, which is a genuinely useful addition. Cases with a front USB-C port are increasingly common, and having the full 20Gb/s internal header means you're not artificially bottlenecking that connection. Some boards in this price range cut corners and provide only a 10Gb/s internal header, so the 20Gb/s here is. Audio output on the rear panel covers the standard 3.5mm jacks for headphones and speakers, handled by Gigabyte's onboard audio solution.

The Q-Flash Plus button on the rear I/O panel is worth a specific mention. It lets you update the BIOS from a USB drive without having a CPU, RAM, or GPU installed. This is the feature that saves you from the nightmare scenario of buying a new CPU only to discover the board's BIOS predates it. You just put the BIOS file on a USB drive, plug it into the designated port, hold the button, and wait. Gigabyte has implemented this well and owner reviews confirm it works as described. It's one of those features that's invisible when everything goes right and absolutely invaluable when it doesn't.

The 2.5GbE wired LAN port is provided by a Realtek controller, which is the standard solution at this price point. Realtek's 2.5GbE controllers have a solid track record and driver support across Windows and Linux is well established. For gaming, 2.5GbE over a wired connection is effectively overkill in a good way. Your internet connection is almost certainly the bottleneck, not your LAN. But for local network transfers, moving large files between machines, or NAS access, the extra bandwidth over standard gigabit is genuinely useful.

Bluetooth is included alongside the Wi-Fi module, covering wireless peripherals and headsets. The specific Bluetooth version isn't called out in the headline specs, but it's bundled with the Wi-Fi 6E module, so it should be Bluetooth 5.x at minimum. For a gaming or productivity build, having both Wi-Fi and Bluetooth built in means you're not using an M.2 slot or a PCIe slot for a separate wireless card, which keeps your expansion options clean. The antenna connectors on the rear I/O take standard external antennas, which are included in the box according to the product listing.

The EXPO/XMP profile loading works reliably according to owner reports. You enable XMP or EXPO in the BIOS, save and exit, and your RAM runs at its rated speed. No fiddling required. Fan curve control via Smart Fan 6 is reasonably capable, with multiple temperature sensor inputs and the ability to set fan stop thresholds so your case fans switch off entirely under light loads. That's a feature that makes a real difference to noise levels in a living room or bedroom build, and it works well here.

Overclocking headroom on the B650 chipset is limited compared to X670/X670E. You can push CPU frequencies and memory speeds, but the B650 doesn't support the full range of per-core frequency tuning that X670E enables. For most users this is irrelevant. If you're buying a Ryzen 5 or Ryzen 7 chip and want to enable EXPO on your RAM and maybe nudge the CPU boost behaviour slightly, B650 handles that fine. If you want to do serious manual overclocking with voltage tweaking and custom power limits, you should be looking at X670E boards to begin with. The BIOS update situation has been positive, with Gigabyte pushing AGESA updates that improve stability and compatibility over time. Owner reviews from the past year reflect a more polished experience than early adopters had at launch.

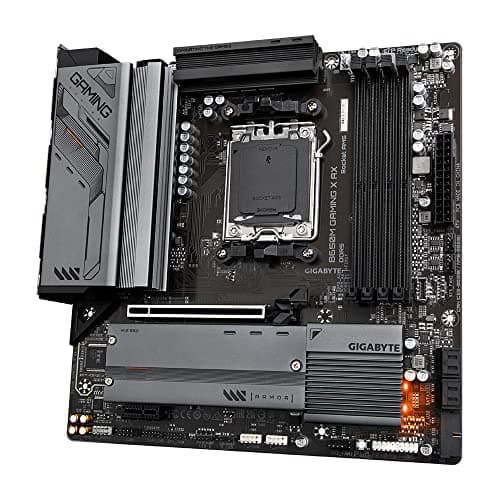

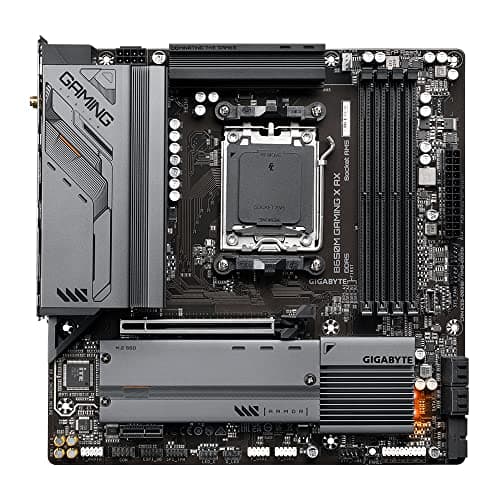

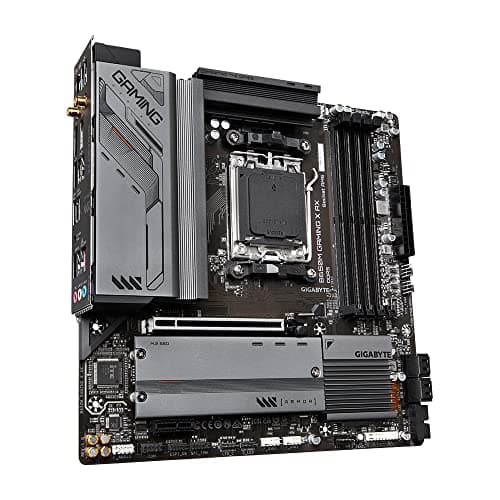

PCB quality is what you'd expect from Gigabyte at this price point: solid, with no obvious flex or cheap component placement. The DIMM slots have a standard locking mechanism, and the M.2 slots use Gigabyte's EZ-Latch system for tool-free M.2 installation, which is a small quality-of-life feature that makes swapping drives less annoying. The PCIe x16 slot has metal reinforcement as mentioned, which is a build quality indicator that matters. Owner reviews don't flag any DOA issues at an unusual rate, and the ★★★★☆ (4.0) star average across 87 reviews suggests a reliable production run.

The board ships with the standard accessory bundle: SATA cables, Wi-Fi antenna, I/O shield (may be pre-installed), and documentation. Nothing exciting, but everything you actually need. The overall impression from the spec sheet and owner feedback is a board that's been built to a price but not built cheaply. There's a difference between cost-optimised and corner-cutting, and the B650M GAMING X AX sits on the right side of that line for its intended market.

The other relevant comparison is the full-ATX Gigabyte B650 GAMING X AX, the bigger sibling. Spending a bit more gets you a full ATX form factor with more expansion slots and generally a beefier VRM configuration, which matters if you're planning to run a Ryzen 9 chip or want more upgrade headroom. The mATX version makes sense if your case is a compact design or if you genuinely don't need the extra slots. For a pure gaming build with a single GPU and two M.2 drives, the mATX board does everything the ATX version does at a lower cost.

One thing the comparison table makes clear: the PCIe 5.0 GPU slot on the B650M GAMING X AX is a genuine differentiator at this price. The ASRock B650M Pro RS runs the GPU slot at PCIe 4.0, which is fine for current GPUs but is technically a step back. If you care about that, the Gigabyte board wins. If you care more about BIOS ergonomics or specific connectivity options, it's worth comparing both carefully before committing.

The VRM is the honest caveat. Six CPU power phases is adequate for a Ryzen 5 7600 or a Ryzen 7 7700X, but if you're buying a Ryzen 9 chip and planning sustained heavy workloads, you're asking more of this power delivery than it was designed to give. That's not a criticism of the board so much as a statement of what it's for. Pair it with the right CPU and it'll serve you well for years. Pair it with a chip that wants more power than it can comfortably deliver and you'll eventually wish you'd spent more on the board.

The BIOS is functional rather than delightful. Gigabyte's interface has improved but it's not going to convert anyone who already prefers ASUS or MSI's take on UEFI design. Smart Fan 6 works well for fan control, EXPO profile loading is reliable, and BIOS updates have been consistent. No showstoppers, just not the most polished experience in the market. For most people building a compact AM5 gaming or productivity PC, that's an acceptable trade-off for the overall package.

In the upper mid-range bracket, this board offers genuine value for compact AM5 builds. The combination of PCIe 5.0 GPU support, Wi-Fi 6E, 2.5GbE, and Q-Flash Plus at this price point is competitive. The 87 owner reviews averaging ★★★★☆ (4.0) stars reflect a product that delivers on its promises for its intended audience. ★★★★☆ (4.0) from 87 owners is a decent signal on a platform where early DDR5 boards had real teething problems.

Who should buy this: anyone building a compact Ryzen 5 or Ryzen 7 system who wants Wi-Fi and 2.5GbE included, values the Q-Flash Plus BIOS update feature, and wants a PCIe 5.0 GPU slot without paying X670 prices. Who should skip it: anyone planning to run a Ryzen 9 chip at sustained all-core loads, anyone who needs more than two M.2 slots, or anyone who wants a PCIe 5.0 M.2 slot for a Gen 5 SSD.

And the honest "don't overspend" line: if your build is a Ryzen 5 7600 with a mid-range GPU and you're not bothered about Wi-Fi, there are B650M boards below this price bracket that will do the job perfectly well. The extra spend here buys you Wi-Fi 6E, the PCIe 5.0 GPU slot, and Q-Flash Plus. If you need all three, it's worth it. If you don't need any of them, look one tier down and save the money for better storage or a faster GPU.
