Finding the best power supplies for Sapphire Pulse AMD Radeon RX 9070 XT Gaming 16GB Dual HDMI Dual DP is not as straightforward as just picking the cheapest 850W unit you can find. The RX 9070 XT is a proper high-performance card with real transient power demands, and pairing it with the wrong PSU can cause crashes, instability, or worse. This guide covers eight carefully selected PSUs, all compatible with AMD's latest RDNA 4 flagship, ranging from budget-friendly 1000W Gold units to the extraordinary Corsair AX1600i Titanium. Whether you are building a compact SFF rig or a full-tower workstation, there is something here for every build.
Key Takeaways
- The RX 9070 XT needs at least 800W, but 850W to 1000W is the sensible range for a complete gaming build
- ATX 3.1 PSUs with native 12V-2x6 connectors handle transient power spikes far better than older designs
- 80 Plus Gold is the minimum efficiency rating worth buying in 2026, with Platinum offering meaningful savings over time
- Fully modular cabling makes a real difference for airflow and cable management in modern cases
- Seasonic and Corsair lead on long-term reliability, both offering 10-year warranties on their top units
| Product | Wattage | Efficiency | Price | Rating |
|---|---|---|---|---|
| Corsair AX1600i 1600W 80+ Titanium Modular Digital ATX PSU/Power Supply | 1600W | 80+ Titanium | £484.99 | |
| ASUS ROG Loki SFX-L 850W Platinum White Edition | 850W | 80+ Platinum | £349.38 | |
| Seasonic Focus V4 GX-850 | 850W | 80+ Gold | £209.04 | |
| Asus ROG Strix 1000W Platinum White PSU | 1000W | 80+ Platinum | £169.99 | |
| NZXT C850 Gold Core - ATX 3.1 Power Supply 850W | 850W | 80+ Gold | £163.56 | |
| ASUS ROG THOR 1000W PLATINUM 2 PSU | 1000W | 80+ Platinum | £225.01 | |
| NZXT C1000 Gold Core - 1000W 3.1 | 1000W | 80+ Gold | £119.99 | |
| MSI MPG A1000GS PCIE5 Power Supply Unit, 1000W | 1000W | 80+ Gold | £119.00 |
Check Today's Prices
Amazon UK prices update frequently. Click below to see live prices for our recommended products.
Check Corsair AX1600i 1600W 80+ Titanium Modular Digital ATX PSU/Power Supply Price Check ASUS ROG Loki SFX-L 850W Platinum White Edition (Fully Modular Power Supply, 80+ Platinum, 120mm PWM ARGB Fan, Aura Sync, ATX 3.0 Compatible, PCIe 5.0 Ready, 10 Year Warranty) Price Check Seasonic Focus V4 GX-850 (ATX3) -850W -80+ Gold -Fully Modular -ATX Form Factor -Japanese Premium Capacitor -10 Year Warranty -Nvidia RTX 30/40 Super and AMD GPU Compatible -Focus V4 PriceCompatibility Guide: Best Power Supplies for Sapphire Pulse AMD Radeon RX 9070 XT Gaming 16GB Dual HDMI Dual DP
The Sapphire Pulse RX 9070 XT is based on AMD's RDNA 4 architecture and carries a rated board power of around 304W under typical gaming loads. But here is the thing: peak transient spikes can push considerably higher for very brief periods, which is exactly why AMD and power supply manufacturers moved to the ATX 3.0 and ATX 3.1 standards. These specifications require PSUs to handle transient loads up to 200% of rated GPU power without triggering overcurrent protection.
So what does that mean in practice? If you pair the RX 9070 XT with a modern CPU like an AMD Ryzen 9 9950X or Intel Core Ultra 9, your total system draw can easily hit 500W to 600W under full load. Add in storage drives, fans, and RAM, and you are looking at a realistic system peak of 650W to 700W. That makes 850W the sensible floor for this card, with 1000W giving you comfortable headroom for overclocking or future upgrades.
Connector compatibility matters too. The Sapphire Pulse RX 9070 XT uses a 16-pin 12V-2x6 connector (also called 12VHPWR on older spec sheets). All the PSUs in this guide either include a native 12V-2x6 cable or a reliable adapter. Native connections are always preferable since they reduce the risk of connector heat issues that became a minor controversy with earlier 16-pin implementations.
On the efficiency side, TechPowerUp's GPU database confirms the RX 9070 XT as one of the more efficient cards in its performance class. Pairing it with an 80 Plus Gold or better PSU keeps your electricity bills reasonable and reduces heat output inside the case. Platinum and Titanium units cost more upfront but pay back over time if your PC runs for many hours daily.
Finally, check your case form factor. Most builds use ATX PSUs, but compact builds may need SFX-L units like the ASUS ROG Loki covered below. The RX 9070 XT is a full-length dual-slot card, so it typically lives in mid-tower or larger cases where ATX PSUs fit without issue.
Who Should Buy What
For Gamers
Priority: Clean power delivery, transient spike handling, long warranty
Recommended: Seasonic Focus V4 GX-850
For Creators
Priority: Maximum headroom, digital monitoring, premium build quality
Recommended: Corsair AX1600i 1600W
Budget Builders
Priority: Value, ATX 3.1 compliance, PCIe 5.1 support
Recommended: MSI MPG A1000GS PCIE5
Corsair AX1600i 1600W 80+ Titanium Modular Digital ATX PSU/Power Supply - Best Overall
The Corsair AX1600i is in a different league from most PSUs on this list. It uses a fully digital control architecture, meaning you can monitor voltage rails, efficiency, and temperature in real time through Corsair iCUE software. The 80 Plus Titanium rating pushes efficiency above 92% at typical loads, which is genuinely impressive. For the Sapphire Pulse RX 9070 XT, the 1600W headroom is overkill in the best possible way. You could run this card alongside a high-TDP CPU, multiple NVMe drives, and heavy overclocks without breaking a sweat. See our full Corsair AX1600i review for detailed testing data.
Pros
- 80 Plus Titanium efficiency, best in class
- Digital control with iCUE software monitoring
- Massive 1600W headroom for any future upgrade
Cons
- Very expensive, significant overkill for a single GPU build
- Large physical footprint may not fit in compact cases
ASUS ROG Loki SFX-L 850W Platinum White Edition - Premium Pick
The ASUS ROG Loki SFX-L 850W Platinum White Edition is the answer for anyone building a compact system around the Sapphire Pulse RX 9070 XT. SFX-L form factor means it fits in small form factor cases that reject standard ATX units, yet it still delivers 850W at 80 Plus Platinum efficiency. The 120mm PWM ARGB fan with Aura Sync looks proper decent in a white build, and ATX 3.0 compatibility means transient spike handling is sorted. The 10-year warranty is reassuring too. See our full ASUS ROG Loki SFX-L 850W review for more detail.
Pros
- SFX-L form factor for compact builds
- 80 Plus Platinum efficiency with Aura Sync ARGB fan
- 10-year warranty and ATX 3.0 compliance
Cons
- Premium pricing for 850W capacity
- ARGB lighting is wasted if your case has no window
Seasonic Focus V4 GX-850 - Runner Up
Seasonic has been making excellent PSUs for decades, and the Focus V4 GX-850 continues that tradition. It is fully modular, uses Japanese premium capacitors, and carries a 10-year warranty. The 80 Plus Gold rating delivers solid efficiency without the premium Platinum price. ATX3 compliance means it handles the transient demands of the RX 9070 XT properly. For a standard mid-tower gaming build, this is arguably the most sensible choice in the entire guide. Reliable, well-built, and not overpriced. Read our full Seasonic Focus V4 GX-850 review to see how it performs under sustained load.
Pros
- Japanese premium capacitors for long-term reliability
- 10-year warranty, one of the best in the industry
- Fully modular with clean ATX3 compliance
Cons
- No ARGB or premium aesthetics for windowed builds
- 850W leaves less headroom if you plan heavy overclocking
Asus ROG Strix 1000W Platinum White PSU - Best Value
Here is a unit that genuinely surprises. The ASUS ROG Strix 1000W Platinum White hits 1000W at 80 Plus Platinum efficiency, uses GaN MOSFET technology for improved power density, and includes an Intelligent Voltage Stabiliser for cleaner power delivery to your GPU. ATX 3.1 and PCIe 5.0 compliance are both present. The white finish looks stunning in a matching build. For the RX 9070 XT, 1000W at Platinum efficiency is a genuinely compelling combination at this price point. See our full ASUS ROG Strix 1000W Platinum review for efficiency curve data.
Pros
- GaN MOSFET technology for improved efficiency and compactness
- ATX 3.1 and PCIe 5.0 ready with Intelligent Voltage Stabiliser
- Striking white finish for themed builds
Cons
- White finish shows dust more visibly over time
- Relatively newer model with fewer long-term user reviews
NZXT C850 Gold Core - ATX 3.1 Power Supply 850W
NZXT's C850 Gold Core is a proper no-nonsense unit. ATX 3.1 compliance, Cybenetics Platinum certification (which is actually stricter than 80 Plus Platinum in some respects), and a native PCIe 5.1 600W 12V-2x6 connector make it a strong technical choice for the RX 9070 XT. The zero RPM fan mode keeps things quiet under light loads, and 105 degree rated capacitors suggest it is built to last. It is fully modular, which keeps cable clutter sorted. Read our full NZXT C850 Gold Core review for full noise and efficiency testing.
Pros
- Cybenetics Platinum certification alongside 80 Plus Gold
- Native PCIe 5.1 12V-2x6 connector included
- Zero RPM fan mode for silent operation at low loads
Cons
- 850W is the minimum comfortable wattage for demanding builds
- Plain aesthetic, nothing special visually
ASUS ROG THOR 1000W PLATINUM 2 PSU
The ROG THOR 1000W Platinum 2 is ASUS's showpiece PSU and it earns that status. The built-in OLED display showing real-time wattage draw is genuinely useful, not just a gimmick. At 1000W with 80 Plus Platinum efficiency and full modular cabling, it covers the RX 9070 XT with plenty of room to spare. The build quality is exceptional and it looks fantastic in a windowed case. It costs more than simpler 1000W units, but you are paying for the display, the aesthetics, and ASUS's premium component selection. See our full ASUS ROG THOR 1000W Platinum 2 review for a closer look.
Pros
- OLED wattage display is genuinely informative
- 1000W at 80 Plus Platinum with premium build quality
- Striking aesthetics for windowed case builds
Cons
- Price premium over simpler 1000W Platinum units
- Heavy unit, can be awkward to install in tighter cases
NZXT C1000 Gold Core - 1000W 3.1
Think of the NZXT C1000 Gold Core as the bigger sibling to the C850. Same Cybenetics Platinum certification, same ATX 3.1 compliance, same native PCIe 5.1 12V-2x6 connector, but with 1000W capacity. That extra 150W over the C850 gives you noticeably more headroom for a high-TDP CPU alongside the RX 9070 XT, or for future GPU upgrades. The zero RPM fan mode and 105 degree capacitors carry over too. And the price is very competitive for what you get. Read our NZXT C1000 Gold Core review for full benchmarks.
Pros
- 1000W with Cybenetics Platinum at a competitive price
- ATX 3.1 with native 12V-2x6 PCIe 5.1 connector
- Zero RPM fan mode for quiet operation
Cons
- Relatively few reviews compared to more established models
- No standout aesthetic features for windowed builds

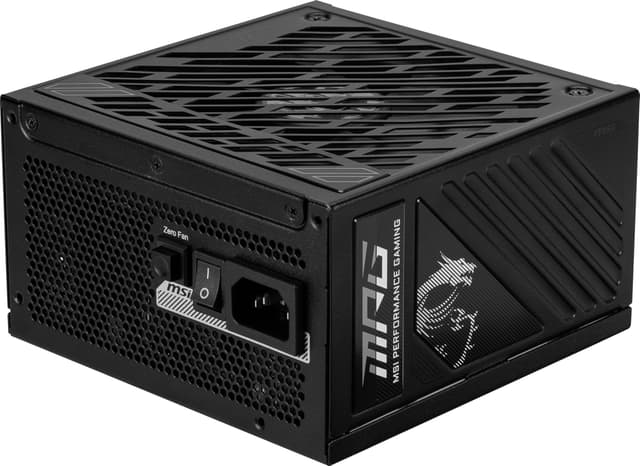

MSI MPG A1000GS PCIE5 Power Supply Unit, 1000W - Best Budget
The MSI MPG A1000GS is the most affordable route to 1000W ATX 3.1 compliance in this guide. It includes dual-native 12V-2x6 connectors, which is unusual at this price and genuinely useful if you ever run dual GPU workloads or simply want the cleanest possible connection to your RX 9070 XT. The embossed jacket cables look smart and the 80 Plus Gold rating keeps efficiency respectable. Look, it is not going to win awards for build quality over the Corsair or Seasonic units, but for a budget-conscious build it gets the job done properly. See our full MSI MPG A1000GS review for more.
Pros
- Dual-native 12V-2x6 connectors at a budget price point
- ATX 3.1 and PCIe 5.1 compliant for future-proofing
- Embossed jacket cables look better than standard flat cables
Cons
- Fewer user reviews than more established brands
- 80 Plus Gold, not Platinum, so slightly less efficient than pricier options
Understanding PSU Wattage and Efficiency for the RX 9070 XT
Calculating the right PSU wattage is simpler than most people think. Start with your GPU's TDP: the RX 9070 XT sits at roughly 304W under gaming loads. Add your CPU's TDP (anywhere from 65W for an efficient Ryzen chip to 253W for an Intel Core Ultra 9 Extreme), then add a flat 50W to 75W for everything else (RAM, storage, fans, motherboard). That gives you a realistic system peak. Then add 20% headroom on top of that peak to keep the PSU operating in its efficiency sweet spot and to handle transient spikes.
For example: 304W GPU plus 125W CPU plus 60W system equals 489W peak. Add 20% headroom and you land at around 587W. An 850W PSU covers that with room to spare. A 1000W unit gives you even more breathing space.
On efficiency ratings: 80 Plus Bronze means roughly 82% efficiency at 50% load. Gold hits 87 to 90%. Platinum reaches 90 to 94%. Titanium pushes above 94%. The difference matters more than people realise. At 500W draw, a Bronze PSU wastes around 90W as heat. A Gold wastes around 55W. Platinum around 30W. Over a year of daily gaming, that adds up on your electricity bill.
The Corsair UK PSU range covers Gold through Titanium if you want to compare their full lineup directly. For independent efficiency curve testing across all the brands here, TechPowerUp's PSU reviews are the gold standard reference.
Common Mistakes to Avoid
- Mistake: Buying the minimum recommended wattage with no headroom.
Instead: Add at least 20% above your calculated peak load. PSUs run more efficiently and cooler in the 50% to 80% load range. - Mistake: Using an old PSU with a 16-pin adapter cable of unknown quality.
Instead: Buy a PSU with a native 12V-2x6 connector. Dodgy adapter cables were behind several GPU connector incidents in 2023 and 2024. - Mistake: Ignoring the 80 Plus rating to save money.
Instead: At minimum, go 80 Plus Gold. The efficiency difference over Bronze pays back the price gap within a couple of years of regular use. - Mistake: Buying a non-modular PSU to save a few pounds.
Instead: Fully modular PSUs make installation and future upgrades far easier, and the price difference is minimal on quality units. - Mistake: Overlooking the PSU warranty length.
Instead: A 10-year warranty from Seasonic or Corsair is a genuine indicator of component quality, not just marketing. Shorter warranties often mean cheaper capacitors.
Final Verdict: Best Power Supplies for Sapphire Pulse AMD Radeon RX 9070 XT Gaming 16GB Dual HDMI Dual DP
After working through all eight options, the picture is fairly clear. For most gaming builds pairing with the Sapphire Pulse RX 9070 XT, the Corsair AX1600i 1600W is the definitive premium choice if budget is not a concern. The Seasonic Focus V4 GX-850 is the sensible pick for value-focused builds that still want reliability and a proper warranty. Budget builders should look seriously at the MSI MPG A1000GS, which delivers 1000W ATX 3.1 compliance with dual-native connectors at a very competitive price. Whatever you choose from this list, you are getting a PSU that is properly suited to one of AMD's best RDNA 4 cards.
