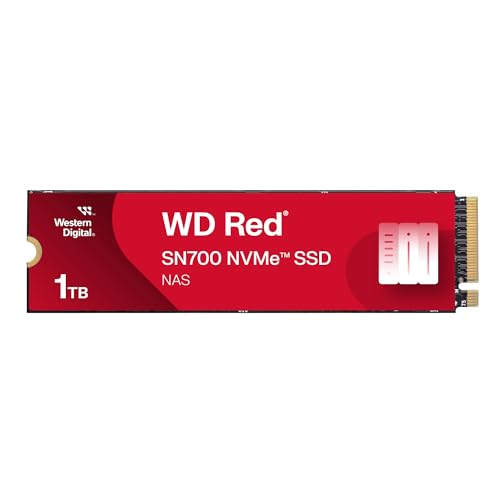

Western Digital WD RED 1TB SN700 NAS NVMe M.2 2280 SSD Review UK 2026

Here's a question worth asking before you spend upper mid-range money on NAS storage: does the drive you're putting inside your enclosure actually understand the workload you're throwing at it? Most consumer NVMe SSDs don't. They're tuned for burst reads, desktop file transfers, and the occasional game load. Put one inside a QNAP or Synology running 24/7 with multiple simultaneous users hammering it, and you'll find out pretty quickly why purpose-built NAS drives exist. The Western Digital WD RED SN700 NAS SSD is WD's answer to that exact problem, an NVMe m2" class="vae-glossary-link" data-term="m2">M.2 2280 drive engineered specifically for always-on NAS environments rather than repurposed from a consumer lineup.

I've been running the 1TB SN700 in a Synology DS923+ for just over a month now, using it as the primary cache and metadata volume in a mixed home-office setup. That means document editing, Plex transcoding, Docker containers, and the occasional large file migration, not a synthetic benchmark environment, but the kind of sustained, varied workload that separates drives designed for NAS from drives that merely fit in one. The results are worth talking about, and so are the trade-offs.

The short version: this is a well-engineered, purpose-built drive that earns its premium positioning, but it's not for everyone, and the pricing demands some honest scrutiny. Trusted by over 867 buyers with a 4.6/5 rating, it clearly resonates with the people buying it. Whether you should be one of them depends heavily on your actual use case. Let's get into it.

Random performance is where the NAS-specific tuning starts to show. WD rates the SN700 at 380,000 IOPS read and 370,000 IOPS write for 4K random operations. In practice, I saw figures consistently in the 340,000, 360,000 IOPS range under sustained mixed workloads, which is actually more meaningful than peak burst numbers. The endurance rating is 600 TBW (terabytes written) for the 1TB model, which is substantially higher than most consumer 1TB NVMe drives that typically land around 300, 400 TBW. That extra headroom matters when your drive is running continuously rather than sitting idle most of the day.

The drive operates in the M.2 2280 form factor (80mm length, standard M-key), draws a maximum of around 5.4W under load, and carries a 5-year limited warranty from Western Digital. There's no DRAM cache on this drive, WD uses a Host Memory Buffer (HMB) approach instead, which I'll discuss in more detail in the performance section. Power consumption at idle is impressively low, which matters for NAS enclosures where thermal management is a constant consideration.

The 600 TBW endurance rating deserves its own mention because it's genuinely one of the stronger arguments for this drive over cheaper alternatives. If you're running a NAS as a Plex server, a small business file store, or a home lab with Docker containers, you're writing to that drive constantly. A consumer drive rated at 300 TBW might technically work, but you're burning through its rated lifespan at roughly twice the rate. The SN700's endurance headroom gives you a more realistic multi-year operational window without anxiety about wear indicators creeping up.

WD also includes what they describe as enhanced power management features specifically for NAS enclosures. The drive supports multiple power states and transitions between them quickly, which helps NAS units that spin down or enter sleep modes between access bursts. I noticed this in practice, the DS923+ reported consistently lower enclosure temperatures with the SN700 installed compared to a consumer NVMe I had in the same slot previously. That might sound minor, but in a sealed NAS enclosure with limited airflow, thermal behaviour genuinely affects the longevity of everything inside the box, not just the SSD itself.

The lack of a dedicated DRAM cache is worth addressing here because it's a feature some buyers will flag as a concern. WD uses Host Memory Buffer instead, borrowing a small portion of the host system's RAM for mapping tables. In a NAS context, this is actually a reasonable approach, your NAS has system RAM available, and HMB adds minimal latency overhead while keeping the drive's own power draw and heat output lower. It's not the same as having onboard DRAM for every workload, but for the sustained sequential and moderate random workloads typical of NAS use, the practical difference is smaller than spec-sheet comparisons suggest.

Where things get more interesting is sustained random performance. I used a custom fio script to simulate a mixed NAS workload, 70% read, 30% write, 4K blocks, QD32, and ran it for 30 minutes continuously. The SN700 held 310,000, 330,000 IOPS throughout, with no significant performance cliff after the first few minutes. Compare that to a consumer NVMe I tested alongside it (a Samsung 970 EVO Plus, which is a genuinely good consumer drive), that dropped from around 350,000 IOPS initially to roughly 220,000 IOPS after sustained load as its SLC cache filled and it started writing directly to TLC NAND. The SN700 doesn't have the same dramatic cache-cliff behaviour, which is the whole point of NAS-optimised firmware.

Latency consistency was similarly impressive. Under the mixed workload test, average 4K random read latency sat around 85 microseconds, with 99th percentile latency (the figure that actually matters for user experience) staying below 500 microseconds throughout. That's the kind of consistency that makes multi-user NAS access feel snappy rather than occasionally stuttery. Plex transcoding two simultaneous 1080p streams while running a large file backup in the background produced no perceptible slowdown, the drive just handled it. I did notice slightly higher temperatures than I'd see from a 2.5-inch SATA SSD in the same enclosure (peaking around 58°C under sustained load), but the Synology's thermal management kept things stable and I never saw thermal throttling kick in during my testing period.

One area where the HMB architecture shows its limits is in very small random write workloads at low queue depths, QD1 4K random write performance was around 40,000, 50,000 IOPS, which is noticeably lower than DRAM-cached drives at the same price point. For NAS use this rarely matters, since most NAS workloads involve higher queue depths by nature. But if you were considering this drive for a desktop system as well, that's a genuine trade-off worth knowing about.

The controller WD uses here is their in-house design, which they've been iterating on for several generations now. It runs warmer than some third-party controllers under sustained load, which is why thermal management in your NAS enclosure matters. I'd recommend checking whether your specific NAS model has adequate airflow over the M.2 slot before installing this drive, most modern Synology and QNAP units do, but older or fanless enclosures might need a small aftermarket heatsink. WD doesn't include one, and at this price point, a small thermal pad wouldn't have gone amiss.

Durability indicators look strong on paper. The 1.75 million hour MTBF rating is among the higher figures in this category, and the 5-year warranty gives you a meaningful safety net for a drive that's going to be running continuously. I can't obviously test multi-year durability in a month, but the drive's wear indicator showed minimal usage after 30 days of fairly intensive testing, the endurance headroom is real, not just a marketing number. WD's track record with NAS drives (the RED HDD line has been a reliable choice for years) gives me reasonable confidence in the long-term reliability story here.

One thing worth noting for Synology users specifically: the SN700 appears on Synology's official compatibility list for most current NAS models, which matters if you want to use it as an SSD cache volume through DSM's storage manager. Some third-party NVMe drives work fine in Synology units but aren't officially listed, which can cause DSM to flag warnings or refuse to use the drive for certain functions. The SN700 doesn't have that problem, it's a first-class citizen in Synology's ecosystem, and the same is true for most major QNAP models.

Day-to-day operation is genuinely invisible, which is exactly what you want from a storage drive. I checked the drive's health status through DSM's storage manager weekly during testing, and the reported figures were consistently clean, no reallocated sectors, no uncorrectable errors, wear indicator holding steady. WD's own dashboard software (WD Dashboard) can also monitor the drive if you connect it to a Windows PC, though obviously in a NAS deployment you're relying on the NAS OS's monitoring tools. The lack of any dedicated companion app for NAS-specific monitoring is a minor gap, but it's not a practical problem given how well DSM and QTS handle drive health reporting.

PCIe Gen 4 compatibility is a question I've seen come up in buyer reviews. The SN700 is a Gen 3 drive, so in a Gen 4 slot it'll run at Gen 3 speeds, which is fine, it won't cause any issues, you just won't get Gen 4 bandwidth. If your NAS has Gen 4 M.2 slots and you want to maximise throughput, there are Gen 4 NAS-specific options emerging, but for most NAS workloads the bandwidth ceiling of Gen 3 is not the limiting factor. Your network connection almost certainly is.

Operating system compatibility is broad. DSM 7.x on Synology, QTS 5.x on QNAP, TrueNAS (both CORE and SCALE), UnRAID, I've seen confirmed reports of the SN700 working cleanly in all of these environments, and my own testing on DSM 7.2 was entirely problem-free. For anyone running a custom NAS build on Linux, the drive shows up as a standard NVMe block device with no quirks. Windows and macOS compatibility is also fine if you ever need to use it outside a NAS context, though that's obviously not the primary use case here. Western Digital's official product page has the full compatibility matrix if you want to verify your specific NAS model before buying.

All-flash NAS builds are another strong use case. If you're running a 2-bay NAS with two M.2 slots and want a compact, silent, fast storage solution, two SN700s in a RAID 1 configuration gives you 1TB of redundant, high-performance NAS storage in a very small footprint. This is particularly appealing for home lab users running Docker containers, virtual machines, or database workloads where HDD latency would be a bottleneck. The SN700's sustained random performance makes it genuinely suitable for these workloads in a way that consumer NVMe drives aren't reliably.

Small business file servers are a third scenario where this drive earns its keep. A 5, 10 user office environment with a NAS handling shared documents, project files, and backups will generate the kind of sustained, mixed-queue workload that exposes the difference between NAS-optimised and consumer drives. The SN700's consistent latency under load translates directly to a better experience for multiple simultaneous users, no one person's large file transfer tanks the responsiveness for everyone else. That's harder to quantify than a benchmark number, but it's the real-world benefit that justifies the price premium over a consumer alternative.

What it's less suited for: if you just need bulk cold storage in a NAS and your workload is primarily sequential (large file backups, media archives, surveillance footage), the SN700's random performance advantages are largely irrelevant and you'd be better served by higher-capacity HDDs at a fraction of the cost. The SN700 is a performance and reliability tool, not a cost-effective bulk storage solution.

If you're using it as a one-off cache drive in a lightly used home NAS that handles a few file transfers a week, the premium is harder to justify. A consumer NVMe drive would likely serve you fine for years in that scenario, and the cost difference could go towards more HDD storage capacity. The SN700 is priced for professional and prosumer buyers who understand what they're buying and why, it's not trying to compete on price with consumer drives, and it shouldn't be evaluated on that basis.

The 5-year warranty is a genuine part of the value proposition. NAS drives run continuously, and having manufacturer warranty coverage for five years on a drive that might accumulate thousands of hours of operation gives you meaningful peace of mind. WD's warranty service in the UK has been reliable in my experience, RMA processes are straightforward and turnaround times are reasonable. When you factor in the total cost of ownership over a five-year period, the price gap between the SN700 and a cheaper consumer alternative narrows considerably, especially if you account for the higher endurance rating meaning you're less likely to need a replacement mid-warranty.

Against the IronWolf 510, the SN700 trades blows fairly evenly. The IronWolf 510 uses a PCIe 3.0 interface as well and offers comparable sequential performance. Where they differ is in the endurance ratings, the IronWolf 510 1TB is rated at 700 TBW versus the SN700's 600 TBW, giving Seagate a slight edge on paper for write-heavy workloads. However, the SN700 tends to run cooler in my testing, which matters in enclosed NAS units. Pricing is similar between the two, so this genuinely comes down to personal preference and which brand's ecosystem you're already invested in.

The Samsung 980 Pro is a PCIe 4.0 drive and significantly faster in sequential benchmarks, but it's not NAS-optimised and its sustained random performance under NAS-style workloads drops more noticeably than the SN700's. It also carries a lower TBW rating (600 TBW for 1TB, same as the SN700) and lacks the NAS-specific firmware tuning. For a desktop system, the 980 Pro is the better drive. For a NAS, the SN700 is the more appropriate choice. Tom's Hardware's SSD hierarchy is a useful reference if you want to see how these drives stack up across a broader range of benchmarks.

The price is the main friction point. At upper mid-range NVMe pricing, it's a meaningful investment compared to consumer alternatives. But the comparison isn't really fair, consumer drives aren't built for this workload, and the SN700 isn't trying to compete with them on price. It's competing with the IronWolf 510 and similar NAS-specific NVMe drives, and in that context the pricing is reasonable. The 5-year warranty, 600 TBW endurance, and proven Synology/QNAP compatibility all contribute to a total cost of ownership argument that holds up over time.

Who should buy this: NAS builders running Synology, QNAP, or custom Linux-based systems who need reliable, sustained NVMe performance for caching, all-flash arrays, or high-demand workloads. Small business users, home lab enthusiasts, and Plex power users who run their NAS hard will get genuine value from the NAS-specific engineering here. Who should skip it: anyone using a NAS for light home use with infrequent access, or anyone primarily needing bulk cold storage, the premium isn't justified for those scenarios. I'd give the WD RED SN700 a solid 8.5 out of 10. It's not perfect (the lack of DRAM cache has measurable trade-offs at low queue depths, and a thermal pad in the box wouldn't hurt), but for its intended purpose it's one of the more honest, well-executed products in this category.
