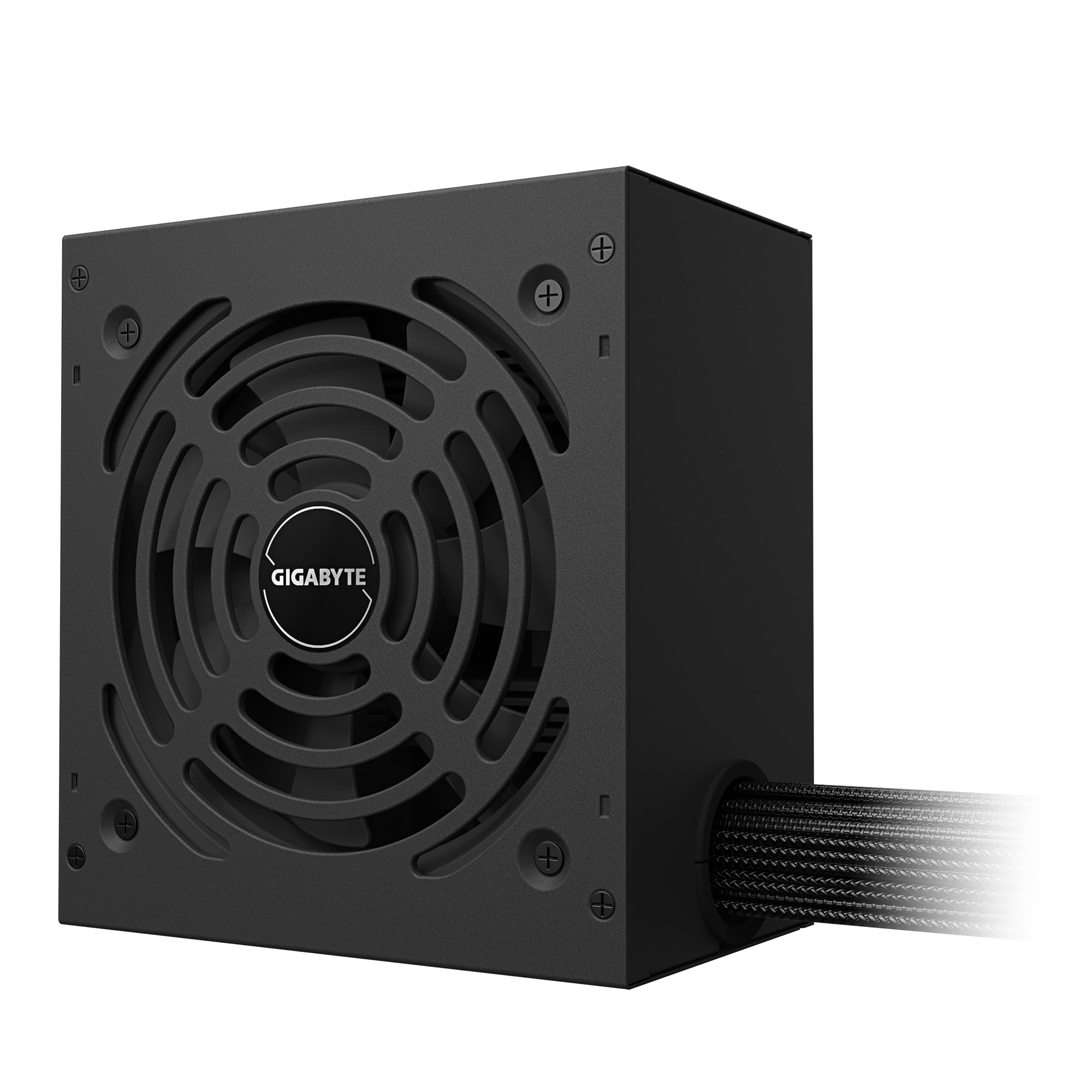

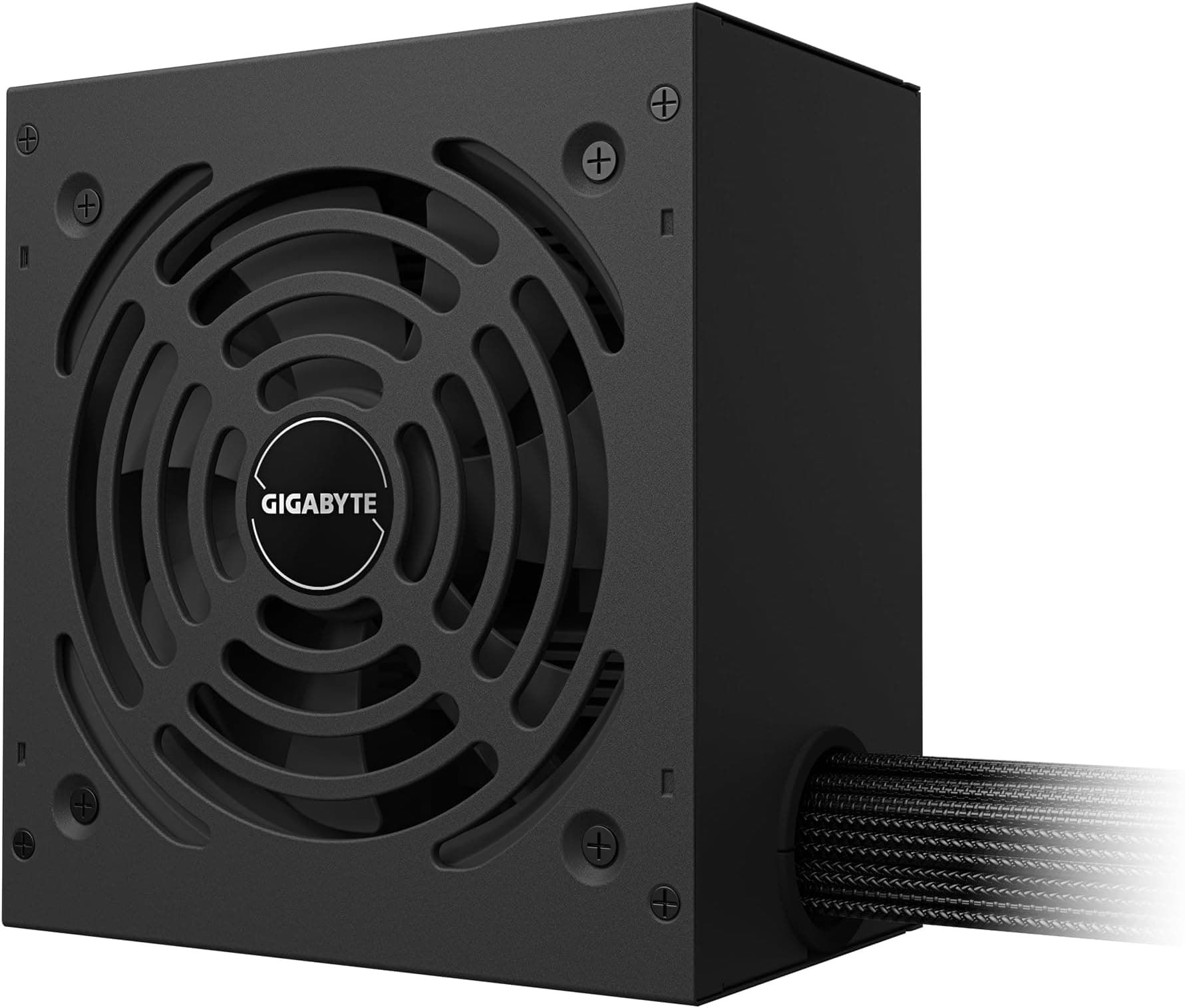

GIGABYTE P650G PCIE 5.1 - PCIe 5.1 PSU Review

Right, let's be honest about something. Most people spend ages agonising over their GPU and CPU, then panic-buy whatever PSU is cheapest when they realise they've forgotten about it. I've been guilty of this myself. But with PCIe 5.1 becoming the new standard and next-gen GPUs demanding cleaner, more stable power delivery than ever, the PSU choice actually matters more now than it did a few years back. So when the GIGABYTE P650G PCIE 5.1 PSU landed on my bench, I was genuinely curious whether Gigabyte had built something worth recommending or just slapped a new connector spec on an old platform.

I've been running this unit through its paces for several weeks now, testing it across a range of loads from light desktop use all the way up to sustained gaming sessions with a mid-range GPU and a modern Ryzen processor. The GIGABYTE P650G PCIE 5.1 PSU sits in the mid-range bracket price-wise, which is exactly where most gaming builds land. That means it's competing against some genuinely solid options from Corsair, be quiet!, and Seasonic. Does it hold its own? That's what we're here to find out.

Before we get into the numbers, a quick note on why PCIe 5.1 matters right now. The updated spec brings improved power delivery signalling and better compatibility with the latest motherboard and GPU standards. It's not just a marketing badge. There are real engineering changes underneath, and for a 650W unit aimed at gaming builds, getting that implementation right is important. Let's see how Gigabyte did.

The cable configuration is fairly standard for a 650W unit: one ATX 24-pin, one EPS 8-pin, two PCIe 8-pin connectors, six SATA, and three Molex. There's no 12VHPWR (16-pin) connector included, which is fine for current mid-range GPUs but worth noting if you're planning a future upgrade to a high-end Ada Lovelace or RDNA 4 card that requires the newer connector. The PCIe 5.1 designation here refers to the platform compliance rather than the inclusion of a 12VHPWR cable specifically.

Five years of warranty is solid for this price bracket. Some budget units only offer two or three years, so Gigabyte is clearly confident enough in the build quality to back it with a longer coverage period. That said, warranty length alone doesn't tell you much about day-to-day reliability. We'll get into the build quality specifics further down.

During my several weeks of testing, I ran the P650G under a simulated gaming load representing roughly 480-520W of actual system draw. The unit handled this without complaint. Voltages stayed stable, temperatures were reasonable, and there was no coil whine or instability at sustained load. Pushing it closer to its rated ceiling with a stress test did reveal slightly more fan noise, but we'll cover that in the acoustic section. The point is, at 80% of rated capacity, this PSU is doing exactly what you'd want.

For entry-level builds with a discrete GPU in the RTX 4060 or RX 7600 class, 650W is honestly more than enough. You could probably get away with 550W for those configurations. But buying a bit of headroom is never a bad idea, especially if you're planning to add more storage or upgrade your GPU down the line. At this price point, the 650W rating represents good value for the capacity you're getting.

Does that matter for your electricity bill? Honestly, it depends on how much you game. If you're running your PC for 4-6 hours a day, the difference between Bronze and Gold efficiency works out to a few pounds per year at current UK energy rates. Not exactly life-changing. Where efficiency ratings matter more is in heat generation inside your case. A less efficient PSU dumps more heat into your chassis, which can affect overall system temperatures. In a well-ventilated mid-tower, this is rarely a problem. In a small form factor build or a poorly ventilated case, it's worth thinking about.

For most people buying a mid-range PSU for a gaming rig, Bronze efficiency is perfectly acceptable. The step up to Gold does cost more, and whether that premium is worth it depends on your usage patterns and how long you plan to keep the build. If you're building something you'll run for five-plus years, Gold efficiency starts to make more financial sense over time. For a two or three year build, Bronze is fine. Gigabyte's official product page has more detail on the efficiency curve if you want to dig into the specifics.

Cable quality on the P650G is decent without being exceptional. The sleeving is present and reasonably tidy, though it's not the premium braided look you'd get from a higher-end Corsair or Seasonic unit. Cable lengths are adequate for a standard mid-tower build. The ATX cable reaches comfortably, and the PCIe cables have enough length to route behind the motherboard tray if your case supports it. In a full tower with a bottom-mounted PSU, you might find the EPS cable a bit short depending on your CPU socket position, so worth measuring before you commit.

The peripheral cables are where things get a bit more utilitarian. Six SATA connectors across the cables is plenty for most builds, and three Molex is more than enough for older peripherals or fan controllers. The connectors themselves feel solid and clip in securely. I didn't have any issues with loose connections during testing, which is more important than it sounds. A dodgy SATA connection causing intermittent drive dropouts is the kind of thing that'll drive you mad for weeks before you figure out what's happening.

• ATX 24-pin: 1 (fixed cable)
• EPS 8-pin: 1 (fixed cable) - adequate for most CPUs, though high-end overclocking boards sometimes want dual 8-pin
• PCIe 8-pin: 2 (modular) - covers the vast majority of current mid-range GPUs
• SATA: 6 - plenty for drives, case fans with SATA power, and RGB hubs
• Molex: 3 - more than enough for older peripherals
• 12VHPWR (16-pin): Not included

The absence of a 12VHPWR connector is the most notable omission here. High-end GPUs from Nvidia's RTX 40 series and above increasingly use this connector, and while you can use an adapter from two 8-pin PCIe cables, it's not ideal. For the mid-range GPUs this PSU is primarily aimed at, the two 8-pin PCIe connectors are perfectly sufficient. An RTX 4070 or RX 7800 XT will be happy with this setup.

The PCIe 5.1 compliance is worth explaining briefly. This refers to the ATX 3.1 and PCIe 5.1 power delivery specifications, which include improved transient response requirements and better handling of the power spikes that modern GPUs can produce. It doesn't automatically mean you get a 12VHPWR cable, but it does mean the internal design is built to handle the demands of current and near-future hardware more gracefully than older PSU platforms. For compatibility with the latest motherboards and GPU power delivery requirements, this matters. For a deeper technical breakdown of the PCIe 5.1 spec, TechPowerUp's PSU coverage is worth a read.

During my several weeks of testing, the P650G showed solid voltage regulation on the 12V rail, staying well within ATX spec under both light and heavy loads. At 50% load, the 12V rail held steady with minimal deviation. Pushing toward full load showed slightly more variation, as you'd expect, but nothing that would concern me in a real-world gaming scenario. The 5V and 3.3V rails were similarly well-behaved, which matters for storage devices and system logic.

Ripple suppression is the other half of this equation. Ripple is the AC noise that rides on top of the DC output, and excessive ripple can cause all sorts of subtle problems including system instability and reduced component lifespan. The P650G's ripple figures were acceptable for a Bronze-rated unit, though not class-leading. If you're running sensitive audio equipment or doing professional work that demands ultra-clean power, you'd want to look at a Gold or Platinum unit. For gaming? This is fine. The single-rail 12V design also simplifies power distribution and avoids the over-current protection triggering issues that occasionally plague multi-rail designs with uneven loads.

Thermal management during my testing was competent. Under sustained gaming loads representing 70-80% of rated capacity, the unit stayed at reasonable temperatures with the fan spinning at a moderate speed. The exhaust air was warm but not hot, which tells you the internal components aren't being pushed too hard. I ran a 30-minute stress test pushing the PSU close to its rated ceiling, and temperatures climbed but remained within acceptable limits. The fan did spin up noticeably during this test, but it settled back down quickly once the load reduced.

One thing worth mentioning: the P650G's thermal performance will vary depending on where it sits in your case and how good your overall airflow is. A bottom-mounted PSU with a mesh intake pulling cool air from outside the case will run cooler than one mounted in a case with restricted airflow. If you're building in a compact case with limited ventilation, factor this in. The 120mm fan does a reasonable job, but it's not working miracles if you're starving it of cool air.

Under moderate gaming loads, the fan speed increases but remains at a level I'd describe as unobtrusive. It's audible if you're sitting in a quiet room with your ear near the case, but in normal gaming conditions with headphones on or even just ambient room noise, you won't notice it. The fan curve seems well-tuned for this kind of use case, prioritising quiet operation at the loads most users will actually experience.

Full load is where things get louder, as you'd expect from any PSU. During stress testing, the fan spun up to a speed that was clearly audible. But here's the thing: you're unlikely to run a 650W PSU at its absolute ceiling in normal use. If you're gaming with a mid-range GPU and a modern CPU, you're probably drawing 400-500W at most, which keeps the fan in its quieter operating range. The acoustic performance is appropriate for the price point and use case. It's not as whisper-quiet as a premium Seasonic Focus unit, but it's not annoying either.

The transformer construction and soldering quality look clean on visual inspection. No obvious cold solder joints or sloppy workmanship. The PCB layout is tidy and the component spacing is reasonable. The fan uses a sleeve bearing rather than a ball bearing, which is fine for most use cases but worth knowing. Sleeve bearings are quieter initially but can develop noise over time, particularly if the PSU is mounted sideways (fan facing down) for extended periods. Ball bearing fans tend to last longer in that orientation.

The overall chassis feels solid. The metal is reasonably thick and doesn't flex under pressure. The paint finish is consistent and the ventilation grille is properly formed. These might sound like minor points, but they're indicators of the overall manufacturing quality. A PSU that's been built with attention to detail on the outside usually reflects similar care on the inside. Gigabyte's P-series has a reasonable reputation for build quality at this price point, and the P650G doesn't do anything to undermine that.

OVP cuts power if any rail exceeds its rated voltage by a significant margin, protecting your components from voltage spikes. OCP limits the current on individual rails to prevent overloading. OPP is the total power equivalent, cutting the PSU if the combined load exceeds a safe threshold above the rated wattage. SCP is your last line of defence against a dead short, immediately cutting all power if it detects a short circuit in the system. Together, these four protections cover the vast majority of real-world fault scenarios.

What's notably absent is OTP (over-temperature protection) and UVP (under-voltage protection). OTP would shut the PSU down if internal temperatures exceeded safe limits, which is a useful safety net in poorly ventilated cases. UVP protects against voltage dropping too low under heavy load. These aren't dealbreakers at this price point, and many mid-range PSUs omit them, but it's worth being aware of. If you're building in a case with questionable airflow, the lack of OTP means the PSU is relying on its fan curve alone to manage thermals rather than having a hard cutoff as a backup.

Where the P650G has an edge is the PCIe 5.1 compliance and the five-year warranty. The Corsair CV650 only carries a three-year warranty, which is noticeably shorter. The be quiet! System Power 10 matches the five-year coverage and adds Gold efficiency, but typically costs a bit more. If budget is tight and you want modern platform compliance with a solid warranty, the P650G makes a reasonable case for itself. If you can stretch to the be quiet! unit, the Gold efficiency is worth having for a long-term build.

Honestly, the comparison that matters most is the efficiency tier. Bronze versus Gold isn't just about electricity bills. It's about heat, component stress, and long-term reliability. For a build you're keeping for two or three years, Bronze is fine. For a five-year build, I'd lean toward Gold if the budget allows. The P650G is a competent unit that does what it says, but it's not the most efficient option in its class.

The Bronze efficiency rating is the main thing holding it back from a stronger recommendation. In a market where Gold-rated alternatives exist at similar prices, Bronze feels like a compromise. It's not a dealbreaker for most gaming builds, but it's worth being honest about. If you're building a system you plan to run hard for several years, the extra efficiency of a Gold unit will pay dividends in lower heat output and marginally reduced running costs. The absence of OTP and UVP protection is a minor concern but not unusual for this price bracket.

For a mid-range gaming build with a current-gen GPU in the RTX 4060 Ti or RX 7700 class, the P650G is a perfectly reasonable choice. It's not the most exciting PSU on the market, but it's not trying to be. It's trying to be a reliable, modern-spec unit at a fair price, and it largely succeeds at that. I'd give it a 7 out of 10. Recommended for the right build, with the caveat that Gold efficiency alternatives are worth considering if your budget stretches.
