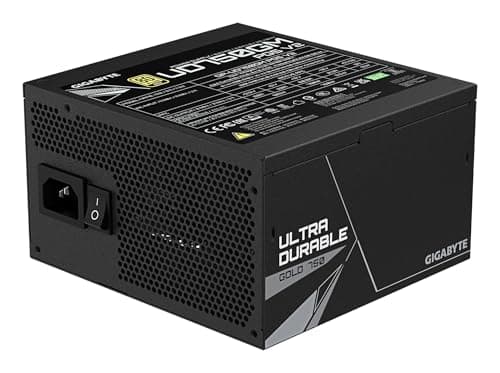

GIGABYTE UD750GM PG5 V2 Review: Gold Efficiency, Gen 5.1 Ready

Picking a PSU is the part of a PC build most people get wrong. Not because they buy something dangerous, but because they either massively overspend chasing Platinum efficiency ratings they'll never recoup, or they grab whatever's cheapest and wonder why their system randomly reboots six months later. The GIGABYTE UD750GM PG5 V2 sits in that mid-range bracket where the interesting decisions actually happen. It's got PCIe Gen 5.1 support, 80 PLUS Gold certification (more on that in a moment), and a fully modular design. On paper, that's a solid package. But does it actually hold up when you put it next to the competition? That's what we're here to figure out.

The GIGABYTE UD750GM PG5 V2 PCIe Gen 5.1 PSU Review is one worth paying attention to if you're building a modern gaming rig and don't want to overpay for features you don't need. The Gen 5.1 readiness means this unit is spec'd for the latest Intel ATX 3.1 standard, which matters if you're running or planning to run a current-gen GPU that draws serious transient power. And with 100% Japanese capacitors and a single +12V rail design, there's genuine quality under the hood here, not just marketing stickers on a mediocre box.

Owner reviews are thin on the ground right now (three at time of writing, averaging ★★★☆☆ (3.3)), which makes this a harder call than a unit with 3. So we've leaned hard into the specs, the certifications, and how this compares to established rivals at the same price point. That context matters more than you'd think.

The 80 PLUS Gold certification is the other big tick. Gold means this unit is tested and certified to hit at least 87% efficiency at 20% load, 90% at 50% load, and 87% again at full load. That's meaningfully better than Bronze, and it's the sweet spot for most gaming builds where you're not prepared to pay the premium for Platinum or Titanium but still want your electricity bill to reflect sensible engineering choices. The 80 PLUS certification programme independently verifies these figures, so it's not just GIGABYTE claiming it.

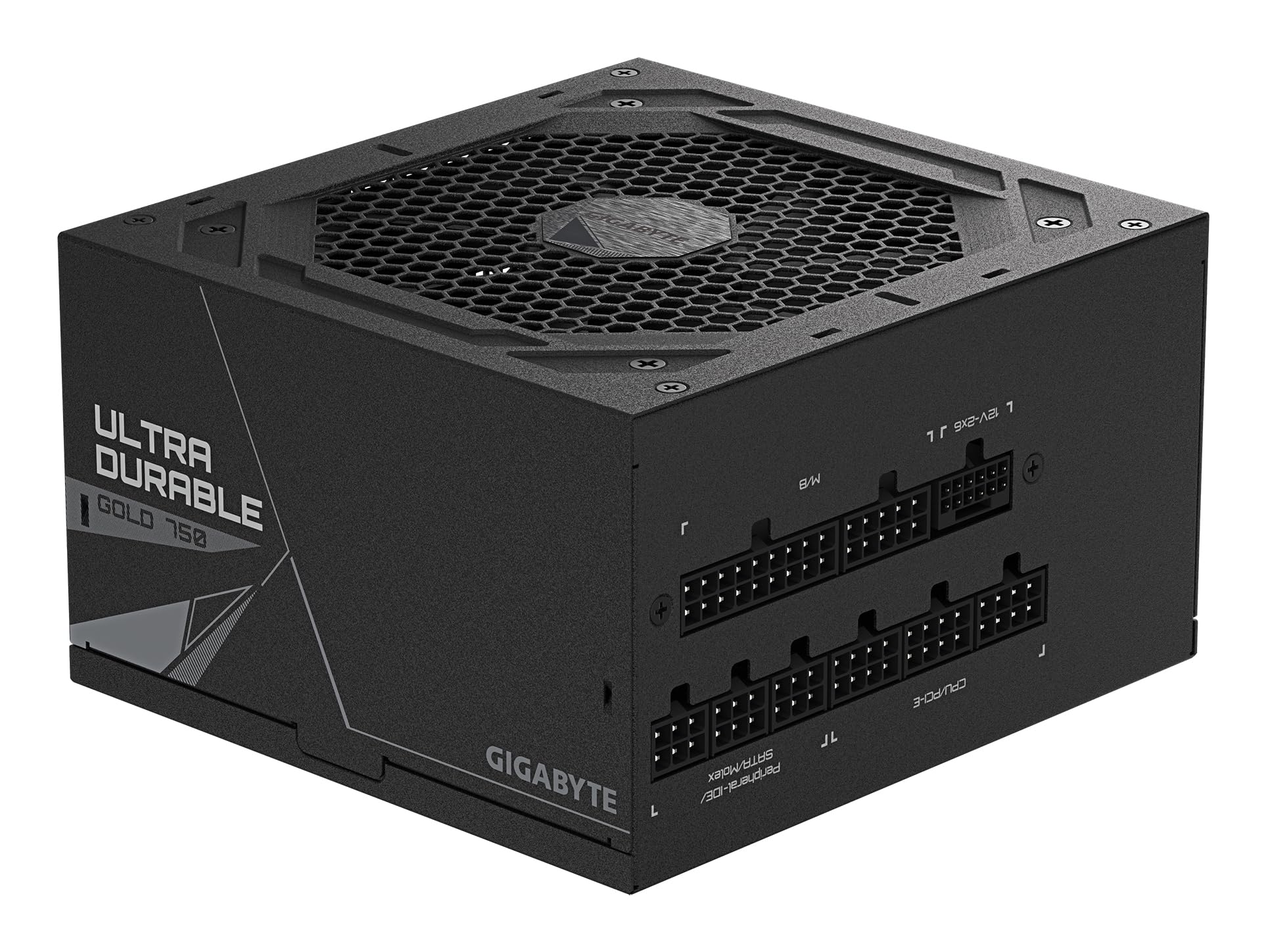

The fully modular design and compact form factor round things out nicely. Compact PSUs aren't always a win (some sacrifice component quality to hit smaller dimensions), but GIGABYTE has kept the 120mm fan and the full Japanese capacitor spec here, which suggests they haven't cut corners to shrink the chassis. The five-year warranty is also worth flagging: that's a real commitment from a manufacturer, and it tells you something about their confidence in the build quality. Short warranties on PSUs are a red flag. Five years is not.

Where 750W starts to feel a bit tight is if you're eyeing an RTX 4080 or higher, especially if your CPU is a power-hungry chip like a Core i9 or Ryzen 9. Those combinations can peak well above 600W under gaming load, and while 750W technically covers it, you're running the unit harder than is ideal for long-term stability and efficiency. The sweet spot for 750W is a build with a mid-range to upper-mid GPU, a mainstream CPU, and no exotic overclocking ambitions. That covers a huge chunk of gaming builds being put together right now.

The single +12V rail design is worth calling out here specifically. Some PSUs split their power delivery across multiple rails with individual current limits, which can cause headaches with high-draw components hitting a per-rail cap even when total wattage is available. A single +12V rail means all that power is available to whatever needs it, when it needs it. For a gaming build where the GPU can spike its draw dramatically in short bursts, that's a practical advantage. It's one of the reasons enthusiast-grade PSUs tend to favour single-rail designs, and it's good to see it here at this price point.

Run the numbers on a typical gaming session: say your system draws 400W from the wall at 50% PSU load. A Gold unit wastes roughly 40W as heat. A Bronze unit wastes roughly 63W. Over a year of regular gaming, that difference is real money. Not life-changing money, but enough to make Gold a sensible choice in the mid-range bracket where the price premium over Bronze is often modest. The efficiency gains also mean less heat inside your case, which is quietly good for component longevity even if it's not something you'll notice day-to-day.

There's also the ATX 3.1 angle. The Intel ATX 3.1 specification requires PSUs to handle power excursions of up to 200% of rated power for brief periods (around 100 microseconds). That's specifically designed to accommodate the kind of sudden GPU power spikes that tripped up older PSUs with modern graphics cards. A Gold-certified, ATX 3.1-compliant unit handles those spikes without triggering protection circuits or causing system instability. If you've ever had a system crash during a GPU-heavy scene and blamed the game, it might have been the PSU. ATX 3.1 compliance is the fix for that.

The compact size GIGABYTE advertises here is relevant to cable management too. A shorter PSU shrink in a standard ATX case means more room in the PSU shroud area for cable routing, which is a genuine quality-of-life improvement. Compact PSUs can sometimes mean shorter cables that don't reach in larger cases, so it's worth checking cable lengths against your specific chassis before buying. That said, most mid-tower cases are well within the reach of standard modular cables, and GIGABYTE's reputation for sensible cable lengths in this range is reasonable.

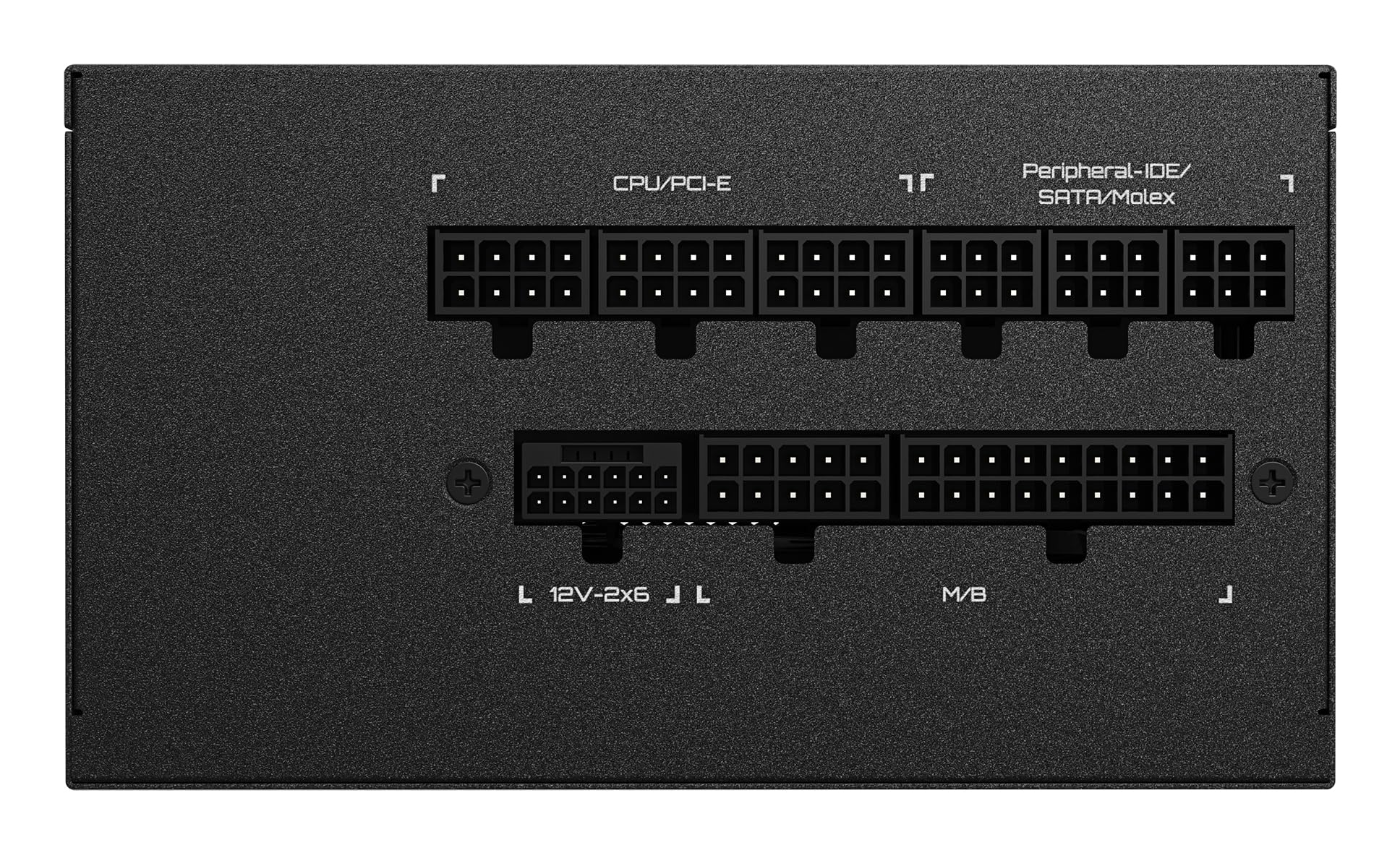

One thing to note: the cable configuration here is practical for the target market. Six SATA connectors is generous, covering a system with multiple SSDs and optical drives without needing a splitter. Three Molex connectors handles older accessories and some fan controllers. The two PCIe 8-pin connectors cover most current-gen GPUs directly. What's not listed is a 12VHPWR (16-pin) connector, which is the native connector for NVIDIA's RTX 40-series and 50-series cards. That doesn't mean you can't use those cards with this PSU (adapters exist and are widely used), but it's worth knowing before you buy. If you're running an RTX 4080 or 4090, you'll want to factor in cable management for an adapter.

The PCIe connector situation deserves a bit more attention. Two 8-pin PCIe connectors means you can power most GPUs natively. Cards like the RTX 4070, RTX 4060 Ti, RX 7800 XT, and RX 7700 XT all use either a single 8-pin or dual 8-pin configuration, so you're covered. Higher-end cards from NVIDIA's RTX 40-series use the 12VHPWR connector (also called the 16-pin or 12+4 pin connector), which is part of the PCIe Gen 5 cabling specification. The UD750GM PG5 V2 doesn't include a native 12VHPWR cable in the listed configuration, but being PCIe Gen 5.1 ready means it's specced to deliver the power those cards need via an adapter. Just make sure you use a proper adapter, not a cheap third-party one.

The six SATA ports are a highlight that often gets overlooked in reviews focused on GPU connectors. If you're building a system with multiple SSDs, an optical drive, and maybe an AIO pump, having six SATA connectors available without daisy-chaining is genuinely useful. Daisy-chained SATA cables (where multiple drives share one cable run) can cause voltage drop issues at the end of the chain, particularly with power-hungry spinning hard drives. Six dedicated SATA connectors sidestep that issue entirely. It's a small thing, but it's the kind of detail that separates a well-specced PSU from one that's just hitting the minimum viable connector count.

The single +12V rail design on the UD750GM PG5 V2 is relevant here. With all power flowing through one rail, there's no risk of load imbalance between rails causing one to sag while another sits underutilised. Ripple suppression (the PSU's ability to smooth out the AC noise that inevitably makes it through the conversion process) is where Japanese capacitors earn their keep. Cheaper Chinese capacitors have lower ripple rejection and degrade faster, particularly at temperature. The 100% Japanese capacitor spec here is a meaningful quality indicator, not just a marketing bullet point. Japanese capacitors from brands like Nippon Chemi-Con or Rubycon are rated for higher temperatures and longer operational lives than their cheaper counterparts.

ATX 3.1 compliance also imposes tighter requirements on transient response, specifically how quickly the PSU can respond to sudden load changes. Modern GPUs, particularly NVIDIA's Ada Lovelace architecture cards, are notorious for drawing power in sharp, brief spikes that can exceed their rated TDP by a significant margin for fractions of a second. An ATX 3.1-compliant PSU is designed and tested to handle these spikes without the output voltage collapsing or protection circuits tripping. That's a real-world reliability improvement over older PSUs running modern GPUs, and it's one of the stronger arguments for buying a current-spec unit rather than a discounted older model.

GIGABYTE describes this as an "optimised thermal solution," which is marketing speak for "we've thought about airflow." The compact chassis design plays into this: a shorter PSU means the fan has less distance to move air through, which can actually improve thermal performance compared to a longer unit with the same fan. The single +12V rail design also helps here because it concentrates heat generation in fewer components, making it easier to manage thermally than a multi-rail design with more conversion stages.

Under sustained high load (think a GPU benchmark running for an extended period in a warm room), any 750W Gold unit will generate meaningful heat. The question is whether the fan can keep up without getting loud, and whether the capacitors and other components are rated for the temperatures they'll see. The Japanese capacitor spec addresses the second concern directly. For the first, the smart fan control should keep things manageable during typical gaming sessions. Prolonged stress in a poorly ventilated case is a different story, but that's true of any PSU at this wattage.

Where things get louder is under heavy sustained load, particularly if your case has poor airflow and the PSU is working harder to compensate for a warmer intake temperature. This isn't unique to the UD750GM PG5 V2; it's physics. But the combination of Gold efficiency, Japanese capacitors rated for higher temperatures, and hydraulic bearing fan construction gives this unit a better noise profile under load than similarly priced Bronze units. That's a genuine advantage if you're building a system where acoustics matter.

For comparison, zero RPM mode (where the fan stops entirely at low load) isn't listed as a feature for this unit. Some competing PSUs at this price point do offer semi-passive operation, which means completely silent at idle. If you're building a near-silent PC and your system spends a lot of time at low load, that's worth factoring in. For a gaming rig that regularly pushes the GPU hard, semi-passive mode matters less because the fan will be spinning anyway once you're in a game. Honestly, for most gaming builds, the acoustic difference between a smart-fan PSU and a semi-passive one is negligible during actual use.

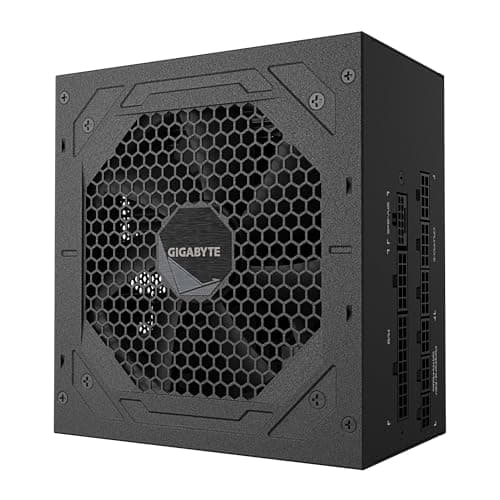

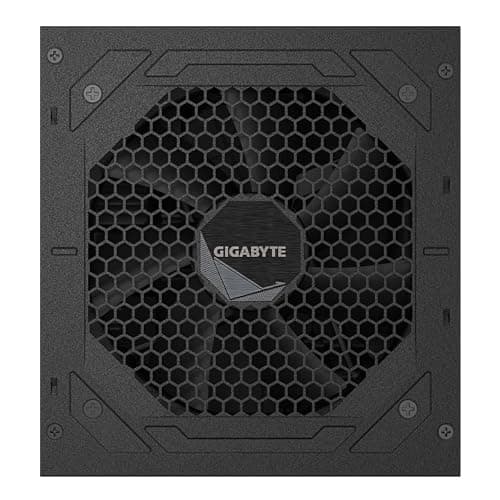

The hydraulic bearing fan is another build quality indicator worth noting. Sleeve bearing fans are cheap and quiet initially but wear out faster, particularly when run at an angle (which happens in some PSU orientations). Ball bearing fans last longer but are noisier. Hydraulic bearing sits between the two: longer life than sleeve bearing, quieter than ball bearing. For a unit with a five-year warranty, using a hydraulic bearing fan is a sensible choice that reflects confidence in the long-term reliability of the unit.

GIGABYTE's UD series has a reasonable track record in the PSU space. They're not the first name you'd think of for power supplies (that's more Seasonic, Corsair, or be quiet! territory), but their higher-end units have generally used quality OEM platforms. The fully modular design, compact chassis, and Japanese capacitor spec all point to this being built on a decent platform rather than a bargain-basement one. The five-year warranty backs that up. A manufacturer doesn't offer five years on a PSU they expect to fail at three.

Over Power Protection (OPP) prevents the PSU from operating beyond its rated wattage for extended periods, which protects both the PSU and the components downstream. Over Temperature Protection (OTP) shuts the unit down if internal temperatures exceed safe limits, rather than letting it cook itself and potentially damage connected components. Having all six of these protections (OVP, UVP, OCP, SCP, OPP, OTP) is what you'd expect from a quality mid-range unit, and it's reassuring to see the full set listed here rather than just the headline ones.

The ATX 3.1 standard also imposes specific requirements on protection circuit behaviour, particularly around how quickly OCP and OPP respond to transient events. An ATX 3.1-compliant PSU has to be able to distinguish between a legitimate GPU power spike (which should be allowed through) and a genuine overcurrent fault (which should be cut). Getting that distinction right is harder than it sounds, and it's one of the reasons older PSUs struggled with modern high-draw GPUs. The UD750GM PG5 V2's ATX 3.1 compliance means its protection circuits are calibrated for modern GPU behaviour, not the more predictable loads of five years ago.

Where the GIGABYTE UD750GM PG5 V2 differentiates itself is the explicit ATX 3.1 and PCIe Gen 5.1 compliance, the single +12V rail design, and the Japanese capacitor specification. The Corsair RM750e is also ATX 3.1 compliant, but the UD750GM PG5 V2's compact form factor and explicit PCIe Gen 5.1 readiness make it a slightly more future-focused choice. The be quiet! Pure Power 12 M has the edge on acoustics reputation (be quiet! is basically synonymous with quiet operation), but the GIGABYTE's HYB fan and Gold efficiency should keep it competitive on noise in real-world use.

The elephant in the room is owner reviews. Three reviews averaging ★★★☆☆ (3.3) is not enough data to draw firm conclusions about real-world reliability. The Corsair RM750e has hundreds of reviews with a strong average, which gives you much more confidence in the consistency of the product. That's not a reason to dismiss the GIGABYTE, but it is a reason to factor in the relative risk. If you're the cautious type who wants the security of a large review base, the Corsair is the safer bet. If you're comfortable with the spec sheet and the manufacturer's warranty as your evidence base, the GIGABYTE holds up well.

The caveats are real though. Three owner reviews is a thin evidence base for a PSU that's asking for your trust with a full gaming rig. The Corsair RM750e and be quiet! Pure Power 12 M both have larger review bases and are proven quantities in the market. The absence of a native 12VHPWR cable is a minor annoyance if you're running a high-end NVIDIA GPU, though the PCIe Gen 5.1 compliance means the power delivery is there, you'll just need an adapter. And the lack of zero RPM mode means it's not the first choice for a near-silent build.

But here's what tips it in the right direction: the five-year warranty, the Gold efficiency, the ATX 3.1 compliance, and the Japanese capacitor spec are all things that matter for long-term reliability. GIGABYTE isn't cutting corners on the bits that count. For a builder who wants a current-spec, quality PSU at a mid-range price and isn't chasing the brand reassurance of Corsair or be quiet!, the UD750GM PG5 V2 earns a solid recommendation. Score it around 8 out of 10 for the spec-to-price ratio, with the only real deductions for the thin review base and the missing native 12VHPWR connector.

If you're building a gaming PC with an RTX 4070, RX 7800 XT, or similar mid-to-high-end GPU alongside a mainstream CPU, this PSU fits the brief well. If you need a native 12VHPWR connector or zero RPM mode, look at the Corsair RM750e instead. And if you're running a budget build that doesn't need 750W of Gold-certified power, save your money and look at Bronze-rated alternatives. But for the target audience, the GIGABYTE UD750GM PG5 V2 is a proper mid-range PSU that doesn't mess about.
