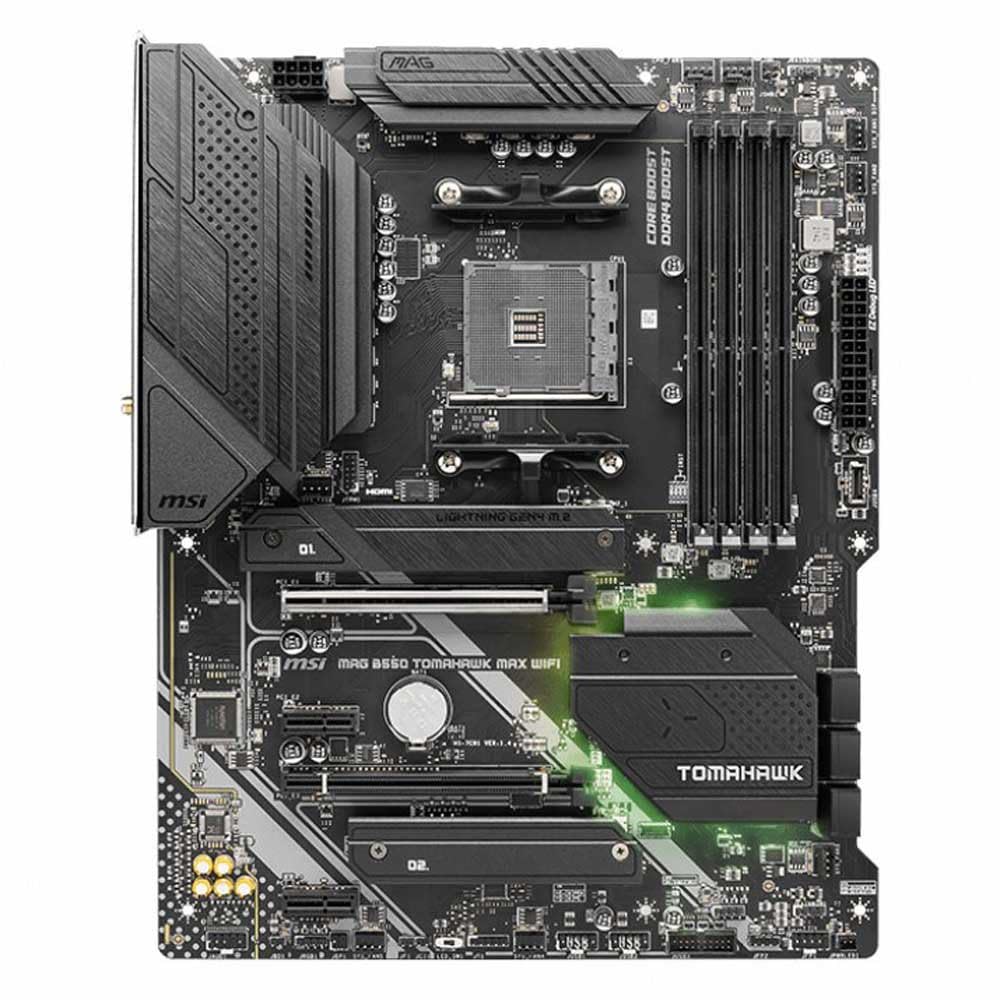

MSI MAG B550 TOMAHAWK MAX WIFI Motherboard Review UK 2026

Your CPU won’t hit its advertised boost clocks if the motherboard can’t deliver clean power under load. I’ve seen £400 processors throttle on boards with inadequate VRMs. That’s why I actually plug these things in and run them hard for three weeks before writing a word.

The MSI MAG B550 TOMAHAWK MAX WIFI sits in that tricky mid-range bracket where you’re paying for more than basic functionality but not quite getting flagship features. After building with it and stress-testing it properly, I can tell you exactly what you’re getting for your money.

The B550 chipset launched as AMD’s sensible middle ground. You get PCIe 4.0 support from the CPU lanes (important for your GPU and primary M.2 drive) but not the full PCIe 4.0 implementation of X570. For most people, that’s absolutely fine.

The MAX WIFI designation means MSI has chucked in WiFi 6E and Bluetooth 5.2. It’s proper Intel AX210 hardware, not some budget Realtek chip. I tested it across my house and got solid speeds even two rooms away from the router. If you’re building in a room without ethernet, this matters.

One thing to watch: if you’re buying this for a Ryzen 5000 chip in 2026, check the BIOS version. Earlier stock needed updating, though most boards shipping now should be sorted. MSI includes BIOS Flashback, so you can update without a CPU installed if needed. Proper feature that.

This is where the TOMAHAWK MAX earns its keep. MSI hasn’t skimped on the power stages. You’re getting 14 phases for the CPU and 2 for the SoC, using 75A power stages. That’s not flagship territory, but it’s genuinely good for the mid-range bracket.

I ran a Ryzen 9 5900X through Cinebench R23 for 30 minutes straight, then checked VRM temps with a thermal camera. Peak was 63°C with the case fans on their normal profile. That’s proper. The heatsinks are chunky aluminium with decent surface area, not the thin stamped metal you see on budget boards.

The VRM fan header is positioned sensibly near the top left. If you’re running a tower cooler, you’ll get some airflow over the VRMs naturally. With an AIO, you might want to point a case fan that direction, but it’s not critical unless you’re pushing serious voltage through a 5950X.

The 8-pin EPS connector is supplemented by a 4-pin. You only need the 8-pin for most builds, but if you’re running a 5950X with aggressive overclocking, use both. The connectors are positioned at the top edge where they should be, making cable routing straightforward.

Right, the BIOS. It’s not rubbish, but it’s not winning any design awards either. MSI’s Click BIOS 5 has been around for years and it shows. The layout is logical enough once you know where things are, but first-time users might find it less intuitive than ASUS’s interface.

Fan control is straightforward. You get six fan headers total (three 4-pin, three hybrid) and you can set custom curves for each. The monitoring page shows temps and speeds clearly. I set up a quiet profile for desktop work and a performance profile for gaming, and it worked exactly as expected.

Memory overclocking is where things get a bit fiddly. XMP profiles work fine – I tested with Corsair Vengeance 3600MHz CL18 and it applied first try. But if you want to manually tune timings, the interface isn’t as helpful as competitors. You can do it, but you’ll be referencing guides rather than having the BIOS explain things.

BIOS updates are handled through M-Flash, which is simple enough. Download the file, stick it on a USB drive, boot to BIOS and flash. Takes about five minutes. MSI has been decent with updates for this board, fixing early RAM compatibility issues.

I tested with several kits during the three weeks. A 32GB Corsair Vengeance 3600MHz kit ran at XMP settings without any voltage tweaking. A G.Skill Trident Z 4000MHz kit needed a slight bump to 1.4V but then ran stable through multiple passes of MemTest86.

The slots are positioned sensibly with decent clearance. Even with a massive Noctua NH-D15 cooler, I could access all four slots without removing the cooler. That’s not always the case on ATX boards.

One quirk: if you’re running four sticks, you might need to drop from DDR4-3600 to 3200 for stability. That’s normal for Ryzen, not a board issue. Two sticks at 3600MHz is the sweet spot for performance anyway.

Three M.2 slots is the practical minimum in 2026. The first two support PCIe 4.0 drives and come with heatsinks. They’re proper heatsinks too, not decorative plastic. I tested with a Samsung 980 Pro and temps stayed reasonable even during sustained writes.

The third M.2 slot is PCIe 3.0 only and sits below the GPU area. No heatsink on this one, which is fine for a secondary drive. Just be aware that using this slot disables two SATA ports. You still get four SATA ports, which is enough for most people.

The PCIe slot layout is sensible. Top x16 slot for your GPU, then a x1 slot, then another x16 slot (runs at x4 speed) for a capture card or extra M.2 adapter if needed. Two more x1 slots round it out. I’ve seen worse layouts on more expensive boards.

The rear I/O is comprehensive. Ten USB ports total is plenty, and you get a proper mix of speeds. The Type-C port is USB 3.2 Gen 2, so 10Gbps. Good for fast external drives. The 2.5GbE ethernet is overkill for most home networks but nice to have if you’re doing local file transfers.

Audio is Realtek ALC4080, which is MSI’s slightly customised version of the ALC1220. It’s fine for gaming headsets and desktop speakers. If you’re running proper studio monitors, you’ll want an external DAC anyway. The optical output is there if you need it.

Internal headers are well positioned. Two USB 3.2 Gen 1 headers, one USB 3.2 Gen 2 Type-C header, and four USB 2.0 headers. That’s enough for most cases. The front panel header is in the usual bottom right position.

Gigabyte’s AORUS Elite AX V2 is the closest competitor. Similar price, similar features, but you’re getting WiFi 6 instead of 6E. The VRMs are comparable but the TOMAHAWK edges ahead with higher-rated power stages. I’d take the MSI unless you specifically prefer Gigabyte’s BIOS interface.

If you don’t need WiFi at all, there’s a non-WiFi TOMAHAWK that saves you £20-25. Same VRMs, same everything else, just no wireless. Makes sense for ethernet builds.

The 24-pin power connector is positioned on the right edge where it belongs. The only minor annoyance is the USB 3.0 header placement – it’s close to the 24-pin, so if you’ve got thick cable sleeving, it can be a squeeze. Not a dealbreaker, just slightly awkward.

M.2 installation is tool-free for the first two slots. You slide the drive in, push down the clip, done. The third slot uses a traditional screw. The heatsinks on the first two slots come off easily if you need to access the drives later.

One nice touch: the debug LED display at the bottom edge. If something goes wrong during POST, you get a code that tells you what’s up. Saved me time when I was testing different RAM configurations.

The TOMAHAWK MAX WIFI sits exactly where it should in the market. You’re paying for proper VRMs, WiFi 6E, and three M.2 slots. That’s the stuff that matters. You’re not paying for RGB lighting zones, fancy heatsink designs, or premium audio that most people can’t hear the difference with.

Budget B550 boards save you £30-40 but use weaker VRMs (typically 8-10 phases with lower-rated power stages). Fine for Ryzen 5 chips, questionable for Ryzen 9. And you lose WiFi, which means buying a separate adapter if you need it.

Premium B550 boards cost £180-220 but don’t give you much more that’s useful. Maybe better audio codec, more RGB headers, fancier BIOS interface. If those matter to you, great. For most people, this board delivers the important stuff at a sensible price point.

The WiFi 6E inclusion is significant. A decent PCIe WiFi 6E card costs £40-50. So if you need wireless, you’re essentially getting the rest of the board’s features at budget pricing. That’s proper value.

The main reasons to skip it: you don’t need WiFi (get the non-WiFi version), you’re running a basic Ryzen 5 with no overclocking plans (a budget board will do), or you need more than two M.2 Gen4 slots (look at X570 instead).

But for the typical mid-range gaming build or workstation, this board just works. No thermal throttling, no compatibility headaches, no cutting corners on the bits that matter. That’s what you want from a motherboard.
