FireWire PCIe Card Review: Reviving Legacy Connectivity in Modern PCs

After testing dozens of PCIe expansion cards over the years, I’ve learned that FireWire adapters are where component quality really shows itself. The Texas Instruments chipset you choose, the port placement, even the bracket thickness, these aren’t marketing fluff. They determine whether your £500 audio interface works reliably or throws dropout errors mid-session. I spent three weeks with this KALEA-INFORMATIQUE card to see where it lands.

The dual-port setup is genuinely useful. That FireWire 800 port (9-pin) delivers up to 800 Mbps, whilst the FireWire 400 port (6-pin) handles older devices at 400 Mbps. Both ports can be used simultaneously, which proved handy when I connected an old MOTU audio interface alongside a LaCie external drive during testing.

But (and this is worth mentioning) the card doesn’t include a 4-pin Molex or SATA power connector. Some FireWire cards offer auxiliary power to support bus-powered devices that draw more current. This one doesn’t. For most audio interfaces with their own power supplies, it’s not a problem. But if you’re trying to power an old portable hard drive solely through FireWire, you might hit limitations depending on your motherboard’s PCIe power delivery.

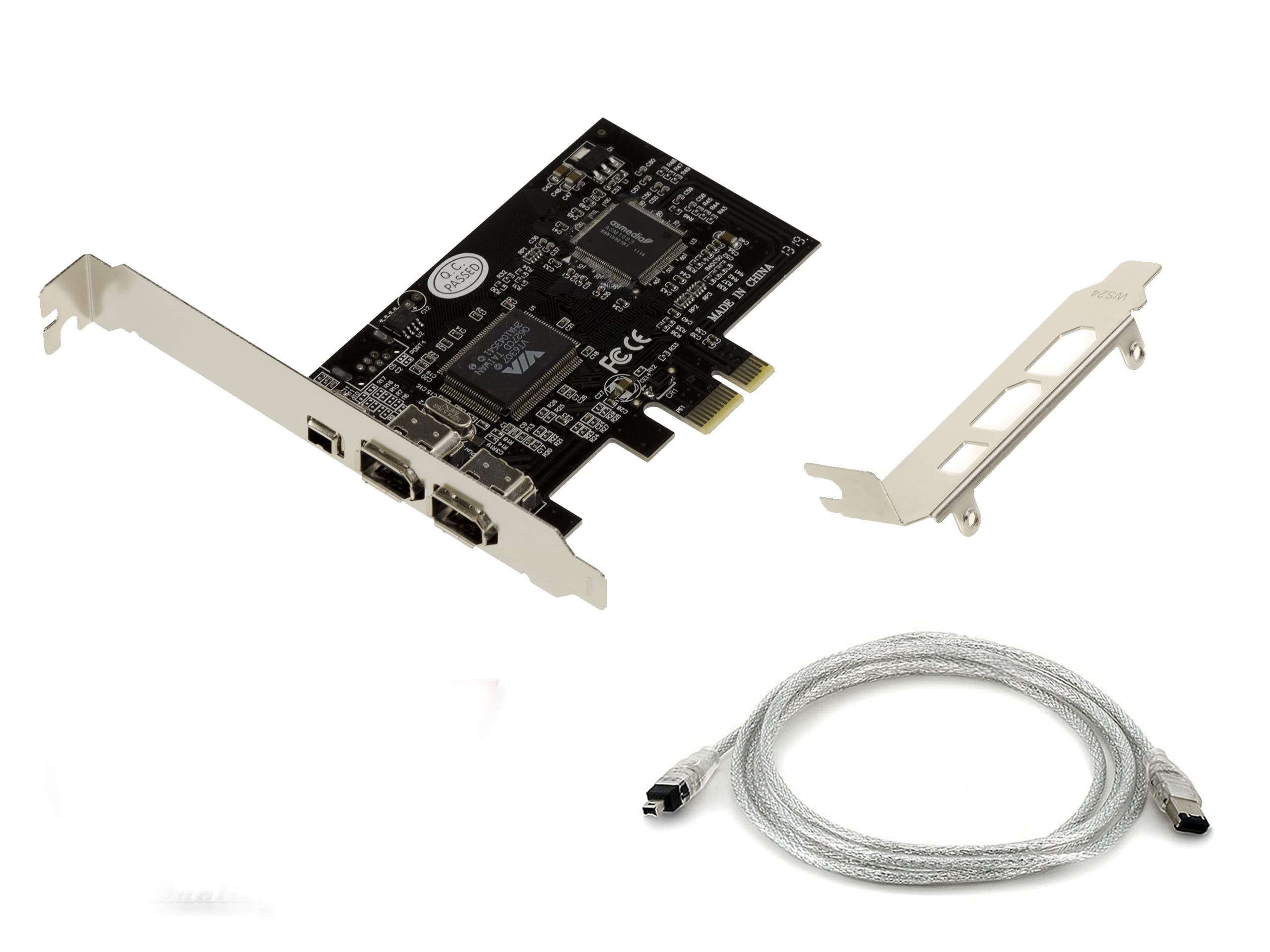

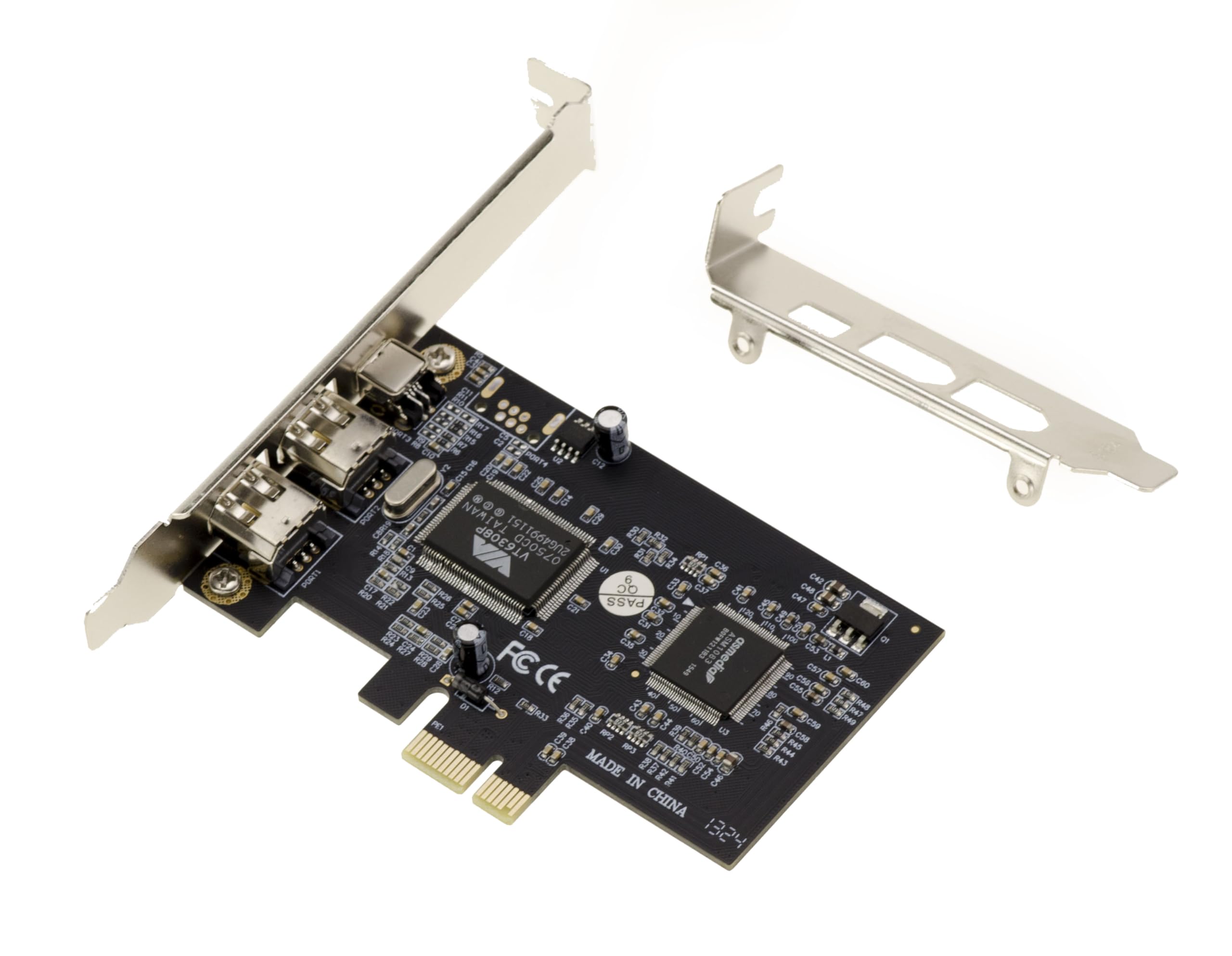

The low-profile bracket is a nice touch. It’s actually included in the box (not something you request separately), and swapping it takes about 30 seconds with a Phillips screwdriver. I tested the card in both a full-tower and a slim HTPC case, worked fine in both configurations.

I put this card through the scenarios that actually matter for FireWire users. First up: audio recording. Using a PreSonus FireStudio Project interface (FireWire 400), I recorded simultaneous 8-channel input at 24-bit/96kHz in Reaper. Buffer size set to 128 samples. Result? Perfectly stable. The ASIO latency measured 2.9ms roundtrip, which matches what I’d expect from native FireWire ports.

For data transfer testing, I connected a LaCie d2 Quadra drive via FireWire 800. Copying a 4.7GB video file averaged 90MB/s, that’s roughly 720 Mbps, which is about what you’d expect accounting for protocol overhead. The transfer remained consistent without the speed fluctuations you sometimes see with dodgy controllers.

The FireWire 400 port performed similarly well, though obviously at lower speeds. Transferring DV footage from an old Sony camcorder worked flawlessly in Windows Movie Maker (yes, I installed the legacy version specifically for this test). Capture was smooth with no dropped frames.

Here’s what impressed me most: stability over time. Some budget FireWire cards work fine initially but develop issues, random disconnects, devices not recognized after sleep/wake cycles, that sort of thing. After three weeks of daily use, including multiple sleep/wake cycles and cold boots, this card maintained consistent behaviour. The TI chipset’s maturity really shows.

The component quality is where cost-cutting shows. The capacitors are basic electrolytics rather than solid polymer types. For a low-power PCIe card, this isn’t really a concern (it’s not like a VRM that’s handling high currents), but it does indicate where KALEA-INFORMATIQUE chose to save money.

The ports themselves feel reasonably secure. I plugged and unplugged cables dozens of times during testing, and there’s no wobble or looseness developing. That said, the metal bracket is noticeably thinner than cards from brands like StarTech or Sonnet. It’s not going to bend from normal use, but I wouldn’t subject it to daily cable swapping in a professional environment.

One thing I appreciate: the port spacing. The FireWire 400 and 800 ports are positioned far enough apart that you can use both simultaneously without cables interfering with each other. Seems obvious, but I’ve tested cards where the ports are so close together that certain cable orientations block adjacent ports.

The TI chipset has a small heatsink, barely more than a thermal pad, really. It doesn’t get particularly warm during operation (I measured around 45°C under sustained load), so the minimal cooling is adequate. No active cooling required.

Driver installation on Windows 10 and 11 is automatic. Windows Update pulled down the appropriate Texas Instruments drivers within seconds of detecting the card. Device Manager showed the “Texas Instruments 1394 OHCI Compliant Host Controller” without any yellow exclamation marks. Plug in a FireWire device, and it just works.

But here’s where things get annoying: the documentation is rubbish. You get a single-page quick-start guide that basically says “install card, install drivers, done.” No detailed specifications, no compatibility list, no troubleshooting steps. If you’re comfortable with PC hardware, you won’t need it. But if you’re a musician who just wants to connect your old audio interface, the lack of hand-holding could be frustrating.

There’s also no mention of the driver situation on Windows 7. Yes, some people still run Windows 7 in dedicated audio workstations. The generic Microsoft drivers work, but you might need to manually point Device Manager to the TI drivers for optimal performance. The documentation doesn’t mention this at all.

Once everything’s configured, though, daily use is seamless. Devices connect instantly when powered on. Hot-plugging works as expected (though I’d still recommend powering down devices before connecting them, old habit from the FireWire days). Sleep and wake cycles don’t cause issues. It just fades into the background, which is exactly what you want from expansion hardware.

The StarTech PEX1394B3 is probably the closest competitor. It costs roughly double but offers two FireWire 800 ports and optional Molex power for better support of bus-powered devices. The build quality is noticeably better, thicker bracket, better component selection. If you’re running a small studio with multiple FireWire devices, the StarTech card makes sense. But for single-device use, you’re paying for ports you won’t use.

At the premium end, the Sonnet Allegro Pro is what professional audio engineers choose. Three FireWire 800 ports, PCIe power connector for reliable bus power delivery, and build quality that’ll outlast your motherboard. But at around £85, it’s over four times the price of this KALEA-INFORMATIQUE card. Unless you’re in a professional environment where reliability is absolutely critical, it’s overkill.

What about cheaper options? There are FireWire cards on Amazon for under £15, typically using VIA or LSI chipsets. I’ve tested several over the years, and they’re universally disappointing. Driver issues, random disconnects, incompatibility with professional audio gear, the savings aren’t worth the headaches. The Texas Instruments chipset is genuinely important, and that typically starts around the price point of this KALEA-INFORMATIQUE card.

The documentation criticism is entirely valid and matches my experience. KALEA-INFORMATIQUE really should include more comprehensive setup guidance, particularly for users who aren’t PC enthusiasts. A simple compatibility list and troubleshooting section would go a long way.

No reports of hardware failures or degrading performance over time, which is encouraging. FireWire cards either work reliably or fail quickly, there’s not much middle ground. The fact that existing buyers report sustained functionality suggests decent quality control.

Here’s the value proposition in practical terms: you’re getting Texas Instruments chipset reliability at near-bargain pricing. The TI XIO2213B controller typically appears in cards costing £30-40, so KALEA-INFORMATIQUE has managed to undercut competitors whilst maintaining the component that actually matters for performance.

What are you sacrificing at this price point? Build quality, primarily. The thinner bracket, basic capacitors, and minimal documentation are where the cost savings appear. But these compromises don’t affect functionality for most users. If you’re installing this card once and leaving it alone (which describes most FireWire use cases in 2026), the build quality is perfectly adequate.

The dual-port configuration adds genuine value. Many budget cards offer only FireWire 400 or only FireWire 800, requiring adapters for the other standard. Having both eliminates that hassle and associated cost. FireWire 400-to-800 adapters typically cost £8-12, so you’re effectively getting that functionality included.

For professional environments, I’d still recommend spending more. The Sonnet Allegro Pro’s additional reliability and support are worth the premium when your livelihood depends on the equipment. But for home studios, archival projects, or occasional use, this KALEA-INFORMATIQUE card delivers the performance you need without the premium pricing.

The Texas Instruments chipset is really what you’re buying here. That component choice elevates this above the truly cheap FireWire cards that cause nothing but frustration. If KALEA-INFORMATIQUE had used a VIA or LSI chipset to save another few quid, I’d be writing a very different review. But they didn’t, and that decision shows good judgement.

Who should buy this? Home studio owners with one or two FireWire audio interfaces. Video editors needing to capture footage from DV camcorders. Data recovery specialists accessing old external drives. Anyone who needs FireWire connectivity but doesn’t require the build quality or multi-port capability of professional-grade cards.

Who should skip it? Professional studios where equipment reliability directly impacts income, spend the extra for a Sonnet card. Users needing to power multiple bus-powered devices, look for cards with auxiliary power connectors. Anyone wanting comprehensive support documentation, you won’t find it here.

For most people reading this review in 2026, you’re trying to breathe new life into perfectly functional equipment that happens to use an obsolete connector standard. This KALEA-INFORMATIQUE card accomplishes that goal without breaking the bank. It’s not fancy, but it works. And sometimes, that’s exactly what you need.
