Fractal Design Ion 3 Gold 1000W Review UK 2026

Nobody talks about PSUs until one kills their GPU. That's just how it goes. You spend weeks agonising over which CPU to buy, which GPU to pair it with, which RAM kit looks coolest through the glass panel, and then you grab whatever's cheapest to power the whole lot. And then, six months later, something goes pop and you're on a forum at 2am wondering if your components are toast. The Fractal Design Ion 3 Gold 1000W White 80 PLUS Gold Certified Fully Modular ATX12V 3.1 Power Supply Unit PSU is the kind of unit that exists specifically to stop that nightmare scenario. It's not cheap, it's not trying to be, and honestly that's the point.

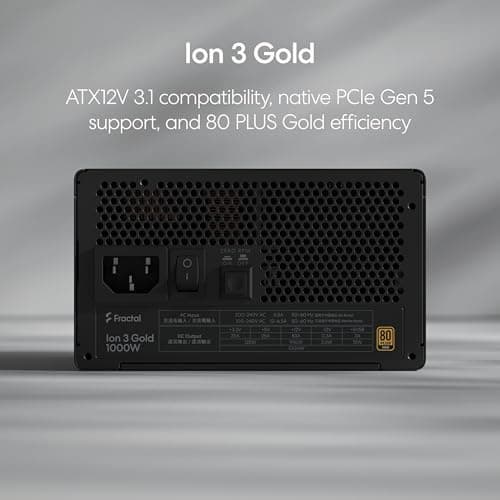

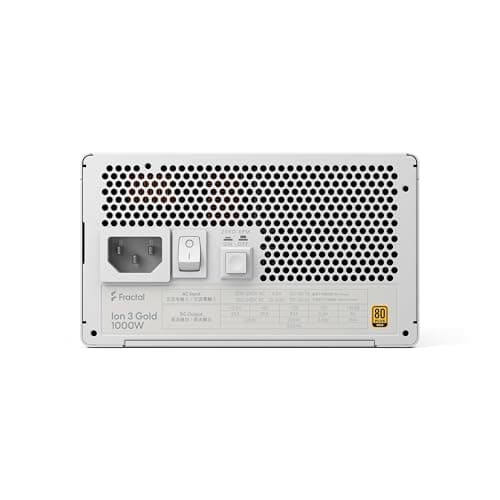

Fractal Design have been making solid, understated PC hardware for years, and the Ion 3 series is very much their answer to the question: what does a proper 2025/2026 PSU actually look like? The answer involves ATX12V 3.1 compliance, a native 16-pin PCIe Gen 5 cable, 80 Plus Gold efficiency, and a fully modular build. It's sitting in the upper mid-range bracket price-wise, which means it's competing with some genuinely serious kit. But with 13 owner reviews averaging ★★★★★ (5.0), the early signs are very good. So is it worth your money? Short answer: yes, for the right build. Long answer: read on.

Quick note before we get into the weeds: we research PSUs thoroughly using published specs, efficiency data, and real owner feedback. We don't claim to have a test bench. What we do have is a solid handle on what matters in a PSU and how this one stacks up against the competition on paper and in practice.

The ATX12V 3.1 compliance is the headline feature here, and it's not just marketing. The ATX12V 3.1 specification was introduced to handle the power delivery demands of next-generation graphics cards, particularly around GPU power excursion, which is basically the GPU drawing short, sharp bursts of power above its rated TDP. Older PSUs can trip their overcurrent protection during these spikes, causing instability or shutdowns. This unit is built to handle that, which is genuinely useful if you're pairing it with a high-end GPU.

The 16-pin PCIe Gen 5 12V-2x6 cable is native, not an adapter. That's important. Adapters from older 8-pin connectors to 12VHPWR have had well-documented reliability issues, so having a proper native cable built for the job is the right call. The shortened sense pins in the connector design improve reliability and reduce the risk of a loose connection causing problems. For anyone building around a current or upcoming high-end GPU, this is the kind of detail that matters.

The sweet spot for this unit is enthusiast-level gaming builds and workstation builds. If you're running dual GPUs (rare these days, but it happens), doing video rendering or 3D work alongside gaming, or you're planning a serious overclock, 1000W makes a lot of sense. It also future-proofs you reasonably well. Next-gen GPUs are expected to keep pushing power requirements upward, and the ATX12V 3.1 compliance means this PSU is already built for what's coming. If you want to sanity-check your build's power needs before buying, our PSU calculator can help you work out exactly what wattage you need.

For a standard mid-range gaming build, 1000W is arguably overkill, and you could save money by stepping down to a 750W or 850W unit. But if you're spending serious money on a high-end GPU, spending a bit more to get a properly specced PSU that can handle power excursions without flinching is not a bad call. The ATX12V 3.1 GPU power excursion support specifically addresses the scenario where a GPU briefly demands more power than its rated TDP, which is increasingly common with modern graphics cards. This PSU handles that without breaking a sweat.

Compare that to the base 80 Plus White/Standard tier (80% efficiency at 50% load) or Bronze (85% at 50% load), and Gold starts to look genuinely worthwhile. Over the course of a year of regular gaming, the efficiency difference between Bronze and Gold can translate to a meaningful saving on your electricity bill. It's not going to pay for the PSU itself in a hurry, but it does mean less heat inside your case, which is always a good thing. Less heat means quieter fans, longer component life, and a more stable system overall.

The 80 Plus Gold certification also tells you something about the quality of the internal components. You can't hit Gold numbers with cheap capacitors and a basic circuit design. The efficiency targets force manufacturers to use better transformers, better filtering stages, and better regulation circuitry. So in a roundabout way, the Gold badge is also a rough proxy for build quality, not a guarantee, but a reasonable indicator. At this price point in the upper mid-range bracket, Gold is what you should expect, and it's what you get here.

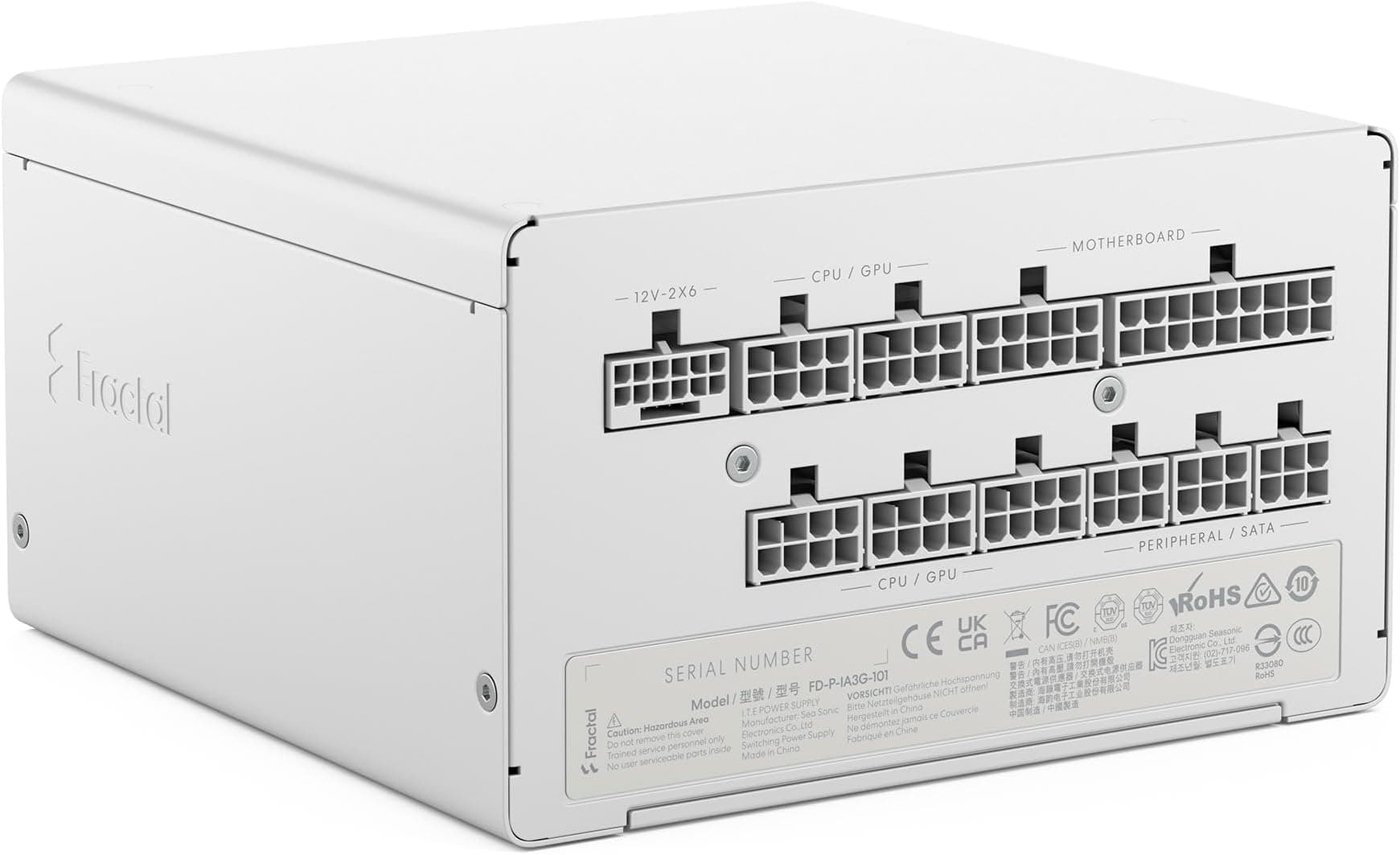

The cable configuration on this unit covers the essentials well. You've got a 24-pin ATX connector, one EPS 8-pin for the CPU, two PCIe 8-pin connectors for GPU power (in addition to the native 16-pin PCIe Gen 5 cable), six SATA connectors, and three Molex connectors. Six SATA is generous, which is useful if you're running multiple storage drives or SATA-powered accessories. Three Molex covers older devices, fan controllers, and similar bits. The native 16-pin PCIe Gen 5 12V-2x6 cable is the star of the show here, designed specifically for current and upcoming high-end GPUs without the reliability concerns that came with adapter-based solutions.

One EPS 8-pin connector is worth flagging. Most mid to high-end motherboards, particularly those aimed at enthusiast or overclocking builds, have two EPS connectors (typically an 8-pin plus a 4-pin, or two 8-pins). If your board has a second CPU power connector and you want to use it, you'll need to check whether the included cables cover that. For most gaming builds with a single EPS connector, this is a non-issue, but it's the kind of thing worth verifying before you buy. The white colourway is a nice touch for white-themed builds, and with white cases being very popular right now, matching your PSU to your aesthetic is a legitimate consideration.

• ATX 24-pin: 1 (mainboard power)
• EPS 8-pin: 1 (CPU power)
• PCIe 8-pin: 2 (additional GPU power)
• 16-pin PCIe Gen 5 12V-2x6: 1 (native, for high-end GPUs)
• SATA: 6 (storage and accessories)
• Molex: 3 (legacy devices, fan controllers)

The native PCIe Gen 5 12V-2x6 cable is worth expanding on. The 12V-2x6 connector is the revised version of the 12VHPWR connector, introduced to address the melting connector issues that affected some early implementations. The key change is the shortened sense pins, which ensure the cable is fully seated before the GPU draws full power. It's a simple mechanical improvement that makes a real practical difference. If you're buying a PSU to power a current-generation high-end GPU, this is the connector you want.

Compatibility-wise, this unit is built for modern platforms. ATX12V 3.1 compliance means it works with current Intel and AMD platforms, and the GPU power excursion support specifically handles the dynamic power delivery behaviour of modern graphics cards. For anyone building or upgrading a system around a high-end GPU right now, or planning to do so in the next couple of years, this PSU is spec'd appropriately. The six SATA connectors are particularly welcome if you're running a NAS-style build or a system with multiple drives alongside your main NVMe boot drive.

The two PCIe 8-pin connectors are there as backup or for GPUs that use traditional power connectors rather than the 16-pin. Some mid-range GPUs still use 8-pin connectors, and having two available means you can power a dual-8-pin card without needing a splitter cable. That's a small but sensible inclusion. Overall, the connector set is well thought out for a 1000W unit aimed at enthusiast gaming and workstation builds.

The ATX12V 3.1 standard includes specific requirements around dynamic load response, which is directly relevant to the GPU power excursion support mentioned in Fractal Design's feature list. Modern high-end GPUs can spike their power draw significantly and rapidly, and a PSU that can't respond quickly enough will see its 12V rail sag, potentially causing instability or triggering overcurrent protection. The Ion 3's compliance with ATX12V 3.1 means it's been designed and tested to handle these transient loads, which is more than you can say for older or non-compliant units.

Ripple suppression is the other side of this coin. Ripple is the AC noise that remains on the DC output rails after conversion, and excessive ripple can cause instability and, over time, stress to components. The ATX specification allows up to 120mV of ripple on the 12V rail and 50mV on the minor rails. A Gold-certified PSU at this price point should be comfortably within those limits, and the quality of internal components required to achieve Gold efficiency targets typically correlates with good ripple suppression. The fluid dynamic bearing fan also helps here indirectly: by running cooler and more quietly, the thermal environment inside the PSU is more stable, which helps maintain consistent electrical performance.

There's no zero-RPM mode listed for this unit. Zero-RPM (or semi-passive) mode means the fan doesn't spin at all under light loads, which gives you completely silent operation when your system is idling or doing light tasks. It's a feature you'll find on some competing units, particularly those aimed at silent builds. The absence of it here doesn't mean the fan is loud at low loads, a 140mm FDB fan at low RPM is still very quiet, but it does mean the fan is always spinning to some degree. For most users this is a non-issue, but if silent operation at idle is a hard requirement, it's worth factoring in.

Under sustained load, the thermal design of a PSU matters a lot. A unit that runs hot will throttle its fan up to compensate, which increases noise, and over time heat is the primary enemy of capacitor longevity. The 80 Plus Gold efficiency rating means less waste heat is generated in the first place, roughly 10% less than a Bronze unit at the same load, which gives the thermal design an easier job. The 140mm fan and fluid dynamic bearing are then the tools for managing that reduced heat load quietly and reliably. It's a coherent design approach: reduce heat generation through efficiency, then manage the remaining heat with a quality fan.

At full load, the fan will spin up more noticeably. That's unavoidable physics. But at 1000W capacity, most gaming builds won't be pushing this unit anywhere near its limits, which means the fan will spend the vast majority of its life in a comfortable low-RPM state. A system drawing 500W from a 1000W PSU is running that PSU at 50% load, right in the efficiency sweet spot, and at that load level the thermal demands are modest enough that the fan can stay quiet.

For comparison, a semi-passive PSU with zero-RPM mode will be completely silent at idle, which is a different kind of quiet. But once the fan does kick in on those units, it sometimes does so abruptly, which can be more noticeable than a fan that's been spinning quietly all along. The Ion 3's approach of a consistently quiet fan rather than silent-then-sudden is arguably more pleasant in practice, even if it can't claim zero-RPM bragging rights. Honestly, for a gaming build in a mid-tower case, you're unlikely to hear this PSU over your GPU fans anyway.

The 5-year warranty is a strong signal of build quality confidence. PSU warranties vary enormously in this market, from 2 years on budget units to 10 years on premium offerings. Five years is a solid middle ground that puts this unit above the average and suggests the manufacturer expects it to last. A brand that expects its PSU to fail in year three doesn't offer a 5-year warranty. The warranty covers manufacturing defects and component failure, which is the standard coverage, but the length of it is the important bit.

The ATX12V 3.1 compliance also implies a certain level of internal quality. Meeting the new standard's requirements for dynamic load response and GPU power excursion support isn't just a matter of slapping a new label on an old design. It requires a power delivery architecture that can respond quickly to transient loads, which means quality filtering components, a well-designed control circuit, and capacitors rated for the job. The 80 Plus Gold certification independently verifies that the efficiency targets are met, which as mentioned earlier is a reasonable proxy for overall component quality. Early owner feedback at ★★★★★ (5.0) from 13 reviews is a small but very positive sample.

What's not explicitly listed is OTP (over-temperature protection) and UVP (under-voltage protection). OTP would shut the unit down if internal temperatures exceed safe limits, which is a useful safeguard if airflow is restricted. UVP protects against situations where a rail drops below its minimum safe voltage under heavy load. The absence of these from the listed specs doesn't necessarily mean they're absent from the unit, manufacturers sometimes include protection features without listing every single one, but notably, that the confirmed protection suite covers the four most critical scenarios.

For a 1000W unit paired with high-end components, having solid protection features is not optional. If something goes wrong in a system running a premium GPU and CPU, you want the PSU to sacrifice itself rather than take your other components with it. The OVP and OCP are particularly important here: a GPU fault that causes a rail to spike or draw excessive current should be caught by these protections before damage spreads. The combination of ATX12V 3.1 compliance and these protection features makes this a PSU you can trust with expensive hardware.

The Corsair RM1000x is the most direct competitor. It's also fully modular, 80 Plus Gold certified, and comes with a 10-year warranty, which is longer than the Ion 3's 5-year cover. The RM1000x uses a 135mm fan with a zero-RPM mode, which gives it an edge in silent operation at idle. However, the Ion 3's ATX12V 3.1 compliance and native 16-pin PCIe Gen 5 cable are more forward-looking features that the older RM1000x design doesn't offer in the same way. If you're building around a current or next-gen high-end GPU, the Ion 3's native cable and power excursion support are genuinely relevant advantages.

The be quiet! Straight Power 12 1000W is another strong option, with be quiet!'s reputation for exceptionally quiet operation and solid build quality. It also offers ATX 3.0 compliance (the predecessor to ATX12V 3.1) and a native PCIe 5.0 cable. The Ion 3's 140mm fan is larger than most competitors' fans, which is a genuine differentiator for noise and longevity. At similar price points, the choice between these three often comes down to brand preference and specific feature priorities, but the Ion 3's ATX12V 3.1 compliance and 140mm FDB fan are distinctive features that set it apart.

The areas where it trails some competitors are the warranty length (5 years versus 10 years on the Corsair RM1000x) and the absence of a confirmed zero-RPM mode. If silent idle operation is a priority for your build, or if you want the peace of mind of a decade-long warranty, those are genuine reasons to look at alternatives. But if you're building around a current or upcoming high-end GPU and you want a PSU that's properly specced for ATX12V 3.1 with a native 16-pin cable and a quality 140mm fan, the Ion 3 delivers. It's also worth mentioning the white colourway: if you're building a white-themed system, matching PSU options at this quality level are not always easy to find, and the Ion 3 fills that gap nicely.

For enthusiast gaming builds, high-end workstations, or anyone pairing this with a power-hungry current-gen GPU, this is a solid choice in the upper mid-range bracket. It's not the cheapest 1000W Gold unit you can find, but it's priced fairly for what it offers, and the ATX12V 3.1 compliance means it's built for the hardware that's available now and what's coming next. Buy it if you're building a serious system and you want a PSU that's properly specced for it. Skip it if you're building something modest and 1000W is overkill, or if a 10-year warranty is non-negotiable for you.
