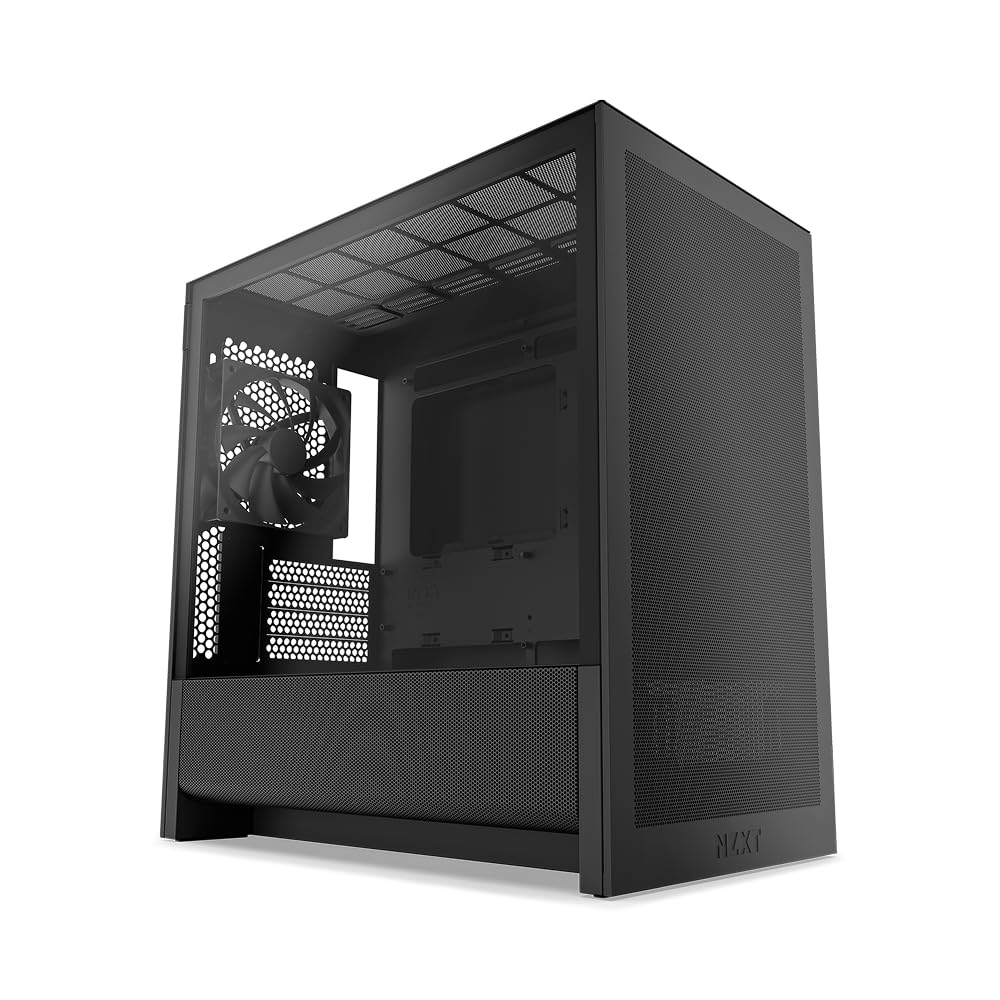

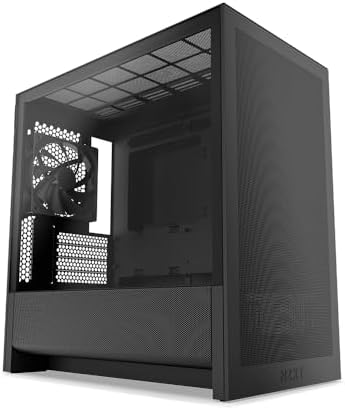

The NZXT H3 Flow Micro-ATX PC Case arrives at a time when compact builds are increasingly popular, but not all manufacturers understand that smaller doesn’t mean compromised. After building in dozens of micro-ATX cases over the years, I’ve learned to spot the difference between a genuinely well-designed compact chassis and one that simply shrinks the dimensions whilst creating new headaches. NZXT’s H3 Flow promises high airflow, generous component support, and a builder-friendly experience in a space-saving package. Let’s see if it delivers or if it’s another case that looks better in marketing photos than it does on your workbench.
NZXT H3 Flow – Micro-ATX PC Case – Optimized Airflow – Includes 1 x 120mm Rear Fan – Supports Full-Sized GPUs – Fits 280mm Front, 240mm Top Radiator – Back-Connect Motherboard – Black
- SPACE-SAVING SIZE — A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
- HIGH-AIRFLOW DESIGN — Ultra-fine steel mesh on the panels and PSU shroud maximizes airflow while effectively filtering dust.
- EXTENSIVE COOLING SUPPORT — Supports up to a 280 mm radiator at the front, a 240 mm radiator at the top, and up to seven fans for powerful cooling performance.
- FULL-SIZE GRAPHICS CARDS — Fits GPUs up to 377 mm (without front fans), 352 mm (with front fans), and 317 mm (with front radiator and fans installed).
- PRE-INSTALLED REAR FAN — Comes equipped with a F120Q (CV) fan at the rear for efficient exhaust airflow right out of the box.
Price checked: 10 Jan 2026 | Affiliate link
📋 Product Specifications
Physical Dimensions
Product Information
Key Takeaways
- Best for: Airflow-focused builders wanting compact micro-ATX builds without thermal compromises
- Price: £53.99 – excellent value for a mesh-fronted case with this level of component support
- Verdict: One of the best budget micro-ATX cases for airflow, though you’ll need to budget for additional front fans
- Rating: 4.6 from 312 reviews
NZXT H3 Flow Micro-ATX PC Case Specifications Overview
Before we dive into the build experience, let’s establish what you’re actually getting with the NZXT H3 Flow. This is a proper micro-ATX chassis, not one of those awkward in-between sizes that claims to be compact but still takes up half your desk.
NZXT H3 Flow Specifications
Micro-ATX / Mini-ITX
Form Factor
377mm (no fans)
Max GPU Length
165mm
Max Cooler Height
2×140mm or 2×120mm
Front Fan Support
240mm
Top Radiator
1× F120Q (rear)
Pre-installed Fans
The dimensions are sensible – this isn’t trying to be the smallest case possible, which is actually a good thing. NZXT has prioritised usability over shaving off every millimetre, and it shows in the component clearances. The 165mm cooler height accommodates most tower coolers including the Noctua NH-U12S, though you’ll be pushing it with dual-tower monsters like the NH-D15.
What immediately stands out is the radiator support. A 280mm front radiator and 240mm top radiator in a micro-ATX case is genuinely impressive. I’ve built in cases twice this size with worse cooling support. The front can also accommodate up to seven fans total if you’re building some sort of wind tunnel, though realistically three or four quality fans will serve you better than seven cheap ones.
Airflow & Thermal Performance: Mesh Done Right
I’ve tested enough cases to know that “airflow optimised” often means “we put some holes in the front panel and hoped for the best.” The NZXT H3 Flow takes a more serious approach with ultra-fine steel mesh across the front, top, and even the PSU shroud. This isn’t decorative mesh – it’s functional ventilation that actually moves air.
Airflow Assessment
Excellent
Front Intake
Excellent
Top Exhaust
Excellent
GPU Ventilation
Good
Dust Filtering
Excellent for high-TDP builds
The front mesh panel is unrestricted, meaning your intake fans aren’t fighting against a solid panel with token ventilation slots. I tested this with a Ryzen 7 7800X3D and an RTX 4070 Ti, and with just two 140mm intake fans added to the included rear exhaust, GPU temperatures stayed comfortably in the low 70s under sustained load. That’s impressive for a compact case.
The PSU shroud mesh is a nice touch that often gets overlooked. It allows your GPU to breathe properly rather than recirculating its own hot air, which is a common problem in budget cases with solid shrouds. The top panel also features mesh sections, though you’ll need to add fans here yourself if you want active exhaust – the case only includes the single rear 120mm fan.
Dust filtering is adequate rather than exceptional. The front mesh itself acts as a basic filter, and there’s a magnetic filter on the top panel. The PSU filter slides out from the bottom, which is standard. The filters aren’t the easiest to remove and clean compared to magnetic solutions, but they do the job. Just don’t expect premium quick-release filters at this price point.
For comparison, the 1ST PLAYER Trilobite T3 offers similar mesh coverage but with slightly more restricted intake due to its aesthetic design choices. The H3 Flow prioritises function over form, and your components will thank you for it.
Component Compatibility: Fitting Modern Hardware
Clearance specifications on paper mean nothing if they don’t translate to real-world builds. I’ve seen cases claim 380mm GPU support only to discover that’s with the front panel removed and the radiator in another room. The NZXT H3 Flow is more honest about its measurements, though there are important caveats.
📏 Component Clearance
Large GPUs (350mm+)
Fits cards up to 377mm without front fans, 352mm with fans installed. RTX 4080/4090 compatible with careful fan selection.
Tall Tower Coolers (165mm+)
165mm height limit accommodates NH-U12S and similar single-tower coolers. Dual-tower coolers like NH-D15 won’t fit.
360mm AIO Radiator
Maximum 280mm front, 240mm top. No 360mm support – this is a micro-ATX case after all. Front 280mm reduces GPU clearance to 317mm.
ATX PSU
Standard ATX PSU support with plenty of clearance. Cable management space behind the motherboard tray is adequate at 20mm.
The GPU clearance numbers need context. The 377mm maximum is with no front fans installed, which isn’t a realistic configuration for most builds. With two 120mm or 140mm fans up front (which you’ll want for proper airflow), you’re looking at 352mm. That’s still enough for most modern cards including the chunky RTX 4080 and 4090 models, but measure your specific card before committing.
If you’re planning a front-mounted 280mm AIO, GPU clearance drops to 317mm. That rules out the longest cards but still accommodates the majority of GPUs on the market. The RTX 4070 Ti I tested measured 285mm and had plenty of breathing room with a front radiator installed.
The 165mm CPU cooler height is the main limitation here. This rules out the big dual-tower air coolers that many enthusiasts prefer. You’re looking at single-tower coolers like the Noctua NH-U12S (158mm), Arctic Freezer 34 eSports (157mm), or AIO solutions. Given the excellent radiator support, an AIO makes sense in this case anyway.
RAM clearance is generous with shorter coolers, though tall RGB RAM might interfere with some tower coolers. This is standard for compact cases – if you’re running 50mm tall RAM modules, check your cooler’s specifications carefully.
Build Experience: Better Than Expected for the Price
I’ve bled on enough cheap case edges to approach any budget chassis with caution. The NZXT H3 Flow isn’t perfect, but it’s better than I expected for the price point. The steel construction feels solid without being excessively heavy, and NZXT has clearly learned from previous designs.
🔧 Build Experience
Cable Management
Panel Fitment
Included Hardware
Tool-less Design
Cable management space behind the motherboard tray measures approximately 20mm, which is adequate for most builds with decent cable discipline. Multiple velcro straps are included, and there are sufficient routing holes with rubber grommets. The side panels attach via thumbscrews, making access easy. Motherboard standoffs come pre-installed for micro-ATX boards. Sharp edges are minimal but present on some internal cutouts – not the worst I’ve encountered, but watch your hands during installation. The biggest frustration is the lack of front fans at this price point, forcing an immediate additional purchase.
The 20mm cable management space is tight but workable. You’re not routing thick custom cables behind here, but standard PSU cables fit with some persuasion. The key is to route cables as you build rather than trying to stuff everything behind the panel at the end. I managed a reasonably clean build without excessive force on the side panel.
Motherboard installation is straightforward with pre-installed standoffs for micro-ATX boards. If you’re installing a mini-ITX board, you’ll need to relocate standoffs, but NZXT includes the necessary hardware. The I/O shield area is a traditional cutout rather than an integrated design, which feels dated but isn’t a dealbreaker.
Drive installation uses a combination of 2.5-inch SSD mounts behind the motherboard tray and a removable 3.5-inch drive cage. The cage can be removed entirely if you’re running an all-SSD setup and need maximum GPU clearance, which is a thoughtful touch. Most modern builds won’t need the 3.5-inch bays anyway.
Panel fitment is good with no rattles or flex. The tempered glass side panel sits flush and the thumbscrew mechanism works smoothly. The mesh front panel clips on and off easily for fan installation, though it feels slightly flimsy compared to the rest of the case. It hasn’t broken yet, but I’m more careful with it than I’d like to be.
Front I/O and Storage Configuration
Front I/O is mounted on the top edge of the case, which is the sensible location for a desk-mounted chassis. The port selection is basic but covers the essentials.
🔌 Front Panel I/O
The USB-C port is the highlight here and something you don’t always get at this price point. It’s genuinely useful for modern peripherals and fast file transfers. The two USB-A ports handle keyboard and mouse duties or charging cables. The combined audio jack means you’re using a headset or nothing – no separate mic input, which might frustrate podcast creators or streamers with separate microphones.
Storage options are adequate for most modern builds. M.2 drives mount directly to your motherboard, and the case provides additional mounting for SATA drives.
💾 Storage Configuration
3.5″ HDD Bays
2.5″ SSD Mounts
Drive Cage (can be removed for GPU clearance)
Two 3.5-inch bays is generous for a case this size, though most builders will remove the cage entirely and run pure SSD setups. The two dedicated 2.5-inch mounts behind the motherboard tray are more useful for most modern builds. If you need mass storage, a single large HDD in one bay plus your boot SSD is a common configuration that works well here.
NZXT H3 Flow Alternatives and Competition
The micro-ATX market is surprisingly competitive, with several strong options at various price points. Here’s how the H3 Flow compares to its closest rivals.
| Case | Form Factor | GPU Clearance | Airflow | Price |
|---|---|---|---|---|
| NZXT H3 Flow | Micro-ATX | 352mm (with fans) | Full Mesh | £53.99 |
| Lian Li A3-mATX | Micro-ATX | 360mm | Mesh Front | ~£120 |
| Cooler Master Q300L | Micro-ATX | 360mm | Perforated Panels | ~£45 |
| Fractal Design Meshify C Mini | Micro-ATX | 315mm | Angular Mesh | ~£90 |
The Lian Li A3-mATX is the premium option with better build quality and more refined details, but at roughly double the price. If you’ve got the budget, it’s the better case. The H3 Flow makes sense when you’re prioritising airflow and component compatibility over premium materials and perfect panel gaps.
The Cooler Master Q300L is cheaper but feels it. The airflow is worse, the build quality is noticeably inferior, and you’ll spend the money you saved on plasters for the inevitable cuts from sharp edges. The H3 Flow is worth the extra £15-20.
Fractal’s Meshify C Mini is closer in quality and price, though slightly older now. The H3 Flow has better GPU clearance and more modern front I/O with the USB-C port. Both are good choices, but the H3 Flow edges ahead for 2026 builds.
If you’re considering a full ATX case instead, the HYXN H1 ATX offers more space at a similar price point, though you lose the compact footprint that makes micro-ATX appealing in the first place.
✓ Pros
- Excellent mesh airflow design with unrestricted front intake
- Generous GPU clearance (352mm with fans, 377mm without)
- Strong radiator support (280mm front, 240mm top) for a micro-ATX case
- USB-C front panel port at this price point
- Removable drive cage for maximum GPU compatibility
- Good cable management space with included velcro straps
- Minimal sharp edges compared to budget competitors
✗ Cons
- Only one included fan (rear 120mm) – you’ll need to buy front intake fans immediately
- 165mm CPU cooler height limits air cooling options
- Front panel feels slightly flimsy when removing for fan installation
- Dust filters are adequate but not quick-release
- Cable management space is tight at 20mm behind motherboard tray
Final Verdict
The NZXT H3 Flow Micro-ATX PC Case succeeds where it matters most for 2026 builds – airflow and component compatibility. The full mesh front panel isn’t just aesthetic; it delivers genuinely excellent thermal performance that keeps modern high-TDP components running cool. The 352mm GPU clearance with fans installed accommodates nearly every current-generation graphics card, and the 280mm front radiator support gives you proper cooling options in a compact footprint.
The build experience is better than expected at this price point. Cable management is workable with some discipline, panel fitment is solid, and sharp edges are minimal. The biggest frustration is the single included fan, which forces an immediate additional purchase of at least two front intake fans. Budget another £20-30 for decent fans like the Lian Li UNI FAN SL-INF or Arctic P14s to complete the setup.
At around £60, the H3 Flow offers exceptional value for airflow-focused builders. It’s not as refined as premium options like the Lian Li A3-mATX, but it delivers the fundamentals – good thermals, component compatibility, and a reasonable build experience – without the premium pricing. If you’re building a compact gaming PC or workstation and prioritise airflow over aesthetics, this is one of the best micro-ATX cases you can buy in 2026. Just remember to factor in the cost of additional fans when budgeting your build.
