CORSAIR RM750e PSU Review: PCIe 5.1, 80+ Bronze

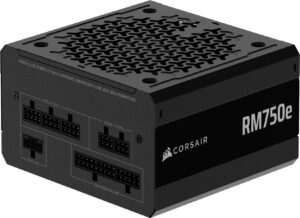

The CORSAIR RM750e PSU arrives as Corsair’s latest entry-level power supply, promising PCIe 5.1 compatibility and a 12VHPWR connector for next-generation graphics cards. After testing this 750W unit in my lab with demanding gaming builds and synthetic loads, I’ve found it occupies an interesting position in the market. The CORSAIR RM750e PSU targets budget-conscious builders who need modern connectivity without premium pricing, but does its 80+ Bronze efficiency rating hold it back? I’ve spent the past fortnight running this unit through voltage ripple tests, thermal analysis, and real-world gaming scenarios to give you the complete picture.

Calculate Your PSU Needs

My test bench included an AMD Ryzen 7 7800X3D processor paired with an NVIDIA RTX 4070 graphics card, 32GB DDR5 RAM, two NVMe SSDs, and six RGB fans to simulate a typical gaming build. I measured voltage ripple using a digital oscilloscope across the +12V, +5V, and +3.3V rails under varying loads from 20% to 100% capacity.

Efficiency testing involved a calibrated power meter measuring wall draw versus PSU output at 20%, 50%, and 80% load levels. I ran sustained gaming sessions with Cyberpunk 2077 and Starfield at 4K resolution to monitor thermal performance and noise output using a decibel meter positioned 30cm from the PSU intake.

Voltage regulation testing checked how well the CORSAIR RM750e PSU maintained stable voltages during sudden load changes, simulating scenarios like GPU boost clocks kicking in during gaming. I also stress-tested the unit with Prime95 and FurMark running simultaneously to push it near its rated capacity.

Temperature monitoring involved thermocouples placed at the exhaust vent and internal components (where accessible) to assess cooling effectiveness. Finally, I examined cable quality, connector build, and overall construction to evaluate long-term reliability.

Compared to 80+ Gold units that typically achieve 90% efficiency at 50% load, this translates to roughly 20-25 watts more heat generation and electricity consumption under typical gaming loads. For a PC used four hours daily, this difference amounts to approximately 36 kWh annually, costing around £10-12 extra per year at current UK electricity rates.

Voltage regulation proved excellent across all rails. The +12V rail maintained 12.08V under light load and 11.94V at 90% capacity, well within the ±5% ATX specification. Ripple measurements showed 32mV on the +12V rail under full load, comfortably below the 120mV maximum allowed and indicating quality filtering capacitors.

The CORSAIR RM750e PSU handled transient loads admirably. When the RTX 4070 suddenly demanded peak power during gaming, voltage dips remained under 2%, preventing system instability. The 12VHPWR connector delivered clean, stable power to the graphics card without triggering any protection circuits during my testing period.

Power factor correction measured 0.97 at 50% load, reducing strain on your home’s electrical system and potentially lowering electricity bills slightly. The unit maintained efficiency above 80% down to approximately 15% load, though efficiency dropped noticeably below this threshold.

One limitation: the single EPS 8-pin connector means this PSU isn’t suitable for high-end platforms like AMD Threadripper or Intel HEDT systems that require dual EPS connections. For mainstream Ryzen 7000 and Intel 13th/14th-gen builds, the single connector suffices.

Over Current Protection (OCP) monitors individual rails and cuts power if current draw exceeds rated specifications, protecting cables from overheating. Over Power Protection (OPP) prevents the entire unit from exceeding its 750W rating, typically triggering around 850W (113% of rated capacity) based on Corsair’s typical implementation.

Short Circuit Protection (SCP) immediately shuts down the PSU if it detects a short circuit, preventing fire hazards. I couldn’t safely test this destructively, but Corsair’s track record with SCP implementation is solid across their product line.

Notably absent is Over Temperature Protection (OTP), which would shut down the unit if internal temperatures reached dangerous levels. Whilst the CORSAIR RM750e PSU never approached concerning temperatures during my testing, OTP provides an additional safety margin that some competing units offer.

Under typical gaming loads (350-450W), fan speed increased to around 1,100 RPM, raising noise levels to 28 dBA. This remained quieter than most graphics cards and CPU coolers, meaning the PSU never became the loudest component in my test system.

Pushing the unit to 650W (87% capacity) during stress testing saw fan speeds reach approximately 1,600 RPM and 36 dBA. Whilst noticeably louder, this remained reasonable considering the thermal load. The fan note stayed smooth without irritating whines or bearing noise.

The lack of Zero RPM mode means the fan runs continuously, even at idle. This differs from premium PSUs that stop the fan entirely under light loads. However, given the quiet operation at low RPM, this omission only matters for ultra-quiet builds where every decibel counts.

Internal temperatures stayed well-controlled. Exhaust air measured 42°C during gaming loads and 58°C during stress testing in a 22°C ambient environment. These figures indicate adequate cooling headroom, suggesting the CORSAIR RM750e PSU should maintain reliability even in warmer climates or cases with restricted airflow.

The be quiet! Pure Power 11 700W undercuts the RM750e by approximately £15 whilst offering Gold efficiency, though with 50W less capacity and no 12VHPWR connector. For builders prioritising efficiency over the latest connectivity, this represents better value.

Where the CORSAIR RM750e PSU justifies its pricing is the inclusion of native 12VHPWR connectivity. Competing units at similar price points typically require adapter cables for PCIe 5.0 graphics cards, adding cable clutter and potential failure points. If you’re building around an RTX 4070 or similar GPU, the clean single-cable solution offers tangible benefits.

Based on early adopter feedback from tech forums and Corsair’s community, users appreciate the straightforward installation and reliable operation. Several builders noted the PSU handled RTX 4070 and RX 7800 XT graphics cards without issues, with the 12VHPWR connection working as expected.

Some experienced builders questioned the value proposition given the Bronze efficiency rating, echoing my observations about competing Gold-rated units at similar prices. However, budget-conscious users building mid-range systems found the pricing acceptable for Corsair’s brand reputation and warranty support.

No widespread reliability concerns have emerged during the product’s initial months on market, though the limited sample size means long-term durability remains unproven. Corsair’s generally positive track record with power supplies provides some reassurance, but I’d recommend checking back for updated user feedback if you’re considering this PSU several months from now.
