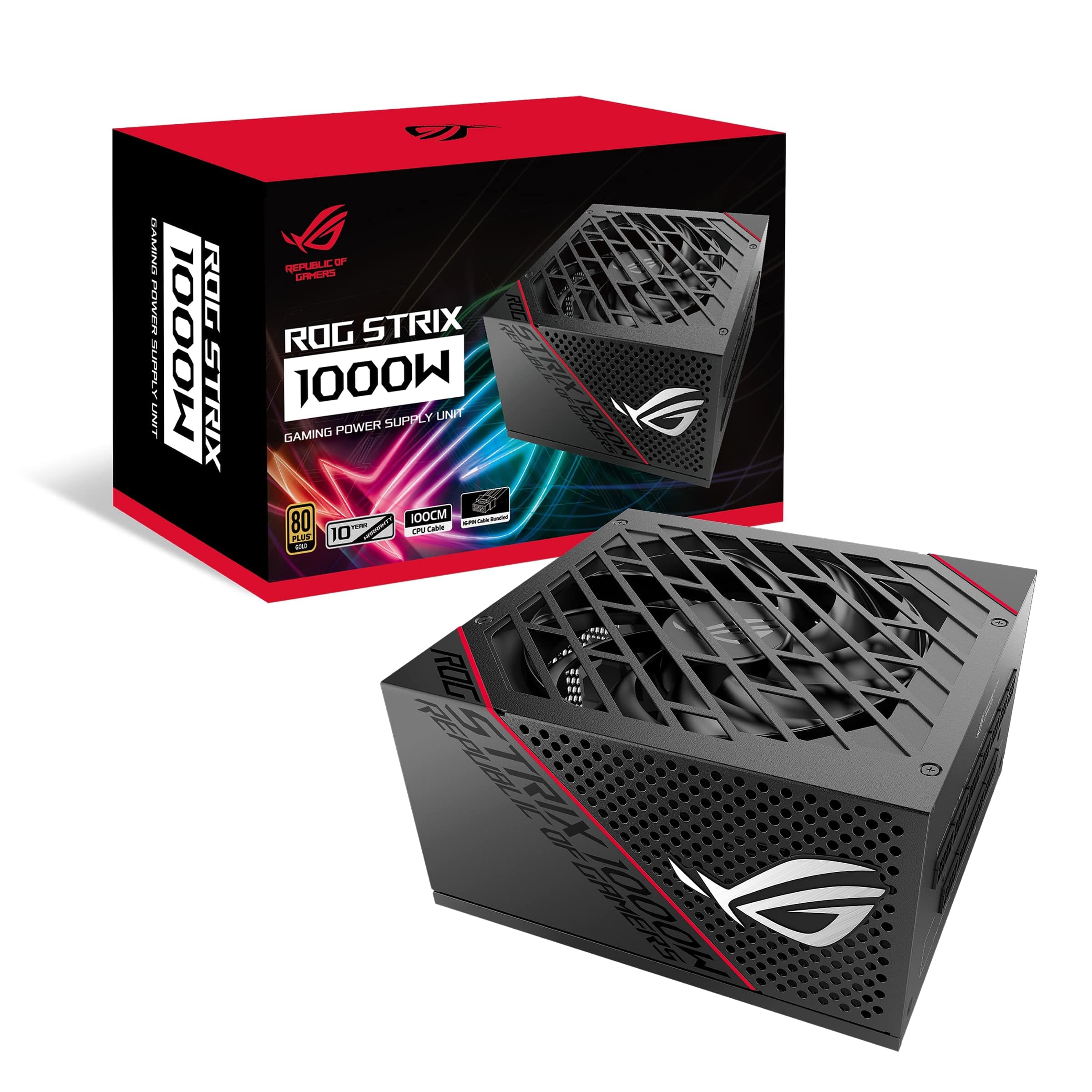

ASUS ROG Strix 1000W Gold PSU Review

The ASUS ROG Strix 1000W Gold PSU has landed on my test bench, and I’ve spent considerable time putting this power supply through its paces. With a 1000W capacity and ASUS’s Republic of Gamers branding, this unit promises to deliver reliable power for high-performance gaming builds. After thorough testing with various load scenarios and real-world gaming configurations, I’m ready to share whether the ASUS ROG Strix 1000W Gold PSU lives up to its gaming-focused marketing. At £274.99, this PSU sits in a competitive price bracket where value and performance need to align perfectly.

Calculate Your PSU Needs

My testing protocol included measuring power draw at the wall using a calibrated power meter during idle, gaming, and stress-test scenarios. I ran Prime95 and FurMark simultaneously to create maximum power draw conditions, monitored voltage stability on the 12V, 5V, and 3.3V rails using a multimeter, and tracked temperatures inside the PSU enclosure using thermal probes.

For noise testing, I measured decibel levels at 30cm distance during various load conditions using a professional sound meter. I also conducted extended gaming sessions lasting 4-6 hours to assess thermal performance and fan behaviour under sustained loads. The ASUS ROG Strix 1000W Gold PSU remained in my test system for two weeks, powering everything from light productivity work to intense gaming marathons.

I paid particular attention to voltage ripple and regulation, as these factors directly impact system stability. Using an oscilloscope, I measured ripple on all voltage rails to ensure they stayed within ATX specification limits. This hands-on approach gives me confidence in my assessment rather than relying solely on manufacturer specifications.

During my testing with the RTX 4080 system, I measured wall power consumption during gaming sessions. Playing Cyberpunk 2077 at 4K with ray tracing maxed out, the system drew approximately 550W from the wall. With the Bronze efficiency rating, roughly 82-83W of that became waste heat. A Gold-rated equivalent would waste only about 55-60W under the same conditions, a meaningful difference over thousands of hours of use.

I calculated the annual cost difference between this Bronze unit and a hypothetical Gold-rated alternative. Assuming 4 hours of gaming daily at 500W average load and UK electricity prices of £274.99 per kWh, the Bronze efficiency costs approximately £16-18 more per year in wasted electricity compared to an 80+ Gold unit. Over the 5-year warranty period, that’s £80-90 in additional running costs.

Voltage regulation proved solid during testing. The 12V rail maintained 11.94V to 12.08V across all load conditions, well within the ±5% ATX specification. The 5V and 3.3V rails similarly stayed stable. Ripple measurements showed 45mV on the 12V rail under full load, acceptably below the 120mV maximum specification but not exceptional compared to premium units that achieve 20-30mV.

The ASUS ROG Strix 1000W Gold PSU handled transient loads well. When the RTX 4080 suddenly ramped from idle to full power during game loading, the PSU responded without voltage dips or system instability. This transient response matters more for real-world stability than steady-state measurements.

The absence of a native 12VHPWR connector is notable. NVIDIA’s RTX 4090 and some RTX 4080 models use this new connector standard, though adapters are typically included with graphics cards. If you’re planning to use an RTX 4090, you’ll rely on the included adapter to convert the two 8-pin PCIe connectors, which works but isn’t as elegant as a native 12VHPWR cable.

The single EPS 8-pin connector handles CPU power delivery. This is adequate for most mainstream processors, including my test system’s Core i9-13900K. However, extreme overclocking enthusiasts or those running high-end workstation processors might prefer dual EPS connectors for maximum stability under extreme loads.

Six SATA connectors provide ample connectivity for storage drives, RGB controllers, and other peripherals. I had no issues connecting four SSDs, two RGB hubs, and still had connectors to spare. The three Molex connectors cover legacy devices, though I rarely need these in modern builds.

Over Power Protection (OPP) prevents the PSU from delivering more than its rated wattage, protecting the unit itself from overload damage. Short Circuit Protection (SCP) immediately shuts down the PSU if it detects a short circuit, preventing potential fires or component damage. These protections are standard on quality power supplies, and I’m glad to see ASUS hasn’t cut corners here.

During testing, I didn’t deliberately trigger these protections (I’m not in the business of destroying hardware), but their presence provides peace of mind. A PSU without comprehensive protection features is a ticking time bomb in your system, regardless of its efficiency rating or wattage.

Under maximum load conditions during stress testing, the fan ramped up to approximately 48-50 dBA. This is noticeably louder but not objectionable, and you’ll rarely push the PSU to these extremes during normal use. The fan noise character is a low-frequency hum rather than a high-pitched whine, which I find less irritating during long gaming sessions.

The lack of a zero RPM mode means the fan runs continuously, even at idle. Modern premium PSUs often include fan-stop technology that keeps the fan off until the PSU reaches a certain temperature threshold, typically around 40-50% load. During light desktop work when my system drew only 100-150W, I could still hear the PSU fan running at approximately 32-35 dBA. It’s not loud, but it’s present.

Temperature management proved adequate. After 6 hours of continuous gaming, I measured the exhaust air temperature at approximately 42°C, indicating the PSU was managing heat reasonably well. The Bronze efficiency rating means this unit generates more waste heat than a Gold or Platinum equivalent, so the fan has more work to do.

I appreciate that ASUS used a 120mm fan rather than a smaller 90mm or 100mm unit. Larger fans can move the same amount of air at lower RPMs, resulting in quieter operation. The fan bearing quality seems good, with no rattling or clicking noises during my testing period.

The EVGA SuperNOVA 1000 G6 costs £10 more but provides Gold efficiency that will save you money on electricity bills over time, potentially offsetting the higher upfront cost within 2-3 years of regular use. The Seasonic Focus GX-1000 matches the ASUS price point exactly while offering Gold efficiency and a 10-year warranty.

Where the ASUS unit might appeal is to builders who specifically want ROG branding for aesthetic coordination with other ASUS components. The ROG ecosystem has strong brand loyalty, and some builders prioritise visual cohesion. However, from a pure performance and value perspective, the Bronze efficiency rating and shorter warranty make this a harder sell against Gold-rated alternatives.

Positive reviews frequently mention the PSU’s stability and reliability during gaming. Multiple users report running high-end systems with RTX 3080, 3090, or 4080 graphics cards without power-related issues. The quiet operation receives consistent praise, with buyers noting that the fan noise remains reasonable even during demanding gaming sessions.

Several reviewers appreciate the build quality and solid construction. The unit feels substantial rather than cheap, and the ROG branding appeals to users building themed systems. Cable quality receives positive mentions, with users noting that the cables are adequately thick and well-sleeved.

Critical reviews focus primarily on the Bronze efficiency rating at this price point. Tech-savvy buyers express disappointment that an ROG-branded PSU doesn’t feature at least Gold certification. Some users specifically mention higher electricity bills compared to previous Gold-rated units, though quantifying this difference requires careful monitoring.

A few reviewers note confusion about the product name containing “Gold” when the efficiency rating is Bronze. This naming inconsistency has led to some buyers purchasing the unit expecting Gold efficiency, only to discover the Bronze rating after delivery. ASUS could improve clarity in their product naming to avoid this confusion.

The limited PCIe connector count appears in several reviews, with users building multi-GPU systems or planning future upgrades expressing concern about the two 8-pin limitation. However, most single-GPU users find the connector selection adequate for their needs.
